Installation Guide | iC7 Series Liquid-cooled L Filter OF7Z5
1

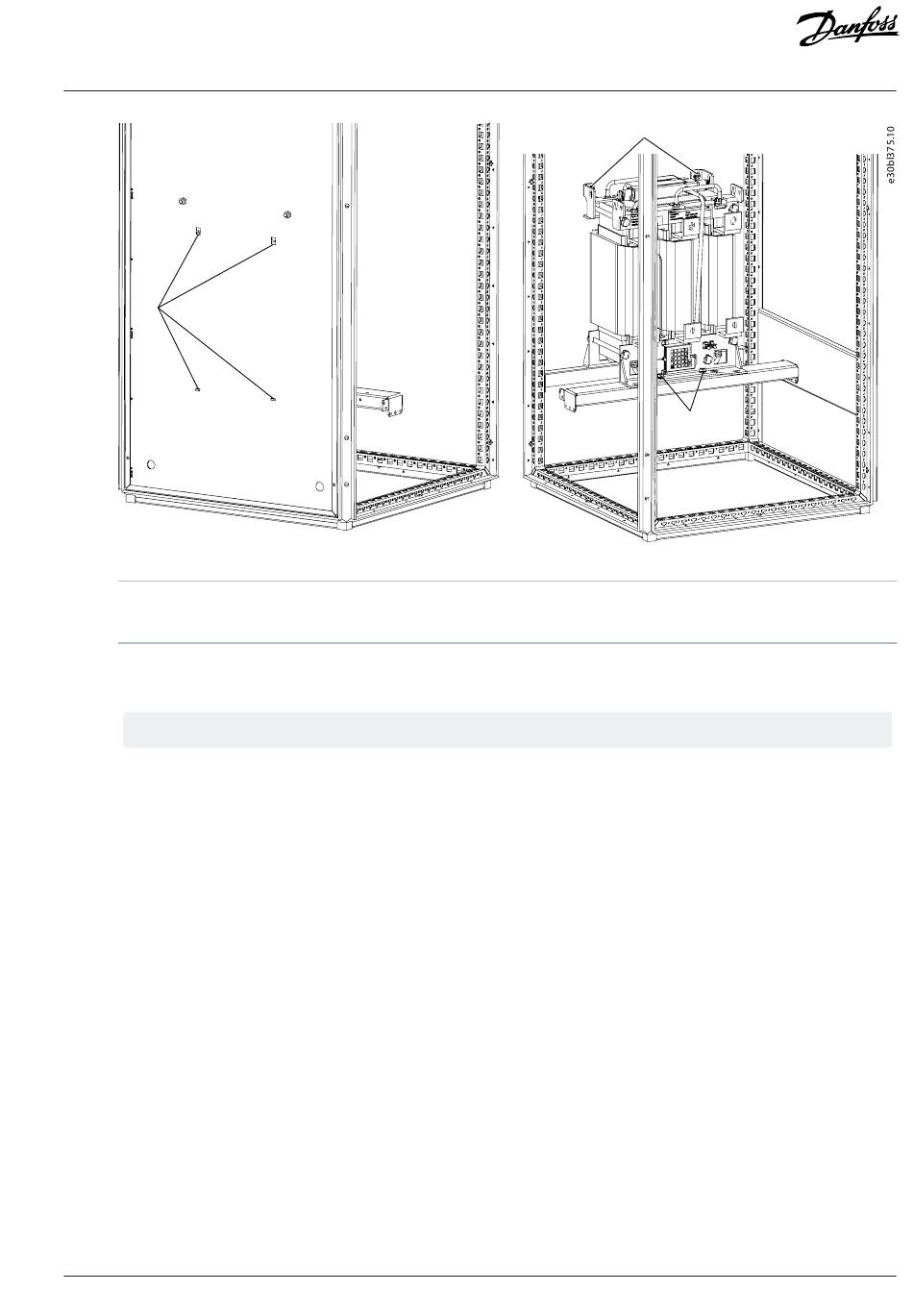

Figure 3: Installing the L Filter into a Cabinet (400 A, 1000 A)
1
Square mounting holes
3 The mounting holes at the bottom
3. Use the mounting holes to attach the filter.
a.
Attach the filter from all these corners: top back, bottom front, and bottom back.
The mounting brackets are not included in the delivery.
2.4 Installing L Filter into a Cabinet, 1640 A
1. Install the filter into the cabinet in a vertical position.
2.
Use the mounting holes to attach the filter.
a. Attach the filter from all the corners: top front, top back, bottom front, and bottom back.
Danfoss Drives Oy © 2024.11
2
2
The mounting holes at the top
AN447722950367en-000201 / 172K1111B |
Mechanical Installation
3
3
