Installation Guide | iC7 Series Liquid-cooled L Filter OF7Z5
Procedure
1.
Connect the AuxBus cable between the L Filter and the LC Filter. If there are several parallel filters, connect each L Filter to the LC
Filters individually.
a.
Connect the end of the AuxBus cable where the insulation was removed to terminal X85 on the LC Filter.
b. Connect the other end of the AuxBus cable to terminal X86 on the AuxBus temperature measurement board.
X201
X202
X203
X204
X205
X206

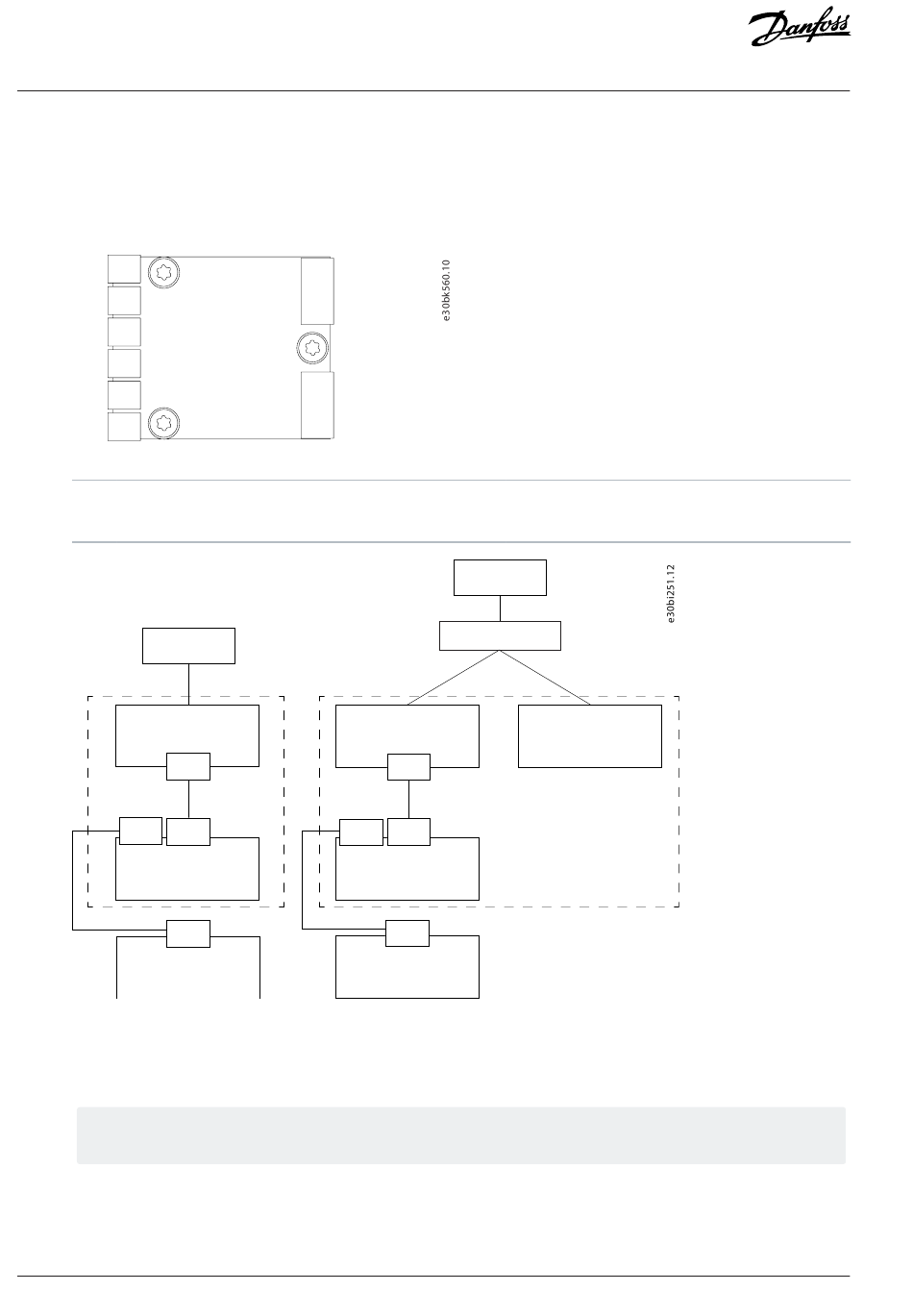

Figure 14: Terminals on the AuxBus Temperature Measurement Board
X206 Temperature measurement input
X86 AuxBus out
Control unit
Integration unit
Power unit 1
X79
X85 X86
LC Filter
X86
L Filter
Figure 15: AuxBus Topology for AFE and Grid Converter Modules AR10L and AR12L
2. Route the cable so that there is no risk of getting in touch with bare busbars or terminals.
3.
Ground each AuxBus cable at 1 end at the X85 terminal. To make the grounding connection, attach the shield of the cable to
the frame with a cable clamp.
The lower part of the cable clamp fixes the cable to the plate and provides strain relief. The upper part provides ~360°
grounding for the cable shield.
14 | Danfoss Drives Oy © 2024.11
X86
X85
X85
Control unit
Star coupler board
Integration unit
Power unit 1
X79
X85 X86
LC Filter
X86
L Filter
AuxBus in
Power unit 2
