INSTRUCTION SHEET
#380541
INSPECT CONTENTS IMMEDIATELY AND FILE CLAIM WITH DELIVERING
CARRIER FOR ANY DAMAGE. SAVE YOUR BOX AND ALL PACKING MATERIALS.
YOU ARE RESPONSIBLE FOR DAMAGE TO YOUR UNIT IF RETURNED IMPROPERLY PACKED.

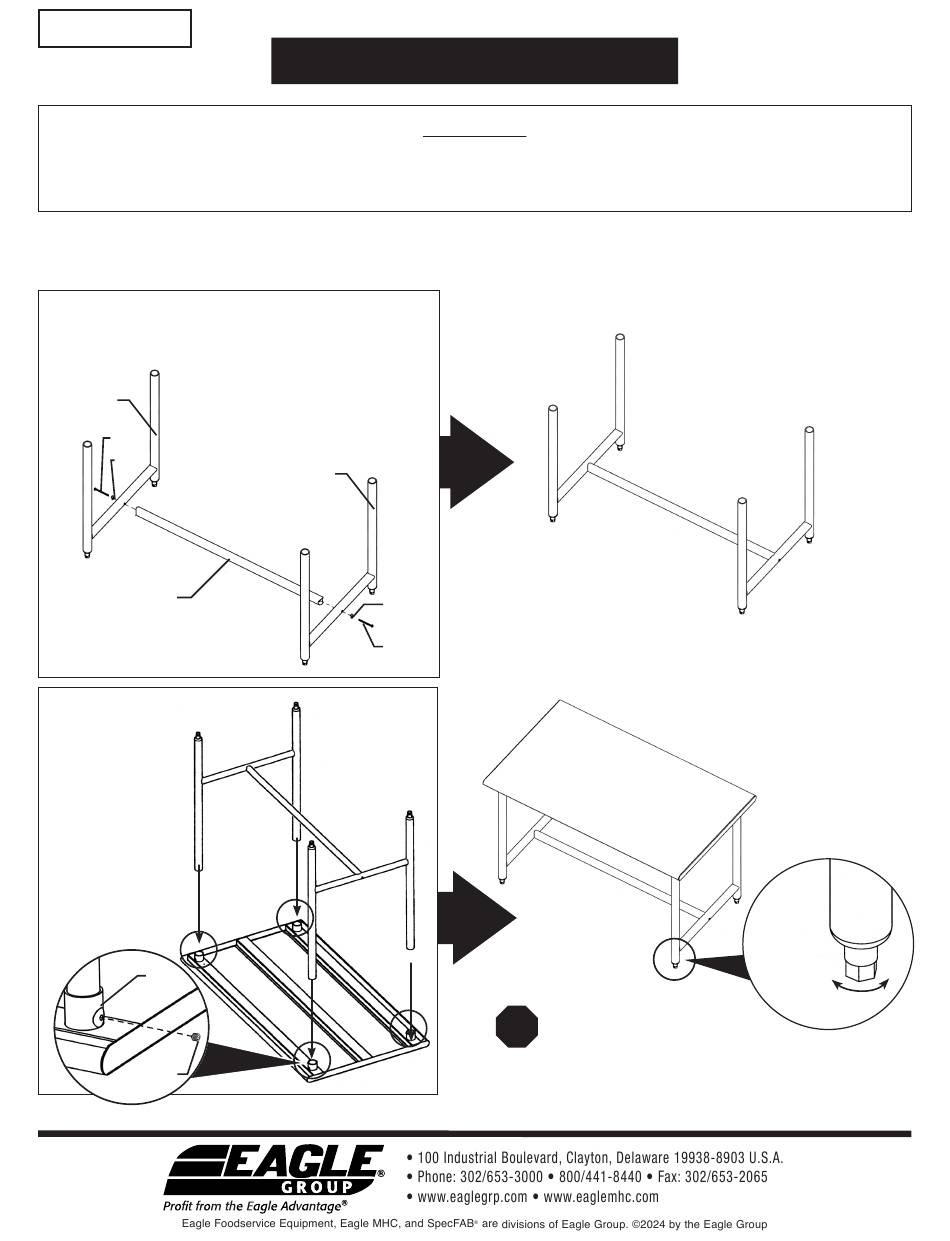

Step 1 - Assemble tubular frame.
• Attach knockdown tube to front-to-back crossbracings.
• Tighten bolt at each end.
front-to-back
crossbracing
bolt
washer
knockdown tube
Step 2 - Attach tabletop.
• Turn tabletop
upside-down (take
care not to scratch
the finish).
• Turn tubular frame
upside-down and
insert top of each
leg into each
tabletop gusset.
• At each gusset,
tighten set screw.
gusset
set screw
Cleanroom Tables with H-Frame
ASSEMBLY INSTRUCTIONS
For Cleanroom Table with C-Frame, see page 2.
For Cleanroom Table with Undershelf, see page 3.
For Casters, see back page.
front-to-back
crossbracing
washer
bolt
CAUTION
Assembly is complete.
(End)
Frame fully assembled.
Level
table with
adjustable
feet.
EG9895
Revised 11/24
