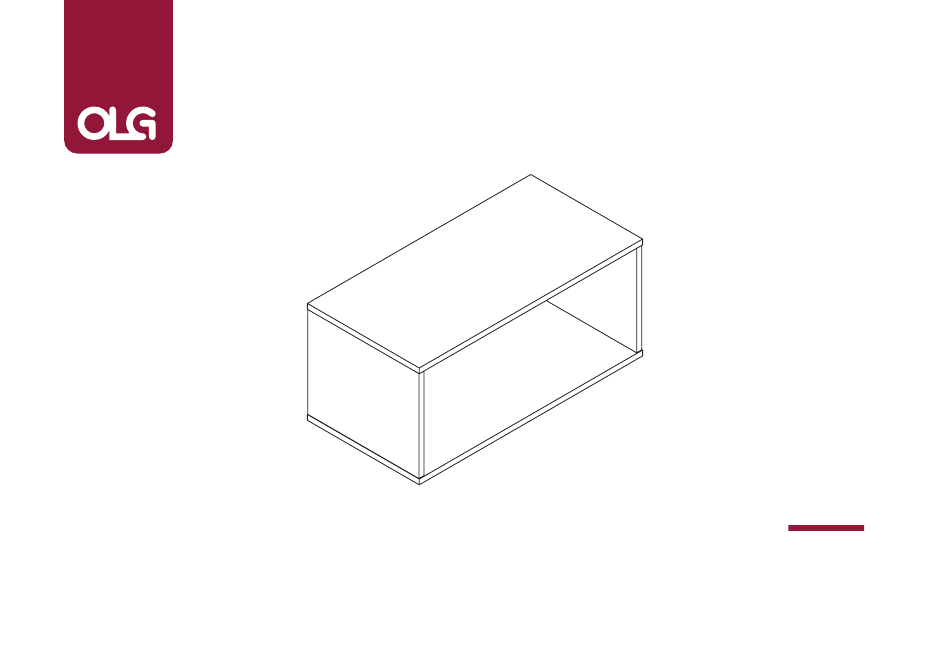

- Page 1 Rhodes Modular Shelving (50-MSCAD8036) Assembly Instructions...
-
Page 2: Components List
Rhodes Modular Shelving (50-MSCAD8036) Components List 16 x 6x35mm 4 x 3.5x25mm 16 x 8x30mm 16 x 5/8” Cam Bolt Screw Dowel Pin Cam Cover Pre Installed Parts: Rhodes Modular Shelving Assembly Instructions... - Page 3 Rhodes Modular Shelving (50-MSCAD8036) Assembly Instructions STEP 1: STEP 2: Preparation for panels A, G, X, Z and D. Panel X, Z and D assembly. 1. Insert cam bolts C1 into panels A and G as illustrated above. 1. Insert cam bolts C1 and dowel pins D1 on panel X, Z into cams on panel D and 2.
- Page 4 Rhodes Modular Shelving (50-MSCAD8036) Assembly Instructions STEP 3: STEP 4: Panel A and G assembly. 1. Insert cam bolts C1 and dowel pins D1 on panel A, G into cams on panel X, D, Z and 1. Put the cabinet on the shelf. tighten in a clockwise direction as illustrated above.
- Page 5 Rhodes Modular Shelving (50-MSCAD8036) Assembly Instructions Complete: Remove all QC and panel labels and wipe clean using a damp cloth and general household cleaner. Rhodes Modular Shelving Assembly Instructions...
- Page 6 Sydney 02 8188 2732 Melbourne 03 9111 0315 Brisbane 07 3733 1923 Adelaide 08 7111 0810 Perth 08 9468 2707 info@olgoffice.com myolg.online | olgoffice.com | officedesigner.net | motionoffice.com...
