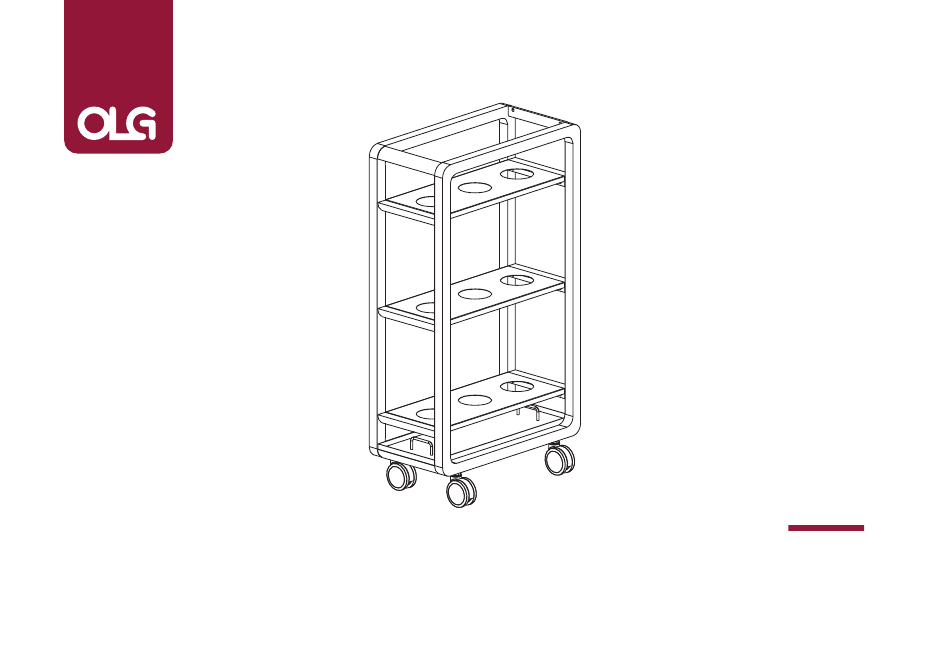

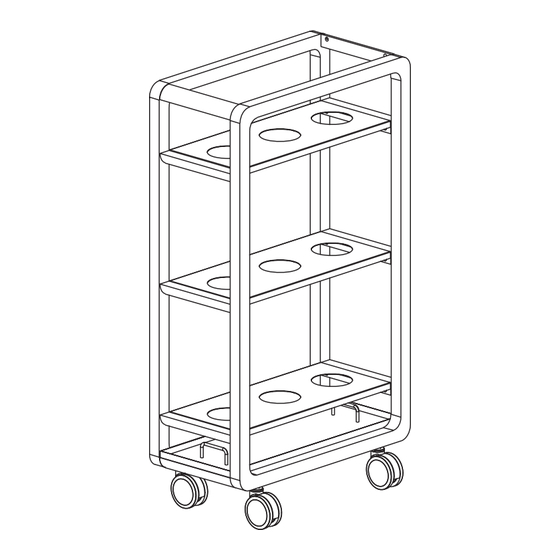

- Page 1 Rover Range (50-ROMPL-0916) Assembly Instructions...
- Page 2 Rover Range (50-ROMPL-0916) Components List 38 x 6x35mm 8 x 8x30mm 38 x 5/8” 12 x Threaded Cam Bolt Dowel Pin Cam Cover Dowel Pin Pre-installed Parts: 20 x 6x25mm 1 x Wrench 2 x Castor 2 x Castor Fix Bolt Rover Range Assembly Instructions...
- Page 3 Rover Range (50-ROMPL-0916) Assembly Instructions STEP 1: STEP 2: Panel O3, G assembly. Preparation for panel X, Z, O3. 1. Insert cam bolts C1 and dowel pins D1 into panel O3 into cams on panel G and 1. Insert cam bolts C1 and dowel pins D1 into panels X, G and Z as illustrated above. tighten in a clockwise direction as illustrated above.
- Page 4 Rover Range (50-ROMPL-0916) Assembly Instructions STEP 3: STEP 4: Panel Y/Z/O1/O2/O3/G assembly. 1. Insert cam bolts C1 and dowel pins D1 into panels X/Z into cams on panel O1/O2/O3/G 1. Install castors T1 and T2 using screws B3. and tighten in a clockwise direction as illustrated above. Rover Range Assembly Instructions...
- Page 5 Rover Range (50-ROMPL-0916) Assembly Instructions STEP 5: Complete: Moveable shelf E assembly. 1. Insert threaded dowel pins P1 into panels X and Z as illustrated above. Remove all QC and panel labels and wipe clean using a damp cloth and general 2.
