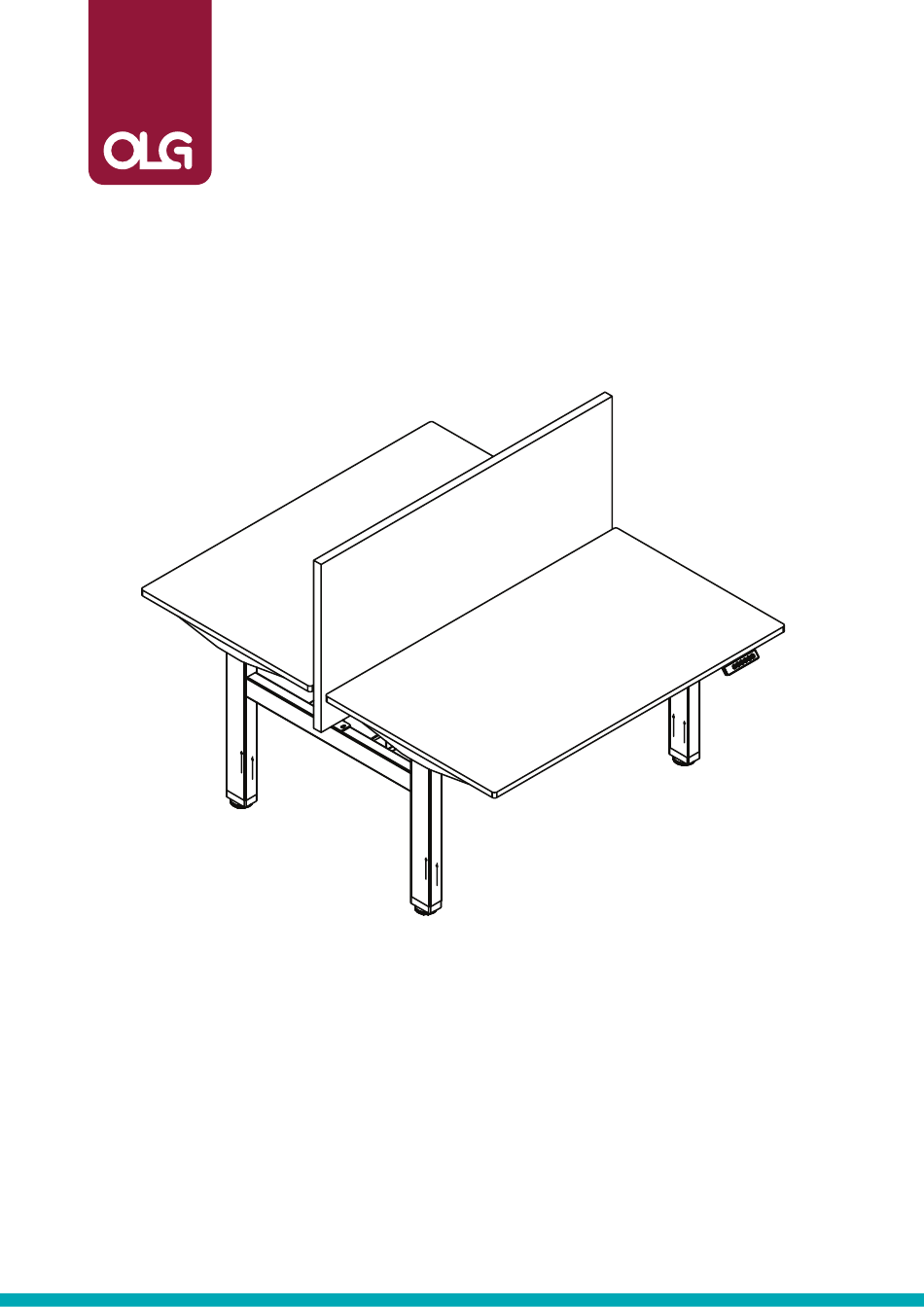

- Page 1 Klass Double Sided Desk. Assembly Instructions...
-
Page 2: Components List
8 x M8x18 16 x ST4.8x16 6 x M5x12 4 x ST3.5x16 12 x M6x8 Screw Screw Screw Screw Tools: 1 x M6 Allen Key 1 x M4 Allen Key Screwdriver (not included) Klass Double Sided Desk - Assembly Instructions... - Page 3 Klass Double Sided Desk Assembly Instructions STEP 1: 2 x Vertical Connecting Pipe 2 x Right Column 2 x Left Column Helpful Tips: 8 x M8x18 Pre-tighten the vertical connecting pipe and column by screws. STEP 2: If you don’t have a cable management tray, skip to Step 4.
- Page 4 (if Studio50 Screen is required) and tighten the screws. STEP 4: 4 x Rail M6 x 10 Screw 16 x M6x10 Helpful Tips: 1 x M5 Allen Key Pre-tighten the vertical connecting pipe and column by screws. Klass Double Sided Desk - Assembly Instructions...
- Page 5 Klass Double Sided Desk Assembly Instructions STEP 5: Transformer Tray Gasket M6 x 8 Screw 4 x Side Bracket 2 x Transformer Tray 12 x M6x8 4 x M6x10 M6 x 10 Screw Helpful Tips: Insert the side brackets into column and tighten the 1 x M5 Allen Key screws;...
- Page 6 (not included) facing out, and tighten screws. STEP 8: 4 x Extension Cable 6 x Cable Clip 2 x Power Cord Helpful Tips: Tidy up all the power cables with cable clip. Klass Double Sided Desk - Assembly Instructions...
-
Page 7: Manual Reset
Klass Double Sided Desk Direction for Use It is necessary to be reset manually after MANUAL RESET the initial installation and power off. • Keep pressing down key until the desktop until display shows “E-1” and “rES” alternately and release the key. -
Page 8: Direction For Use
• Press “M” the height has been changed to defined digit. Note: The function enables you to change the height shows on the display based on the actual measurement. Klass Double Sided Desk - Assembly Instructions... -
Page 9: Reset To Factory Setting
Klass Double Sided Desk Direction for Use The function can detect whether the CHANGE THE DISPLAY UNIT(cm/inch) motors are collected normally. • Once the display shows “E-3” and “rES”, it reminds you check whether any E-3 rES motors fail connected with control unit. Please connect the main cable again, wait at least 5 seconds. -
Page 10: Troubleshooting
TECHNICAL DATA Item Data Input voltage 100~240VAC Output voltage 24VDC Max loading 1000N Height range 595 – 1245 (without desktop) Duty cycle 2 min on / 18 min off Klass Double Sided Desk - Assembly Instructions... - Page 11 Sydney 02 8188 2732 Melbourne 03 9111 0315 Brisbane 07 3733 1923 Adelaide 08 7111 0810 Perth 08 9468 2707 info@olgoffice.com myolg.online | olgoffice.com | officedesigner.net | motionoffice.com...
