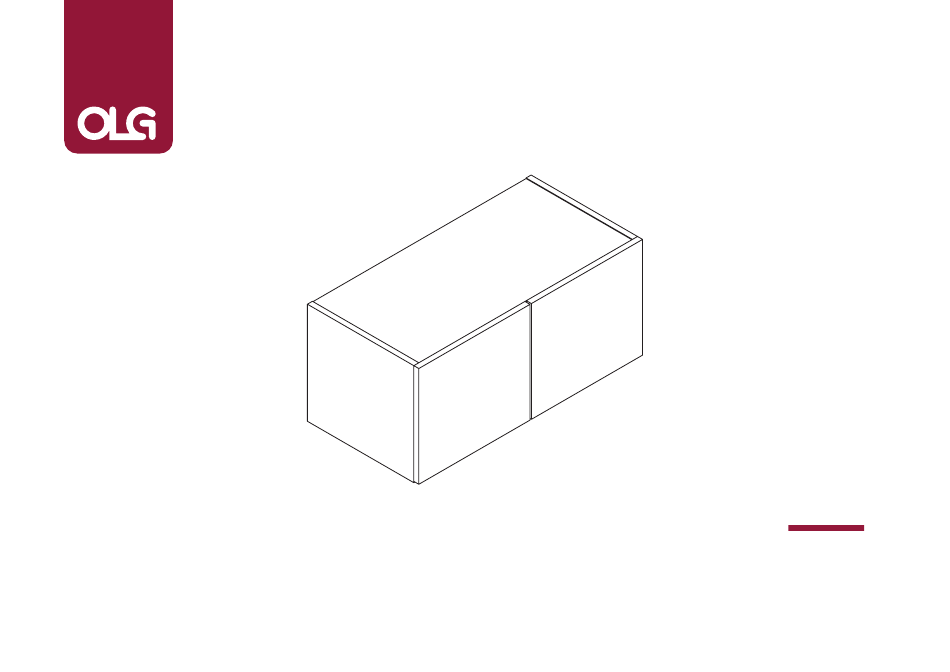

- Page 1 Rhodes Modular Shelving (50-MSCUBB8036) Assembly Instructions...
-
Page 2: Components List
Rhodes Modular Shelving (50-MSCUBB8036) Components List 22 x 6x35mm 36 x 4x16mm 4 x 3.5x25mm 22 x 8x30mm 22 x 5/8” Cam Bolt Screw Screw Dowel Pin Cam Cover Pre Installed Parts: 4pcs Hinge 4pcs Hinge Body Stand 2pcs Lock Rhodes Modular Shelving Assembly Instructions... - Page 3 Rhodes Modular Shelving (50-MSCUBB8036) Assembly Instructions STEP 1: STEP 2: V1/V2 Preparation for panels A, G, X, Z, D, Y, V1 and V2. 1. Insert cam bolts C1 into panels A, G, D, X and Z as illustrated above. Panel Y and D assembly. 2.
- Page 4 Rhodes Modular Shelving (50-MSCUBB8036) Assembly Instructions STEP 3: STEP 4: Panel A and G assembly. Panels Y and D assembly. 1. Insert cam bolts C1 and dowel pins D1 on panel A, G into cams on panel Y, D and 1.
- Page 5 Rhodes Modular Shelving (50-MSCUBB8036) Assembly Instructions STEP 5: 1. Loosen B screws 1. Loosen screw A 1. Loosen screw A 2. Adjust door vertical 2. Adjust door in depth 2. Adjust door sideways 3. Tighten B screws again 3. Tighten screw A again with screw C 3.
- Page 6 Rhodes Modular Shelving (50-MSCUBB8036) Assembly Instructions STEP 6: Complete: 1. Put the cabinet on the shelf. Remove all QC and panel labels and wipe clean using a damp cloth and general 2. Fix the cabinet on top of shelf using screws S2. household cleaner.
- Page 7 Sydney 02 8188 2732 Melbourne 03 9111 0315 Brisbane 07 3733 1923 Adelaide 08 7111 0810 Perth 08 9468 2707 info@olgoffice.com myolg.online | olgoffice.com | officedesigner.net | motionoffice.com...
