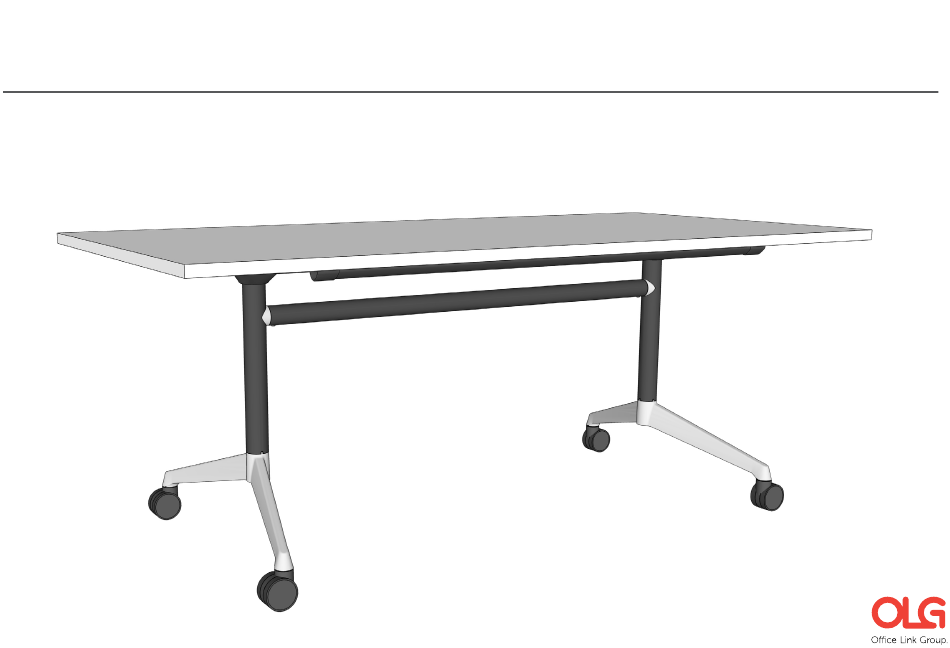

- Page 1 Modulus Flip Table Installation Guide TOOLS REQUIRED: Powered screwdriver myofficelinkgroup.com...
- Page 2 MODULUS FILP TABLE Installation Guide * To prevent possible scratches or damage, assemble the table upside down on a soft surface such as a blanket, carpet or packaging. Recommended 2-person Step * Attach Leg to the Top assembly by using Bolts, spring washer, flat washer.
- Page 3 MODULUS FILP TABLE Installation Guide STEP 3: Ensure the frame is located in the centre of the worksurface. Fully tighten all 6 screws on each mechanism. STEP 4: Recommended 2-person Step STEP 5: COMPLETE: On all tables with width larger than 700mm, secure the pull bar with Using 2 people rotate table into upright position.
- Page 4 MODULUS FILP TABLE - CONNECTORS/LINKS Installation Guide Drilling Patterns for Optional Connectors/Links Locked Unlocked 1.2mm pilot hole...
- Page 5 MODULUS FLIP TABLE Installation Guide Drilling Patterns for Modulus/Uni Flip Tables Mechanism & Pull Bar Width-600mm 170mm 1200mm 1500mm 1096 2x 2mmØx12mm h 1800mm 1396 Width-750mm 1200mm 1500mm 1096 1800mm 1396 12x 2.5mmØx15mm h Width-900mm 138mm 138mm 25mm 1200mm Table Length...
