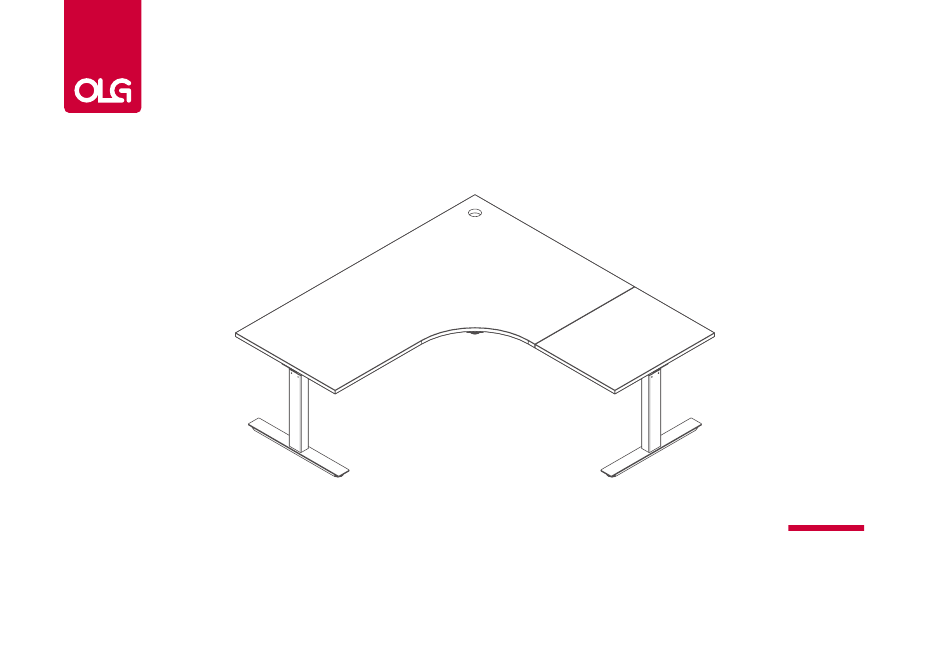

- Page 1 AgileMotion+ 90° Workstation Assembly Instructions...
- Page 2 AgileMotion+ 90° Workstation Components 2 x Worktop 2 x End Leg 1 x Corner Leg 2 x Feet 4 x Rail Sets 2 x Worktop Support 1 x Workstop Support 2 x Rail Plate 5 x Levelling Foot 1 x Power Supply 1 x Short Motor Cable 1 x Handset 1 x Medium Motor Cable...
- Page 3 AgileMotion+ 90° Workstation Assembly Instructions STEP 1: 8 - M8 x 10 AgileMotion+ 90° Workstation Assembly Instructions...
- Page 4 AgileMotion+ 90° Workstation Assembly Instructions STEP 2: 4 - M8 x 10 AgileMotion+ 90° Workstation Assembly Instructions...
- Page 5 AgileMotion+ 90° Workstation Assembly Instructions STEP 3: 16- M8 x 10 AgileMotion+ 90° Workstation Assembly Instructions...
- Page 6 AgileMotion+ 90° Workstation Assembly Instructions STEP 4: 8 - M8 x 25 AgileMotion+ 90° Workstation Assembly Instructions...
- Page 7 AgileMotion+ 90° Workstation Assembly Instructions STEP 5: 16- ST8.0 x 20 AgileMotion+ 90° Workstation Assembly Instructions...
- Page 8 AgileMotion+ 90° Workstation Assembly Instructions STEP 6: 90° 30mm 16 - ST5.0 x 23 30mm AgileMotion+ 90° Workstation Assembly Instructions...
- Page 9 AgileMotion+ 90° Workstation Assembly Instructions STEP 6a: 30mm 120° 30mm AgileMotion+ 90° Workstation Assembly Instructions...
- Page 10 AgileMotion+ 90° Workstation Assembly Instructions STEP 7: Medium Motor Cable Long Motor Cable Short Motor Cable 2 - ST4.2 x 16 Medium Motor Cable Long Motor Cable 2 - ST3.5 x 16 Short Motor Cable AgileMotion+ 90° Workstation Assembly Instructions...
- Page 11 AgileMotion+ 90° Workstation Assembly Instructions Complete: AgileMotion+ 90° Workstation Assembly Instructions...
- Page 12 AgileMotion+ 90° Workstation Directions For Use IMPORTANT Please carefully read the assembly manual and direction for use prior to instalment, use and maintenance of the table frame to gain a complete understanding of its contents. It provides you with important information about the safety, use, installation and maintenance of the table. WARNING: FAILURE TO COMPLY WITH OR OBSERVE ALL ASSEMBLY, SAFETY AND OPERATION INSTRUCTIONS REGARDING THE USE OF THIS PRODUCT MAY RESULT IN SERIOUS BODILY INJURY.
- Page 13 AgileMotion+ 90° Workstation Directions For Use MAINTENANCE •The table does not require any maintenance by the user •The table is only to be cleaned with a wrung cloth. TECHNICAL DATA Height Range: 635-1290mm including worktop Speed: ~30mm/s Input Voltage: 90-230V AC 50-60Hz, 300VA Output Voltage: 24V DC Max.10A Duty Cycle: 10% max.
