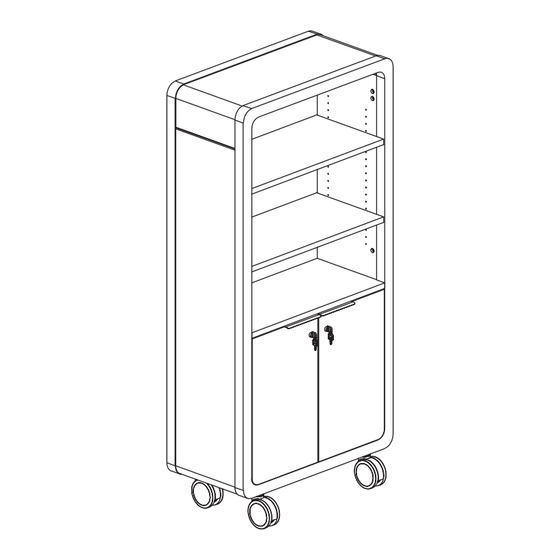

Rover Range (50-ROMLK-0919)
Assembly Instructions

Advertisement

loading
Need help?

Need help?

Do you have a question about the Rover Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for OLG Rover Series

Summary of Contents for OLG Rover Series

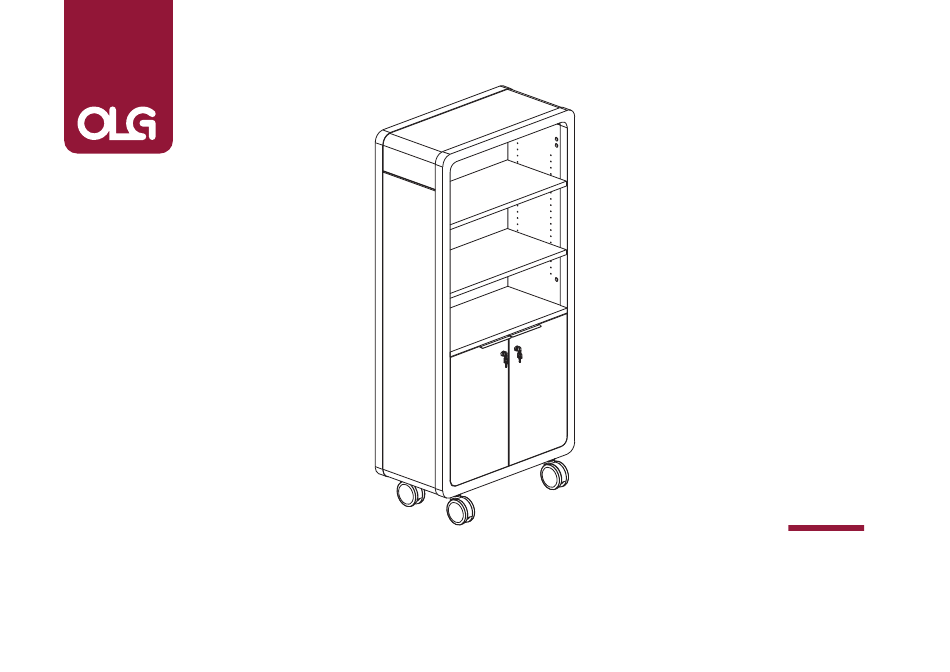

  • Page 1 Rover Range (50-ROMLK-0919) Assembly Instructions...

  • Page 2: Components List

    Rover Range (50-ROMLK-0919) Components List ITEM DESCRIPTION Top Panel 16 x 3.5x20mm 28 x 3.5x14mm 20 x 3x14mm Left Side Panel Screw Screw Screw Right Side Panel Back Panel Moveable Shelf Immovable Panel Bottom 2 x Lock 4 x Hinge Stand adjustable spring pieces 42 x 6x35mm...
  • Page 3 Rover Range (50-ROMLK-0919) Assembly Instructions STEP 1: STEP 2: Preparation for panel A, G, X, Z, Y, F, D. 1. Insert cam bolts C1 and dowel pins D1 into panels A,G,F,D,X and Z as illustrated above. 2. Locate the trim ring on lock and set aside. Insert cylinder of lock L through hole in Y 1.
  • Page 4 Rover Range (50-ROMLK-0919) Assembly Instructions STEP 3: STEP 4: Panel Y/F assembly Panel A/G assembly 1. Insert cam bolts C2 and dowel pins D1 into panels Y into cams on panel F and tighten 1. Insert cam bolts C1 and dowel pins D1 into panels A, G into cams on panel X, Y, Z and in a clockwise direction as illustrated above.
  • Page 5 Rover Range (50-ROMLK-0919) Assembly Instructions STEP 5: STEP 6: 1. Install the aluminum piece and X, Z, A, G panel together with screw S1 as illustrated Panel D assembly above. 1. Insert cam bolts C1 and dowel pins D1 on panel D into cams on panel X, Z, A, G, F, Y 2.
  • Page 6 Rover Range (50-ROMLK-0919) Assembly Instructions STEP 7: STEP 8: 1. Install the aluminum piece and X, Z, A, G panel together with screw S1 as illustrated 1. Insert fix bolt B1 on panel A, X, Z into cam on eva and tighten in a clockwise direction above.
  • Page 7 Rover Range (50-ROMLK-0919) Assembly Instructions STEP 9: STEP 10: Moveable shelf E assembly. 1. Install castors T1 and T2 using screws B3. 1. Insert threaded dowel pins P1 into panels X, D and Z as illustrated above. 2. Put the two panels E on the top of threaded dowel pins P1 as illustrated above. Rover Range Assembly Instructions...
  • Page 8 Rover Range (50-ROMLK-0919) Assembly Instructions STEP 11: 1. Loosen B screws 1. Loosen screw A 1. Loosen screw A 2. Adjust door vertical 2. Adjust door in depth 2. Adjust door sideways 3. Tighten B screws again 3. Tighten screw A again with screw C 3.
  • Page 9 Rover Range (50-ROMLK-0919) Assembly Instructions Complete: Remove all QC and panel labels and wipe clean using a damp cloth and general household cleaner. Rover Range Assembly Instructions...
  • Page 10 Sydney 02 8188 2732 Melbourne 03 9111 0315 Brisbane 07 3733 1923 Adelaide 08 7111 0810 Perth 08 9468 2707 info@olgoffice.com myolg.online | olgoffice.com | officedesigner.net | motionoffice.com...
