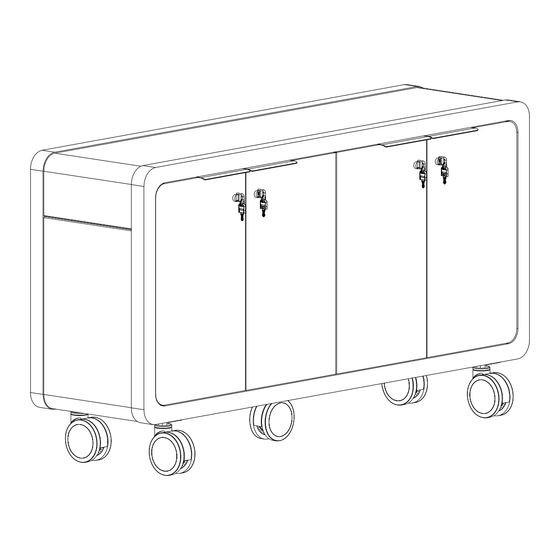

- Page 1 Rover Range (50-ROMCZ-1609) Assembly Instructions...
-
Page 2: Components List
8 x 4x22mm 24 x 3.5x30mm Cam Bolt Dowel Pin Cam Cover Dowel Pin Fix Bolt Screw Pre-installed Parts: 20 x 6x25mm 1 x Wrench 20 x 6x20mm 2 x Castor 3 x Castor Fix Bolt Fix Bolt Rover Range Assembly Instructions... - Page 3 2. Fix hinge stands G1 to panels V1 and V4 with screws S1 as illustrated above. and secure with S4 screws. Add trim ring to lock on outside of Y1. 3. Fix hinge stands G2 to panels V2 and V3 with screws S1 as illustrated above. Rover Range Assembly Instructions...
- Page 4 1. Install the aluminum piece and A, G panel together with bolts B2 as illustrated above. 1. Insert cam bolts C1 and dowel pins D1 on panel A, G into cams on panel X, Z, Y1, Y2, and tighten in a clockwise direction as illustrated above. Rover Range Assembly Instructions...
- Page 5 1. Insert cam bolts C1 and dowel pins D1 on panel G into cams on panel X, Z, A, G, Y1, Y2 and tighten in a clockwise direction as illustrated above. and tighten in a clockwise direction as illustrated above. Rover Range Assembly Instructions...
- Page 6 STEP 7: STEP 8: 1. Install the aluminum piece and X, Z, A, G panel together with screw S1 as illustrated above. 2. Install the aluminum piece and X, Z panel together with screw as illustrated above. Rover Range Assembly Instructions...
- Page 7 1. Insert Fix Bolt B1 on panel A, X, Z into cams on eva and tighten in a clockwise 1. Install castors T1 and T2 using screws B3. direction as illustrated above. 2. Install the aluminum piece and G panel together with Screw S1 as illustrated above. Rover Range Assembly Instructions...
- Page 8 STEP 11: Moveable shelf E assembly Insert threaded dowel pins P1 into panels X, D and Z as illustrated above. Put the four panels E on the top of threaded dowel pins P1 as illustrated above. Rover Range Assembly Instructions...
- Page 9 1. Loosen screw A 1. Loosen screw A 2. Adjust door vertical 2. Adjust door in depth 2. Adjust door sideways 3. Tighten B screws again 3. Tighten screw A again with screw C 3. Tighten screw A again Rover Range Assembly Instructions...
- Page 10 Rover Range (50-ROMCZ-1609) Assembly Instructions Complete: Remove all QC and panel labels and wipe clean using a damp cloth and general household cleaner. Rover Range Assembly Instructions...
- Page 11 Sydney 02 8188 2732 Melbourne 03 9111 0315 Brisbane 07 3733 1923 Adelaide 08 7111 0810 Perth 08 9468 2707 info@olgoffice.com myolg.online | olgoffice.com | officedesigner.net | motionoffice.com...
