Summary of Contents for OLG PLANTATION Series
- Page 1 PLANTATION Assembly Instructions Plantation Assembly Instructions...
- Page 2 Plantation Extendable Rails Plantation Assembly Instructions...
- Page 3 Plantation Extendable Rails STEP 1: STEP 2: Unscrew end rails and remove. Find the middle point of the center rail and screw the bracket. Screw to the structure spigots. STEP 3: STEP 4: Use the center as reference to position both ends back into the center rail Screw the end rails to the center rail once achieved the desired length.

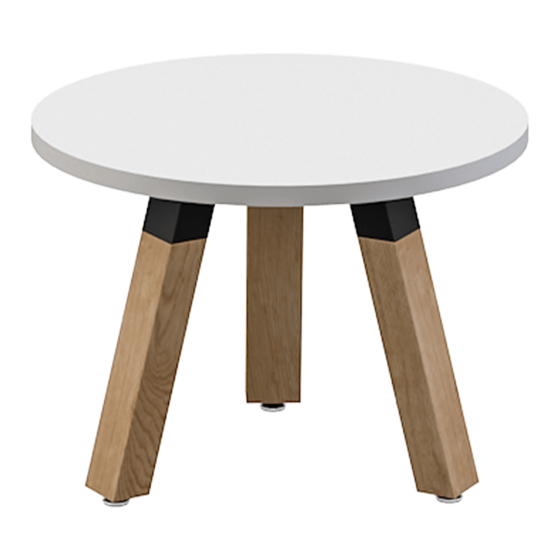

- Page 4 Plantation Assembly Instructions - Round Tables 600D Plantation Assembly Instructions...
- Page 5 Plantation Assembly Instructions - Round Tables 600D STEP 1: STEP 2: Align the legs at even spacing on the worktop, with the top plate being no Fix the leg to the worktop using 4 x 23 mm self-tapping screws per leg. closer than 5 mm from the edge of worktop.
- Page 6 Plantation Assembly Instructions - Round Tables 900D Plantation Assembly Instructions...
- Page 7 Plantation Assembly Instructions - Round Tables 900D STEP 1: STEP 2: Fix 1x angle brack to each leg using 2 x M12 bolts. Align the legs at even spacing on the worktop, with the top plate being no closer than 5 mm from the edge of worktop. Mark each leg location for easy fixing in step 3.
- Page 8 Plantation Assembly Instructions - Round Tables 1050D Plantation Assembly Instructions...
- Page 9 Plantation Assembly Instructions - Round Tables 1050D STEP 1: STEP 2: Fix 1x angle brack to each leg using 2 x M12 bolts. Align the legs at even spacing on the worktop, with the top plate being no closer than 5 mm from the edge of worktop. Mark each leg location for easy fixing in step 3.
- Page 10 Plantation Assembly Instructions - Round Tables 1200D Plantation Assembly Instructions...
- Page 11 Plantation Assembly Instructions - Round Tables 1200D STEP 1: STEP 2: Fix 1x angle brack to each leg using 2 x M12 bolts. Align the legs at even spacing on the worktop, with the top plate being no closer than 5 mm from the edge of worktop. Mark each leg location for easy fixing in step 3.
- Page 12 Plantation Assembly Instructions - Round Tables 1500D Plantation Assembly Instructions...
- Page 13 Plantation Assembly Instructions - Round Tables 1500D STEP 1: STEP 2: Fix 1x rail receiver to each leg using 2 x M12 bolts. Connect centre rail, 2x short rails, 4 x legs together as shown. Fix 2x rail receivers to the centre rail using 2 x M12 bolts. STEP 3: STEP 4: Align frame with worktop and fix down using 4 x 23 mm screws per leg and...
- Page 14 Plantation Assembly Instructions...
- Page 15 Plantation Assembly Instructions...
- Page 16 Plantation Assembly Instructions - Meeting Table 4 Leg Plantation Assembly Instructions...
- Page 17 Plantation Assembly Instructions - Meeting Table 4 Leg STEP 1: STEP 2: Assemble 2x end leg frames to the legs. Total 6 x M12 per leg. Assemble the rail receivers to the crossbar. 40 mm less than worktop STEP 3: STEP 4: Assemble the rails to the end legs and set rail length.
- Page 18 Plantation Assembly Instructions - Meeting Table 6 Leg Plantation Assembly Instructions...
- Page 19 Plantation Assembly Instructions - Meeting Table 6 Leg STEP 1: STEP 2: STEP 3: Assemble 2x end leg frames to the legs. Assemble the rail receivers to the crossbar. Assemble the mid leg using bolts provided Total 6 x M12 per leg. in the spreader bar kit.
- Page 20 Plantation Assembly Instructions...
- Page 21 Plantation Assembly Instructions...
- Page 22 Plantation Assembly Instructions - Desking 2 DSD Plantation Assembly Instructions...
- Page 23 Plantation Assembly Instructions - Desking 2 DSD 10 mm less than worktop length STEP 1: STEP 2: Assemble 2x end leg sets as above, including assembling the rail receivers to the Fit rails to end frames and set length to fit worktops. crossbar.
- Page 24 Plantation Assembly Instructions - 2DSD Studio50 Screen Plantation Assembly Instructions...
- Page 25 Plantation Assembly Instructions - 2DSD Studio50 Screen STEP 1: STEP 2: Fix AXSB bracket to end frame and tighten. Rest the screen panel on bracket so the end of the screen is equal distance from each end of the setting. STEP 3: Fix the screen down tightly to the bracket.
- Page 26 Plantation Assembly Instructions - Desking 4 DSD Plantation Assembly Instructions...
- Page 27 Plantation Assembly Instructions - Desking 4 DSD equal measurement 5 mm equal measurement 5 mm STEP 1: STEP 2: Assemble 1x mid leg set including assembling rail receivers to the crossbar. Fit rails and 5 mm set worktop length to 10 mm less than the overall length. STEP 3: STEP 4: Align worktops to frame recommended spacing is 5 mm overhang on the ends...
- Page 28 Plantation Assembly Instructions - 4DSD Studio50 Screen Plantation Assembly Instructions...
- Page 29 Plantation Assembly Instructions - 4DSD Studio50 Screen Same Instructions for 6DSD w/ Studio50 Screen STEP 1: STEP 2: Fix AXSB bracket to end and mid frame and tighten. Rest the screen panel on bracket so the end of the screen is equal distance from each end of the setting.
- Page 30 Plantation Assembly Instructions - Desking 6 DSD Plantation Assembly Instructions...
- Page 31 Plantation Assembly Instructions - Desking 6 DSD equal measurement 5 mm equal measurement equal measurement 5 mm STEP 1: STEP 2: Assemble 1x mid leg set including assembling rail receivers to the crossbar. Fit rails and 5 mm set worktop length to 10 mm less than the overall length. STEP 3: STEP 4: Align worktops to frame recommended spacing is 5 mm overhang on the ends...
- Page 32 Plantation Assembly Instructions - Desking Straight Desk Plantation Assembly Instructions...
- Page 33 Plantation Assembly Instructions - Desking Straight Desk 5 mm 10 mm less than worktop length 5 mm STEP 1: STEP 2: Assemble 2x end leg sets as above, including assembling the rail receivers to the Fit rails to end frames and set length to fit worktops. crossbar.
- Page 34 Plantation Assembly Instructions - Desking Desk w/ Return Plantation Assembly Instructions...
- Page 35 Plantation Assembly Instructions - Desking Desk w/ Return STEP 1: STEP 2: Follow straight desk instructions, then assemble 1x additional end leg. Align main desk worktop and fit off. STEP 3: a.) STEP 4: Fit end leg to return top at 5mm off the end of worktop. Fit 2x joining plates to join.
- Page 36 Sydney 02 8188 2732 Melbourne 03 9111 0315 Brisbane 07 3733 1923 Adelaide 08 7111 0810 Perth 08 9468 2707 info@olgoffice.com myolg.online | olgoffice.com | officedesigner.net | motionoffice.com...
