Power connection

CAUTION!
Always ensure that all connections (power supply, drain and
fresh water hose) are firm, dry and not leaked.
Take care these parts are never to be crushed, kinked, or twisted
If the supply cord is damaged, it must be replaced by the service
agent (see warranty card) in order to avoid hazards.

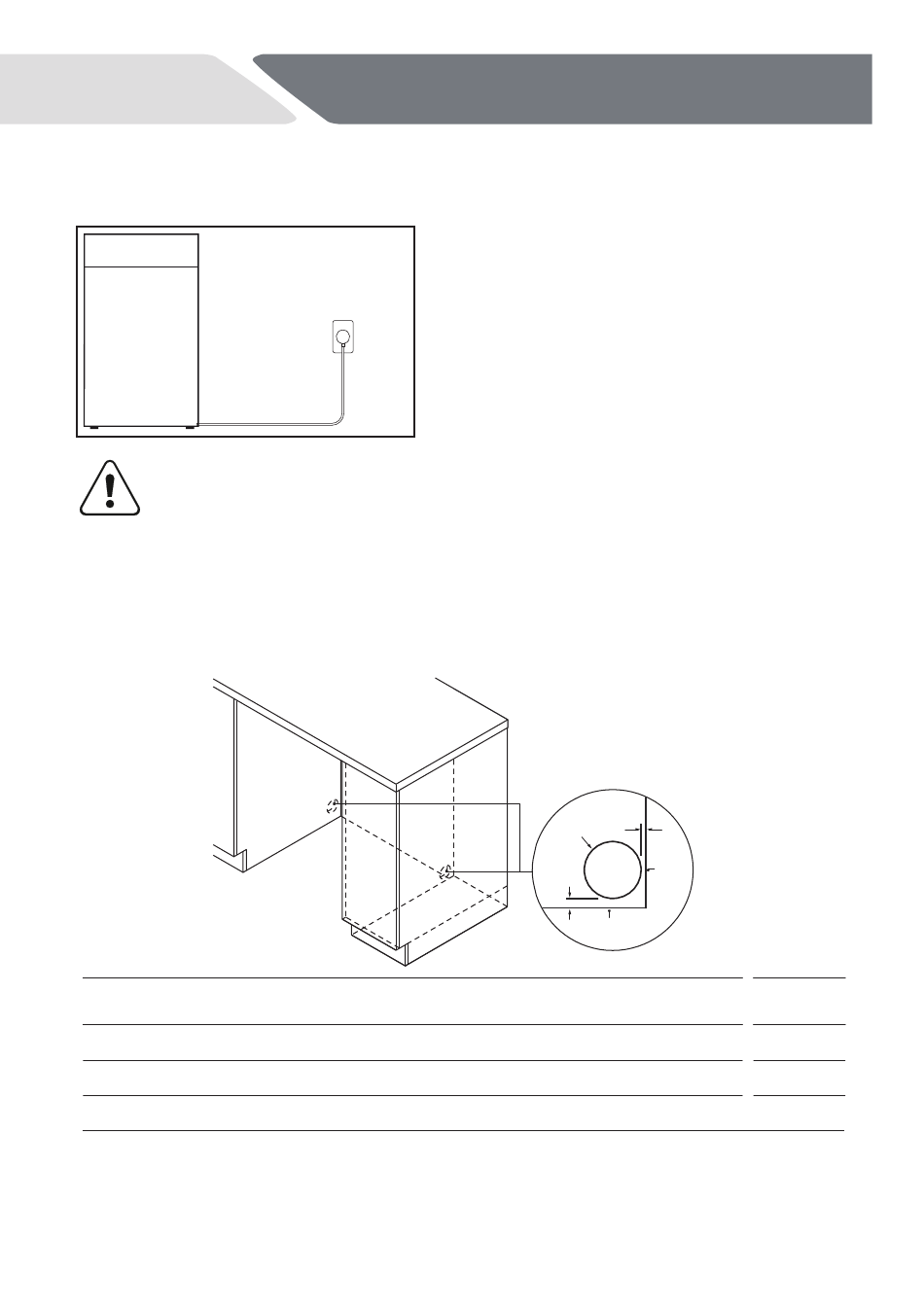

Service hole
Service hole dimensions
Maximum distance between rear of cavity and service hole*
A
B
Maximum distance between floor and service hole**
C Minimum diameter of service hole
* based on a cabinetry depth of 580mm.
**depending on adjustment of levelling feet.
As shown in the data, the power supply
is plugged into an externally accessible
place through the service hole for easy
plugging.
C
B
floor
PROFILE
Installation
A
rear
wall
MM
15
0-50
70
8
