Led Indicators - SMC Networks EZ1026FMSC - annexe 1 User Manual

Expansion Module Series ---
SMC-EZ1026GT V.2: Gigabit 1000 Base-T Module

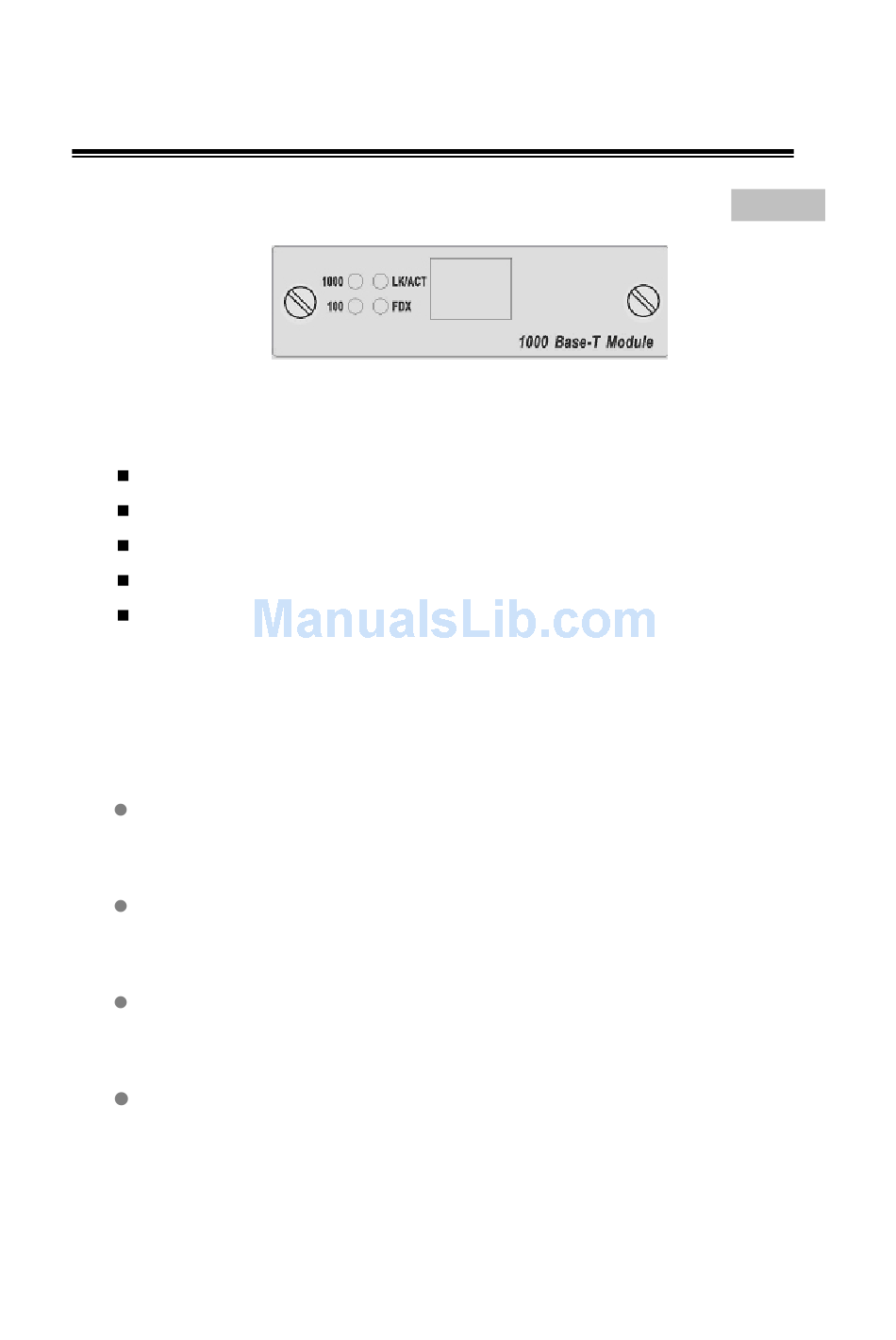

Figure 1. 1000 Base-T N-Way Module Front View
Features:
One 10/100/1000 Mbps N-Way auto-negotiation RJ-45 port
Automatic MDI/MDIX supported
Pause-Frame Base flow control on Full-duplex mode
Full-duplex modes supported
LED-indicators for 1000M, 100M, LK/ACT, FDX status

LED Indicators

There are four types of LED indicators for the RJ-45 Port. If there is no
connection to this port, the corresponding LED indicators are not lit.
1000M The LED indicator is green when the port is connected to a
1000Mbps devices. This LED indicator is not lit when the port is
connected to a 10/100Mbps device.
100M The LED indicator is green when the port is connected to a
100Mbps devices. This LED indicator is not lit when the port is
connected to a 10/1000Mbps device.
LK/ACT The LED indicator is green when there is a connection
secured to a device ( Link ) to the port . This LED indicator blinks when
there is a data transmission ( Activity ) taking place at the port.
FDX
Full-duplex mode. When the port is operating in Half-duplex mode, the
LED indicator is not lit. When collisions are occurring at the port, the
LED indicator blinks.
The LED indicator is yellow when the port is operating in
