SMC Networks EZ 10/100 User Manual

5/8/16-port 10base-t/100base-tx dual-speed hub
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EZ 10/100 and is the answer not in the manual?

Questions and answers

Related Manuals for SMC Networks EZ 10/100

Summary of Contents for SMC Networks EZ 10/100

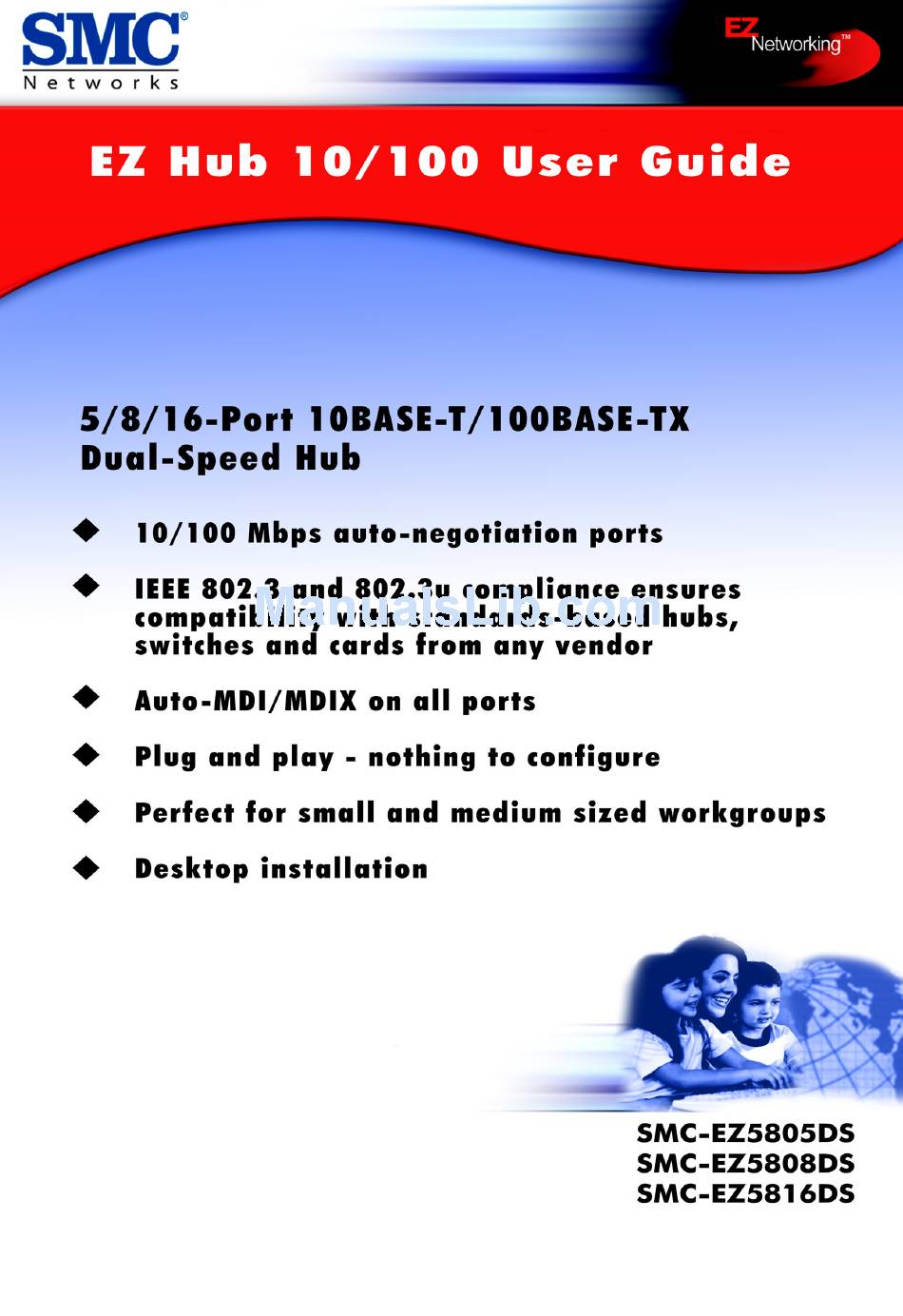

  • Page 3: User Guide

    EZ Hub 10/100 User Guide From SMC’s EZ line of low-cost workgroup LAN solutions 38 Tesla Irvine, CA 92618 Sep 2002 Phone: (949) 679-8000 Pub. # 150000018900B R01...
  • Page 4 38 Tesla Irvine, CA 92618 All rights reserved. Printed in Taiwan Trademarks: SMC is a registered trademark; and EZ Hub is a trademark of SMC Networks, Inc. Other product and company names are trademarks or registered trademarks of their respective holders.

  • Page 5: Limited Warranty

    ARRANTY Limited Warranty Limited Warranty Statement: SMC Networks, Inc. (“SMC”) warrants its products to be free from defects in workmanship and materials, under normal use and service, for the applicable warranty term. All SMC products carry a standard 90-day limited warranty from the date of purchase from SMC or its Authorized Reseller.
  • Page 6 * SMC will provide warranty service for one year following discontinuance from the active SMC price list. Under the limited lifetime warranty, internal and external power supplies, fans, and cables are covered by a standard one-year warranty from date of purchase. SMC Networks, Inc. 38 Tesla Irvine, CA 92618...
  • Page 7 • Consult the dealer or an experienced radio/TV technician for help EC Conformance Declaration - Class B SMC contact for these products in Europe is: SMC Networks Europe, Edificio Conata II, Calle Fructuós Gelabert 6-8, 2 08970 - Sant Joan Despí, Barcelona, Spain.
  • Page 8 OMPLIANCES * Immunity to conducted disturbances, Induced by radio-frequency fields: EN 61000-4-6:1996(0.15 - 80MHz with 1kHz AM 80% Modulation: 3V/m) * Power frequency magnetic field immunity test according to EN 61000-4-8:1993(1A/m at frequency 50Hz) * Voltage dips, short interruptions and voltage variations immunity test according to EN 61000-4-11:1994(>95% Reduction @10ms, 30% Reduction @500ms, >95% Reduction @5000ms) LVD:...

  • Page 9: Table Of Contents

    ABLE OF ONTENTS ABLE OF ONTENTS Introduction ........1 Description of Hardware .
  • Page 10 ABLE OF ONTENTS...

  • Page 11: Introduction

    NTRODUCTION NTRODUCTION This manual describes how to install and use SMC’s EZHub 10/100. It features 5,8 or 16 10/100 Mpbs Auto sensing ports, and provides the flexibility to fit into your working space with network environment. The EZ Hub 10/100 can be used to connect with PCs, servers, hubs, bridges, other switches and routers.

  • Page 12: Front Panel Leds

    NTRODUCTION • Built-in wiring crossovers on all ports allow connections to servers and workstations to be made with straight-through cabling • “At-a-glance” LEDs for port and system status monitoring • Jabber lock-up function automatically stops transmission of abnormal frames to prevent network disruption •...

  • Page 13: Rear Panel

    NTRODUCTION SMC-EZ5805DS SMC-EZ5808DS SMC-EZ5816DS Rear Panel These EZ Hub 10/100 models feature 5/8/16 10BASE-T/100BASE-TX ports with RJ-45 connectors located on the rear panel of the hub. Each port contains a built-in wiring crossover (MDI-X) that allows for the use of straight-through twisted-pair cable for connections to devices without built-in crossover ports (i.e., workstations, printers, etc.).

  • Page 14: Installing The Hub

    NSTALLING THE NSTALLING THE The EZ Hub 10/100 can be placed on a desktop or shelf and stacked with other devices using the provided 4 rubber foot pads Equipment Checklist After unpacking the EZ Hub 10/100, check the contents of the box to be sure you’ve received the following components: •...

  • Page 15: Instructions

    NSTALLING THE • There should be adequate space (approximately two inches) on all sides for proper air flow. • Make sure twisted-pair cable is always routed away from power lines, fluorescent lighting fixtures and other sources of electrical interference such as radios, transmitters, etc. •...

  • Page 16: Sample Applications

    AMPLE PPLICATIONS AMPLE PPLICATIONS Some typical applications for the EZ Hub 10/100, SMC-EZ5805DS , SMC-EZ5808DS and SMC-EZ5816DS are illustrated below: Notebook PC Printer Scanner Desktop PC Standalone LAN...
  • Page 17 AMPLE PPLICATIONS 100 Mbps Servers 100 Mbps Server Cascading Hubs...

  • Page 18: Troubleshooting

    ROUBLESHOOTING ROUBLESHOOTING 1. Symptom Power LED does not light after power on. Probable Causes Power outlet or power cord may be defective. Possible Solutions • Check for loose connections. • Check the power outlet by using it for another device. •...

  • Page 19: Cable Specifications

    ABLE PECIFICATIONS ABLE PECIFICATIONS Cable Type and Connector 10BASE-T Cable Type Length Connector Category 3, 4, 5 UTP 100 m (328 ft) RJ-45 100BASE-TX Cable Type Length Connector Category 5 UTP 100 m (328 ft) RJ-45 RJ-45 Connector Pin Assignments Caution: DO-NOT plug a phone jack connector into any RJ-45 port.
  • Page 20 ABLE PECIFICATIONS RJ-45 Pin Assignments RJ-45 Pin Assignments Straight-Through Cable Crossover Cable End 1 End 2 End 1 End 2 1 (Tx+) 1 (Tx+) 1 (Tx+) 3 (Rx+) 2 (Tx-) 2 (Tx-) 2 (Tx-) 6 (Rx-) 3 (Rx+) 3 (Rx+) 3 (Rx+) 1 (Tx+) 6 (Rx-)

  • Page 21: Specifications

    PECIFICATIONS PECIFICATIONS EZ Hub 10/100 General Network Interface RJ-45: 100 ohm, UTP cable 10BASE-T - Categories 3, 4, or 5 100BASE-TX - Category 5 LEDs Power - one Speed - one per port (SMC-EZ5816DS) Link/Activity - one per port Filtering/Forwarding/Learning Rates Full line rate Temperature Operating: 32°...

  • Page 22: Smc-Ez5805Ds

    PECIFICATIONS EMC/Safety Compliances CE Mark Emissions FCC Class B, CE Mark, CISPR Class B Immunity IEC 1000-4-2/3/4/6 Safety CSA/NRTL (C22.2.950, UL 1950) TÜV/GS (EN60950) CB (IEC60950) Warranty Limited Lifetime SMC-EZ5805DS Ports 5 RJ-45 ports Ports 1-5: Twisted-pair, fixed crossover MAC Address Table 1K entries Memory Buffer 128 Kbytes per unit...

  • Page 23: Smc-Ez5808Ds

    PECIFICATIONS Heat Dissipation 15.7 BTU/hr Maximum Current 0.76A @ 6VDC SMC-EZ5808DS Ports 8 RJ-45 ports Ports 1-8: Twisted-pair, fixed crossover MAC Address Table 2K entries Memory Buffer 512 Kbytes per unit Size 6.93 x 3.34 x 1.26 in. (17.6 x 8.5 x 3.2 cm) Weight 0.794 lbs (0.36 kg) Power Requirements...

  • Page 24: Smc-Ez5816Ds

    PECIFICATIONS Maximum Current 0.76A @ 6VDC SMC-EZ5816DS Ports 16 RJ-45 ports Ports 1-16: Twisted-pair, fixed crossover MAC Address Table 8K entries Memory Buffer 4 Mbytes per unit Size 11.22 x 3.34 x 1.26 in. (28.5 x 8.5 x 3.2 cm) Weight 1.521 lbs (0.69 kg) Power Requirements...
  • Page 25 FOR TECHNICAL SUPPORT, CALL: From U.S.A. and Canada (24 hours a day, 7 days a week) (800) SMC-4-YOU; (949) 679-8000; Fax: (949) 679-1481 From Europe (8:00 AM - 5:30 PM UK Time) 44 (0) 118 974 8700; Fax: 44 (0) 118 974 8701 INTERNET E-mail addresses: techsupport@smc.com...
  • Page 26 Model Numbers: SMC-EZ5805DS, 38 Tesla SMC-EZ5808DS, SMC-EZ5816DS Irvine, CA 92618 Publication Number:150000018900B R01 Phone: (949) 679-8000...
