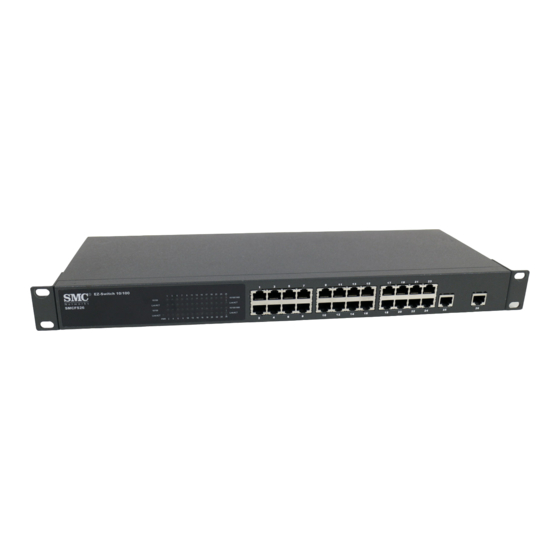

SMC Networks SMCFS26 Specifications

OVERVIEW
This EZSwitch™ standalone ethernet switch offers 24 10/100Mbps ports plus 2 10/100/1000Mbps ports.
Designed specifi cally for small offi ce applications, this switch features auto-negotiation and auto-MDIX
on all ports for easy network expansion and provides full bandwidth capability on each port. With
auto-negotiating 10/100 and 10/100/1000 ports, the speed and duplex modes of attached devices are
instantly detected, allowing the switch to auto confi gure for optimal performance.
These switches offer fl exibility for any business while ensuring feature-rich and value-added support. Every
port can automatically adjust and link to either a PC or another switch, with no need for crossover cables.
The gigabit ports offer high speed links to local servers or to the rest of the LAN. Rack mounted or on a
desktop, these switches are ideal for any offi ce and are great additions to existing network workgroups.
KEY FEATURES
2 Gigabit Links
With 2 gigabit Ethernet ports, this switch is capable of gigabit
speed server connections.
Auto-MDIX ports
No crossover cables required, pure plug and play for easy operation.
APPLICATION DIAGRAM
LEGEND
10G FIBER
1G FIBER
10G COPPER
1G COPPER
10/100
PoE
WIRELESS
SMCFS26
EZSwitch™ 10/100 24-Port 10/100 Unmanaged Switch plus 2 10/100/1000 ports
Sturdy Metal Chassis
The sturdy, rack mountable metal chassis is ideal for desktop or
rack mounting applications. In addition, the lack of fans ensures
silent operation.
LED indicators
Simple, at-a-glance LEDs to see port status and for simple trouble-
shooting.
