SMC Networks EX250-SEN1 Instruction Manual

Reduced wiring system ethernet/ip compatible si unit
Hide thumbs Also See for EX250-SEN1:
Table of Contents

Advertisement

Quick Links

See also: Operating Manual
Enlarged version
Reduced wiring system
EtherNet/IP™ Compatible SI Unit

Instruction Manual

EX250-SEN1
URL http:// www.smcworld.com
Specifications are subject to change without prior notice and any obligation on the part of the manufacturer.
EtherNet/IP™ is a trademark used under licence by ODVA.
The descriptions of products shown in this document may be used by the other companies as their trademarks.
© 2006 SMC Corporation All Rights Reserved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EX250-SEN1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SMC Networks EX250-SEN1

Summary of Contents for SMC Networks EX250-SEN1

  • Page 1: Instruction Manual

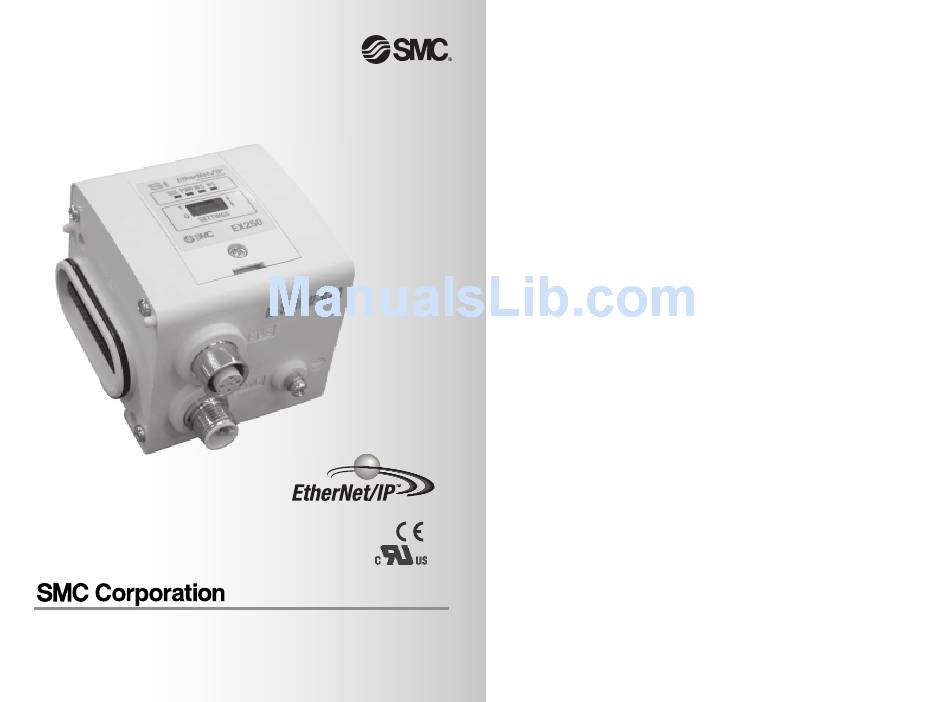

    Reduced wiring system EtherNet/IP™ Compatible SI Unit Instruction Manual EX250-SEN1 URL http:// www.smcworld.com Specifications are subject to change without prior notice and any obligation on the part of the manufacturer. EtherNet/IP™ is a trademark used under licence by ODVA. The descriptions of products shown in this document may be used by the other companies as their trademarks. ©...
