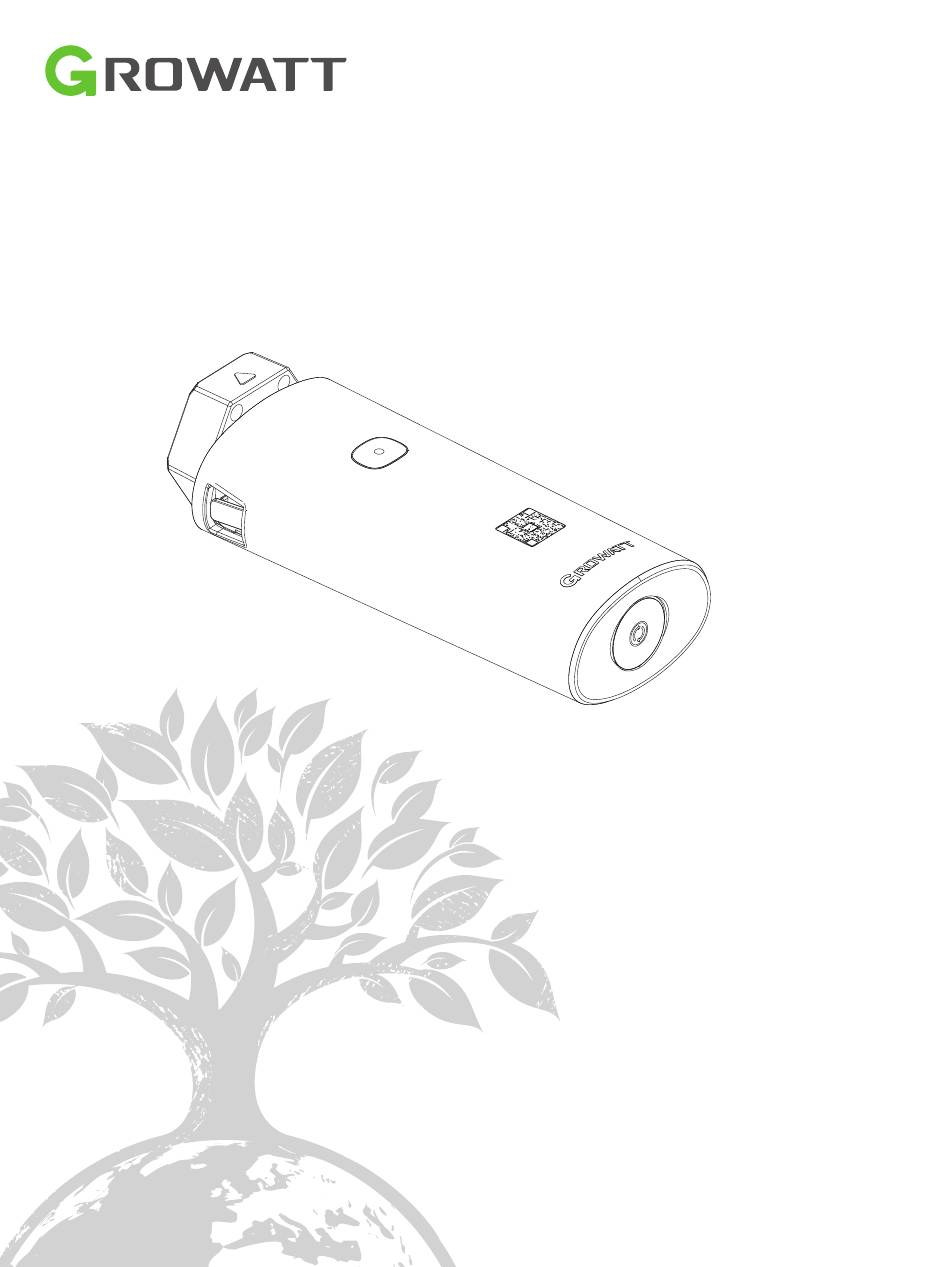

- Page 1 User Manual Disclaimer: The content of this document is continually reviewed and amended, where necessary. Growatt reserves the right to make changes to the material at any time and without notice. Copyright © 2023 Shenzhen Growatt New Energy Co., Ltd. All rights...
-
Page 2: Product Overview
Product Overview ShineWiFi-X is compatible with all Growatt on-grid inverters equipped with the USB port, which enables remote monitoring and maintenance of PV systems through WiFi connection. Supports mobile APP and Server web page monitoring Ø Supports remote configuration and firmware upgrade Ø... -
Page 3: Installation And Configuration
Ensure that the triangle icon is facing upward and centered, then turn the lock clockwise 4.2 Turn on the inverter and check the status of ShineWiFi-X After installing the ShineWiFi-X module, turn on the inverter. If the indicator is flashing red, it indicates that the communication between the inverter and ShineWiFi-X is normal. - Page 4 2.Once the APP is installed, you can configure the datalogger and add the PV plant as prompted. For details about configuring the datalogger, refer to ShineWiFi-X Configuration Guide. Scan the QR code below to download the documentation. ShineWiFi-X Configuration Guide 【ShinePhone APP】...
- Page 5 Growatt ShineServer (1)Check the router a)The router's name should be a combination of English letters and numbers; special symbols are not allowed: (﹉…·€¥) ShineWiFi-X fails to b)For security reasons, please use Steady connect to the home the encrypted wireless network green...
-
Page 6: Specification
LED status Indication Troubleshooting ShineWiFi-X module Steady Red Replace the ShineWiFi-X module is faulty ShineWiFi-X fails to Reconnect the ShineWiFi-X module connect to the to the USB port inverter 5. Specification Type Item Parameter Dimensions (L*W*H) 122mm/47mm/32mm Manual language Chinese, English... -
Page 7: Declaration Of Conformity
Type Item Parameter 802 11b:16±2 dBm @11Mbps Wireless 802 11g:14±2 dBm @54Mbps Transmit power parameters 802 11n:13±2 dBm @HT20 MCS7) USART: Data rate 9600bps/38400bps/115200bps Nominal voltage 5V ±5% Nominal current Electrical Operating temperature -20℃ ～ +65℃ parameters Storage temperature -40℃ ～ +85℃ Relative humidity 5%RH～95%RH Operating altitude... - Page 8 Download Manual This product can only be powered by the USB port of Ÿ Growatt inverters. Do not connect it to other USB ports or adapters. If the inverter displays a low insulation resistance alarm, Ÿ it indicates that a ground fault might have occurred in the chassis.
