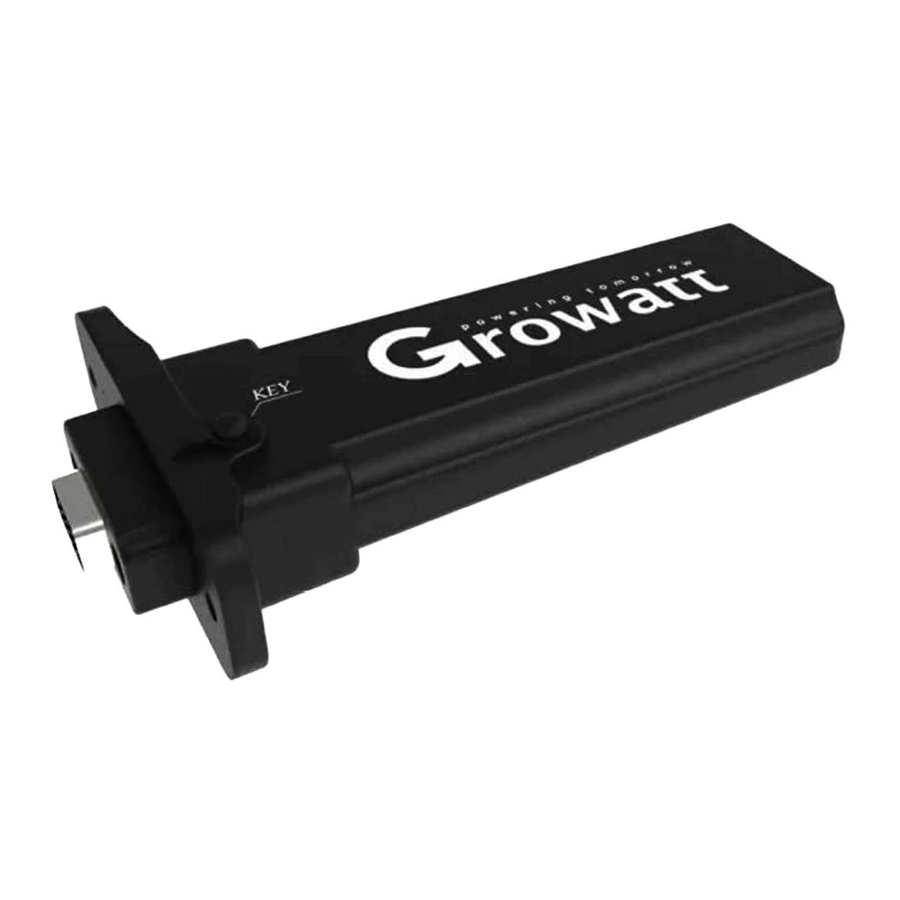

Growatt ShineWifi-X Installation Manual
Datalogger
Hide thumbs
Also See for ShineWifi-X:
- Setup guidance (24 pages) ,
- Installation manual (18 pages) ,
- User manual (8 pages)
Related Manuals for Growatt ShineWifi-X
Summary of Contents for Growatt ShineWifi-X
- Page 1 Datalogger Wifi-X / Wifi-S installation guide Growatt After Sales Center 2020-04-16 － Powering Tomorrow GROWATT NEW ENERGY TECHNOLOGY CO.,LTD...
- Page 2 3.QR code. 4.Bar codes at the back. Note: ① ShineWifi-X compatible with 2.4GHz Wi-Fi and 2.4GHz + 5GHz dual-band wifi in one. ② ShineWifi-S compatible with 2.4GHz Wi-Fi. ③ The datalogger does not support single-band 5GHz router. － Powering Tomorrow...
- Page 3 Indicators on the datalogger Safety Both ShineWifi-X and ShineWifi-S have the same indicator information. 1.Flashing Red. The initial state of the configuration. 2.Solid Blue. Datalogger is launching hotspot, waiting to use AP mode method. 3.Flashing Blue. Datalogger has been connected to router and server.
- Page 4 Indicators on the datalogger Flashing Release Shinephone Multiple Flashing Blue Color configuration Succeed Single tap AP mode Solid Green Solid Blue method Fail Hold Single tap － Powering Tomorrow GROWATT NEW ENERGY TECHNOLOGY CO.,LTD...
- Page 5 Shinephone App registration Before opening the Shinephone App, Before you begin, please make make sure your mobile device is sure that the datalogger light connected to the 2.4Ghz Wi-Fi. is red flashing. － Powering Tomorrow GROWATT NEW ENERGY TECHNOLOGY CO.,LTD...
- Page 6 Enter your own email address. Enter Installer code. Note: ①Ask the installer to provide the Installer code. ②Users in the Netherlands, Belgium and Germany must fill in the installer code when registering. － Powering Tomorrow GROWATT NEW ENERGY TECHNOLOGY CO.,LTD...
- Page 7 Select the time zone of the country where the inverter is installed. Fill in the inverter rated power. Correct choice of plant type. － Powering Tomorrow GROWATT NEW ENERGY TECHNOLOGY CO.,LTD...
- Page 8 Shinephone App configuration 1.For ShineWifi-X, scan the QR to get SN and CC. 2.For ShineWifi-S, scan the Bar code at back to get SN and CC. Note: ①Shield the sunlight, aimed at scanning code. ②The serial number on the inverter is different from the datalogger.Please add the datalogger serial number.
- Page 9 Shinephone App configuration(Method 1) Select the 2.4GHz band. － Powering Tomorrow GROWATT NEW ENERGY TECHNOLOGY CO.,LTD...
- Page 10 After the phone is connected to the 2.4ghz network, the Wi-Fi name is automatically filled in the blank. Please fill in the correct password for Wifi, and pay attention to case sensitivity. － Powering Tomorrow GROWATT NEW ENERGY TECHNOLOGY CO.,LTD...
- Page 11 Shinephone App configuration(Method 1) Click on ‘Yes’ If it succeed, and wait for it it will turn counting down. back to the dashboard directly and show this success information. － Powering Tomorrow GROWATT NEW ENERGY TECHNOLOGY CO.,LTD...
- Page 12 Shinephone App configuration(Method 2 / AP MODE) Select the 2.4GHz + 5GHz dual band.The datalogger does not support single-band 5G router.(You can enter the router's built-in page to view the current band of the router). － Powering Tomorrow GROWATT NEW ENERGY TECHNOLOGY CO.,LTD...
- Page 13 1.Short press the datalogger button to enter the hotspot mode (blue LED light is always on). 2.Only in the constant blue state, the datalogger will make the hot spot. Note:If it changes to other colors, the hot spot will disappear. － Powering Tomorrow GROWATT NEW ENERGY TECHNOLOGY CO.,LTD...
- Page 14 ②Due to the different security Settings of each phone, the connection to the hotspot may drop and the original Wifi will be automatically connected back. Please reconnect to the hotspot. － Powering Tomorrow GROWATT NEW ENERGY TECHNOLOGY CO.,LTD...
- Page 15 Shinephone App configuration(Method 2 / AP MODE) 1.Please open a browser and enter the IP address: 192.168.10.100 2.Look at the interface shown in the picture on the left. 3.Username is ‘admin’. 4.Password is ‘12345678’. 5.Click ‘Login’. － Powering Tomorrow GROWATT NEW ENERGY TECHNOLOGY CO.,LTD...
- Page 16 2.2 Please double check you enter the correct Wifi name and password as these parts are capital sensitive. 2.3 Please click on ‘Apply’ if you are sure the name and password are right. － Powering Tomorrow GROWATT NEW ENERGY TECHNOLOGY CO.,LTD...
- Page 17 Shinephone App configuration(Method 2 / AP MODE) 1.When the website turns to the left page, please click on ‘Restart Immediately’. 2.Check the indictor, Blue flashing means it is connected. Solid Green light means it is not connected. － Powering Tomorrow GROWATT NEW ENERGY TECHNOLOGY CO.,LTD...
- Page 18 Shinephone App reconfigures the datalogger 1.If‘Existing datalogger SN’appears during the process of adding a data logger. 2.Please refer to pages 19 and 20 to reconfigure the datalogger. － Powering Tomorrow GROWATT NEW ENERGY TECHNOLOGY CO.,LTD...
- Page 19 Shinephone App reconfigures the datalogger Select the + symbol in Select Plant Select the target Plant the upper right corner － Powering Tomorrow GROWATT NEW ENERGY TECHNOLOGY CO.,LTD...
- Page 20 Shinephone App reconfigures the datalogger Select datalogger list Long press the SN After clicking the Configure datalogger, please go back to page 9 or 12 to do the configuration again － Powering Tomorrow GROWATT NEW ENERGY TECHNOLOGY CO.,LTD...
- Page 21 ①Please go to‘Plant’on Shinephone and find ‘Datalogger List’. ②Click and hold the datalogger that you added before. Existing datalogger SN ③Click on the‘Configure datalogger’and do the configuration again. ④If there is no datalogger there, please contact Growatt. － Powering Tomorrow GROWATT NEW ENERGY TECHNOLOGY CO.,LTD...
- Page 22 ②Contact internet supplier to change the Wifi to 2.4 Ghz. After configuration in Shinephone, the datalogger Please reset datalogger to flashing red and do the light is not flashing blue or configuration again. solid green － Powering Tomorrow GROWATT NEW ENERGY TECHNOLOGY CO.,LTD...
- Page 23 ②Refresh the page. ①Check if the hotspot of datalogger is connected to your AP mode setting center cannot phone. be open ②Refresh the page. ③Reset the datalogger and do again from the beginning. － Powering Tomorrow GROWATT NEW ENERGY TECHNOLOGY CO.,LTD...
- Page 24 For warranty claim or technical support please contact our service center: Headquarter: Service hot line:+86 755 27471942 Email: service@ginverter.com Growatt New Energy Technology Co.,Ltd Address: Building B, Jiayu Industrial Zone, 28 Guangming Road, Longteng Community, Shiyan, Baoan District, Shenzhen Subsidiary contact: Australia T:+0061 280651298 Email:auservice@ginverter.com...
- Page 25 － Powering Tomorrow GROWATT NEW ENERGY TECHNOLOGY CO.,LTD...
