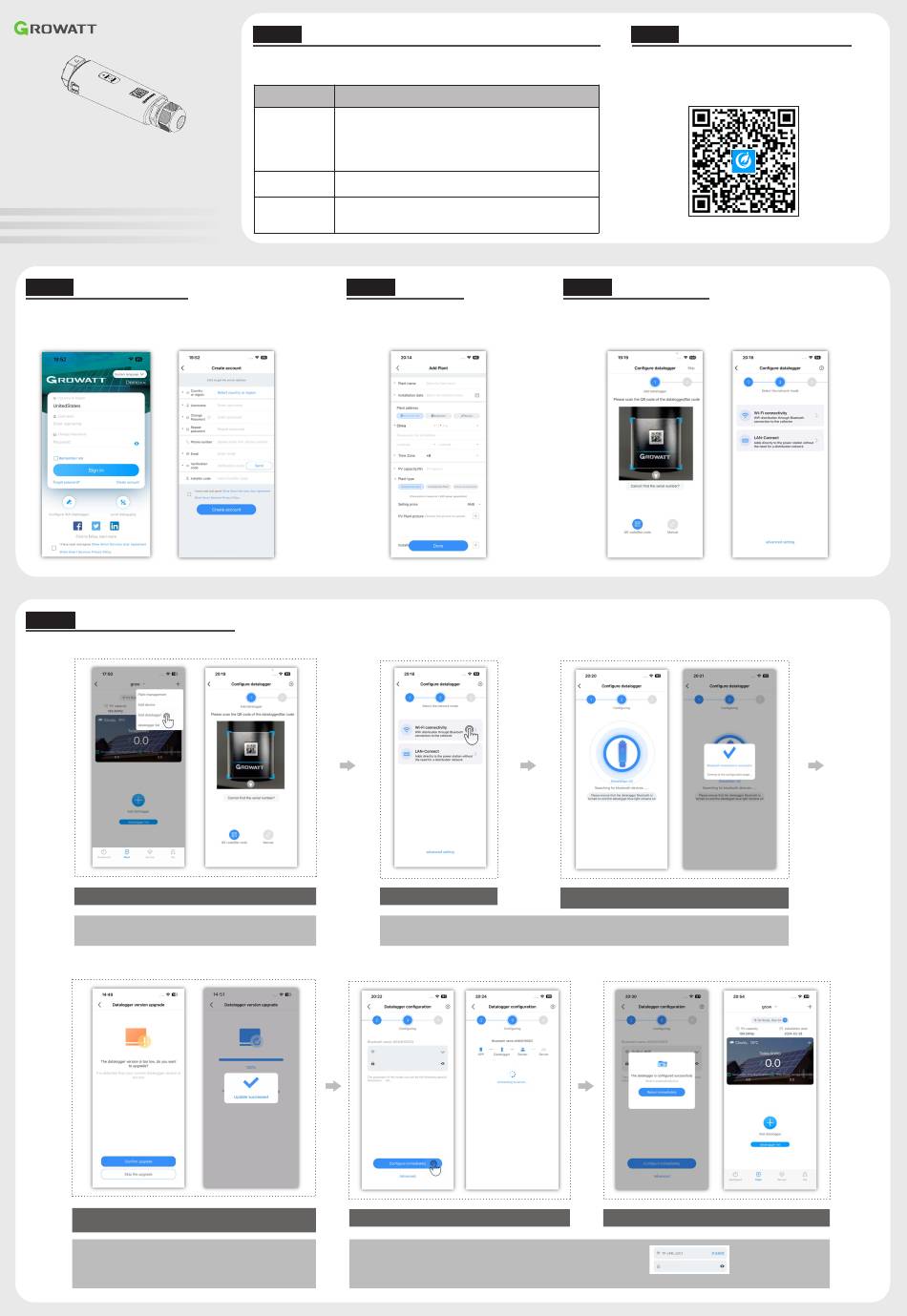

Growatt ShineWiLan-X2 Configuration Manual

ShineWiLan-X2
Configuration Guide
For the latest information, please visit http://server.growatt.com .
T 400-931-3122 F +86 755 2747 2131
E service@ginverter.com W www.growatt.com
Step3.
Register an account
1. Connect your phone to the router via a wireless network;
2. Run the ShinePhone APP and go to the registration page;
3. Fill in the registration information and click "Create account".
Step6.
Network mode configuration
1. Connect via Wi-Fi
Configure the datalogger
Step 01: On the target Plant page, tap "+" to add the datalogger
Step 02: Scan the QR code or manually enter the serial number (SN)
and verification code
Datalogger firmware upgrade
(only perform this step when a firmware update is required)
Step 01: Choose whether to upgrade the datalogger version
Step 02: If you need to upgrade the datalogger, please wait for about
10 minutes. The datalogger will restart automatically once the
upgrade is complete
Step 03: Reconnect to the datalogger's Bluetooth
Step1.
Turn on the PV device and check the connection status
Upon initial installation, the indicator on the ShineWiLan-X2 will be steady blue, indicating that
Bluetooth has been enabled.
LED status indication
LED status
The datalogger failed to communicate with the PV device.
(1) Check if the datalogger has been properly connected to the USB port on
the PV device;
Off
(2) Unplug and replug the datalogger;
(3) Connect the datalogger to another PV device to check whether the
datalogger or the PV device is faulty.
Steady white The datalogger is initializing. Please wait for about one minute.
The datalogger is in Bluetooth mode. Please continue with the network
Steady blue configuration process. If you do not need to configure the network, you can
exit this mode by pressing the button once.
Step4.
Add a plant
1. Go to the "Add plant" page;
2. Fill in the plant information;
3. Click "Done" to add the plant.
Select"Wi-FiConnectivity"
Step 01: Select "Wi-Fi Connectivity" to enter Bluetooth mode
Step 02: If the indicator on the datalogger is steady blue, it indicates that Bluetooth has been enabled. In case that
Bluetooth is off, please short press the button to turn it on and continue with the network configuration
Select your target WiFi
Enter the password
Connect to the home router and configure the network
Step 01: After the Bluetooth connection is set up, enter the configuration page,
select your target router and enter the password
Step 02: Once the WiFi configuration is complete, please return to the "Plant" page
Operating status
Step5.
1. Go to the "Add datalogger" page;
2. Scan the QR code or manually enter the serial number (SN) and verification code;
3. If you select "LAN-Connect", the datalogger will be added directly. If "Wi-Fi Connectivity" is
selected, you need to configure the network to add the datalogger;
4. If you do not need to add a datalogger, you can skip this step and go to the "Plant" page.
Datalogger configuration starts and it will automatically
connect to the Bluetooth with the name of the datalogger's SN
Step2.
Download the ShinePhone APP
Scan the QR code below to download the ShinePhone APP, or you can
search for ShinePhone in the Apple Store or Google Play to download
and install the APP.
1. Make sure you download the latest version.
2. For further information, please visit http://server.growatt.com.
【 】
Android & iOS
Add a datalogger
Configuration is successful, then return to the "Plant" page
