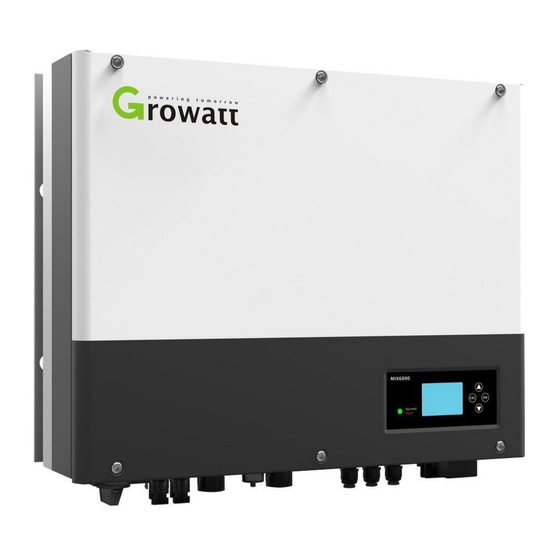

Growatt SPH Series Installation & Operation Manual
  1. Manuals
  2. Brands
  3. Growatt Manuals
  4. Inverter
  5. SPH Series
  6. Installation & operation manual

Growatt SPH Series Installation & Operation Manual

Hide thumbs Also See for SPH Series:
Table of Contents

Advertisement

Quick Links

Growatt New Energy
Download
Manual
Shenzhen Growatt New Energy CO.,LTD
No.28 Guangming Road, Shiyan Street, Bao'an District,
No.28 Guangming Road, Shiyan Street, Bao'an District,
Shenzhen, P.R.China
Shenzhen, P.R.China
T
+86 0755 2747 1942
+86 0755 2747 1942
E
service@ginverter.com
service@ginverter.com
W
www.ginverter.com
www.ginverter.com
-
-
-
- 6
GR UM 139 A 0
Installation Manual of SPH series
Installation
&
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPH Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Growatt SPH Series

Summary of Contents for Growatt SPH Series

  • Page 1 Installation Manual of SPH series Growatt New Energy Download Installation & Manual Operation Manual Shenzhen Growatt New Energy CO.,LTD No.28 Guangming Road, Shiyan Street, Bao’an District, No.28 Guangming Road, Shiyan Street, Bao’an District, Shenzhen, P.R.China Shenzhen, P.R.China +86 0755 2747 1942 +86 0755 2747 1942 service@ginverter.com...

  • Page 2: Product Description

    1.4 Safety Instructions Safety 2.1 Purpose Use 2.2 Safety Measure 2.3 Symbols introduction on the SPH inverter Product Description 3.1 Growatt SPH series inverter 3.2 Label Explanation 3.3 Size and weight 3.4 The advantage of the unit of Growatt SPH Unpacking...
  • Page 3 6.3 Country setting 12.4 Disposing of the SPH inverter 6.4 Display and button 6.5 Communication Product specification 13.1 Growatt SPH series energy Start-up and shut 7.1 Start-up the SPH system storage machine product down SPH system 7.2 Disconnect the SPH system specification 13.2 DC input terminal parameter...

  • Page 4: Brief Introduction

    Brief Introduction Overview: 1.1 Preface This manual will provide the users who use the Growatt SPH Series of GROWATT NEW ENERGY CO.LTD.SHENZHEN(Short for Growatt New Energy as below) with the detailed product information and the installation instructions. Please read this manual carefully and put this manual on some place where is convenient to installation, operation, obtain.

  • Page 5: Purpose Use

    PD2, meanwhile the temperature should be control ℃ in the 0-40 of indoor ventilation and the humidity should be 5%-85%. If the chosen PV modules needs to positive or negative ground connection, please contact with Growatt for technical support before installation.

  • Page 6: Safety Measure

    2.3 Symbols introduction on the SPH inverter 2.2 Safety Measure PV modules Capacitive Discharge Currents Symbol Description PV modules with large capacities relative to earth, such as thin-film PV modules with cells on a metallic substrate, may only be used if their coupling capacity does not exceed 470nF.

  • Page 9: Basic Installation Requirements

    5.1 Basic installation requirements Growatt SPH series and accessories as follows: A. The installation location must be suitable for SPH's weight for a long period time B. The installation location must conforms with dimension of SPH C.
  • Page 10 H. Installation position shall not prevent access to the disconnection means. I. In order to ensure machine can run normally and easy to operate, please pay Description attention to provide adequate space for SPH, please refer to below: Press the RJ45 terminal Press battery terminal connector Disconnect PV terminal Unscrew nut...

  • Page 11: Installation Instructions

    2.Make sure the drill position, use paper board(installation guide), put the paper There're three types of sensors for use with Growatt SPH. One is wired current board cling to the wall, make sure the top edge of paper board is level（As the sensor, one is meter sensor, or SP-CT, if you choose wired sensor or meter .

  • Page 12: Grounding Connection

    Chart 5.8 5.5 SPH System electrical connection Decisive Voltage Class (DVC) indicated for ports 5.4 Grounding connection SPH must be grounded by cable, the grounding point is showed as follow, and the Port Name Class minimum grounding cable wire is AWG10. DRMS RS485&RS232 5.5.1...
  • Page 13 Wire suggest length: Max cable length Conductor Growatt Growatt Growatt Growatt Growatt Growatt cross SPH300 SPH360 SPH400 SPH500 SPH600 SPH460 5.2mm 10AWG 6.6mm 9AWG Chart 5.11 AC output terminal and EPS output terminal connection steps as follow (Except for the Australian machine): Similar to the traditional inverter connecting, the input of PV panel energy can be realized by using MC4 PV terminal, the detail steps are as follows：...
  • Page 14 Step 3: Push threaded sleeve on to connection terminal until both are locked Step 3:Push threaded sleeve on to connection terminal until both are locked tightly tightly. Chart 5.16 Note :The following diagram shows the AC output terminal of the Australian chart 5.20 machine connection steps are as follows, EPS output terminal connection steps consistent with the above steps.
  • Page 15 SPHInverter ON GRID Battery E-BAR E-N LINK E-BAR SPDT E P S...
  • Page 16 Chart 5.28 Chart 5.26 Chart 5.29 Chart 5.27 Note:We suggest the distance between battery and SPH no longer than 1.5m, and the power line area must be larger than 5 AWG. CT terminal 5.5.4 Connection of There is a CT in SPH inverter monitoring the power consumption situation of residential users, the CT terminal connection steps are as follows: 1.Unscrew the swivel nut from the cable gland.
  • Page 17 1.Meter and CT can't be installed at same time, please set the sensor model when selecting CT or electricity meter, please refer to section 6.3.3 for details. 2.Meter must be provided by Growatt. If not, maybe meter can't communicate 5.5.5 Connection of meter terminal with SPH inverter.
  • Page 18 5.4.6 Connection of communication terminal of lithium battery 5.5.7 Connection of communication terminal for lithium battery (CAN) (RS485) When using lithium batteries which need to connect BMS system of the battery, When using CAN communication with lithium batteries (for example PYLON connect lithium battery terminal (RJ45) steps as follows: US2000B), connect lithium battery terminal (RJ45) steps as follows: 1.Unscrew the swivel nut from the cable gland.
  • Page 19 RJ45 terminal pin assignment 5.5.8 Connection of DRMS terminal Assignment for inverter scapable of both charging and The DRMS terminals need to be connected ,the connection way appears as follows: DRM5 1.Unscrew the swivel nut from the cable gland. 2.Thread the swivel nut over the “DRMS” cable. 3.Press the cable support sleeve out of the cable gland.
  • Page 20 5.5.10 Connection of Drt contact 5.5.9 Connection of temperature probe for lead-acid battery When customer using lead-acid battery, the temperature probe of the lead-acid The dry contact is used to communicate with external devices (such as remote battery is used to detect the ambient temperature of the lead-acid battery, the start hot water heater).
  • Page 21 Commissioning 5.5.11 Tighten the waterproof cover 6.1 Commissioning of SPH Electrify SPH after all installation of Part5 be finished, here are the steps: When all the communication lines are installed, push the waterproof cover into the 1.Connect PV bottom, lock the screws fixed to the frame, and finally lock the waterproof cap. 2.Connect AC 3.Connect battery 4.Turn on AC first...
  • Page 22 Backup mode Growatt can provide various regulations of the machine, after customers If Grid lost ,system would turn to backup mode(user can disable it ,refer to receive the machine, according to their country, by dialing DIP switch to set the corresponding regulations.
  • Page 24 Se ttin g s should be locked and cannot be edited is confirmed (unle ss they can be changed by Growatt a uthorizati on password). Chart 6.16 2.Af te r setting t h e power quality and power gri d , y ou can check whether the safety regulations are corre ct through the mobile AP P.
  • Page 25 6.4 Display and button 6.4.2 LED and button instruction 6.4.1 LCD display area Chart 6.3 Location Description Status Chart 6.2 ESC- button(cancel control) Location Description Down-button State Enter-button Information PV input (If you connect two tracks, it will show two. UP-button Otherwise show one) Notice：LED showing status of SPH, it has two color, one is green and another is red.

  • Page 26: Work Mode Set Up

    Note: The A line's concluding information as follow: 1.“Down” control command (if pushing “up” button, command will go back) 1.Standby state: SPH is in standby state. No error in this state, but for other reasons, make it 2.Workmode depend on the situation. If SPH is normal state, it will show in a wait state.
  • Page 27 In the basic Parameter,you can set language (English,Italian ,German ),system 4.Under the MODE Change ,you can see the setup options below after pressing time , lead-acid cell charging voltage (default is 58V),discharge low voltage (default is 48V)and lead-acid constant current(default is 60A). Press “enter”...
  • Page 28 SPH. For example Using Wi-Fi-S monitor Note: This kind of monitoring can only be used by the monitor of Growatt's Shineserver /shine phone provided by the company. Through RS232 interface connect to Wi-Fi-S/shinelink/GPRS, use computer terminal/or mobile phone for Chart 6.14...
  • Page 29 Heat dissipation performance is very important when SPH inverter work under the environment of high temperature, better heat dissipation can reduce the possibility of SPH inverter stops working. Growatt SPH series inverter without fan so belongs to natural cooling, hot air from the top of the radiator, tie-in...

  • Page 30: Fault Removal

    Can you retell the failure problem? If you can, what kind of a situation 2.Reinserted the PV terminal , please Did the problem happen in the past? contact Growatt service center if restart When did this fault happen? First installation? can’t solve the problem.
  • Page 31 1.Check the warning information High high 2. Restart inverter. from lithium battery usermanual. 3. Please contact Growatt service center if BMS error:XXX BMS report error 2. Please contact Growatt service restart can’t solve the problem center if restart can't solve the problem.

  • Page 32: Manufacturer Warranty

    The warranty shall also cease to apply if the product cannot be correctly identified as the product of Growatt. Warranty claims will not be honored if the type of serial number on the machines have been altered, removed or rendered illegible.
  • Page 34 Model Model Growatt Growatt Growatt Growatt Growatt Growatt Growatt Growatt Growatt Growatt Growatt Growatt SPH3000 SPH3000 SPH3600 SPH4000 SPH4600 SPH5000 SPH6000 SPH3600 SPH4000 SPH4600 SPH5000 SPH6000 Specifications Specifications Phase factor at BAT reverse rate power protection Displacement 0.8leading 0.8leading 0.8leading 0.8leading...
  • Page 35 Warranty: 5 The following chart is the energy storage machine optional appendix list, if there is yes /opt yes /opt yes /opt years a need please contact the Growatt New Energy Technology Co., Ltd or dealer CE,IEC62109, G99, CE,IEC62109, G99, CE,IEC62109, G99, orders.(P/N is only for reference,and it may be changed.)
  • Page 36 Annex Certificate Growatt SPH series inverter apply within the scope of the world, So the inverter Auto Test (only for Italy) Follow is the chart of Auto Test, refer to 6.4.4. in the set up surface of “Auto have to satisfy different countries and regions of different safety standards.
