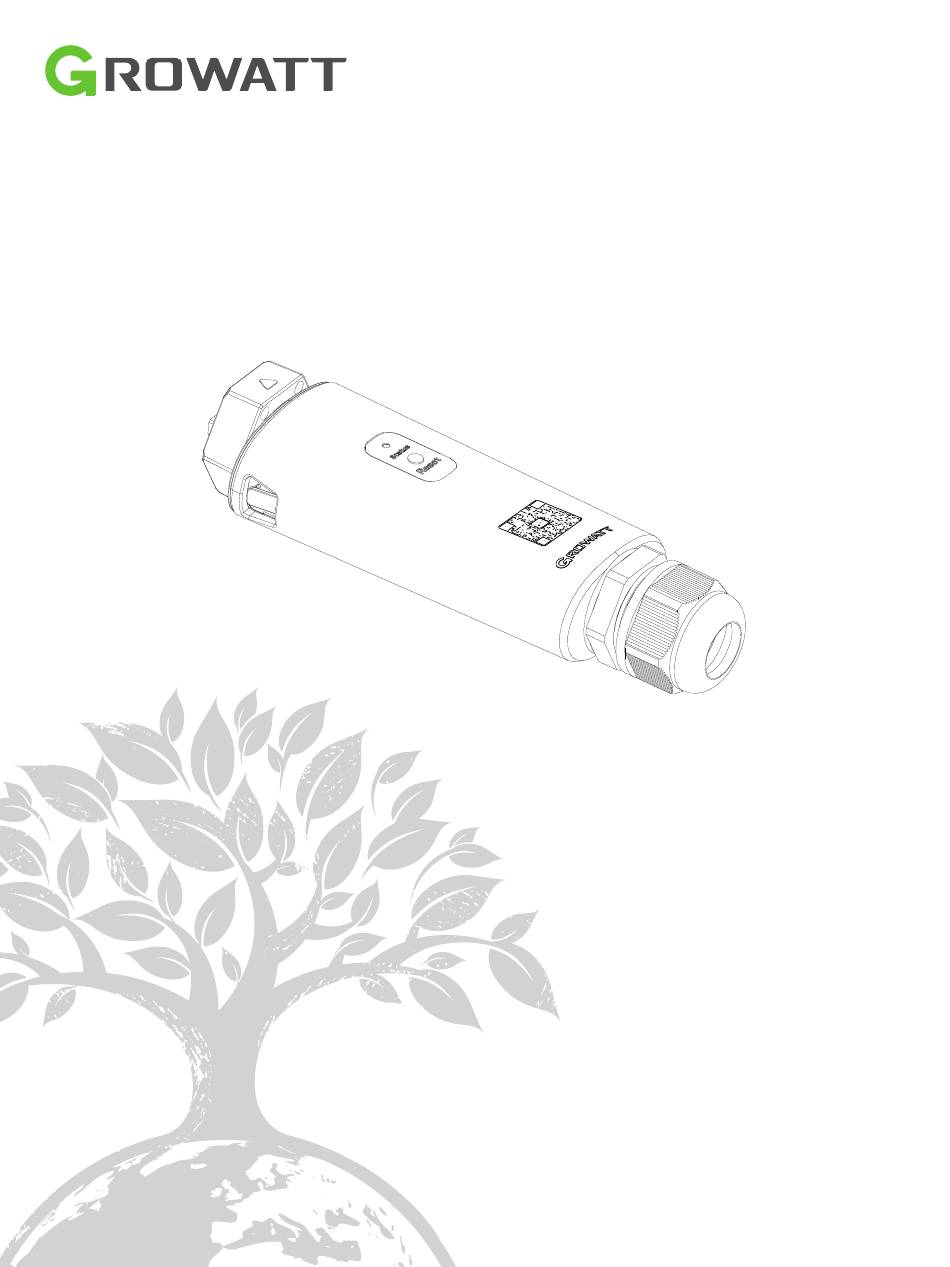

- Page 1 User Manual Disclaimer: The content of this document is continually reviewed and amended, where necessary. Growatt reserves the right to make changes to the material at any time and without notice. Copyright © 2023 Shenzhen Growatt New Energy Co., Ltd. All rights...
-
Page 2: Product Overview

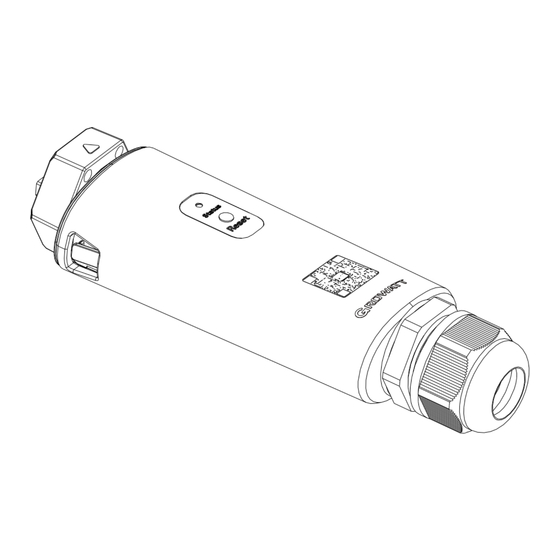

1. Product Overview ShineWiLan-X2 is compatible with all Growatt PV devices equipped with the USB port, such as the PV inverter and the hybrid inverter, enabling remote monitoring and maintenance of PV systems via the Ethernet cable or WiFi connection. -
Page 3: Installation And Configuration
2. One side of the network cable is connected to the RJ45 port on the ShineWiLan-X2 (ensure that you hear the click sound), and the other side is linked to the router's LAN port; 3. Screw the components ③②① tightly from right to left in sequence. - Page 4 4.2 Turning on the PV Device and Checking the Connection Status After installing the ShineWiLan-X2, power on the PV device. The indicator will be steady blue upon initial startup, indicating that Bluetooth is enabled. The LED status description is shown below:...
- Page 5 2. Once the APP is installed, you can configure the datalogger and add the PV plant as prompted. For details about configuring the datalogger, please refer to ShineWiLan-X2 Configuration Guide, which can be obtained by scanning the QR code below.
- Page 6 (2) Check the router a) The router's name should be a combination of English letters and numbers; special symbols are not allowed: (﹉…·€¥) ShineWiLan-X2 b) For security reasons, please use the Steady failed to connect encrypted wireless network green...
-
Page 7: Specification
Supported networks 2.4GHz WiFi, Bluetooth 4.2 Application parameters Theoretical LAN: 100m (Cat5e） communication WiFi: 50m (empty space without distance obstruction ) Data transmission 5 Min interval Default server IP mqtt.growatt.com address Supported standards WiFi:802.11b/g/n, BLE: 4.2 Wireless parameters Supported frequency 2.4GHz... -
Page 8: Declaration Of Conformity
Restriction of Hazardous Substances Directive: 2011/65/EU (EU) and Ø 2015/863 (RoHS) You can download the Declaration of Compliance at https://www.ginverter.com. 7. Contact Shenzhen Growatt New Energy Co., Ltd. 4-13/F, Building A, Sino-German (Europe) Industrial Park, Hangcheng Blvd, Bao'an District, Shenzhen, China service@ginverter.com Download www.ginverter.com...
