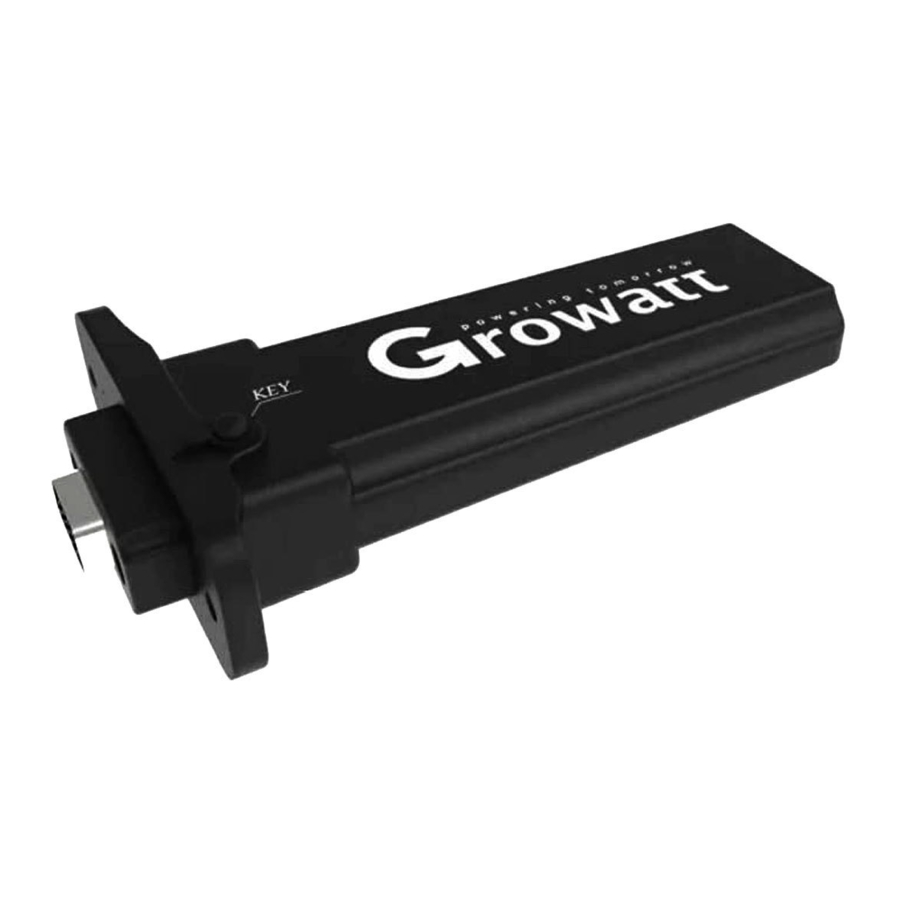

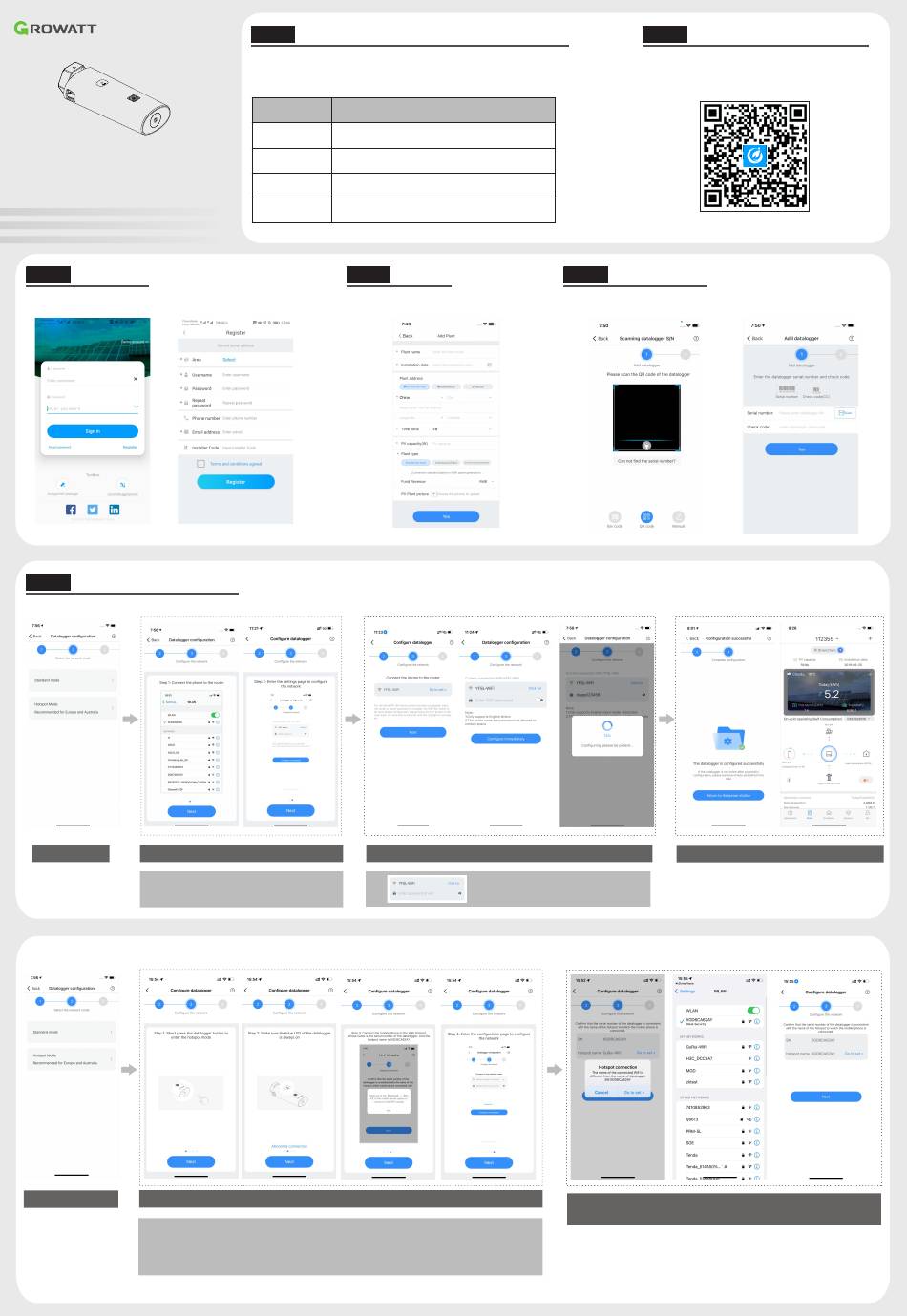

Growatt ShineWiFi-X Configuration Manual

ShineWiFi-X/S
Configuration Guide
For more info, please download from http://server.growatt.com
T +86 755 2747 1942 F +86 755 2747 2131
E service@ginverter.com W www.growatt.com
Step3.
Registration
1.First connect the phone to a router with a wireless net-work;
2.Run the Shinephone APP and enter the registration page;
3.Fill in the registration information and click to register;
Step6.
Network mode configuration
1.Use the Standard Mode to take the configuration
Standard Mode
Step 01:Connect the phone to the router
Step 02:Enter the Setting Page to configure the network
2.Use the Hotspot Mode to take the configuration
Hotspot Mode
Step 01:Press the datalogger button to enter the Hotspot Mode
Step 02:Check the blue LED of datalogger is always on or not
Step 03:Connect the mobile phone to the WiFi which has the same name with the SN of datalogger
Step 04:Enter the settings page take the local network configuration.
Step1.
Turn on inverter and check the connection status
After installing the ShineWiFi-X/S module, turn on the inverter, then the red LED
flashing indicates the inverter and ShineWiFi-X/S communication is normal for
the first time installation.
Indication of LED status
LED status
LED off ShineWiFi-X/S not connected well with inverter USB port
Red LED flashes The communication between ShineWiFi-X/S and inverter is OK
The communication between ShineWiFi-X/S, inverter and
Green LED flashes
router is OK
The communication between ShineWiFi-X/S inverter, router
Blue LED flashes
and server is OK
Step4.
1.Enter the Add plant page
2.Fill the plant information
3.Click to add the plant
Configuration boot
Configuration boot
Working condition
Step5.
Add plant
1.Enter the add datalogger page
2.Scan the serial number or manually enter serial number and verification code
3.Complete the adding
Connect router to configure the network
Select the home router to connect and enter the
password
Step2.
Download the ShinePhone APP
Scan the QR code below to download ShinePhone, also you
can search ShinePhone in Apple Store or Google Play to
download the APP
1.Make sure you download the latest version.
2.For further information please visit http://server.growatt.com.
【Android&iOS】
Add datalogger
Configure successfully, return to the plant page
Connect with the WiFi which named with the SN of datalogger and take the
configurationof network.The default password for WiFi is 12345678.
Standerd Mode
