Ruhrpumpen VSP CHEM Installation, Operation And Maintenance Manual

Vertical sump pump
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
VSP CHEM
Installation, Operation and Maintenance Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VSP CHEM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ruhrpumpen VSP CHEM

Summary of Contents for Ruhrpumpen VSP CHEM

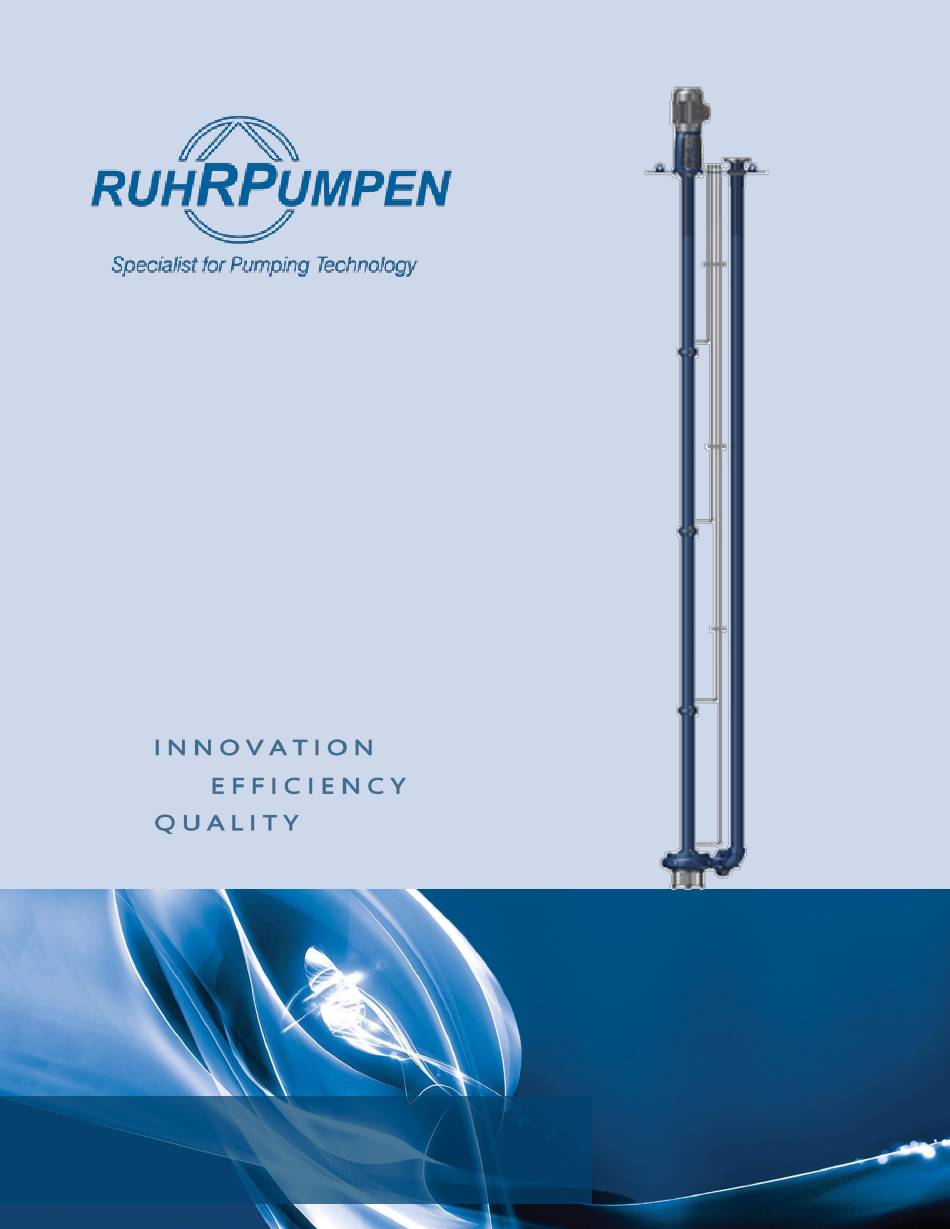

  • Page 1 VSP CHEM Installation, Operation and Maintenance Manual...
  • Page 2 These units are vertical process pumps of the overhung power frame configuration and identified by Ruhrpumpen as VSP Chem. VSP Chem pumps are designed to operate in chemical services and can be divided into VSP Chem, VSP Chem (PS) and VSP Chem (L), based on their hydraulics.
  • Page 3 VSP CHEM Vertical Sump Pump Information in this manual is believed to be reliable, but it is not guaranteed by Ruhrpumpen as to its completeness or accuracy. © 2021 Ruhrpumpen All Rights Reserved. V7.081121...

  • Page 4: Table Of Contents

    VSP CHEM Vertical Sump Pump INDEX 1. PRODUCT DESCRIPTION ........................7 1.1 INTRODUCTION ..........................8 1.2 PUMP CASE AND IMPELLER ......................8 1.2.1 Pump Case ..........................8 1.2.2 Impeller ............................ 8 1.3 BEARING FRAME ..........................9 1.4 STEAM JACKET ..........................9 2.
  • Page 5 VSP CHEM Vertical Sump Pump 4.2.1 Equipment/Material Required ....................27 4.2.2 Grouting Precautions......................27 4.2.3 Grouting Procedure ........................ 27 4.3 EQUIPMENT NECESSARY FOR INSTALLATION ................29 4.4 LIFTING PUMP TO A VERTICAL STANCE ..................29 4.4.1 Two Crane Method ......................... 30 4.4.2 One Crane Method .........................
  • Page 6 8.3 REASSEMBLY ..........................69 8.3.1 Steam Jacket Piping Reassembly ..................104 9. SPARE PARTS ............................. 108 10. PARTS INFORMATION ........................110 10.1 STANDARD VSP CHEM PUMP ....................110 10.2 STEAM JACKETED VSP CHEM PUMP ..................112 11. TROUBLESHOOTING CHART......................115 V7.081121...

  • Page 7: Product Description

    Ruhrpumpen recommends consulting also API Recommended Practice 686 to ensure proper installation in your facility. Please contact a Ruhrpumpen representative should problems arise. The pump may only be opened by a Ruhrpumpen approved technician during the guarantee period.

  • Page 8: Introduction

    The VSP Chem is a vertically suspended, single casing, volute, lineshaft driven sump pump. For these pumps, rotation is clockwise as viewed from the driver (coupling) end.

  • Page 9: Bearing Frame

    Sump pumps for pulpy solids and paper stock applications (VSP Chem (PS)) are furnished with a semi- open impeller design to handle all kinds of stock up to 6% consistency. VSP Chem (PS) pumps are furnished with wear plates on the casing.

  • Page 10: Safety

    VSP CHEM Vertical Sump Pump 2. SAFETY This operation manual gives basic instructions that should be observed during installation, operation and maintenance of the pump. It is therefore imperative that this manual be read by the responsible personnel/operator prior to assembly and commissioning. It must always be kept available at the installation site.

  • Page 11: Qualification And Training Of Operating Personnel

    If the staff does not have the necessary knowledge, they must be trained and instructed. Training may be performed by a Ruhrpumpen representative on behalf of the plant operator. Moreover, the plant operator is to make sure that the contents of the operating manual are fully understood by the personnel.

  • Page 12: Safety Instructions Relevant For Operation

    VSP CHEM Vertical Sump Pump 2.5 SAFETY INSTRUCTIONS RELEVANT FOR OPERATION WARNING Pumping hot liquids causes the external surface temperature to become equally hot. Risk of burns!  Insulate the volute casing.  Fit protective equipment.  If hot or cold machine components involve hazards, they must be guarded...
  • Page 13 VSP CHEM Vertical Sump Pump CAUTION Re-starting while motor Is still running down. Damage to the pump (set)!  Do not re-start the pump set before the pump rotor has come to a standstill. Pumps and pump units that convey hazardous materials must be decontaminated before any maintenance work is performed.

  • Page 14: Unauthorized Alterations And Spare Parts

    Modifications may be made to the machine only after consultation with a Ruhrpumpen representative. Using spare parts and accessories authorized by Ruhrpumpen is in the interest of safety. The use of parts not authorized by the dealer exempt the manufacturer from any liability, voiding the warranty.
  • Page 15 VSP CHEM Vertical Sump Pump DANGER Instability due to operating outside given limits for pressure, temperature, fluid handled and speed. Explosion hazard! Hot or toxic fluid could escape!  Comply with the operating data indicated in the data sheet.  Never use the pump for handling fluids it is not designed for.

  • Page 16: Transport & Storage

    Handle all equipment carefully. Remove unit only by properly supporting the wooden shipping skid. After unloading, inspect the pump, check the shipment against the packing list, and report damages or shortages immediately to freight carrier and to the designated Ruhrpumpen representative. V7.081121...

  • Page 17: Transport

    VSP CHEM Vertical Sump Pump 3.3 TRANSPORT WARNING To avoid damage, the unit must be transported and handled with care. It should be gently lowered onto an even surface. Pay attention to and identify the signs marking the points of equilibrium and fastening places for ropes, or the openings for forklift trucks.
  • Page 18 VSP CHEM Vertical Sump Pump Figure 3.1a. Correct position of the lifting ropes or chains. Figure 3.1b. Correct position of the wooden supports. V7.081121...

  • Page 19: Storing

    VSP CHEM Vertical Sump Pump 3.4 STORING CAUTION Storing any pump for any length of time presents a few challenges. Dirt, sand and moisture can wreak havoc on parts with close clearances, such as running clearances between impellers and cases and between bearings and shafting. Dirt and sand working their way through these areas can result in wear and opening up of wear ring clearances to an extent that the efficiency of the pump may be affected shortly after start up.
  • Page 20 VSP CHEM Vertical Sump Pump Keep the pump moisture-free by the following two means: Spray the pump case, bearing frame with acid-free, moisture-free, protective oil or kerosene. WARNING Pumping hot liquids causes the external surface temperature to become equally hot.

  • Page 21: Motor (Driver) Storage

    Return the unit to the shipping crate. When the pump is to be installed, remove all the protective coatings and desiccant or drain all oils. One month before installation, a Ruhrpumpen representative should be employed to conduct a final inspection. 3.4.3 Motor (Driver) Storage To properly store the motor (driver) for periods longer than one month, follow the manufacturer´s...
  • Page 22 VSP CHEM Vertical Sump Pump COMMENT The electric motor and drive assembly is a sub-component of the pump (set) with its own installation, operating, and maintenance guidelines. All details can be found on name-plate affixed to the drive(s). Such devices have their own notified body approval, as indicated on the name-plate where applicable, and Conformity Risk Assessments.

  • Page 23: Conservation

    VSP CHEM Vertical Sump Pump o A third option is to use an auxiliary heat source and keep the windings warm by either convection or blowing warm dry air into the motor. ATTENTION Be careful not to overheat, since keeping the temperature of the motor frame 9°F (5°C) above the surrounding ambient temperature is sufficient.
  • Page 24 VSP CHEM Vertical Sump Pump ATTENTION Anticorrosive layers inside the pump housing must be removed with process neutral solvents before commencing pump operation. WARNING When removing the protective coating with a neutral solvent, follow the safety instructions of the solvent manufacturer carefully.

  • Page 25: Installation

    API Recommended Practices 686. IMPORTANT The design of foundations is not the responsibility of Ruhrpumpen. It is therefore recommended that the customer consult a competent specialist skilled in the field of foundations, to insure proper design/installation of the foundation.

  • Page 26: Grouting

    VSP CHEM Vertical Sump Pump Since the pump unit is mounted directly on a sump cover or flange type mounting plate, it should be located as near as possible to supporting beams or building walls to prevent deflection and vibration.

  • Page 27: Equipment/Material Required

    VSP CHEM Vertical Sump Pump 4.2.1 Equipment/Material Required • Grout Mix: Non shrink type. • Sufficient lumber for foundation template and grout trough • Risers or funnels for guiding grout. • Sufficient oil paint for grout protective covering. • Dial indicator.
  • Page 28 VSP CHEM Vertical Sump Pump Provide a form around the baseplate to contain the grout. The form should be chamfered at all corners. ATTENTION Grout forms should be attached with drilled anchors. Do not power nail. ATTENTION Apply three coats of paste wax to the inside surfaces of the forms in order to prevent adherence.

  • Page 29: Equipment Necessary For Installation

    Do not use grout to fill the jackscrew’s holes; use a sealant material instead. Tighten the foundation bolts with an appropriate torque value. In case of doubt, please contact your Ruhrpumpen representative. Apply oil paint to exposed grout to protect from air and moisture.

  • Page 30: Two Crane Method

    VSP CHEM Vertical Sump Pump 4.4.1 Two Crane Method When two lifting cranes are available, a ropes or slings must be attached to each crane and then onto the lifting lugs on the support plate and near the pump´s case, as shown below: Figure 4.1 Attaching ropes or slings to the pump in order to lift it using the two crane method.
  • Page 31 VSP CHEM Vertical Sump Pump Lift the pump off the wooden support skid. After lifting the pump with the two cranes to an appropriate height, the crane whose rope or sling is attached near the pump´s case must be slowly...

  • Page 32: One Crane Method

    VSP CHEM Vertical Sump Pump 4.4.2 One Crane Method If only one crane is available for lifting, ropes or slings must be attached to the lifting lugs on the pump´s plate and then to the crane, as shown below: Figure 4.3 Attaching rope or sling to the pump to lift it using the one crane method.
  • Page 33 VSP CHEM Vertical Sump Pump With the pump still in the wooden support skid, begin raising the top end of the pump with the crane, using the wooden support skid as a pivot, to tilt the pump into a vertical stance, as shown below: Figure 4.4 Tilting the pump into a vertical stance using the one crane method.

  • Page 34: Installation Instructions

    VSP CHEM Vertical Sump Pump 4.5 INSTALLATION INSTRUCTIONS Standard pumps are completely assembled, carefully adjusted and lubricated at the factory before shipment. WARNING Residues and loose materials must be taken out of the well before installing the pump. 4.5.1 Pump Installation Procedure The float and rod must be assembled and partially adjusted before installing the pump.
  • Page 35 VSP CHEM Vertical Sump Pump c. If point b) does not free the shaft, lift the pump out of the pit and lower the bottom lock nuts of the discharge. Then reset the pump, bolting it to its foundation, and continue to tighten the top lock nut of the discharge pipe up 1 or 2 turns until freedom of rotation is attained.
  • Page 36 VSP CHEM Vertical Sump Pump DANGER Temperature increases resulting from contact between rotating and stationary components. Explosion hazard! Damage to the pump set!  Never check the direction of rotation by starting up the unfilled pump. Before starting the pump, close the gate valve. Start the pump and slowly open the gate valve until desired capacity is obtained.

  • Page 37: Piping And Alignment

    VSP CHEM Vertical Sump Pump 5. PIPING AND ALIGNMENT WARNING These units are furnished for a specific service condition. Any change in the hydraulic system may affect the pump performance adversely. WARNING The connection of the piping must be carried out with utmost care; otherwise, the pumping medium can escape during operation, which can seriously endanger the operating personnel.

  • Page 38: Piping The System

    API Recommended Practices 686. IMPORTANT The design of piping and related systems is not the responsibility of Ruhrpumpen. It is, therefore, recommended that the customer consult a competent specialist skilled in the field of piping to insure proper design/installation of all the piping.
  • Page 39 VSP CHEM Vertical Sump Pump ATTENTION The check valve should be installed between the gate valve and discharge flange in order to permit its inspection. Disconnect the piping from the pump if you heat one side of the pipe to align the pipe to the pump.
  • Page 40 VSP CHEM Vertical Sump Pump ATTENTION Make sure that there are isolation block valves at the pump for each type of auxiliary piping. WARNING Do not install unsupported piping on the pump. ATTENTION Make sure electrical connections do not impose any stress on the pump unit.

  • Page 41: Mounting And Aligning Driver

    VSP CHEM Vertical Sump Pump ATTENTION It is important to confirm that the pump can be moved out from the soleplate without cutting or welding. WARNING Do not use drifts or cheater bars to force alignment of bolt holes – serious damage to the pump will result.

  • Page 42: Impeller Lift

     Use an original motor or a motor of identical design from the same manufacturer.  The permissible temperature limits at the motor flange and motor shaft must be higher than the temperatures generated by the pump. (Contact Ruhrpumpen for temperatures).
  • Page 43 VSP CHEM Vertical Sump Pump Rotate the adjusting nut so that it does not rest on the bearing housing. Figure 5.1 Rotating the adjusting nut so that it does not rest on the bearing housing. Carefully adjust the shaft so that the impeller(s) rest(s) on the case.
  • Page 44 VSP CHEM Vertical Sump Pump Rotate the adjusting nut so that it rests on the bearing housing. Figure 5.3 Rotating the adjusting nut so that it rests on the bearing housing. Place the T.I.R. tool needle on the top of the pump shaft.
  • Page 45 VSP CHEM Vertical Sump Pump Rotate the adjusting nut until the T.I.R. tool reading has increased up to the value stated in the nameplate. Figure 5.5 Rotating the adjusting nut until the T.I.R. tool reading has increased up to the value stated in the nameplate.

  • Page 46: Lubrication

    VSP CHEM Vertical Sump Pump 6. LUBRICATION Correct lubrication is essential to the pump’s proper performance. VSP Chem pump systems require lubrication in two separate areas: the thrust ball bearings and the shaft bushings. 6.1 BEARING LUBRICATION 6.1.1 Grease Lubricated Bearings Grease lubricated pump bearings are prelubricated at the factory before shipment.
  • Page 47 VSP CHEM Vertical Sump Pump Oil Change Once every eight hours of pump operation, perform visual inspection of oil and oil level at the constant level oiler. The first oil change should be carried out three weeks after commissioning; all further oil changes take place every six months.
  • Page 48 VSP CHEM Vertical Sump Pump DANGER Inadequate cleaning of debris settled on pump surfaces. Explosion hazard by electrostatic discharge!  When cleaning coated pump surfaces in atmospheres of Explosion group IIC, use suitable anti-static equipment. Locate the constant level oiler assembly and identify its three main components: the oil tank, the adjustable oil tank collar and the oil tank reservoir.
  • Page 49 VSP CHEM Vertical Sump Pump Figure 6.1b. Oil tank. Figure 6.1c. Adjustable oil tank collar. V7.081121...
  • Page 50 VSP CHEM Vertical Sump Pump Figure 6.1d. Oil tank reservoir (with set screw). Untighten the set screw of the oil tank reservoir. Remove the oil tank reservoir. Untighten set screws and adjust the adjustable oil tank collar to the desired fluid level. The bottom of the collar indicates the fluid level.

  • Page 51: Shaft Bushing Lubrication

    VSP CHEM Vertical Sump Pump 6.2 SHAFT BUSHING LUBRICATION VSP Chem pumps have three different lubrication configurations for the shaft bushings, which are self-lubrication, external lubrication (with a clean lubricant) and grease lubrication. 6.2.1 Grease Lubrication The most common configuration, the grease line begins at the top of the mounting plate and ends on the shaft bearings.

  • Page 52: Operation

    VSP CHEM Vertical Sump Pump 7. OPERATION DANGER For electric motor drives connect power supply to conform with national and local codes. Line voltage and wire capacity must match the rating stamped on the motor nameplate. CAUTION Before starting the pump, check the required direction of rotation of the pump. The proper direction is indicated by direction arrow on the pump casing.

  • Page 53: Startup

    VSP CHEM Vertical Sump Pump CAUTION Increased wear due to dry running. Damage to the pump set!  Never operate the pump set without liquid fill.  Never close the shut-off element in the suction line and/or supply line during pump operation.
  • Page 54 VSP CHEM Vertical Sump Pump Position of discharge valve on starting A high or medium head centrifugal pump operated at full speed with the discharge gate valve closed will require much less energy than when it is operated at its rated head and flow with the gate valve open.
  • Page 55 VSP CHEM Vertical Sump Pump MACHINE PROTECTION Formation of a potentially explosive atmosphere inside the pump. Explosion hazard!  When draining tanks take suitable measures to prevent dry running of the pump (e.g. fill level monitoring). WARNING Exposed coupling and shafting between pump and driver must be protected with coupling guard and/or shaft guard prior to pump start-up and operation.

  • Page 56: Operating Check

    VSP CHEM Vertical Sump Pump ATTENTION Only if your pump will operate submerged in a sump or well, the discharge valve may be left opened since installation and during the startup procedure. 7.2 OPERATING CHECK During the initial operating hours, the pump should be monitored constantly. It is thus possible to detect irregularities immediately and to take appropriate measures for their elimination (see SECTION ELEVEN - TROUBLESHOOTING CHART).
  • Page 57 VSP CHEM Vertical Sump Pump Ruhrpumpen recommends checking the pump constantly at regular intervals in order to detect problems early, in case they arise. The operational check routine must include at least the following points: WARNING Beware of freely rotating parts, when the pump is in operation there is a high risk of injury.
  • Page 58 VSP CHEM Vertical Sump Pump DANGER Excessive temperatures due to dry running or excessive gas content in the fluid handled. Explosion hazard! Damage to the pump set!  Never operate the pump set without liquid fill.  Always prime completely filling with liquid, and venting, as per the instructions before starting the pump.
  • Page 59 VSP CHEM Vertical Sump Pump CAUTION Noise interference with surrounding equipment. Danger to the Environment! Damage to Surrounding Equipment!  Follow the Installation, Operation, and Maintenance procedures associated with the Motor & Drive manufacturer(s).  Prepare an inspection & maintenance schedule in accordance with the requirements of the Motor &...

  • Page 60: Stopping

    VSP CHEM Vertical Sump Pump WARNING If the sealing system of the mechanical seal fails, the pump must be taken out of operation immediately. WARNING The pump may only be operated under the minimum operating range for short periods. The minimum pump flow is given in the characteristic line.

  • Page 61: Short-Term Shutdown

    VSP CHEM Vertical Sump Pump WARNING Unintentional starting of the pump set. Risk of injury by moving components and shock currents!  Ensure that the pump set cannot be started unintentionally.  Always make sure the electrical connections are disconnected before carrying out work on the pump set.
  • Page 62 VSP CHEM Vertical Sump Pump CAUTION Risk of freezing during prolonged pump shutdown periods. Damage to the pump!  Drain the pump and the cooling/heating chambers (if any) or otherwise protect them against freezing. CAUTION Risk of potentially explosive atmosphere by mixing of incompatible fluids in the auxiliary piping.

  • Page 63: Maintenance

    VSP CHEM Vertical Sump Pump 8. MAINTENANCE To perform the maintenance of the pump, no special (custom made) tools are needed. MACHINE PROTECTION Incorrectly maintained pump & motor assembly. Explosion hazard! Damage to the pump set!  Service the pump set regularly with qualified personnel in accordance with the maintenance instructions.

  • Page 64: Disassembly

    Vertical Sump Pump IMPORTANT For any component/accessory that has not been manufactured by Ruhrpumpen and is part of the pump’s equipment, a complete reading of said component/accessory manufacturer’s manual must be carried out for further information on proper maintenance procedures and relevant safety warnings.
  • Page 65 VSP CHEM Vertical Sump Pump WARNING Failure to use or incorrect use of auxiliary connections (e.g. barrier fluid, flushing liquid, etc.). Risk of injury from escaping fluid! Risk of burns! Malfunction of the pump!  Refer to the general arrangement drawing, the piping layout and pump markings (if any) for the quantity, dimensions and locations of auxiliary connections.
  • Page 66 VSP CHEM Vertical Sump Pump Remove the motor support from the pump. If your pump is equipped with steam jackets, skip to Section 8.1.1 – Steam Jacket Piping Disassembly. If applicable, remove the plate adapter from the pump. Untighten and remove the hex nuts that secure the lower flange of the discharge tubing to the case´s discharge flange.

  • Page 67: Steam Jacket Piping Disassembly

    Remove the column tube from the column adapter. Remove the column adapter from the bottom part of the soleplate. VSP Chem pump disassembly is complete. 8.1.1 Steam Jacket Piping Disassembly Remove the piping that connects the steam jacket of the lowermost column to the steam jacket of the discharge column.
  • Page 68 Thoroughly clean all parts and dry with compressed air or a clean, lint-free cloth. Inspect all components for corrosion, erosion, pitting, and scoring. If required, replace with Ruhrpumpen O.E.M. genuine replacement parts. Visually check all individual parts for any damage.

  • Page 69: Reassembly

    VSP CHEM Vertical Sump Pump 8.3 REASSEMBLY WARNING Observe the plant's safety precautions when lifting heavy components. Request help when moving or positioning them. MACHINE PROTECTION Sparks produced during maintenance work. Explosion hazard!  Observe safety guidelines and regulations in force at the place of installation! ...
  • Page 70 VSP CHEM Vertical Sump Pump ATTENTION The bearings should remain in their original packaging. Once they are to be assembled in the shaft, they must be removed from their packaging, and the preservative in the outside diameter and the bore must be wiped out.
  • Page 71 VSP CHEM Vertical Sump Pump Foot Pounds Torque x 1.3 = N-m. V7.081121...
  • Page 72 Please follow the steps detailed in this section to reassemble the VSP Chem pump. NOTE The following reassembly procedure apply for a pump with a flange type mounting plate.
  • Page 73 VSP CHEM Vertical Sump Pump Place the column tube on the column adapter. Figure 8.2 Placing the column tube on the column adapter. Place and tighten the corresponding hex bolts and washers (if applicable) to secure the column tube to the column adapter and the soleplate.
  • Page 74 VSP CHEM Vertical Sump Pump Insert the bushing tape inside the bearing bushing. Figure 8.4 Inserting the bushing tape inside the bearing bushing. Insert the bearing bushings through the bearing retainer edges. Figure 8.5 Inserting the bearing bushings through the bearing retainer edges.
  • Page 75 VSP CHEM Vertical Sump Pump Place the bearing retainer on the bottom of the column tube. Figure 8.6 Placing the bearing retainer on the bottom of the column tube Place the column tube on the bearing retainer. Figure 8.7 Placing the column tube on the bearing retainer.
  • Page 76 VSP CHEM Vertical Sump Pump Place the corresponding hex bolts to join the column tube to the bearing retainer and the previous column tube. Figure 8.8 Placing the corresponding hex bolts to join the column tube to the bearing retainer and the previous column tube.
  • Page 77 VSP CHEM Vertical Sump Pump Repeat steps 4 thru 9 to assemble the rest of the column tubes and bearing retainers your pump is equipped with. Insert the choker ring inside the bearing retainer of the last column tube. Figure 8.10 Inserting the choker ring inside the bearing retainer of the last column tube.
  • Page 78 VSP CHEM Vertical Sump Pump Place the casing adapter on the last bearing retainer. Figure 8.11 Placing the casing adapter on the last bearing retainer. V7.081121...
  • Page 79 VSP CHEM Vertical Sump Pump Place and tighten the corresponding hex bolts and washers to secure the casing adapter to the last bearing retainer and the last column tube. Figure 8.12 Placing and tightening the corresponding hex bolts and washers to secure the casing adapter to the last bearing retainer and the last column tube.
  • Page 80 VSP CHEM Vertical Sump Pump Place and tighten the corresponding socket head screws to secure the seal chamber to the soleplate. Figure 8.14 Placing and tightening the corresponding socket head screws to secure the seal chamber to the soleplate. Insert the pump´s shaft from the bottom side of the pump.
  • Page 81 VSP CHEM Vertical Sump Pump Insert the mechanical seal over the shaft from the top side up to the seal chamber. Figure 8.16 Inserting the mechanical seal over the shaft from the top side up to the seal chamber. Place and tighten the corresponding hex bolts to secure the mechanical seal to the seal chamber.
  • Page 82 VSP CHEM Vertical Sump Pump Place the impeller key on the shaft´s keyway. Figure 8.18 Placing the impeller key on the shaft´s keyway. Insert the impeller over the shaft from the lower side. Figure 8.19 Inserting the impeller over the shaft from the lower side.
  • Page 83 VSP CHEM Vertical Sump Pump Insert the impeller washer over the shaft from the bottom side. Figure 8.20 Inserting the impeller washer over the shaft from the bottom side. Place and tighten the impeller nut (and set screw for API designs).
  • Page 84 VSP CHEM Vertical Sump Pump Place the corresponding gasket on the case adapter. Figure 8.22 Placing the corresponding gasket on the case adapter. V7.081121...
  • Page 85 VSP CHEM Vertical Sump Pump Place the case on the case adapter. Figure 8.23 Placing the case on the case adapter. V7.081121...
  • Page 86 Place and tighten the corresponding hex bolts to secure the case to the case adapter. Figure 8.24 Placing and tightening the corresponding hex bolts to secure the case to the case adapter. NOTE Steps 26, 27 and 28 apply for VSP Chem pumps with a self-lubrication configuration. V7.081121...
  • Page 87 VSP CHEM Vertical Sump Pump Place all the corresponding horizontal flush line tubes on the column tubes. Figure 8.25 Placing all the corresponding horizontal flush line tubes on the column tubes. V7.081121...
  • Page 88 VSP CHEM Vertical Sump Pump Place the corresponding elbow and tee connectors on the horizontal flush line tubes. Figure 8.26 Placing the corresponding elbow and tee connectors on the horizontal flush line tubes. Place all the corresponding vertical flush line tubes on the elbow and tee connectors.
  • Page 89 VSP CHEM Vertical Sump Pump Place the corresponding gasket on the discharge tube located on the lower part of the soleplate. Figure 8.28 Placing the corresponding gasket on the discharge tube located on the lower part of the soleplate. Place the corresponding gasket on the case´s discharge flange.
  • Page 90 VSP CHEM Vertical Sump Pump Place the discharge tubing on the case´s discharge flange and the discharge tube located on the lower part of the soleplate. Figure 8.30 Placing the discharge tubing on the case´s discharge flange and the discharge tube located on the lower part of the soleplate.
  • Page 91 VSP CHEM Vertical Sump Pump Place and tighten the corresponding hex nuts to secure the upper flange of the discharge tube to the soleplate´s discharge tube. Figure 8.32 Placing and tightening the corresponding hex nuts to secure the upper flange of the discharge tube to the soleplate´s discharge tube.
  • Page 92 VSP CHEM Vertical Sump Pump Place and tighten the corresponding hex nuts to secure the lower flange of the discharge tubing to the case´s discharge flange. Figure 8.34 Placing and tightening the corresponding hex nuts to secure the lower flange of the discharge tubing to the case´s discharge flange.
  • Page 93 VSP CHEM Vertical Sump Pump Place the motor support on top of the plate adapter. Figure 8.36 Placing the motor support on top of the plate adapter. Place the corresponding hex bolts to fix the plate adapter and the motor adapter to the soleplate.
  • Page 94 VSP CHEM Vertical Sump Pump Place and tighten the corresponding hex nuts to secure the plate adapter and the motor adapter to the soleplate. Figure 8.38 Placing and tightening the corresponding hex nuts to secure the plate adapter and the motor adapter to the soleplate.
  • Page 95 VSP CHEM Vertical Sump Pump Insert the bearing housing over the shaft from the top side of the pump up to the motor support. Figure 8.40 Inserting the bearing housing over the shaft from the top side up to the motor support.
  • Page 96 VSP CHEM Vertical Sump Pump Insert the first ball bearing on the bearing adapter. Figure 8.42 Inserting the first ball bearing on the bearing adapter. Insert the second ball bearing on the bearing adapter. Figure 8.43 Inserting the second ball bearing on the bearing adapter.
  • Page 97 VSP CHEM Vertical Sump Pump ATTENTION The bearings must be heated to 100 °C / 212 °F. The bearings should be passed 3 times over the heater for demagnetization. This should be done for the proper installation and function of the bearings.
  • Page 98 VSP CHEM Vertical Sump Pump Insert the bearing adapter assembly over the shaft from the top side until it reaches the bearing housing. Figure 8.46 Inserting the bearing adapter assembly over the shaft from the top side until it reaches the bearing housing.
  • Page 99 VSP CHEM Vertical Sump Pump Place and tighten the shaft nut on the shaft. Figure 8.47 Placing and tightening the shaft nut on the shaft. ATTENTION The impeller lift procedure stated in SECTION 5.3 – IMPELLER LIFT must be carried out before the shaft nut is tightened in its final position.
  • Page 100 VSP CHEM Vertical Sump Pump Insert the bearing cover over the shaft from the top side until it reaches the bearing housing. Figure 8.49 Inserting the bearing cover the shaft from the top side until it reaches the bearing housing.
  • Page 101 VSP CHEM Vertical Sump Pump Place the strainer (if applicable) on the case´s suction flange. Figure 8.51 Placing the strainer (if applicable) on the case´s suction flange. Place the corresponding threaded studs to fix the strainer to the case´s suction flange.
  • Page 102 VSP CHEM Vertical Sump Pump Place and tighten the corresponding hex nuts to secure the strainer to the case´s suction flange. Figure 8.53 Placing and tightening the corresponding hex nuts to secure the strainer to the case´s suction flange. V7.081121...
  • Page 103 VSP CHEM Vertical Sump Pump VSP Chem pump assembly is complete. Figure 8.54 Complete VSP Chem pump assembly. V7.081121...

  • Page 104: Steam Jacket Piping Reassembly

    VSP CHEM Vertical Sump Pump 8.3.1 Steam Jacket Piping Reassembly If your pump is equipped with a steam jacket to maintain the pumped fluid warm, follow these steps to assemble the steam jacket piping: The steam inlet is placed on the top of the mounting plate.
  • Page 105 VSP CHEM Vertical Sump Pump Place the piping that connects the inlet to the jacket of the uppermost column steam steam tube. Figure 8.56 Placing the piping that connects the steam inlet to the steam jacket of the uppermost column tube.
  • Page 106 VSP CHEM Vertical Sump Pump Place the piping that connects the jacket of the uppermost column tube to the steam steam jacket of the next column tube. Figure 8.57 Placing the piping that connects the steam jacket of the uppermost column tube to the steam jacket of the next column tube.
  • Page 107 VSP CHEM Vertical Sump Pump Place the piping that connects the steam jacket of the lowermost column to the steam jacket of the discharge column. Figure 8.58 Placing the piping that connects the steam jacket of the lowermost column to the steam jacket of the discharge column.

  • Page 108: Spare Parts

    ATTENTION The quantities of spare parts given on the list below are the minimum standard quantities to be had. However, these quantities may vary depending on individual working conditions. For more information, please contact a Ruhrpumpen representative. DESCRIPTION STARTUP 1 - 3 YEARS...
  • Page 109 VSP CHEM Vertical Sump Pump Material Storage of spare parts • Store the spare parts in their original packaging. • Store in a dry place, preferably at a constant temperature. • Check the spare parts and the state of the packaging every 6 months for signs of corrosion.

  • Page 110: Parts Information

    VSP CHEM Vertical Sump Pump 10. PARTS INFORMATION 10.1 STANDARD VSP CHEM PUMP Figure 10.1 Standard VSP Chem Sectional Drawing. V7.081121...

  • Page 111: Item Description

    VSP CHEM Vertical Sump Pump Standard VSP CHEM Pump Parts List. ITEM DESCRIPTION ITEM DESCRIPTION CASE MECHANICAL SEAL CHOKER RING SEAL BOX 545.1 BASKET STRAINER BEARING BUSHING 545.2 COLUMN ADAPTER BEARING TAPE 145.1 PLATE ADAPTER MOTOR SUPPORT CASING COVER CONSTANT LEVEL OILER...

  • Page 112: Steam Jacketed Vsp Chem Pump

    VSP CHEM Vertical Sump Pump 10.2 STEAM JACKETED VSP CHEM PUMP DETAIL BE DETAIL BD SECTION BF V7.081121...
  • Page 113 VSP CHEM Vertical Sump Pump SECTION BG Figure 10.2 Steam Jacketed VSP Chem Pump Sectional Drawing. V7.081121...
  • Page 114 VSP CHEM Vertical Sump Pump Steam Jacketed VSP Chem Pump Parts List. ITEM DESCRIPTION ITEM DESCRIPTION CASE IMPELLER WASHER STRAINER GLAND CLIP PLATE ADAPTER MOTOR SUPPORT CASE COVER 636.1 GREASER FIT NAMEPLATE 636.2 GREASER FIT IMPELLER SHAFT COUPLING GUARD REDUCING...

  • Page 115: Troubleshooting Chart

    Inner pump parts are a. Change worn parts. worn. b. Density or viscosity of b. Consult a Ruhrpumpen dealer. pumped fluid is not same as designed. c. The motor voltage is c. Apply correct voltage to the motor.
  • Page 116 VSP CHEM Vertical Sump Pump TROUBLE PROBABLE CAUSES SUGGESTED SOLUTION m. NPSHa too low. m. Check the fluid level in the feed container. Open suction valve completely. Lay suction pipe elsewhere if friction losses are too big. Check for a possible filter in the feed pipe.
  • Page 117 Inner pump parts are i. Change worn parts. DISCHARGE worn. PRESSURE LOW j. Density or viscosity of j. Consult a Ruhrpumpen dealer. pumped fluid is not same as designed. k. The motor voltage is k. Apply correct voltage to the motor. incorrect.
