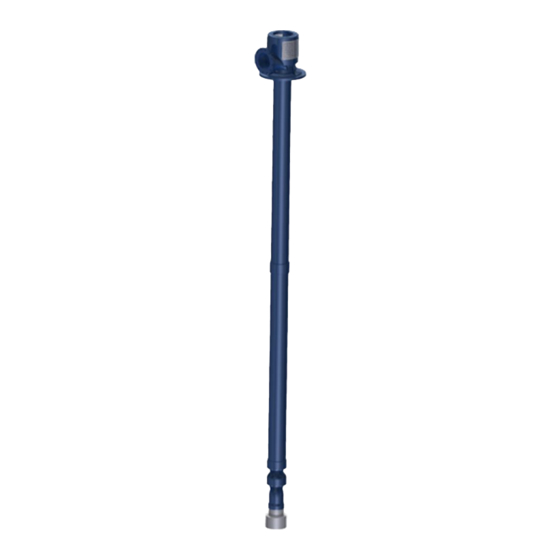

Vertical turbine pump
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
VTP
Installation, Operation and Maintenance Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VTP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ruhrpumpen VTP

Summary of Contents for Ruhrpumpen VTP

  • Page 1 Installation, Operation and Maintenance Manual...
  • Page 2 Vertical Turbine Pump FOREWORD The VTP Pump is a vertical pumping unit that is designed to operate in wells or sumps. The bowl assembly consists of a suction case or bell, one or more series cases, impeller assemblies, and a discharge case.
  • Page 3 Care must also be taken to prevent ignition of flammable fluids or other material. Information in this manual is believed to be reliable, but it is not guaranteed by Ruhrpumpen as to its completeness or accuracy. © 2020 Ruhrpumpen All Rights Reserved.

  • Page 4: Table Of Contents

    Vertical Turbine Pump CONTENTS 1. PRODUCT DESCRIPTION ........................7 1.1 INTRODUCTION ..........................7 1.2 PUMP BOWLS, IMPELLER, AND WEAR RINGS ................. 8 1.2.1 Pump Bowls ..........................8 1.2.2 Impeller and Wear Rings ......................8 1.3 DISCHARGE HEAD ..........................9 2. SAFETY..............................10 2.1 IDENTIFICATION OF SAFETY INSTRUCTIONS IN THE OPERATING MANUAL .........
  • Page 5 Vertical Turbine Pump 4.3.1 Two Crane Method ......................... 20 4.3.2 One Crane Method ......................... 21 4.4 INSTALLATION ..........................22 4.4.1 Close Shaft Pumps (Oil Lubrication) ..................22 4.4.2 Open Shaft Pumps ........................26 4.4.3 Hollowshaft Driver ........................28 4.4.4 Right Angle Propulsion for the Hollowshaft ................29 4.4.5 Grout............................
  • Page 6 Vertical Turbine Pump 8.3.1 VTP Pump Packing Strips Option .................... 60 8.3.2 VTP Pump Mechanical Seal Option ..................77 9. SPARE PARTS ............................81 10. PARTS INFORMATION ........................83 11. TROUBLESHOOTING CHART......................87 V5.031220...

  • Page 7: Product Description

    1.1 INTRODUCTION Ruhrpumpen vertical turbine pumps are normally designed to operate in wells or sumps. The bowl assembly consists primarily of a suction case or bell; one or more pump bowls, and a discharge head.

  • Page 8: Pump Bowls, Impeller, And Wear Rings

    1.2.2 Impeller and Wear Rings Impellers used in Ruhrpumpen turbine pumps are of the enclosed centrifugal or mixed flow type. Sealing of interstage leakage is accomplished by the insertion of wear rings to provide close radial fitting between the bowl and impeller sealing surface. Impellers are mechanically connected to the pump shaft by impeller collets and lock nuts which press the impeller tightly against the collets.

  • Page 9: Discharge Head

    Vertical Turbine Pump Position of the impeller on the shaft is determined by an impeller lock pin. The lock pins are inserted at the plant and provide accurate positioning of impellers on the pump shafts. 1.3 DISCHARGE HEAD The discharge head is a resistant cast part or a steel fabricated structure that holds the pump and the bowl assembly to the base.

  • Page 10: Safety

    The responsibilities and supervision of the personnel must be exactly defined by the plant operator. If the staff does not have the necessary knowledge, they must be trained and instructed. Training may be performed by a Ruhrpumpen representative on behalf of the plant operator. V5.031220...

  • Page 11: Hazards In The Event Of Non-Compliance With The Safety Instructions

    Vertical Turbine Pump Moreover, the plant operator is to make sure that the contents of the operating manual are fully understood by the personnel. 2.3 HAZARDS IN THE EVENT OF NON-COMPLIANCE WITH THE SAFETY INSTRUCTIONS Non-compliance with the safety instructions may produce a risk to the personnel as well as to the environment and the unit and results in loss of any right to claim damages.

  • Page 12: Safety Instructions Relevant For Maintenance, Inspection And Assembly Work

    Modifications may be made to the machine only after consultation with a Ruhrpumpen representative. Using spare parts and accessories authorized by Ruhrpumpen is in the interest of safety. The use of parts not authorized by the dealer exempt the manufacturer from any liability, voiding the warranty.

  • Page 13: Transport & Storage

    Handle all equipment carefully. Remove unit only by properly supporting the wooden shipping skid. After unloading, inspect the pump, check the shipment against the packing list, and report damages or shortages immediately to freight carrier and to the designated Ruhrpumpen representative. 3.3 TRANSPORT ...

  • Page 14: Storing

    Vertical Turbine Pump  When transporting with a crane, use a goal-like accessory and sling two ropes around the balancing points of the pump, as the figure shown below, and carefully lift it. Figure 3.1. Correct position of the lifting ropes or chains, side view. 3.4 STORING Storing any pump for any length of time presents a few challenges.

  • Page 15: Long Term Storage (Longer Than Six Months)

    Vertical Turbine Pump should remain inside its shipping container. Furthermore, the pump unit (pump, driver, etc.) should not be subject to sudden temperature changes or vibrations. 3.4.2 Long Term Storage (Longer than Six Months) For long term storage each part of the pump should be individually prepared. Comply with the following steps: Remove pump from shipping skids and supports, but do not damage them because the unit is to be placed in them again.

  • Page 16: Motor (Driver) Storage

    Return the unit to the shipping crate. When the pump is to be installed, remove all the protective coatings and desiccant or drain all oils. One month before installation, a Ruhrpumpen representative should be employed to conduct a final inspection. 3.4.3 Motor (Driver) Storage To properly store the motor (driver) for periods longer than one month, follow the manufacturer’s...

  • Page 17: Conservation

    Vertical Turbine Pump o If none are available, single phase or “trickle” heating may be utilized by energizing one phase of the motor’s windings with a low voltage, producing heat in the winding conductor.  Request the required voltage and transformer capacity from the driver manufacturer.
  • Page 18 Vertical Turbine Pump  Anticorrosive layers inside the pump housing must be removed with process neutral solvents before commencing pump operation.  When removing the protective coating with a neutral solvent, follow the safety instructions of the solvent manufacturer carefully. ...

  • Page 19: Installation

    NOTE: The information in this section is intended as a general guideline. For further information refer to the corresponding section in API Recommended Practices 686. IMPORTANT: The design of foundations is not the responsibility of Ruhrpumpen. It is therefore recommended that the customer consult a competent specialist skilled in the field of foundations, to insure proper design/installation of the foundation.

  • Page 20: Lifting Pump To A Vertical Stance

    Vertical Turbine Pump  Leveling pieces, such as shims or wedges.  Fixed crane, tripod or common crane with hoisting chain or similar accessory that has a hook and rotatory link. 4.3 LIFTING PUMP TO A VERTICAL STANCE In order to lift the pump to a vertical stance for installation purposes, follow one of these two options: 4.3.1 Two Crane Method When two lifting cranes are available, a ropes or slings must be attached to each crane and then onto...

  • Page 21: One Crane Method

    Vertical Turbine Pump Figure 4.2 Tilting the pump towards a vertical stance using the two crane method. Once the pump is in a vertical stance, the rope or sling attached near the pump´s case may be released and the rest of the transportation can be carried out using only one the crane attached to the lifting lugs on the pump´s plate.

  • Page 22: Installation

    Vertical Turbine Pump With the pump still in the wooden support skid, begin raising the top end of the pump with the crane, using the wooden support skid as a pivot, to tilt the pump into a vertical stance, as shown below: Figure 4.4 Tilting the pump into a vertical stance using the one crane method.
  • Page 23 Vertical Turbine Pump  NOTE: Before continuing the bowl assembly installation, measure and record the shaft length clearance to compare it later when the impellers are adjusted. Fix a tube clamp on the top part bowl assembly and lift until the assembly is centered over the suction tube.
  • Page 24 Vertical Turbine Pump Slowly lower the column tube, the driver shaft and the protection tube until the driver shaft can be coupled to the pump shaft. Remove the thread protector. Remove the rope from the driver shaft, place some oil on the driver shaft’s thread and rotate the driver shaft counter-clockwise to couple it to the pump’s shaft.
  • Page 25 Vertical Turbine Pump Turn around the pump’s head; center the top column flange’s packing strips on the bottom of the pump’s head and use bolts to fix the flanged top column tube to the bottom of the pump’s head.  NOTE: During the assembly of the top column tube’s flange to the bottom of the pump’s head, check carefully that the packing strips are centered and that all the tubing is aligned after the assembly.

  • Page 26: Open Shaft Pumps

    Vertical Turbine Pump Connect the lubrication accessories to the tension bushing. 4.4.2 Open Shaft Pumps Cover the opening of the foundation with wood or any another material to protect the well from objects that can fall in. Place the hoisting equipment in position, with the hook and the rotatory link centered over the foundation opening.
  • Page 27 Vertical Turbine Pump Fix a clamp to the top column tube and then lift the column together with the driver shaft and center them above the bowl assembly. Lower the column tube together with the driver shaft, remove the thread protector and continue lowering it until the driver shaft rests over the pump’s shaft coupling.

  • Page 28: Hollowshaft Driver

    Vertical Turbine Pump Lift the pump’s head and the column tube and remove the tube clamp. Rotate the pump until the discharge head or the underground “T” tubing is facing in the proper direction to assemble with the discharge tube and make sure that the pump’s mounting holes are aligned with the foundation’s mounting holes.

  • Page 29: Right Angle Propulsion For The Hollowshaft

    Vertical Turbine Pump  NOTE: The pump’s shaft is elongated because of the hydraulic push of the pump. It is necessary to adjust the height of the impellers to compensate this effect. Adjust the impellers’ height a distance equal to the elongation of the pump’s shaft and tighten the adjusting nut.

  • Page 30: Grout

    Vertical Turbine Pump  NOTE: The pump’s shaft is elongated because of the hydraulic push of the pump. It is necessary to adjust the height of the impellers to compensate this effect. Adjust the impellers’ height a distance equal to the elongation of the pump’s shaft and tighten the adjusting nut.

  • Page 31: Piping And Alignment

    Vertical Turbine Pump 5. PIPING AND ALIGNMENT  These units are furnished for a specific service condition. Any change in the hydraulic system may affect the pump performance adversely.  The connection of the piping must be carried out with utmost care; otherwise, the pumping medium can escape during operation, which can seriously endanger the operating personnel.

  • Page 32: Piping The System

    API Recommended Practices 686. IMPORTANT: The design of piping and related systems is not the responsibility of Ruhrpumpen. It is, therefore recommended that the customer consult a competent specialist skilled in the field of piping to insure proper design/installation of all the piping.
  • Page 33 Vertical Turbine Pump Disconnect the piping from the pump if you heat one side of the pipe to align the pipe to the pump. Pump and pipe flanges must be parallel; they should mate together without effort, and with the bolt holes properly in line. Check the fine alignment by clocking or using a Dial Type Indicator (DTI) on the coupling.

  • Page 34: Alignment

    Vertical Turbine Pump 5.2 ALIGNMENT In the following pages, alignment procedures are explained with dial indicators. Laser alignment is also possible. The specific method in laser alignment will depend on the manufacturer’s instructions; however, the basic principles and rotation of the shafts apply, as in the Reverse Indicator Alignment Method.
  • Page 35 Vertical Turbine Pump 4. Soft Foot The fact that your equipment could have a soft foot can affect the alignment readings that you obtain. The soft foot should be checked first and eliminated. This can easily be done by mounting a dial indicator on the base plate indicating off the top of foot on the machine to be checked.
  • Page 36 Vertical Turbine Pump Figure 5.1. Example for reverse indicator graphical analysis. The next step is to determine indicator sag. Set up your bracket arrangement on a pipe. Set the indicator at '0' on top. Roll set up until indicator is at the bottom of pipe. It will read negative. In this example, it is found to be -0.005 inch (-0.127 mm).
  • Page 37 Vertical Turbine Pump Figure 5.2. Indicator sag. With the indicator bracket attached to the motor hub reading off the pump hub, rotate unit in 90° increments and take readings. Bottom reading is then corrected for indicator sag. Indicator sag in the example was determined to be -0.005 inch (-0.127 mm).
  • Page 38 Vertical Turbine Pump Figure 5.3. Motor shaft extension relative to the pump shaft center line. Now with the indicator bracket attached to the pump hub reading off the motor hub, rotate unit again in 90° increments. NOTE: If you can set up both indicators at once, both sets of readings can be taken at one time.
  • Page 39 Vertical Turbine Pump We have now located the motor shaft theoretical extension in two places: A. In the plane of the pump hub. B. In the plane of the motor hub. Drawing a straight line through these two points crossing the plane of the two motor feet. The shim adjustment can now be read directly off the graph.
  • Page 40 Vertical Turbine Pump Figure 5.6. Reverse indicator alignment of more than two units. D. ACROSS THE DISC PACK ALIGNMENT GRAPHICAL ANALYSIS When the distance between disc packs is long where it is not practical to try to span the distance with indicator bracketry, the 'across the disc pack method' can be used.
  • Page 41 Vertical Turbine Pump The next step is to determine indicator sag. Set up your bracket arrangement on a pipe. Set the indicator at '0' on top. Roll set up until indicator is at the bottom of pipe. It will read negative. In this example, it was found to be -0.004 inch (-0.102 mm).
  • Page 42 Vertical Turbine Pump Figure 5.9. Plot of the plus reading in the across the disc pack alignment analysis example. Now with the indicator bracket attached to the motor hub reading out on the center member, rotate the unit in 90° increments and take readings. Bottom reading is corrected for indicator sag: ±0.008 inch (±0.203 mm) -0.004 inch (0.102 mm) = +0.012 inch (+0.309 mm).

  • Page 43: Impeller Lift

    Vertical Turbine Pump Figure 5.10. Plotting the motor in the across the disc pack alignment analysis example. In this example, the motor should be shimmed up 0.013 inch (0.330 mm) under front feet and shimmed up 0.016 inch (0.406 mm) under back feet. This solution can also be done by use of a pre-programmed, calculator for faster results.
  • Page 44 Vertical Turbine Pump Rotate the adjusting nut so that it does not rest on the bearing housing. Figure 5.11 Rotating the adjusting nut so that it does not rest on the bearing housing. Carefully adjust the shaft so that the impeller(s) rest(s) on the bowl/case. Attach the Total Indicator Readout (T.I.R.) tool on the frame support.
  • Page 45 Vertical Turbine Pump Rotate the adjusting nut so that it rests on the bearing housing. Figure 5.13 Rotating the adjusting nut so that it rests on the bearing housing. Place the T.I.R. tool needle on the top of the pump shaft. Adjust the dial on the T.I.R.
  • Page 46 Vertical Turbine Pump Rotate the adjusting nut until the T.I.R. tool reading has increased by a range between 0.010 and 0.016 inches (0.25 and 0.41 mm). Figure 5.15 Rotating the adjusting nut until the T.I.R. tool reading has increased by a range between 0.010 and 0.016 inches (0.25 and 0.41 mm).
  • Page 47 Correctly performing the impeller lift procedure is crucial to a vertical pump´s optimal performance, since an incorrect impeller lift can cause a decrease in the pump´s efficiency and even damage to the pump. In case of any doubts, contact a Ruhrpumpen representative. V5.031220...

  • Page 48: Lubrication

    The recommended oil is ISO VG 68 non-detergent oil. Turbine quality oil is preferred. This oil may be used during break-in and normal operation. 6.2 OPEN SHAFT PUMPS VTP open shaft pumps depend mainly on the pumped fluid for lubrication. As the liquid travels thru the column tubes, it lubricates the shaft and shaft bushings. V5.031220...

  • Page 49: Operation

    Vertical Turbine Pump 7. OPERATION 7.1 PRIMING Since VTP pumps are submerged in the same fluid they pump, no special priming procedure is required. 7.2 STARTUP  Every time before the pump is started up the safety devices must be mounted and fastened.
  • Page 50 Vertical Turbine Pump • Pump and driver bolted securely. • All gauges, valves and instruments are in proper working conditions. • Coupling properly aligned. • Piping complete. • Correct rotation. • Pump shaft turns freely. • Discharge valve closed. • Suction valve (if used) open.

  • Page 51: Packing Strips And Packing Gland Tightening Procedure

    Vertical Turbine Pump Slowly open the discharge valve until the discharge pressure reaches the desired level or the valve is fully open. On open shaft pumps, tighten the split gland nuts. 7.2.1 Packing Strips and Packing Gland Tightening Procedure To properly place and tighten the packing strips and the packing gland follow these steps: Insert the first set of packing strips over the shaft from the top side.
  • Page 52 If overheating is detected and the temperature in any of these components is higher, check that the pump is well lubricated and contact Ruhrpumpen for support.  If the pump is equipped with a flush line valve, it must be used to adjust the flow towards the packing strips.
  • Page 53 Vertical Turbine Pump  In special cases, the pump may be equipped with a deflector, which is positioned right after the packing gland and whose purpose is preventing the coupling and the motor from getting splashed.  If the pump is equipped with a stuffing box basin, the operator must make sure that its drain is not plugged, as this will cause liquid accumulation.

  • Page 54: Operating Check

    To monitor flow, pressure, temperature, and lubrication, regular visual inspection and monitoring is advisable and/or necessary during operation. Ruhrpumpen recommends checking the pump constantly at regular intervals in order to detect problems early, in case they arise. The operational check routine must include at least the following points: ...

  • Page 55: Doweling (Optional)

    Vertical Turbine Pump b. If leakage is excessive, switch the pump off as quickly as possible, isolate the pump by closing the discharge and suction valves or by using some other approved method designated as safe for your system, and check the rotating seal ring and the stationary seal ring.

  • Page 56: Short-Term Shutdown

    Vertical Turbine Pump Drain the pump and the auxiliary piping.  If the outside temperature is below 32 °F (0 °C), all cooling chambers must be emptied, and all seal system cooling coils must be drained. 7.6 SHORT-TERM SHUTDOWN If the pump was switched off correctly and has not suddenly come to a halt, it may be re-started without the need to take any special measures.

  • Page 57: Maintenance

     IMPORTANT: For any component/accessory that has not been manufactured by Ruhrpumpen and is part of the pump’s equipment, a complete reading of said component/accessory manufacturer’s manual must be carried out for further information on proper maintenance procedures and relevant safety warnings.
  • Page 58 Vertical Turbine Pump When disassembling the pump, match mark, tag or otherwise identify all parts, and provide separate containers for small parts. Refer to the sectional drawing of the pump included in SECTION TEN - PARTS INFORMATION for the correct identification of the parts. Disconnect seal water lines (if used).

  • Page 59: Inspection And Cleaning

    Thoroughly clean all parts and dry with compressed air or a clean, lint free cloth. Inspect all components for corrosion, erosion, pitting, and scoring. If required, replace with Ruhrpumpen O.E.M. genuine replacement parts. Visual check all individual parts for any damage.

  • Page 60: Reassembly

    8.3 REASSEMBLY  Observe the plant's safety precautions when lifting heavy components. Request help when moving or positioning them. 8.3.1 VTP Pump Packing Strips Option Insert the impeller inside the intermediate bowl. Figure 8.1. Inserting the impeller inside the intermediate bowl.
  • Page 61 Vertical Turbine Pump Insert the top bowl bushing inside the suction bowl. Figure 8.3. Inserting the top bowl bushing inside the suction bowl. Insert the suction case sand collar inside the suction bowl. Figure 8.4. Inserting the suction case sand collar inside the suction bowl. Place the suction bowl assembly on the intermediate bowl assembly.
  • Page 62 Vertical Turbine Pump Place and tighten the hex bolts to secure the suction bowl assembly to the intermediate bowl assembly. Figure 8.6. Placing and tightening the hex bolts to secure the suction bowl assembly to the intermediate bowl assembly. Place the column adapter on the top of the intermediate bowl. Figure 8.7.
  • Page 63 Vertical Turbine Pump Place and tighten the hex bolts to secure the column adapter to the intermediate bowl. Figure 8.8. Placing and tightening the hex bolts to secure the column adapter to the intermediate bowl. Insert the bowl bushing inside the intermediate bowl. Figure 8.9.
  • Page 64 Vertical Turbine Pump Insert the impeller shaft inside the intermediate bowl assembly and the suction bowl assembly. Figure 8.10. Inserting the impeller shaft inside the intermediate bowl assembly and the suction bowl assembly.  The impeller shaft must be inserted from the top to the bottom, first passing through the intermediate bowl assembly and then through the suction bowl assembly.
  • Page 65 Vertical Turbine Pump Insert the shaft bushing over the impeller shaft. Figure 8.12. Inserting the shaft bushing over the impeller shaft. Insert and tighten the first column pipe inside the column adapter. Figure 8.13. Inserting and tightening the first column pipe inside the column adapter. Insert the intermediate column bushing inside the bushing carrier.
  • Page 66 Vertical Turbine Pump Insert the shaft sleeve inside the intermediate column bushing. Figure 8.15. Inserting the shaft sleeve inside the intermediate column bushing. Place the bushing carrier assembly on top of the column pipe. Figure 8.16. Placing the bushing carrier assembly on the top of the column pipe. Place and tighten the column adapter on the top of the column pipe.
  • Page 67 Vertical Turbine Pump Insert the first intermediate shaft inside the bushing carrier assembly and column pipe. Figure 8.18. Inserting the first intermediate shaft inside the bushing carrier assembly and column pipe. Insert the shaft bushing on the top end of the first intermediate shaft. Figure 8.19 Inserting the shaft bushing on the top end of the first intermediate shaft.
  • Page 68 Figure 8.21. Placing and tightening the discharge head on the top of the last column pipe.  For VTP pumps that are designed with more the two column pipes, the discharge head will always be installed on the last column pipe.
  • Page 69 Vertical Turbine Pump Place a gasket on the shaft hole of the discharge head. Figure 8.23. Placing a gasket in the shaft hole of the discharge head. Insert the stuffing box bushing inside the stuffing box until it reaches the inner shoulder. Figure 8.24.
  • Page 70 Figure 8.26. Placing and tightening the hex bolts to secure the stuffing box to the discharge head. If your pump is furnished with a mechanical seal as a shaft sealing option, refer to Section 8.3.2 VTP Pump Mechanical Seal Option for the correct assembly procedure for step 28.
  • Page 71 Vertical Turbine Pump To assemble the packing strips option, please follow these instructions: a. Insert the first set of packing strips inside the stuffing box. 8.27. Inserting the first set of packing strips inside the stuffing box. b. Insert the lantern ring inside the stuffing box until it reaches the first set of packing strips.
  • Page 72 Vertical Turbine Pump c. Insert the second set of packing strips inside the stuffing box until they reach the lantern ring. Figure 8.29 Inserting the second set of packing strips inside the stuffing box. d. Join the two halves of the split packing gland. Figure 8.30 Joining the two halves of the split packing gland.
  • Page 73 Vertical Turbine Pump e. Insert the two halves of the split packing gland over the last intermediate shaft until they reach the second set of packing strips. Figure 8.31 Inserting the two halves of the split packing gland over the last intermediate shaft. f.
  • Page 74 Vertical Turbine Pump g. Insert two studs to hold both halves of the split packing gland in place in the discharge head. Figure 8.33 Inserting two studs to hold the two halves of the split packing gland in place. h. Place and tighten the hex nuts to secure the split packing gland on the stuffing box. Figure 8.34 Placing and tightening the hex nuts to secure the split packing gland on the stuffing box.
  • Page 75 Vertical Turbine Pump Place the grease fitting in its corresponding hole in the discharge head. Figure 8.35 Placing the grease fitting in its corresponding hole in the discharge head. Install the coupling guard on the discharge head. Figure 8.36 Installing the coupling guard on the discharge head. V5.031220...
  • Page 76 Vertical Turbine Pump Install the strainer in the bottom of the suction bowl. Figure 8.37 Installing the strainer in the bottom of the suction bowl. Place all the plugs on the discharge head. Figure 8.38 Placing the plugs on the discharge head. V5.031220...

  • Page 77: Vtp Pump Mechanical Seal Option

    Figure 8.39 Complete VTP pump assembly. 8.3.2 VTP Pump Mechanical Seal Option The VTP pump mechanical seal option shares reassembly steps 1 thru 27 with the VTP pump packing strips option. Proceed with the aforementioned steps from the VTP pump packing strips option reassembly procedure found in SECTION 8.3.1 VTP Pump Packing Strips Option when reassembling...
  • Page 78 Vertical Turbine Pump To assemble the mechanical seal option, please follow the next steps: a. Insert the mechanical seal inside the stuffing box. Figure MS 8.27 Inserting the mechanical seal inside the stuffing box. V5.031220...
  • Page 79 Vertical Turbine Pump b. Insert the mechanical seal gland over the shaft inside the stuffing box until it reaches the mechanical seal. Figure MS 8.28 Inserting the mechanical seal gland inside the stuffing box. c. Place the studs to hold the mechanical seal gland in its place in the discharge head. Figure MS 8.29 Placing the studs to hold the mechanical seal gland in its place.
  • Page 80 Figure MS 8.30 Placing and tightening the hex nuts to secure the mechanical seal gland to the discharge head. Once the mechanical seal assembly procedure is finished refer to Section 8.3.1 VTP Pump Packing Strips Option step 29 to continue with the rest of the pump assembly.

  • Page 81: Spare Parts

     The quantities of spare parts given on the list below are the minimum standard quantities to be had. However, these quantities may vary depending on individual working conditions. For more information, please contact a Ruhrpumpen representative. DESCRIPTION STARTUP 1 - 3 YEARS...
  • Page 82 Vertical Turbine Pump Material Storage of Spare Parts • Store the spare parts in their original packaging. • Store in a dry place, preferably at a constant temperature. • Check the spare parts and the state of the packaging every 6 months for signs of corrosion. •...

  • Page 83: Parts Information

    Vertical Turbine Pump 10. PARTS INFORMATION DETAIL A DETAIL B DETAIL C DETAIL D Figure 10.1 VTP Pump Sectional Drawing – Packing Strips Option. V5.031220...
  • Page 84 Vertical Turbine Pump Parts List VTP Pump – Packing Strips Option. ITEM DESCRIPTION ITEM DESCRIPTION STUFFING BOX BEARING BOWL, SERIES BEARING COVER BELL, SUCTION LOCKNUT BEARING, SUCTION BOWL 332-1 LOCKNUT WASHER BEARING TAPE, SUCTION 103-1 TOP SHAFT KEY BOWL PACKING GLAND...
  • Page 85 Vertical Turbine Pump DETAIL A DETAIL B DETAIL C DETAIL D DETAIL E Figure 10.2 VTP Pump Sectional Drawing – Mechanical Seal Option. V5.031220...
  • Page 86 Vertical Turbine Pump Parts List VTP Pump – Mechanical Seal Option. ITEM DESCRIPTION ITEM DESCRIPTION INTERMEDIATE BEARING SLEEVE BOWL COLUMN BEARING SUCTION BOWL 545.1 BUSHING INTERMEDIATE BASKET STRAINER 545.2 BOWL BEARING BUSHING SUCTION BOWL NOZZLE HEAD 545.3 BEARING BUSHING STUFFING BOX IMPELLER SHAFT 545.4...

  • Page 87: Troubleshooting Chart

    SUGGESTED SOLUTION a. Inner pump parts are a. Change worn parts. worn. b. Consult a Ruhrpumpen dealer. b. Density or viscosity of c. Apply correct voltage to the motor. pumped fluid is not d. Check the cables, connections and fuses.
  • Page 88 Install vent valve or lay piping elsewhere. plugged. j. Change worn parts. CAPACITY OR Formation k. Consult a Ruhrpumpen dealer. DISCHARGE pockets in the piping. l. Apply correct voltage to the motor. PRESSURE LOW j. Inner pump parts are m.
  • Page 89 Vertical Turbine Pump RUHRPUMPEN PLANTS USA, Tulsa & Orland MEXICO, Monterrey BRAZIL, Río De Janeiro ARGENTINA, Buenos Aires GERMANY, Witten EGYPT, Suez INDIA, Chennai CHINA, Changzhou UK, Lancing V5.031220 V5.031220...
