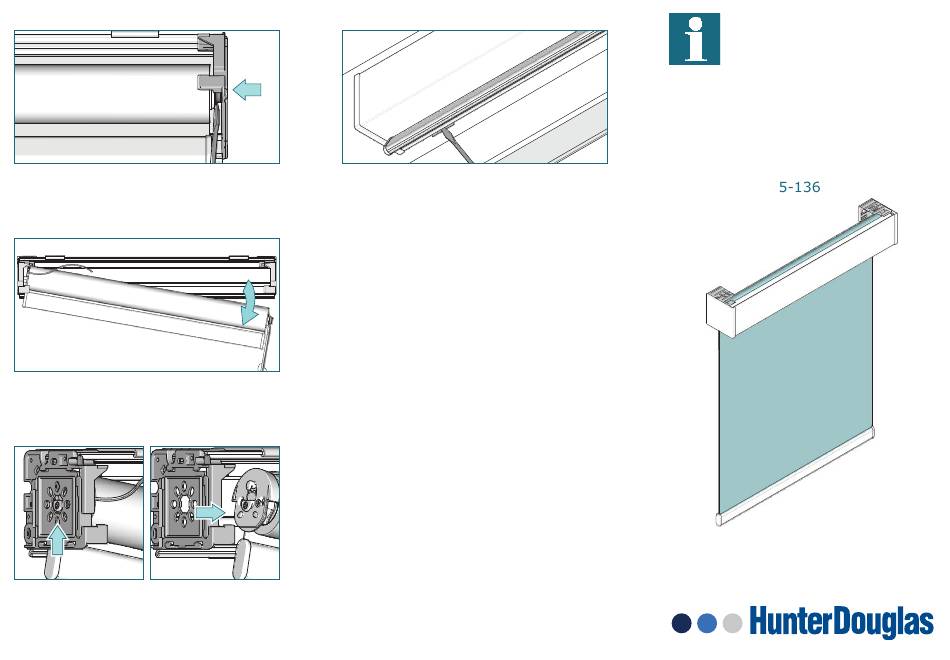

Removal of the Roller Blind
Slide a screw driver between bearing plug and
bracket and push the bearing in the motor direction.
Move the blind downwards out of the bracket.
Lift the motor front plate up and out of the bracket.
Removal of the Cassette
To remove the whole cassette, slide a screw driver
between bracket and cassette and turn it 45°.
Installation Instruction
Roller Blind (Cassette System)
Motor Operation
Type
5-56
5-66
5-76
5-86
5-96
5-116
