Push the front pro le to snap it into the bracket.
Slide the end caps onto the brackets.
Removal of the Roller Blind
Place the screw driver under the end cap, turn
the screw driver and slide the end cap from the
bracket.
2
Press the bottom of the front pro le upwards
and turn it outwards
.
nfasten the lockin rin . Slide a screw driver
between lockin rin and bracket and push the
bearin in the ali ner direction.
Move the blind downwards out of the bracket. Pull
the ali ner out of the bearin .
Installation Instruction

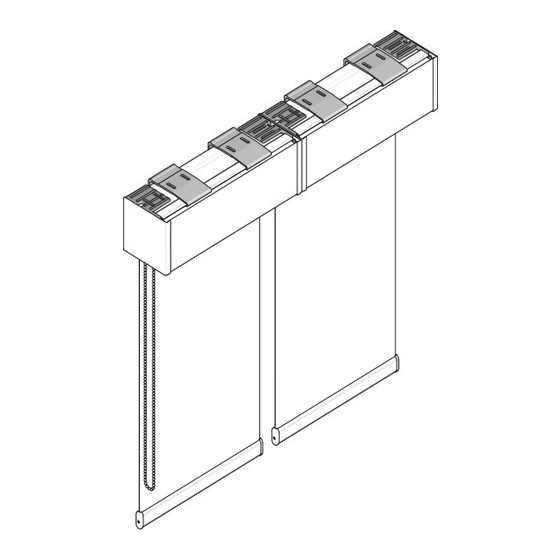

Roller Blind (Cassette System)
Coupled Blinds
Type
1
5-257
5-267
5-277
5-287
5-297
5-317
