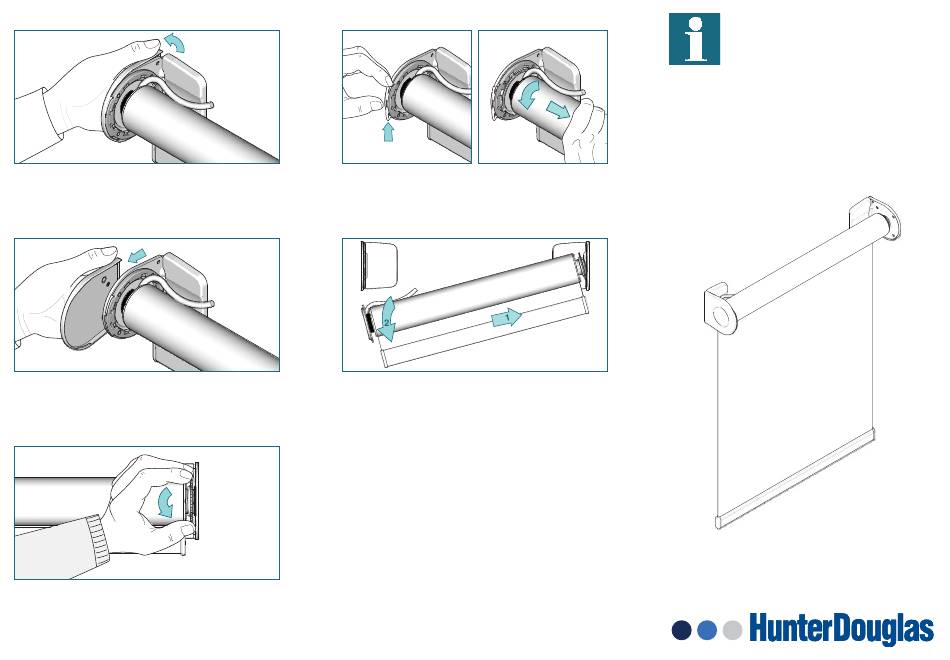

Removal
Disconnect the motor. Lift the backside of the end
cap...
... and slide it towards you.
Unfasten the locking ring.
Open both fasteners of the bracket ring. Turn the
blind in the roll up direction until the front plate gets
out of the bracket ring.
Push the blind against the bearing and slide it out
of the bracket.
1
2
Installation Instruction
Roller Blind
Motor Operation
Type
5-216
