HunterDouglas RB 500 Standard+ Clutch Manual Installation

Hide thumbs Also See for RB 500 Standard+ Clutch:
1
2
3
Table of Contents

Advertisement

Quick Links

Download this manual

TOOLS NEEDED

Pencil

INSTALLING THE BRACKETS

5.875" DUAL BRACKET WITH STANDARD
a
b
c

OPTIONAL: INTEGRATED LEVELER

Las Vegas • Chicago
800.229.5300
HDhospitality.com
© 2018 Hunter Douglas. All rights reserved. All trademarks used herein are the property of Hunter Douglas or their respective owners.

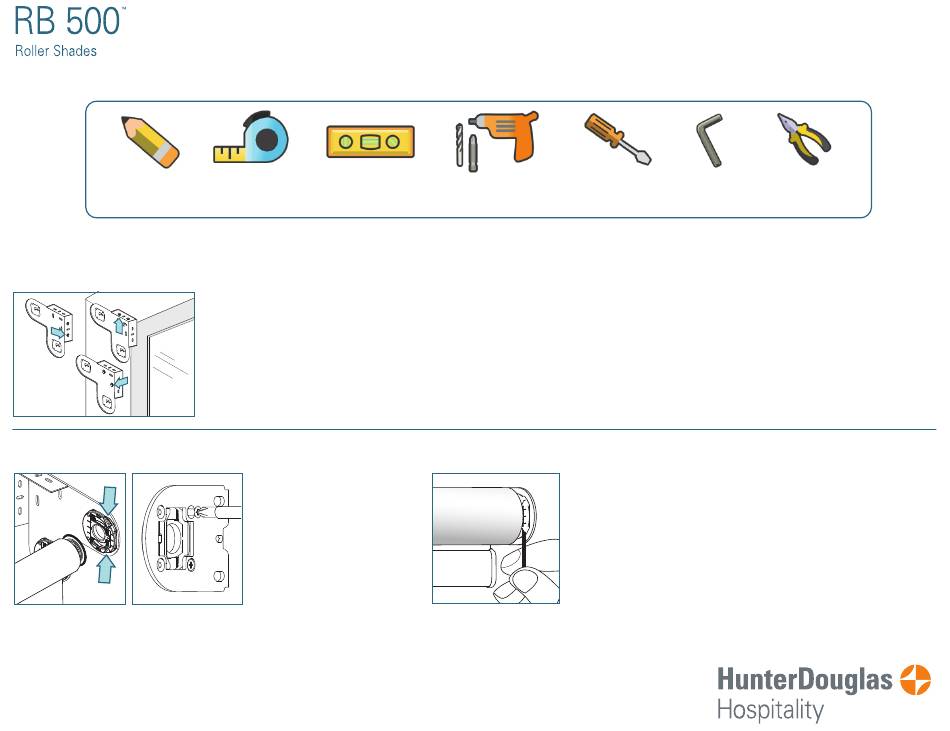

Standard+ Clutch with 5.875" Dual Bracket
Manual Clutch Installation
Measuring
Level
Tape
Mount into wood or metal studs or into concrete with concrete anchors.
Drywall anchors are not recommended.
Determine the mounting location.
a) surface/wall b) ceiling c) in recess/end mount
Measure and mark the bracket locations with a pencil.
Mount brackets with the screws provided. Pre-drilling is recommended.
Check that the brackets are level and aligned.
Ensure the leveling set screw
opening is pointing downwards
before installing the bracket.
The orientation can be changed
by loosening the two screws
(M3x6) and turning the leveler
90°. Fix the screws after turning.
Screwdriver
Drill with
bits

ADJUST LEVELER

Insert the provided Allen key into the set screw
of the leveler.
Adjust skewing by turning the Allen key left or
right to move the shade up or down. Support
the shade with your hand if necessary.
All adjustments can be made after the shade
has been installed and after the operation has
been tested.
Allen Key
Pliers
(provided with
optional Leveler)
1 of 3
