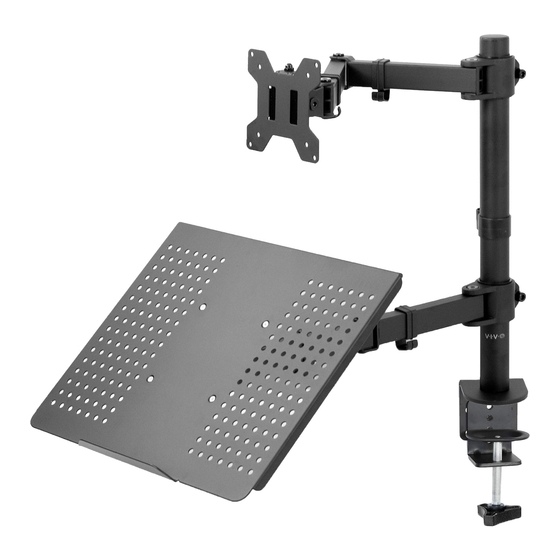

Single Monitor and Laptop Desk Mount
Instruction Manual
SKU: STAND-V002C
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v002c
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Related Manuals for Vivo STAND-V002C
Summary of Contents for Vivo STAND-V002C
- Page 1 Single Monitor and Laptop Desk Mount Instruction Manual SKU: STAND-V002C Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v002c GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 ASSEMBLY STEPS STEP 1 Option A: Desk Clamp Install Option B: Grommet Install Loosen Clamp Bolt (B1) on Clamp (B). Install Using a Phillips screwdriver, remove the screw Clamp (B) to Pole (A) using M6x16 Screws (S-D) from Clamp (B) and separate Clamp Bolt (B1) and 3mm Allen Wrench (T-A).
- Page 4 STEP 2 Slide Arm (C) over Pole (A). Secure Arm (C) at the desired height using 6mm Allen Wrench (T-C). STEP 3 Slide Arm (C) over Pole (A). Secure Arm (C) at the desired height using 6mm Allen Wrench (T-C). Insert Pole Cap (K) into the top of Pole (A).
- Page 5 STEP 4 Attach Arm Cable Clips (I) to Arm (C) and Pole Cable Clip (J) to Pole (A). STEP 5 Attach VESA Plate (D) to the back of the monitor using M4x12 Thumbscrews (M-A) or M4x30 Screws (M-B) with M4 Spacers (M-C).
- Page 6 STEP 6 Assemble VESA Plate (D) to Laptop Tray (E) using M4x8 Screws (S-A) and M4 Nuts (S-B). Tighten using Wrench (T-D) and a Phillips screwdriver. STEP 7 Slide VESA Plates (D) onto Arms (C). Secure the assembly in place using M6 Nuts (S-C).
- Page 7 STEP 8 Place your laptop on Laptop Tray (E). STEP 9 Adjust the tilt using 5mm Allen Wrench (T-B).
- Page 8 : 1HR 8M (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
