Unit 0200
Cabin Equipment
Operation Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the Cessna Citation Sovereign and is the answer not in the manual?

Questions and answers

Related Manuals for Textron Cessna Citation Sovereign

Summary of Contents for Textron Cessna Citation Sovereign

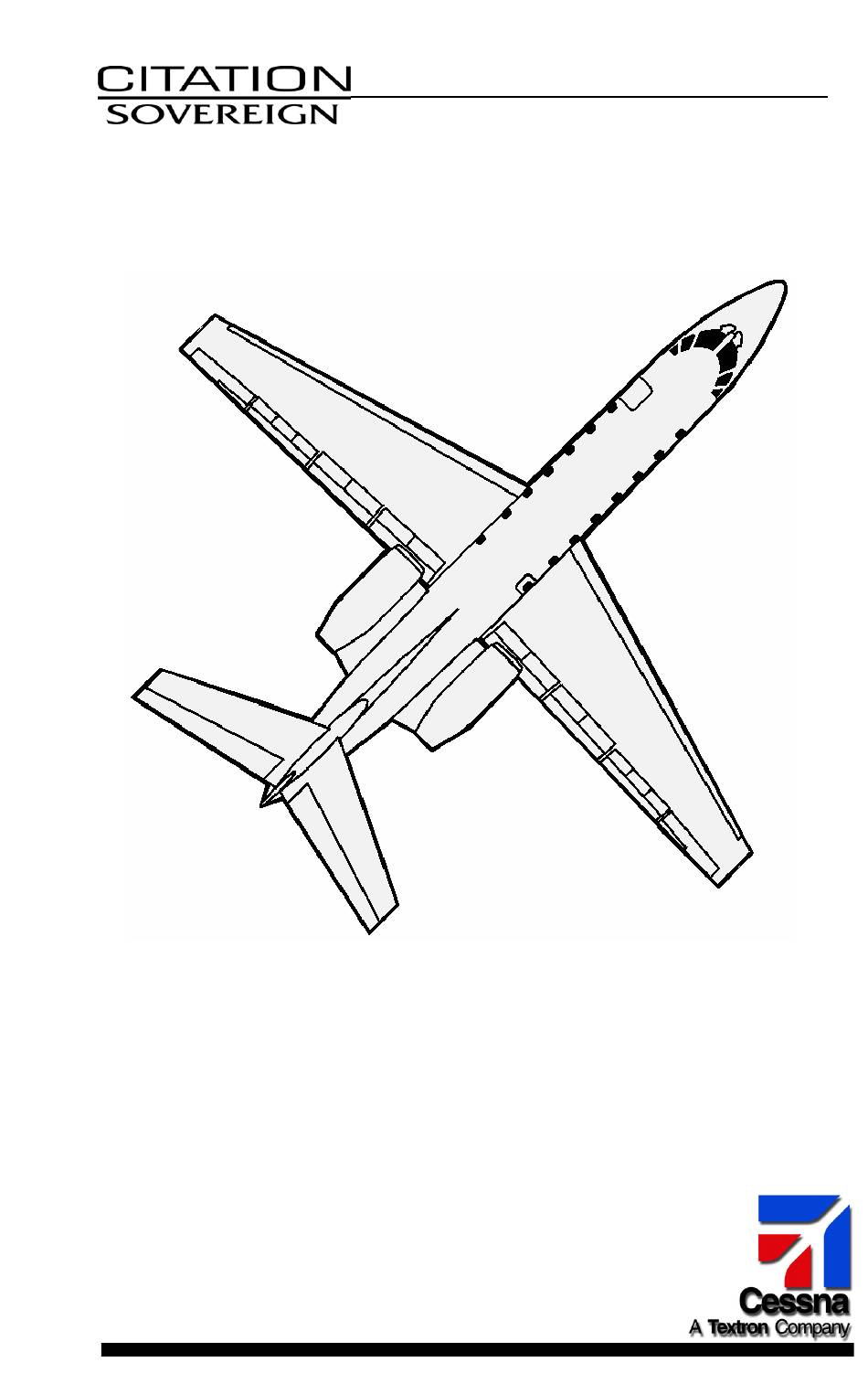

  • Page 1 Unit 0200 Cabin Equipment Operation Manual...
  • Page 2 This manual is intended as an operational overview only. It is not intended to replace operation or maintenance instructions for any component or feature. Copyright © 2008, Cessna Aircraft Company, All Rights Reserved. 0200...

  • Page 3: Table Of Contents

    Table of Contents Cabin Entertainment/Phone Equipment Page Cabin Entertainment/Phone Equipment Location Diagram ..Airshow 4000 System and Network ..... . . Wireless Mouse Operation .
  • Page 4 Blank Page 0200...

  • Page 5: Cabin Entertainment/Phone Equipment Page

    Cabin Entertainment/Phone Equipment AirCell Telephone (Located in Overhead) Data Management Unit (DMU) Dual DVD Player Master Control Switch Panel Forward Video Galley Closet Monitor Infrared Sensor Side-Facing Seat (for DVD Remote) Switch Panel Passenger Seat Passenger Seat Switch Panel Switch Panel Video Monitor Receptacle Video Monitor Receptacle Data Panel...

  • Page 6: Airshow 4000 System And Network

    Airshow 4000 System and Network The Airshow 4000 system allows access to real-time flight information and moving maps. The system also includes access to world and national news, weather, sports and financial information. Most selected information can be displayed as featured screens or on the ticker banner.

  • Page 7: Wireless Mouse Operation

    Wireless Mouse Operation The wireless mouse is used to scroll through and select features on the Airshow 4000 system. (Refer to vendor manual for complete instructions.) Turn on mouse (switch is located on the underside of mouse). Place mouse on a flat surface. Move mouse in desired cursor direction to move cursor on the Airshow 4000 system.

  • Page 8: Dual Dvd Player Remote Control

    Dual DVD Player Remote Control The dual DVD player remote control (supplied as loose equipment) is used to control the dual DVD player. To operate, press anywhere on LCD touch screen or any button on remote to activate touch screen, then press the indicated area on the screen to activate the DVD feature shown.
  • Page 9 Note: Date and time are preset and display whenever screens are visible. The battery symbol displays remaining battery strength. DVDX indicates the DVD being accessed. Date Time Date Time Date Time Device DVDX DVDX DVD1 DVD2 TITLE MENU SETUP Mode Mode Device Mode...

  • Page 10: Dual Dvd Player

    Dual DVD Player The dual DVD player is located in the left-hand forward closet. It is controlled by the switches on the front of the unit itself (see illustration below), or by the player remote. Refer to the vendor manual for more information. Play Search Backward Pause...

  • Page 11: Video Monitors

    Video Monitors Rosen video monitors are included as loose equipment for personal entertainment viewing. To use the video monitor: Lift the cover of the video monitor receptacle, located on the sideledge near your passenger seat (see illustrations below), and insert the video monitor. Turn on the monitor by pressing the POWER switch on the front right-hand side of the unit.

  • Page 12: Forward Video Monitor

    Forward Video Monitor A 10.4” LCD video monitor is located on the aft side of the galley. The monitor is controlled by the executive control (VIP) switch panel or master control switch panel. Forward Video Monitor To use the forward monitor: From the executive control (VIP) switch panel or the master control switch panel in the galley header, access the cabin A/V menu, then press the button below CABIN MONITOR to turn the forward monitor on.

  • Page 13: Headphone Control

    Headphone Control Personal headphones are included as loose equipment to be used for entertainment audio. To use the headphones: Access the “seat A/V” menu from the seat switch panel in the sidewall near your seat. Plug headphones into the headphone jack on the seat switch panel.

  • Page 14: Data Panel Operation

    Data Panel Operation The data panel is used for data transmission and reception through the RS-232 connector. Plug the cord from the input/output device to the RS-232 connector on the data panel. For detailed operation instructions, see the user manual of the type of equipment connected to the data panel.

  • Page 15: Aircell Telephone

    AirCell Telephone The AirCell telephone provides voice, fax and data transmission capabilities during flight. Use the system’s handset to perform all normal operations of the AirCell telephone. A backlit color LCD screen shows dialed telephone numbers and AirCell telephone status. Use the keypad to enter phone numbers, menu selections, call timer and other functions.

  • Page 16: Aircell Wireless Telephone

    AirCell Wireless Telephone The AirCell wireless telephone provides voice, fax and data transmission capabilities during flight. Use the system’s handset to perform all normal operations of the AirCell telephone. A backlit LCD screen shows telephone numbers, signal strength and AirCell telephone status.

  • Page 17: Cabin Switch Panels

    Cabin Switch Panels Master Control Switch Panel Galley Closet Side-Facing Seat Entry Light Switch Panel Switch Panel Passenger Seat Passenger Seat Switch Panel Switch Panel Data Panel Executive Control (VIP) Switch Panel Passenger Seat Switch Panel Passenger Seat Switch Panel Passenger Seat Passenger Seat Switch Panel...

  • Page 18: Executive Control (Vip) Switch Panel

    Executive Control (VIP) Switch Panel (VIP Seat Only, See Location Diagram) Press for Cabin Lighting Menu Press for Seat Lights/Shades Menu Press for Cabin Temp/Shades Menu (See Below) (See Following Page) (See Below) Press for Cabin A/V Menu Press for Seat A/V Menu (See Below) (See Following page) “**”...
  • Page 19 Press to Turn Light On/Off Press to Open Table Press to Return to Main Menu (“On” displays when in use) Window Shade Press to Open Seat Window Shade Press to Close Seat Window Shade Press to Close Table Window Shade Executive Control (VIP) Switch Panel Seat Lights/Shades Menu Press to Return...

  • Page 20: Passenger Seat Switch Panel

    Passenger Seat Switch Panel Press for Seat Lights/Shades Menu Press to Page Through Audio Sources (selected option displays on screen) Press to Increase Headphone Volume Headphone Jack Press to Decrease Headphone Volume Press to Page Through Seat Video Sources Passenger Seat Switch Panel (selected option displays on Audio/Video Menu screen)

  • Page 21: Master Control Switch Panel

    Master Control Switch Panel (Located in Galley Header) Press for Galley Menu Press for Cabin Lights/Shades Menu Press for Vanity Menu (See Below) (See Below) (See Following Page) Press for Cabin Audio/Video Menu (See Below) Master Control Switch Panel Main Menu Note: After using any menu, the “Main Menu”...

  • Page 22: Vanity Switch Panel

    Press to Return Press to Turn Indirect (Wash) to Main Menu Lighting On/Off Press to Turn Seat Light On/Off (“On” displays when in use) (“On” displays when in use) Press to Turn Sink Light On/Off (“On” displays when in use) Press to Increase Lavatory Indirect Press to Turn Accent...

  • Page 23: Furniture Location & Operation

    Furniture Location & Operation 220VAC Universal Outlet Hot Liquid Container Galley Closet Microwave Oven Side-Facing Seat Passenger Seat Passenger Seat 220VAC Universal Outlet Table Table 220VAC Universal Outlet Passenger Seat Passenger Seat 220VAC Universal Outlet Table Table 220VAC Universal Outlet Passenger Seat Passenger Seat Hot Water Tank...

  • Page 24: Seat Adjustment

    Seat Adjustment Passenger seats have forward, aft and lateral adjustment with seat back recline. By pulling the seat adjustment lever up, it is possible to adjust the seat position forward, aft, out from the wall or swiveled to face any direction. Push in on the seat recline button to adjust seat-back recline.

  • Page 25: Passenger Seat Footrest Operation

    Passenger Seat Footrest Operation To deploy footrest, push in on front edge of footrest and let go to release catch. Note: Do not pull on footrest without releasing catch or you may damage the catch. After footrest is pressed, springs will deploy footrest about one inch.
  • Page 26 Table Operation Open table door. Lift table up completely as far as possible. Note: Lift the table up completely before rotating down to prevent damage to the table mechanism. Rotate table down 90 degrees. Unfold table leaf. Close table lid. Reverse steps 1 through 5 to stow table.

  • Page 27: Galley

    Galley Master Control Switch Panel Hot Liquid Container Pull-Out Work Surface Ice Chest with Manual Overboard Drain Manual Overboard Drain Operation (for Ice Chest) The ice-chest drawer located in the lower section of the galley is equipped with a manual drain valve used to empty water from the ice chest. Rotate to Open/Close Drain...

  • Page 28: Hot Liquid Container Removal

    Hot Liquid Container Removal A Prepco hot liquid container is located in the upper section of the galley. The hot liquid container is designed to keep preheated liquids warm. The hot liquid container holds one gallon and is easily removed for filling. The master control switch panel in the galley header controls the heater in the hot liquid container (see previous page for switch operation).

  • Page 29: Left-Hand Forward Closet

    Left-Hand Forward Closet Microwave Oven Microwave Oven A TIA microwave oven is installed in the lower section of the forward closet. The oven is controlled by switches located on the front of the unit. Refer to the vendor manual for more detailed information. To use the microwave oven: Press door release to open microwave oven door.

  • Page 30: Vanity

    Vanity Vanity Switch Panel 220VAC Universal Electric Outlet Soap Dispenser Water Faucet Handle (Rotate Clockwise for On) Vanity Accent Light Vanity Hot Water Tank Umbrella Storage Rack on Back of Door Note: Water will continue to run a few seconds after water faucet is turned off. Vanity Hot Water Tank Operation The vanity switch panel controls the temperature of the heater for the hot water tank.

  • Page 31: Vanity Hot Water Tank Removal

    Vanity Hot Water Tank Removal A water tank is located in the bottom-center compartment of the vanity and is easily removed for filling. The tank is designed to keep preheated liquids warm. If warm water is desired during flight, pour warm water in the tank before flight, as the water heater warms the water slowly.

  • Page 32: Toilet

    Toilet Press to Flush Toilet Note: The toilet is externally serviceable. Refer to the aircraft maintenance manual for instructions on service procedures. 0200...

  • Page 33: Luggage/Cargo Straps

    Luggage/Cargo Straps Luggage/cargo straps are provided to stow luggage or other cargo in the aft bulkhead closet and in the baggage compartment. Install the straps in combination as required to secure loose items. See details below for operation. Caution: Verify that straps and tie-down fittings are secure before flight. Tie-Down Fitting To install the baggage net: Press center spring of tie-down fitting with...
  • Page 34 Blank Page 0200...

  • Page 35: Emergency Equipment

    Emergency Equipment First Aid Kit Included as loose equipment. Consult aircraft crew for locations. Smoke Goggles Smoke Goggles Galley Closet Toilet Closet 0200...

  • Page 36: Emergency Exits - Cabin Entry

    Emergency Exits - Cabin Entry Push latch button with thumb and rotate handle down. Push steps out while pulling down on lever. Exit airplane and move forward away from airplane. 0200...

  • Page 37: Emergency Exits - Escape Hatch

    Emergency Exits - Escape Hatch Remove plastic cover and rotate handle clockwise. Pull door in and down. Turn door sideways and discard door through opening outside airplane away from walkway. Exit airplane and move forward and away from airplane. 0200...

  • Page 38: Overhead Oxygen Mask

    Overhead Oxygen Mask Should the airplane lose pressurization, an overhead oxygen mask will automatically drop over each passenger seat. Pull lanyard to start flow of oxygen. Place mask over head. Pull straps to tighten. Help children or other passengers with their masks only after your own mask is in place.

  • Page 39: Seat Belts

    Seat Belts Note: Seat belts and shoulder harness must be fastened during takeoff and landings. Fasten seat belt and attach shoulder harness. Pull strap tight. Fasten seat belt, stow tables, place seat in full upright position with headrest raised, armrests raised and seat fully against sidewall during takeoff and landings.

  • Page 40: Brace Positions

    Brace Positions Side-Facing Seat Rear-Facing Seat Forward-Facing Seat Life Vests Caution: Put life vest on prior to ditching, but do not inflate until outside of airplane. 0200...

  • Page 41: Fire Extinguishers

    Fire Extinguishers Two portable hand-held fire extinguishers are installed in the airplane. One extinguisher is located in the cockpit under the front of the copilot’s seat. The other is located in the left-hand forward closet and is accessible to all passengers. The portable fire extinguishers are pressurized bottles containing a Halon Type 1211 extinguishing agent.

  • Page 42: Water Barrier

    Water Barrier WATER BARRIER (FOR DITCHING) INSTALL WATER BARRIER AT BASE OF CABIN DOOR PRIOR TO WATER LANDING REMOVE WATER BARRIER FROM STORAGE • (AFT CLOSET). ATTACH WATER BARRIER TO DOOR FRAME • BY SNAPPING STUDS INTO RECEPTACLES. ENSURE WATER BARRIER IS SECURED IN •...
