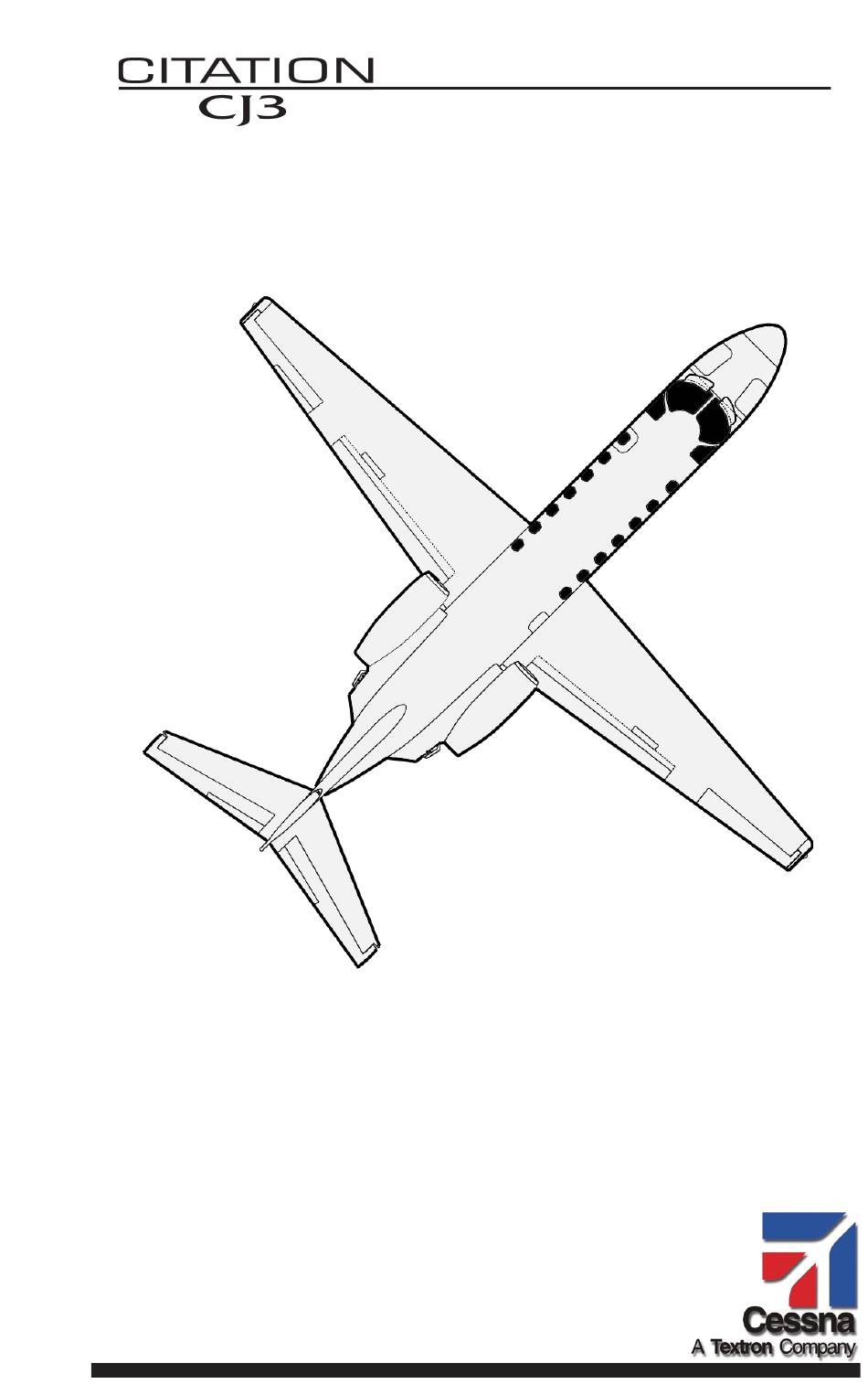

- Page 1 Unit 0357 Cabin Equipment Operation Manual...
- Page 2 This manual is intended as an operational overview only. It is not intended to replace operation or maintenance instructions for any component or feature. Copyright © 2011, Cessna Aircraft Company, All Rights Reserved. 0357...
-
Page 3: Table Of Contents
Table of Contents Cabin Entertainment/Phone Equipment Page Cabin Entertainment/Phone Equipment Location Diagram ..5 AvVisor Plus 8.4” Cabin Information System ....6 AvVisor Plus USB Port Operation . - Page 4 Blank Page 0357...
-
Page 5: Cabin Entertainment/Phone Equipment Page
Cabin Entertainment/Phone Equipment AirCell Telephone (Mounted in Overhead) AvVisor Plus USB Port Closet Galley 8.4” AvVisor Plus Monitor/Controller Cockpit Intercom Call Switch Panel AirCell Telephone Toilet Avionics Cabinet 0357... -
Page 6: Avvisor Plus 8.4" Cabin Information System
AvVisor Plus 8.4” Cabin Information System The AvVisor Plus cabin information system allows user-specified display of flight information, moving flight maps and still images. The AvVisor Plus system is controlled with buttons to the left of the 8.4” display. For more detailed information and instructions, refer to the AvVisor Plus User Manual. -
Page 7: Cockpit Intercom Call Switch Operation
Cockpit Intercom Call Switch Operation A cockpit intercom call switch panel in the cabin allows the cabin passengers to contact the cockpit crew using the AirCell telephone. To contact the cockpit crew: Remove telephone handset from holder. Press “FCN” and then the “9” button. From the call switch panel, press the button below “CALL”... -
Page 8: Aircell Telephone
AirCell Telephone The AirCell telephone provides voice, fax and data transmission capabilities during flight. Use the system’s handset to perform all normal operations of the AirCell telephone. A backlit color LCD screen shows dialed telephone numbers and AirCell telephone status. Use the keypad to enter phone numbers, menu selections, call timer and other functions. -
Page 9: Cabin Switch Panels
Cabin Switch Panels AvVisor Plus USB Port Master Control Switch Panel Closet Galley Work Light Cabin Entry Switch Panel Switch Panel Seat/Table Light Seat/Table Light Switch Panel Switch Panel Table Light Table Light Cockpit Intercom Call Switch Panel Seat/Table Light Seat/Table Light Switch Panel Switch Panel... -
Page 10: Cabin Entry Switch Panel
Cabin Entry Switch Panel Press to Turn Cabin Entry Lighting On/Off Master Control Switch Panel (Located In Galley Header) Press to Turn Press to Turn Press to Dim Press to Brighten Press to Turn Entry Light Overhead Cabin Lights Overhead Lights Overhead Lights Hot Liquid Container On/Off... -
Page 11: Cockpit Intercom Call Switch Panel
Cockpit Intercom Call Switch Panel Press To Alert Cockpit Crew of Intercom Call CALL 101015-7 AvVisor Plus USB Port USB Port 0357... - Page 12 Blank Page 0357...
-
Page 13: Furniture Location & Operation
Furniture Location & Operation 110VAC Universal Outlet Hot Liquid Container Closet Galley Passenger Seat Passenger Seat Table Table 110VAC Universal 110VAC Universal Outlet Outlet Passenger Seat Passenger Seat Table Table Passenger Seat Passenger Seat Toilet Avionics Cabinet 0357... -
Page 14: Seat Adjustment
Seat Adjustment Passenger seats have forward, aft and lateral adjustment with seat back recline. By pushing the armrest seat adjustment lever down, it is possible to adjust the seat position forward, aft or out from the wall. Pull lever up to recline the seat back. Move seat away from wall before adjusting seat forward, aft or reclining seat back. - Page 15 Table Operation Pull table inboard. Lift table up. Rotate table down until it is at rest in down position. Unfold table leaf. Reverse steps 1 through 4 to stow table. Note: Return table to its stowed position during taxi, takeoff and landing. See Passenger Briefing Card for complete instructions.
-
Page 16: Galley
Galley Master Control Switch Panel Hot Liquid Container Ice Chest Manual Overboard Drain Operation (for Ice Chest) The ice-chest drawer, located in the lower section of the galley, is equipped with a manual drain valve used to empty water from the ice chest. Rotate to Open/Close Drain... -
Page 17: Hot Liquid Container Removal
Hot Liquid Container Removal A Prepco hot liquid container is located in the upper section of the galley. The hot liquid container is designed to keep preheated liquids warm. The hot liquid container holds one gallon and is easily removed for filling. The master control switch panel in the galley header controls the heater in the hot liquid container (see Switch Panels for switch operation). -
Page 18: Manual Window Shade Operation
Manual Window Shade Operation Cabin window shades open and close by sliding the shade handle forward and aft. On right- hand side of plane, slide lever forward to close and aft to open. On left-hand side of plane, slide lever forward to open and aft to close. Slide Handle Forward and Aft Toilet... -
Page 19: Baggage Strap Kit
Baggage Strap Kit The baggage straps are used to secure luggage or other cargo to prevent damage to luggage or aircraft during flight. Install baggage straps in combination as required to secure loose items. The baggage straps are supplied as loose equipment. Ask flight crew about their normal location on the aircraft. - Page 20 Blank Page 0357...
-
Page 21: Emergency Equipment
Emergency Equipment Flashlights & First Aid Kit Included as loose equipment. Consult aircraft crew for locations. Closet Galley Toilet Avionics Cabinet 0357... -
Page 22: Emergency Exits - Cabin Entry
Emergency Exits - Cabin Entry Push latch button, squeeze trigger and rotate handle counterclockwise. Push door out until door locks in place. Push steps out. Exit airplane and move forward away from airplane. 0357... -
Page 23: Emergency Exits - Escape Hatch
Emergency Exits - Escape Hatch Remove plastic cover and rotate handle clockwise. Pull door in and down. Turn door sideways and discard door through opening outside airplane away from walkway. Exit airplane and move forward and away from airplane. 0357... -
Page 24: Overhead Oxygen Mask
Overhead Oxygen Mask Should the airplane lose pressurization, an overhead oxygen mask will automatically drop over each passenger seat. Pull lanyard to start flow of oxygen. Place mask over head. Pull straps to tighten. Help children or other passengers with their masks only after your own mask is in place. -
Page 25: Seat Belts
Seat Belts Note: Seat belts and shoulder harness must be fastened during taxi, takeoff and landing. Fasten seat belt and attach shoulder harness. Pull strap tight. Fasten seat belt, stow tables, place seat in full upright position with headrest raised, armrests raised and seat fully against sidewall during taxi, takeoff and landing. -
Page 26: Brace Positions
Brace Positions Rear-Facing Seat Forward-Facing Seat Belted Toilet Life Vests Caution: Put life vest on prior to ditching, but do not inflate until outside of airplane. 0357... -
Page 27: Fire Extinguishers
Fire Extinguishers Two portable hand-held fire extinguishers are installed in the airplane. One extinguisher is located in the cockpit beside the copilot’s seat. The other extinguisher is located in the cabin behind the left-hand aft passenger’s seat and is accessible to all passengers. -
Page 28: Crew Oxygen Masks
Crew Oxygen Masks Oxygen masks for the cockpit crew are stored in pouches on the forward side of the forward cabinets/dividers on both sides. Crew Smoke Goggles Smoke Goggles for the cockpit crew are stored in pouches on the forward side of the forward cabinets/dividers on both sides. 0357...
