Summary of Contents for Textron Cessna Citation Excel 5355

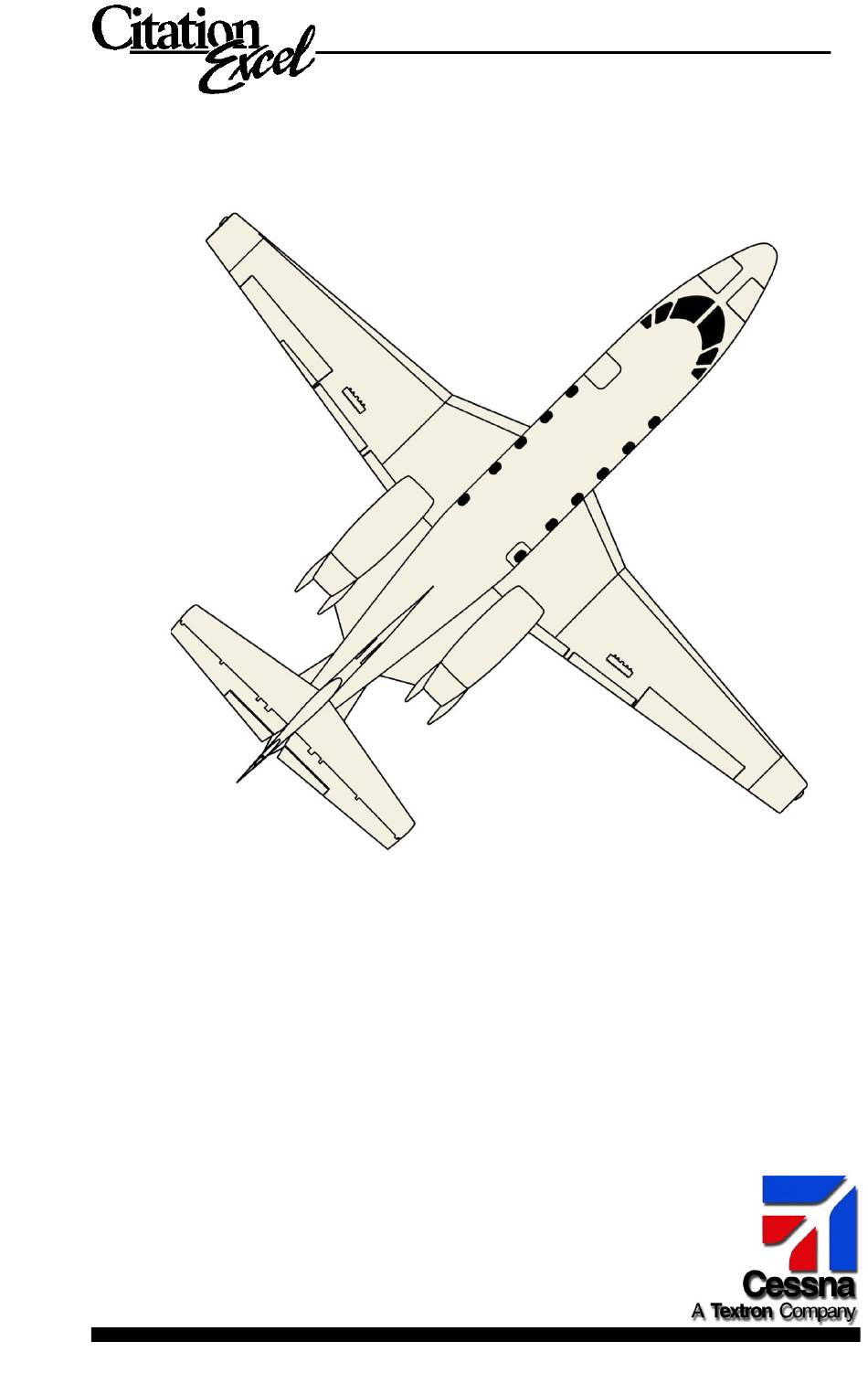

- Page 1 Unit 5355 Cabin Equipment Operation Manual...
- Page 2 This manual is intended as an operational overview only. It is not intended to replace operation or maintenance instructions for any component or feature. Copyright © 2003, Cessna Aircraft Company, All Rights Reserved. 5355...
-
Page 3: Table Of Contents
Table of Contents Cabin Entertainment/Phone Equipment Page Cabin Equipment Location Diagram ..... . . Forward Closet ........Dual DVD Player (Region Free) . - Page 4 Blank Page 5355...
-
Page 5: Cabin Entertainment/Phone Equipment Page
Cabin Entertainment/Phone Equipment Flight Phone (Full Function) DVD Player Master Control Switch Panel Galley Infrared Sensor Closet (for remote) Video Monitor Receptacle Audio/Video/Light Switch Panel Video Monitor Receptacle Executive Control (VIP) Switch Panel Audio/Video/Light Switch Panel Audio/Video/Light Switch Panel Video Monitor Video Monitor Receptacle Receptacle... -
Page 6: Forward Closet
Forward Closet Infrared Sensor DVD Player Dual DVD Player (Region Free) The Dual DVD player is located in the RH forward closet in the passenger compartment. It is controlled by the switches on the front of the unit itself or by the Dual DVD Player Remote. -
Page 7: Dual Dvd Player Remote Control
Dual DVD Player Remote Control The Dual DVD Player remote is furnished as loose equipment. It allows the user to independently operate all functions of the DVD players. See the DVD Player section for instructions on viewing a DVD. Refer to the vendor manual for more detailed information. -
Page 8: Cabin Speaker Control
Cabin Speaker Control The cabin speakers are located in the headliner over the dropped aisle and subwoofer speakers are located in lower side walls of the cabin. Note: The cabin speakers can only be turned on and off using the executive control (VIP) or the master control switch panel (see Cabin Switch Panels diagram for location). -
Page 9: Video Monitors
Video Monitors Rosen video monitors are included as loose equipment for personal entertainment viewing. To use the video monitor: Lift the cover of the video monitor receptacle, located on the sideledge near your passenger seat (see illustrations below), and insert the video monitor. Turn on the monitor by pressing the on/off switch located on the side of the unit. -
Page 10: Aero-M Telephone
Aero-M Telephone The TT-3000 Aero-M Telephone System provides digital voice, fax and data transmission capabilities via SATCOM during flight. All normal Aero-M Telephone operations are performed using the system’s handset. The keypad is used to enter telephone phone numbers, menu selections or 2nd Functions, which are displayed on a backlit LCD screen. -
Page 11: Aero-M Voice Only Telephone
Aero-M Voice only Telephone The TT-3000 Aero-M Voice only Telephone handset provides digital voice transmission capabilities via SATCOM during flight. The keypad is used to enter telephone phone numbers only. For detailed information and instructions for using the different services, refer to the Aero-M User Manual. Handset Features: Power LED (Green) Log On LED (Green) - Page 12 Blank Page 5355...
-
Page 13: Cabin Switch Panels
Cabin Switch Panels Master Control Switch Panel Side-Facing Seat Switch Panel Closet Cabin Entry Switch Panel Audio/Video/Light Switch Panel Executive Control (VIP) Switch Panel Cabin Temperature Control Switch Panel Audio/Video/Light Audio/Video/Light Switch Panel Switch Panel Fax / Data Panel Audio/Video/Light Fax / Data Panel Switch Panel Vanity Light Switch... -
Page 14: Executive Control (Vip) Switch Panel
Executive Control (VIP) Switch Panel Audio / Video Press to Page Through Selection Display Maps and Flight Information Down On/Off Press to Select Audio Press, then Source for Cabin Speaker Press to Increase Volume Press to Decrease Volume Cabin Temperature Control Switch Panel Cabin Temp Selection Display Press to Decrease... -
Page 15: Master Control Switch Panel (Located In Galley Header)
Master Control Switch Panel (Located in Galley Header) Press to Turn Press to Turn Lighting On/Off On/Off (Light Designates On) (Light Designates On Control Volume from Executive Control VIP Switch Panel) Press to Turn Vanity Hot Water Tank Heater On and Off Press to Turn Galley Hot Liquid (Light Designates On) Heater On/Off... - Page 16 Blank Page 5355...
-
Page 17: Furniture Location & Operation
Furniture Location & Operation Hot Liquid Containers Galley 220V Outlet Closet Side-Facing Seat Passenger Seat Passenger Seat Table Table 220V Outlet Passenger Seat Table Table Passenger Seat 220V Outlet Passenger Seat Aft Closet Hot Water Tank Baggage Compartment 5355... -
Page 18: Seat Adjustment
Seat Adjustment Passenger seats have forward, aft and lateral adjustment with seat back recline. By pulling the armrest seat adjustment lever up, it is possible to adjust the seat position forward, aft, out from the wall or swivel to face any direction. Push lever down to recline the seat back. - Page 19 Table Operation Pull table inboard. Lift table up. Rotate table down until it is at rest in down position. Unfold table leaf. Reverse steps 1 through 4 to stow table. Note: Return table to its stowed position during takeoffs and landings. See Passenger Briefing Card for complete instructions.
-
Page 20: Galley
Galley Master Control Switch Hot Liquid Containers Ice Chest with Manual Overboard Drain, and Wine Storage Manual Overboard Drain Operation (for Ice Chest) The ice-chest drawer located in the lower section of the galley is equipped with a manual drain valve used to empty water from the ice chest. To open drain valve: Turn drain valve counter-clockwise Open ice-chest drawer. -
Page 21: Hot Liquid Container Removal
Hot Liquid Container Removal Two Prepco hot liquid containers are located in the upper section of the galley. Each hot liquid container holds one gallon and is easily removed for filling. The master control switch panel in the galley header controls each hot liquid container separately (see previous page for switch operation). -
Page 22: Manual Window Shade Operation
Manual Window Shade Operation Cabin Window Shades open and close by sliding the shade handle from right to left. (Left Hand Window Shown Only.) Vanity Sink Switch Panel Water Storage Tank Vanity Light Switch Panel Note: For operation of switches refer to cabin switches. -
Page 23: Water Storage Tank Removal
Water Storage Tank Removal The water tank for the armrest sink is located inside the aft closet behind the top access panel on the sink side. This tank is easily removed for filling. Caution: Do NOT remove water tank when tank heater is turned on. To remove and fill water container: Open the upper access panel by pulling up on the latch... -
Page 24: Toilet
Toilet Press to Flush Toilet Note: The toilet is externally serviceable. Refer to the aircraft maintenance manual for instructions on service procedures. 5355... -
Page 25: Emergency Equipment
Emergency Equipment Fire Extinguisher (Under Copilot’s Seat) Life Vest (Stored In Seat-Back Pocket) Fire Axe (Stored On Divider) Protective Breathing Equipment (Stored In Chart Case) Galley Smoke Goggles Smoke Goggles Closet Cabin Entry/Exit Life Vest Life Vest (Stored Under Seat Base) (Stored Under Seat Base) Fire Extinguisher (Behind Seat) -
Page 26: Brace Positions
Brace Positions Assume brace positions as shown below. FORWARD REAR Side-Facing Seat Rear-Facing Seat Forward-Facing Seat Emergency Exits The airplane has two exits with emergency exit releases and signs. To Open Emergency Exit Door: To Open Cabin Entry Door: Push button pull handle out from stow position and rotate counterclockwise to the open position. -
Page 27: Emergency Locator Transmitter
Emergency Locator Transmitter The emergency locator transmitter (ELT) unit is located in the aft tail cone equipment. The unit is self-contained and battery powered. An indicator light provides a visual indication of ELT operation. A switch mounted in the unit and a cockpit switch provides control of the ELT. -
Page 28: Life Vests
Life Vests Life vests are located in the base of each passenger seat for use in the event of an over-water emergency landing. (Refer to the life vest location placard for your seat.) A life vest is also located in the pocket on the back of the pilot and copilot seats. Instructions for use of the life vests are provided on a placard on each vest and on the passenger-briefing card located at each seat. -
Page 29: Portable Oxygen Bottle
Portable Oxygen Bottle A portable oxygen bottle is located in the aft closet. Extinguish all smoking materials. Plug oxygen mask (stored with bottle in aft closet) into portable oxygen bottle. Turn valve counter clockwise to turn on oxygen bottle. Place mask over nose and mouth and breathe normally. Place the strap over your head to secure.
