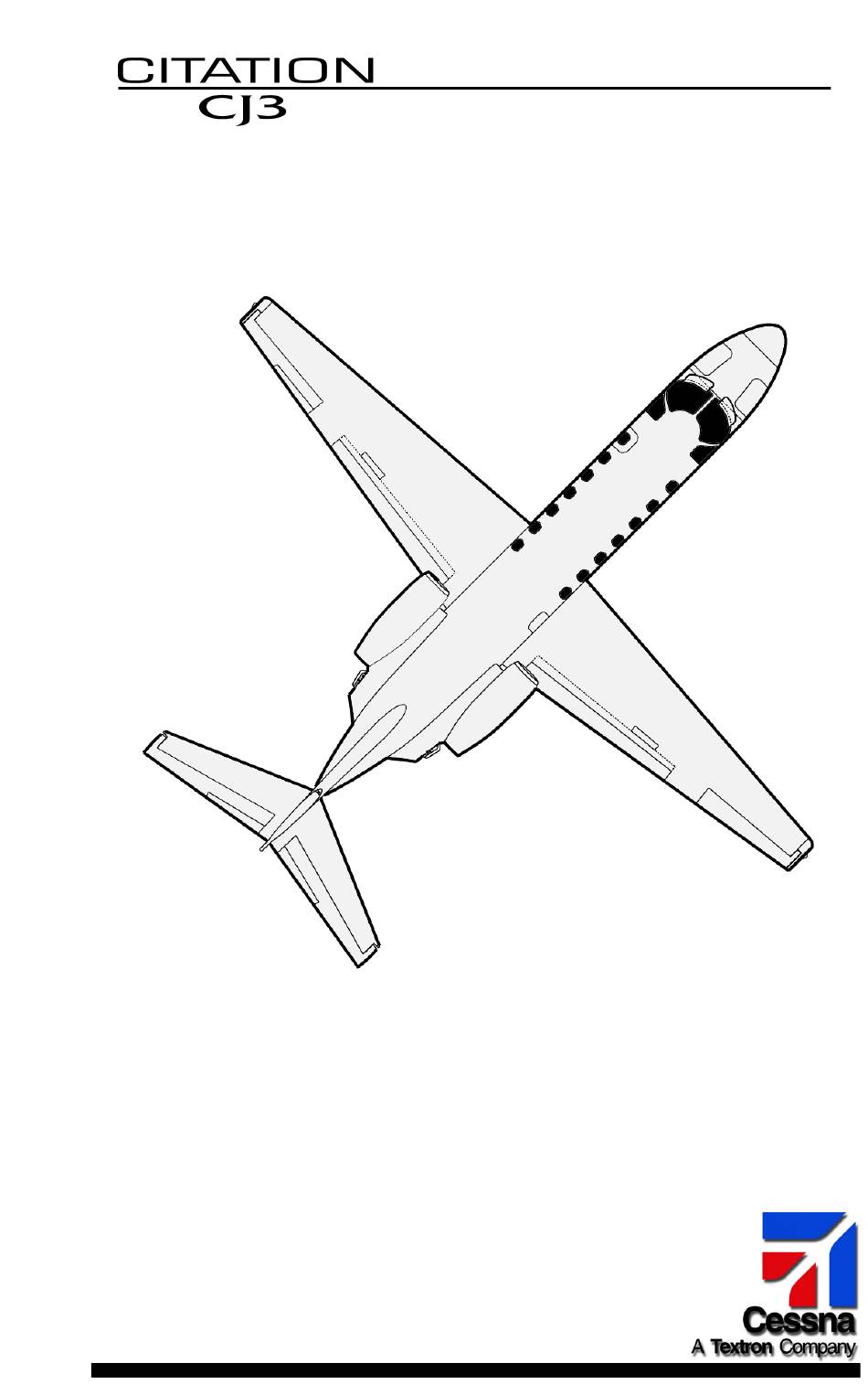

- Page 1 Unit 0090 Cabin Equipment Operation Manual...
- Page 2 This manual is intended as an operational overview only. It is not intended to replace operation or maintenance instructions for any component or feature. Copyright © 2006, Cessna Aircraft Company, All Rights Reserved. 0090...
-
Page 3: Table Of Contents
Table of Contents Cabin Entertainment/Phone Equipment Page Cabin Entertainment/Phone Equipment Location Diagram ..AvVisor Cabin Information System ......Data Panel Operation . - Page 4 Blank Page 0090...
-
Page 5: Cabin Entertainment/Phone Equipment Page
Cabin Entertainment/Phone Equipment AirCell Telephone (Mounted in Overhead) Data Panel Closet AvVisor Cabin Galley Information Monitor/Controller AirCell Telephone 0090... -
Page 6: Avvisor Cabin Information System
AvVisor Cabin Information System The AvVisor Cabin Information System allows display of flight information, including moving flight maps and automatically-generated safety messages. Interface with the AvVisor System is provided by the AvVisor Monitor in the cabin. For more detailed information and instructions, refer to the AvVisor user manual. Press to Turn Display On/Off AvVisor Cabin Information System Display... -
Page 7: Aircell Telephone
AirCell Telephone The AirCell Telephone provides voice, fax and data transmission capabilities during flight. Use the system’s handset to perform all normal operations of the AirCell Telephone. A backlit LCD screen shows telephone numbers, signal strength and AirCell Telephone status. Use the keypad to enter phone numbers, menu selections, call timer and other functions. - Page 8 Blank Page 0090...
-
Page 9: Cabin Switch Panels
Cabin Switch Panels Data Panel Closet Master Control Switch Panel Galley Cabin Entry Switch Panel Work Light Switch Panel Seat/Table Light Switch Panel Seat/Table Light Switch Panel Table Light Table Light Seat/Table Light Seat/Table Light Switch Panel Switch Panel Table Light Table Light Seat/Table Light Seat/Table Light... -
Page 10: Cabin Entry Switch Panel
Cabin Entry Switch Panel Press to Turn Cabin Entry Lighting On/Off Master Control Switch Panel (Located In Galley Header) Press to Turn Press to Turn Press to Dim Press to Brighten Press to Turn Entry Light Overhead Cabin Lights Overhead Lights Overhead Lights Hot Liquid Container On/Off... -
Page 11: Data Port
Data Port Connect download device to 9-Pin Connector 0090... - Page 12 Blank Page 0090...
-
Page 13: Furniture Location & Operation
Furniture Location & Operation 110 VAC Outlet 110V Outlet Hot Liquid Container Closet Galley Passenger Seat Passenger Seat Table Table 110V Outlet 110V Outlet Passenger Seat Passenger Seat Passenger Seat Passenger Seat 0090... -
Page 14: Seat Adjustment
Seat Adjustment Passenger seats have forward, aft and lateral adjustment with seat back recline. By pushing the armrest seat adjustment lever down, it is possible to adjust the seat position forward, aft or out from the wall. Pull Lever up to recline the seat back. Move seat away from wall before adjusting seat forward, aft or reclining seat back. - Page 15 Table Operation Pull table inboard. Lift table up. Rotate table down until it is at rest in down position. Unfold table leaf. Reverse steps 1 through 4 to stow table. Note: Return table to its stowed position during takeoffs and landings. See Passenger Briefing Card for complete instructions.
-
Page 16: Galley
Galley Master Control Switch Panel Hot Liquid Container Ice Chest Manual Overboard Drain Operation (for Ice Chest) The ice-chest drawer, located in the lower section of the galley, is equipped with a manual drain valve used to empty water from the ice chest. To open drain valve: Turn drain valve counterclockwise Open ice-chest drawer. -
Page 17: Hot Liquid Container Removal
Hot Liquid Container Removal Note: Make certain the switch for the hot liquid container is “Off” before attempting to remove the container from the galley. See Switch Panels for switch operation. A Prepco hot liquid container is located in the upper section of the galley. The hot liquid container holds one gallon and is easily removed for filling. -
Page 18: Manual Window Shade Operation
Manual Window Shade Operation Cabin window shades open and close by sliding the shade handle forward and aft. On right-hand side of plane, slide lever forward to close and aft to open. On left-hand side of plane, slide lever forward to open and aft to close. -
Page 19: Emergency Equipment
Emergency Equipment First Aid Kit Included as loose equipment. Consult aircraft crew for location. Closet Galley 0090... -
Page 20: Emergency Exits
Emergency Exits 0090... -
Page 21: Brace Positions
Brace Positions Rear-Facing Seat Forward-Facing Seat Belted Toilet Seat Belts Note: Seat belts and shoulder harness must be fastened during takeoff and landings. It is recommended that seat belts remain fastened during flight. For comfort, the shoulder harness may be detached during flight. Fasten seat belt, stow tables, place seat in full upright position with headrest raised, armrests raised and... -
Page 22: Overhead Oxygen Mask
Overhead Oxygen Mask Pull lanyard to start flow of oxygen. Should the airplane lose pressurization, an overhead oxygen mask will automatically drop over each passenger seat. Help children or other passengers with their masks only after your own mask is in place. Fire Extinguishers Two portable hand-held fire extinguishers are installed in the airplane. -
Page 23: Life Vests
Life Vests Caution: Put life vest on prior to ditching, but do not inflate until outside of airplane. First Aid Kit A first aid kit is included as loose equipment and is provided for minor emergencies. Note: The First Aid Kit may be stored in many locations in the airplane. -
Page 24: Emergency Locator Transmitter
Emergency Locator Transmitter The emergency locator transmitter (ELT) unit is located in the aft tail cone equipment. The unit is self-contained and battery powered. An indicator light provides a visual indication of ELT operation. A switch mounted in the unit and a cockpit switch provides control of the ELT.
