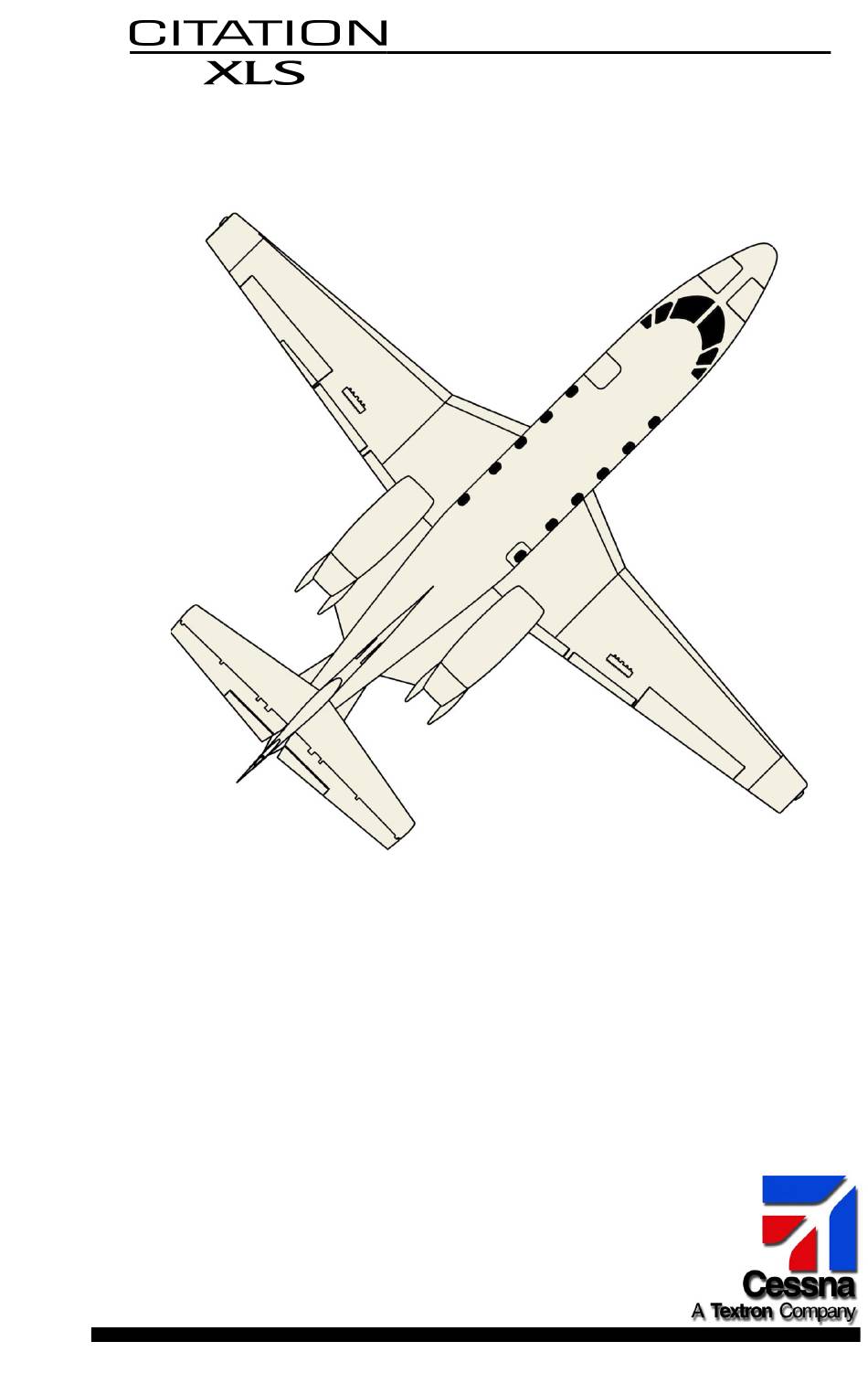

- Page 1 Unit 5512 Cabin Equipment Operation Manual...
- Page 2 This manual is intended as an operational overview only. It is not intended to replace operation or maintenance instructions for any component or feature. Copyright © 2004 Cessna Aircraft Company, All Rights Reserved. 5512...
-
Page 3: Table Of Contents
Table of Contents Cabin Entertainment/Phone Equipment Page Cabin Entertainment/Phone Equipment Location Diagram ..Dual DVD Player (Region Free) ......Dual DVD Player Remote Control . - Page 4 Blank Page 5512...
-
Page 5: Cabin Entertainment/Phone Equipment Page
Cabin Entertainment/Phone Equipment Flight Phone (Mounted in Overhead) Dual DVD Player Galley Fwd. Closet Infrared Receiver Video Monitor Receptacle Video Monitor Receptacle Seat Switch Panel Executive Control (VIP) Switch Panel Seat Switch Panel Seat Switch Panel Video Monitor Video Monitor Receptacle Receptacle Flight Phone... -
Page 6: Dual Dvd Player (Region Free)
Dual DVD Player (Region Free) The Dual DVD player is located in the RH forward closet in the passenger compartment. It is controlled by the switches on the front of the unit itself or by the Dual DVD Player Remote. Refer to the vendor manual for more information. DVD 1 Tray Stop DVD 2 Tray... -
Page 7: Dual Dvd Player Remote Control
Dual DVD Player Remote Control The Dual DVD Player remote is furnished as loose equipment. It allows the user to independently operate all functions of the DVD players. See the DVD Player section for instructions on viewing a DVD. Refer to the vendor manual for more detailed information. -
Page 8: Video Monitors
Video Monitors Rosen video monitors are included as loose equipment for personal entertainment viewing. To use the video monitor: Lift the cover of the video monitor receptacle, located on the sideledge near your passenger seat (see illustrations below), and insert the video monitor. Turn on the monitor by pressing the on/off switch located on the side of the unit. -
Page 9: Cabin Speaker Control
Cabin Speaker Control The cabin speakers are located in the headliner over the dropped aisle and subwoofer speakers are located in lower seat bases on the center forward-facing seats. Note: The cabin speakers can only be turned on and off using the executive control (VIP) or the master control switch panel (see Cabin Switch Panels diagram for location). -
Page 10: Airshow 400 System
Airshow 400 System The Airshow 400 system displays maps and flight information about your current flight. The info page provides up to the minute flight information such as altitude, ground speed and outside air temperature. The maps provide topographical maps with geopolitical borders, city names, points-of-interest and a detailed display of your present location. -
Page 11: Aero-M Telephone
Aero-M Telephone The TT-3000 Aero-M Telephone System provides digital voice, fax and data transmission capabilities via SATCOM during flight. All normal Aero-M Telephone operations are performed using the system’s handset. The keypad is used to enter telephone phone numbers, menu selections or 2nd Functions, which are displayed on a backlit LCD screen. -
Page 12: Aero-M Voice Only Telephone
Aero-M Voice Only Telephone The TT-3000 Aero-M Voice only Telephone handset provides digital voice transmission capabilities via SATCOM during flight. The keypad is used to enter telephone phone numbers only. For detailed information and instructions for using the different services, refer to the Aero-M User Manual. Handset Features: Power LED (Green) Log On LED (Green) -
Page 13: Cabin Switch Panels
Cabin Switch Panels Master Control Switch Panel Fwd. Closet Entry Light Switch Panel Side-Facing Seat Read Light Switch Panel Seat Switch Panel Seat Switch Panel Executive Control (VIP) Switch Panel Seat Switch Panel Seat Switch Panel Fax/Data Switch Seat Switch Panel Panel Fax/Data Switch Panel... -
Page 14: Executive Control (Vip) Switch Panel
Executive Control (VIP) Switch Panel Press to Increase Press to Page Cabin Temperature Cabin Press to Turn Cabin Through Audio Press to Decrease Status Display Speaker On/Off Selections Cabin Temperature Press to Decrease Press to Increase Press to Page Cabin Speaker Volume Cabin Speaker Volume Through Maps and Flight Information... -
Page 15: Master Control Switch Panel (Located In Galley Header)
Master Control Switch Panel (Located in Galley Header) Press to Dim Cabin Indirect Lights Press to Brighten Cabin Indirect Lights Press to Turn Press to Turn Vanity Hot Lighting On/Off Water Tank Heater On/Off Press to Turn Cabin Press to Drain Speaker On/Off Drip Tray Press to Turn Upper Galley... - Page 16 Blank Page 5512...
-
Page 17: Furniture Location & Operation
Furniture Location & Operation Hot Liquid Containers 220V Outlet Galley Side-Facing Seat Fwd. Closet Passenger Seat Passenger Seat Table Table Passenger Seat Passenger Seat 220V Outlet Table Table Passenger Seat Passenger Seat 220V Outlet Storage Net Toilet Hot Water Tank Aft Closet 5512... -
Page 18: Seat Adjustment
Seat Adjustment Passenger seats have forward, aft and lateral adjustment with seat back recline. By pulling the seat adjustment lever up, it is possible to adjust the seat position forward, aft, out from the wall or swivel to face any direction. Push down the seat recline button to adjust seat-back recline. - Page 19 Table Operation Open table door. Lift table up. Rotate table down 90 degrees. Unfold table leaf. Close table door. Reverse steps 1 through 4 to stow table. Note: Return table to its stowed position during takeoffs and landings. See Passenger Briefing Card for complete instructions.
-
Page 20: Galley
Galley Master Control Switch Panel Hot Liquid Containers Pull-Out Work Surface Ice Chest Manual Overboard Drain Operation (for Ice Chest) The ice-chest drawer located in the lower section of the galley is equipped with a manual drain valve used to empty water from the ice chest. To open drain valve: Turn drain valve counter-clockwise Open ice-chest drawer. -
Page 21: Hot Liquid Container Removal
Hot Liquid Container Removal Note: Make certain the switch for the hot liquid container is “Off” before attempting to remove the container from the galley. See previous page for switch operation. Two Prepco hot liquid containers are located in the upper section of the galley. Each hot liquid container holds one gallon and is easily removed for filling. -
Page 22: Storage Net
Storage Net The storage net is used to stow luggage or other cargo to prevent damage to aircraft or injury to passengers during flight. The net is stored outboard of the aft side facing seat. To access net, pull top of aft side facing seat back inboard, disconnecting seat back from sidewall panel, and lift bottom of flap. -
Page 23: Manual Window Shade Operation
Manual Window Shade Operation Cabin window shades open and close by sliding the shade handle forward and aft. On right- hand side of plane, slide lever forward to close and aft to open. On left-hand side of plane, slide lever forward to open and aft to close. Slide Handle Forward and Aft Vanity... -
Page 24: Water Storage Tank Removal
Water Storage Tank Removal The water tank for the armrest sink is located inside the aft closet behind the top access panel on the sink side. This tank is easily removed for filling. Caution: Do NOT remove water tank when tank heater is turned on. To remove and fill water container: Open the upper access panel by pulling up on the latch and out on... -
Page 25: Toilet
Toilet Press to Flush Toilet (Under Lid) Note: The toilet is externally serviceable. Refer to the aircraft maintenance manual for instructions on service procedures. 5512... - Page 26 Blank Page 5512...
-
Page 27: Emergency Equipment
Emergency Equipment Fire Extinguisher (Under Copilot’s Seat) Life Vest (Stored In Seat-Back Pocket) Smoke Goggles Smoke Goggles Galley Fwd. Closet Cabin Entry/Exit Life Vest Life Vest (Stored Under Seat Shroud) (Stored Under Seat Shroud) Fire Extinguisher (Behind Seat) Emergency Exit Toilet Water Barrier Storage Aft Closet... -
Page 28: Brace Positions
Brace Positions Assume brace positions as shown below. FORWARD REAR Side-Facing Seat Rear-Facing Seat Forward-Facing Seat Emergency Exits The airplane has two exits with emergency exit releases and signs. To Open Cabin Entry Door: To Open Emergency Exit Door: Push button pull handle out from stow position and rotate counterclockwise to the open position. -
Page 29: Emergency Locator Transmitter
Emergency Locator Transmitter The emergency locator transmitter (ELT) unit is located in the aft tail cone equipment. The unit is self-contained and battery powered. An indicator light provides a visual indication of ELT operation. A switch mounted in the unit and a cockpit switch provides control of the ELT. -
Page 30: Life Vests
Life Vests Life vests are located in the base of each passenger seat for use in the event of an over-water emergency landing. (Refer to the life vest location placard for your seat.) A life vest is also located in the pocket on the back of the pilot and copilot seats. Instructions for use of the life vests are provided on a placard on each vest and on the passenger-briefing card located at each seat. -
Page 31: Seat Belts
Seat Belts It is recommended that seat belts Pull To remain fastened during flight. For Tighten comfort, the optional shoulder harness may be detached during flight. Note: Seat belts and shoulder harness must be fastened Push Button during takeoff and landings. To Release See Passenger Briefing Card for complete instructions.
