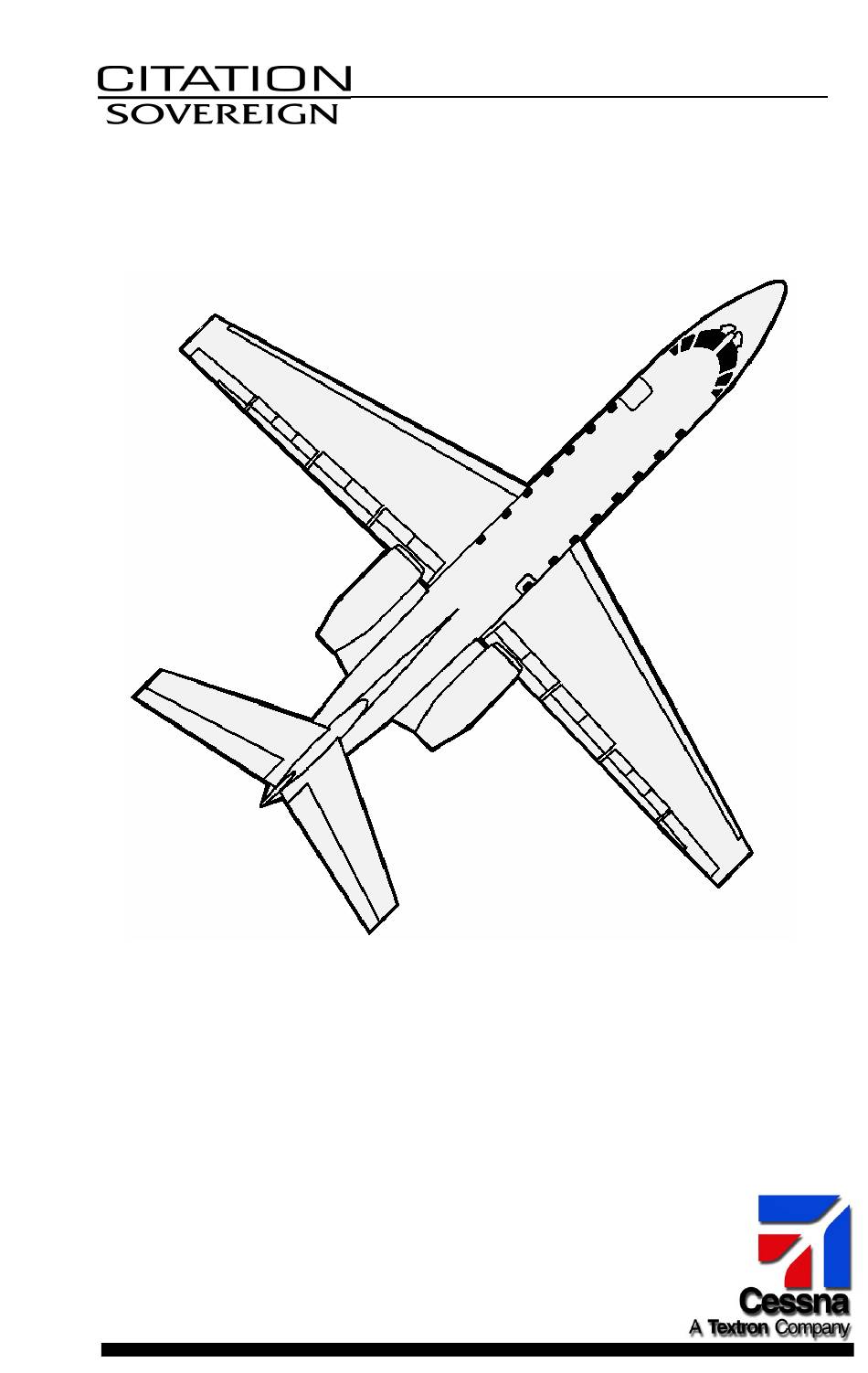

- Page 1 Unit 0046 Cabin Equipment Operation Manual...
- Page 2 This manual is intended as an operational overview only. It is not intended to replace operation or maintenance instructions for any component or feature. Copyright © 2005, Cessna Aircraft Company, All Rights Reserved. 0046...
-
Page 3: Table Of Contents
Table of Contents Cabin Entertainment/Phone Equipment Page Cabin Entertainment/Phone Equipment Location Diagram ..Airshow 400 System ....... . . Dual DVD Player . - Page 4 Blank Page 0046...
-
Page 5: Cabin Entertainment/Phone Equipment Page
Cabin Entertainment/Phone Equipment AirCell Telephone (In Cockpit Overhead) Data Management Unit Dual DVD Player Master Control Closet Galley Switch Panel XM Radio Control Head Infrared Remote Sensor Passenger Seat Switch Panel Sidewall Video Monitor Passenger Seat AirCell Telephone Switch Panel Data Panel Sidewall Video Monitor... -
Page 6: Airshow 400 System
Airshow 400 System The Airshow 400 system displays maps and flight information about your current flight. The infomation page provides up to the minute flight information such as altitude, ground speed and outside air temperature. The maps provide topographical maps with geopolitical borders, city names, points-of-interest and a detailed display of your present location. -
Page 7: Dual Dvd Player
Dual DVD Player The dual DVD player is located in the forward closet. It is controlled by the switches on the front of the unit itself (see illustration below), or by the player remote. Refer to the vendor manual for more information. Play Search Forward (Disc 1) -
Page 8: Dual Dvd Player Remote Control
Dual DVD Player Remote Control The Dual DVD Player Remote Control (supplied as loose equipment) is used to control the Dual DVD Player. To operate, press anywhere on LCD Touch Screen or any button on remote to activate Touch Screen, then press the indicated area on the screen to activate the DVD feature shown. - Page 9 Note: Date and time are preset and display whenever screens are visible. The battery symbol displays remaining battery strength. DVDX indicates the DVD being accessed. Date Time Date Time Date Time Device DVDX DVDX DVD1 DVD2 TITLE MENU SETUP Mode Mode Device Mode...
-
Page 10: Video Monitors
Video Monitors Video monitors for personal entertainment viewing are mounted on the sidewalls of the cabin at some seat locations (see locator diagram). See vendor manual for operation details. To use the video monitor: Press the pivot arm release button to move the monitor screen from its mounting bracket. -
Page 11: Cabin Speaker Control
Cabin Speaker Control The cabin speakers are located in the headliner over the dropped aisle and subwoofer speakers are located in lower seat bases on the center forward-facing seats. Note: The cabin speakers can only be turned on and off using the executive control (VIP) or the master control switch panel (see Cabin Switch Panels diagram for location). -
Page 12: Satellite Radio Service Operation
Satellite Radio Service Operation Satellite Radio Service by XM Radio provides digital satellite radio transmissions for individual passenger listening in a variety of different program categories. Each passenger may select from four different preset categories and channels. These preset categories and channels may be chosen from a list provided by the XM Radio ... -
Page 13: Xm Radio Remote Control
XM Radio Remote Control The XM Radio Remote Control (supplied as loose equipment) is used to control the XM Radios. Note: Point remote toward the infrared sensor on the LH forward closet to control the XM Radios. -
Page 14: Data Panel Operation
Data Panel Operation The data panel is used for data transmission and reception through the RS-232 connector. Plug the cord from the input/output device to the RS-232 connector on the data panel. For detailed operation instructions, see the user manual of the type of equipment connected to the data panel. -
Page 15: Aircell Telephone
AirCell Telephone The AirCell Telephone provides voice, fax and data transmission capabilities during flight. Use the system’s handset to perform all normal operations of the AirCell Telephone. A backlit LCD screen shows telephone numbers, signal strength and AirCell Telephone status. Use the keypad to enter phone numbers, menu selections, call timer and other functions. - Page 16 Blank Page 0046...
-
Page 17: Cabin Switch Panels
Cabin Switch Panels Master Control Switch Panel Entry Switch Panel Closet Galley Passenger Seat Passenger Seat Switch Panel Switch Panel Data Panel Executive Control (VIP) Switch Panel Passenger Seat Switch Panel Passenger Seat Switch Panel Data Panel Passenger Seat Passenger Seat Switch Panel Switch Panel Vanity Switch Panel... -
Page 18: Executive Control (Vip) Switch Panel
Executive Control (VIP) Switch Panel (VIP Seat Only, See Location Diagram) Press for Cabin Temp/Shades Menu Press for Cabin Lighting Menu Press for Seat Lights/Shades Menu (See Below) (See Below) (See Following Page) Press for Seat A/V Menu Press for Cabin A/V Menu (See Following Page) (See Below) Center Text Replaced by... -
Page 19: Entry Light Switch Panel
Press to Go to Press to Turn Light On/Off Press to Open Table Main Menu (“On” displays when in use) Window Shade Press to Open Seat Window Shade Center Text Replaced by “ ” When Call Input Received Press to Close Seat Window Shade Press to Close Table Window Shade... -
Page 20: Master Control Switch Panel
Master Control Switch Panel (Located in Galley Header) Press for Galley Menu Press for Cabin Lights / Shades Menu Press for Vanity Menu (See Below) (See Below) (See Following Page) Press for Cabin Audio Video Menu (See Below) Master Control Switch Panel Main Menu Note: After using any menu, the “Main Menu”... -
Page 21: Passenger Seat Switch Panel
Press to Turn Indirect Lighting Press to Return On/Off to Main Menu Press to Turn Light On/Off (“On” displays when in use) (“On” displays when in use) Press to Decrease Lavatory Indirect Lighting Brightness Press to Turn Accent Light On/Off (“On”... - Page 22 Blank Page 0046...
-
Page 23: Furniture Location & Operation
Furniture Location & Operation 110V Outlet 110V Outlet 110V Outlet Coffee Maker Microwave Closet Galley Passenger Seat Passenger Seat 110V Outlet Table Table 110V Outlet Passenger Seat Passenger Seat 110V Outlet Table 110V Outlet Table Passenger Seat Passenger Seat Hot Water Tank 110V Outlet Closet 0046... -
Page 24: Seat Adjustment
Seat Adjustment Passenger seats have forward, aft and lateral adjustment with seat back recline. By pulling the seat adjustment lever up, it is possible to adjust the seat position forward, aft, out from the wall or swiveled to face any direction. Push in on the seat recline button to adjust seat-back recline. - Page 25 Table Operation Open table door. Lift table up completely as far as possible. Note: Lift the table up completely before rotating down to prevent damage to the table mechanism. Rotate table down 90 degrees. Unfold table leaf. Close table lid. Reverse steps 1 through 5 to stow table.
-
Page 26: Galley Features
Galley Features Master Control Switch Panel Coffee Maker Drip Tray (with Automatic Overboard Drain) Ice Chests with Manual Overboard Drains Microwave (Interchangeable with Shelf) Manual Overboard Drain Operation (for Ice Chests) Both ice-chest drawers located in the lower section of the galley are equipped with manual drain valves used to empty water from the ice chests. -
Page 27: Microwave Oven
Microwave Oven A TIA microwave oven is installed in the forward closet. The oven is controlled by switches located on the front of the unit. Refer to the vendor manual for more detailed information. To use the microwave oven: Press door release to open microwave oven door. Place food in microwavable container on carousel and close oven door. -
Page 28: Water Storage Tank Removal
Coffee Maker A TIA coffee maker is installed in the upper section of the galley. The coffee maker is microprocessor controlled and operated by lighted switches on the front of the coffee maker. A water tank in the Galley supplies water for the Coffee Maker. To operate the coffee maker: Press power on/off switch. -
Page 29: Vanity
Vanity Vanity Switch Panel 110V Outlet Soap Dispenser Water Faucet Handle (Rotate Clockwise for On) Vanity Accent Light Vanity Hot Water Tank Umbrella Storage Rack on Back of Door Note: Water will continue to run a few seconds after water faucet is turned off. Vanity Hot Water Tank Operation The vanity switch panel controls the temperature of the heater for the hot water tank. -
Page 30: Vanity Hot Water Tank Removal
Vanity Hot Water Tank Removal A water tank is located in the bottom-center compartment of the vanity and is easily removed for filling. The vanity switch panel controls the temperature of the heater for the water tank (see previous page for switch operation). Note: Make certain the switch for the hot water container is “Off”... -
Page 31: Toilet
Toilet Press to Flush Toilet Note: The toilet is externally serviceable. Refer to the aircraft maintenance manual for instructions on service procedures. 0046... - Page 32 Blank Page 0046...
-
Page 33: Emergency Equipment
Emergency Equipment Fire Extinguisher (Under copilot’s seat) Life Vest (Stored In Seat-Back Pocket) Life Vest (Stored In Seat-Back Pocket) Rechargeable Flashlight Rechargeable Flashlight Fire Extinguisher & Portable Oxygen Closet Bottle Galley Cabin Entry/Exit Life Vest Life Vest (Stored Under Seat Base) (Stored Under Seat Base) Emergency Exit 3 Life Rafts... -
Page 34: Brace Positions
Brace Positions Assume brace positions as shown below. FORWARD REAR Side-Facing Seat Rear-Facing Seat Forward-Facing Seat Emergency Exits The airplane has two exits with emergency exit releases and signs. To Open Cabin Entry Door: To Open Emergency Exit Door: Push button in handle and rotate handle down to open position. -
Page 35: Emergency Locator Transmitter
Emergency Locator Transmitter The emergency locator transmitter (ELT) unit is located in the aft tail cone equipment. The unit is self-contained and battery powered. An indicator light provides a visual indication of ELT operation. A switch mounted in the unit and a cockpit switch provides control of the ELT. -
Page 36: Life Rafts
Life Rafts Three life rafts are stowed in the aft bulkhead closet and are for use in the event of an over-water emergency landing. Each life raft comes equipped with emergency survival equipment and an ELT transmitter. Instructions for use of the life raft is provided on the life raft itself. -
Page 37: Portable Oxygen Bottle
Portable Oxygen Bottle A portable oxygen bottle is located in the forward closet. Extinguish all smoking materials. Plug oxygen mask (stored with bottle in LH forward closet) into portable oxygen bottle. Turn valve counter clockwise to turn on oxygen bottle. Place mask over nose and mouth and breathe normally.
