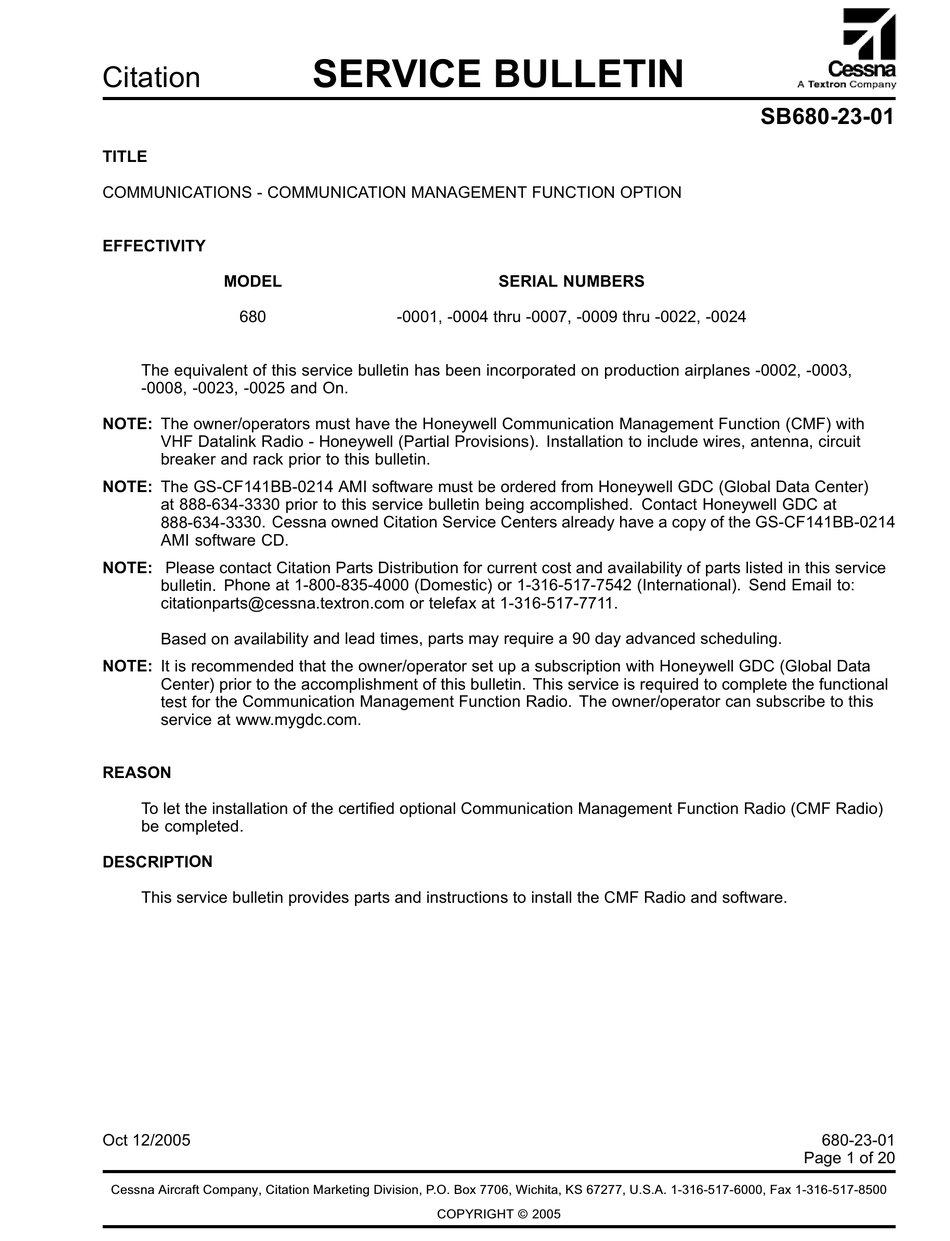

TITLE
COMMUNICATIONS - COMMUNICATION MANAGEMENT FUNCTION OPTION
EFFECTIVITY
MODEL
680
The equivalent of this service bulletin has been incorporated on production airplanes -0002, -0003,
-0008, -0023, -0025 and On.
NOTE: The owner/operators must have the Honeywell Communication Management Function (CMF) with
VHF Datalink Radio - Honeywell (Partial Provisions). Installation to include wires, antenna, circuit
breaker and rack prior to this bulletin.
NOTE: The GS-CF141BB-0214 AMI software must be ordered from Honeywell GDC (Global Data Center)
at 888-634-3330 prior to this service bulletin being accomplished. Contact Honeywell GDC at
888-634-3330. Cessna owned Citation Service Centers already have a copy of the GS-CF141BB-0214
AMI software CD.
NOTE: Please contact Citation Parts Distribution for current cost and availability of parts listed in this service
bulletin. Phone at 1-800-835-4000 (Domestic) or 1-316-517-7542 (International). Send Email to:
citationparts@cessna.textron.com or telefax at 1-316-517-7711.
Based on availability and lead times, parts may require a 90 day advanced scheduling.
NOTE: It is recommended that the owner/operator set up a subscription with Honeywell GDC (Global Data
Center) prior to the accomplishment of this bulletin. This service is required to complete the functional
test for the Communication Management Function Radio. The owner/operator can subscribe to this
service at www.mygdc.com.
REASON
To let the installation of the certi¿ed optional Communication Management Function Radio (CMF Radio)
be completed.
DESCRIPTION
This service bulletin provides parts and instructions to install the CMF Radio and software.
Oct 12/2005
Cessna Aircraft Company, Citation Marketing Division, P.O. Box 7706, Wichita, KS 67277, U.S.A. 1-316-517-6000, Fax 1-316-517-8500
SERVICE BULLETIN
-0001, -0004 thru -0007, -0009 thru -0022, -0024
COPYRIGHT © 2005
SERIAL NUMBERS
SB680-23-01
680-23-01
Page 1 of 20
