Summary of Contents for All American Scoreboards MP-7524

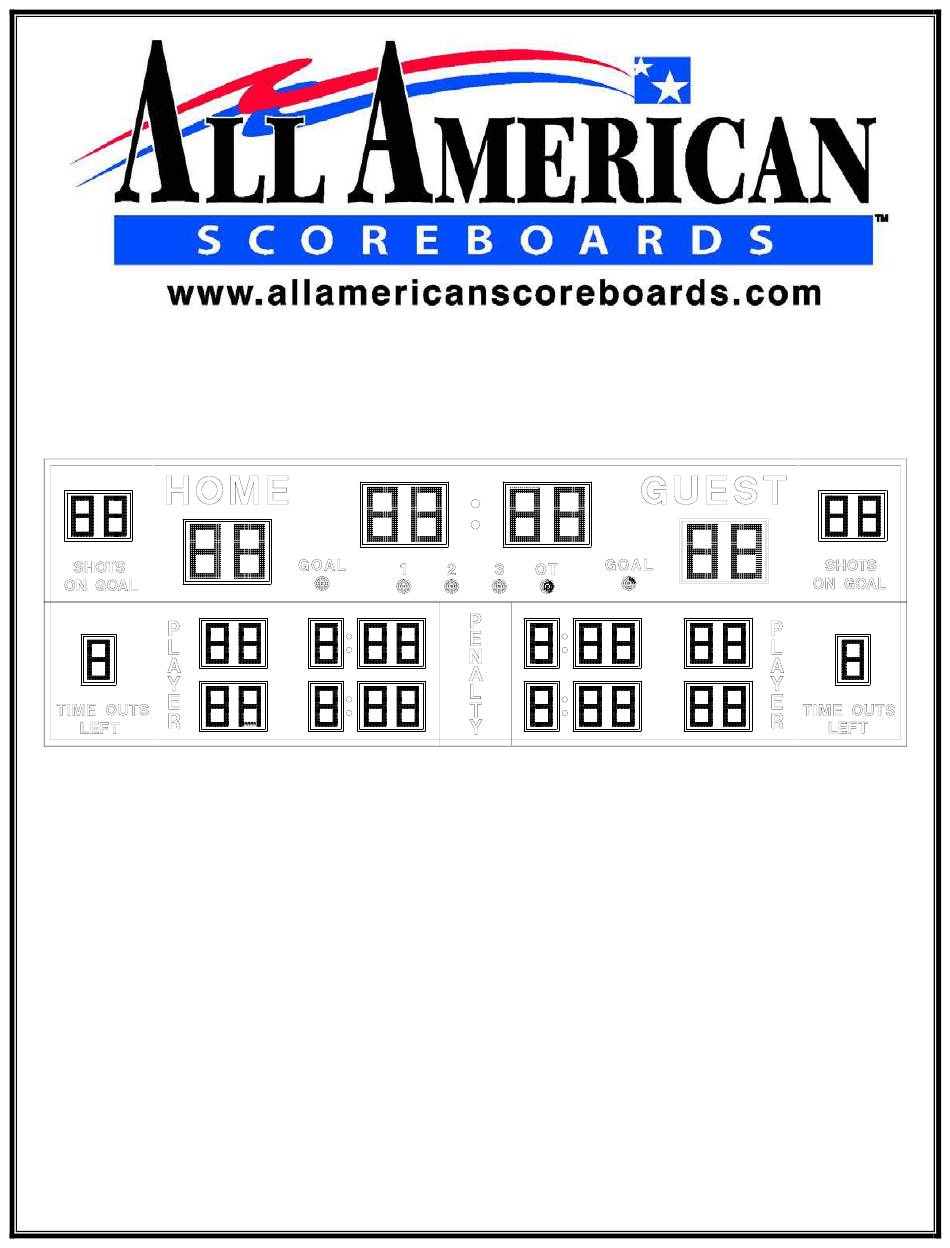

- Page 1 MP-7524 Outdoor Hockey Scoreboard with MP-5000 Control Console Operating Instructions and Troubleshooting Guide EFFECTIVE S.N.XXXX, SEPT. 13, 1996...
-
Page 2: Table Of Contents
Manual for MP-7524 with MP-5000 Control Console Table of Contents Section Pages 1. General Information.............................2-3 1.1 Description 1.2 Identification 1.3 Included Components 1.4 Damage 1.5 Damage Claim Procedure 1.6 Repair Procedure 2. Installation..............................4-4 2.1 Inspection 2.2 Initial Testing 2.3 Data Cable Installation 2.4 Electrical Connection... -
Page 3: General Information
Manual for MP-7524 with MP-5000 Control Console 1. General Information 1.1 Included Components Shipping papers are sent with every scoreboard manufactured by All American Scoreboards. Check your shipment carefully to see that you have received the following parts: A) 1 Hockey Scoreboard (2 pieces) -
Page 4: Repair Procedure
Manual for MP-7524 with MP-5000 Control Console All American Service Department Everbrite, LLC P.O. Box 100 Pardeeville, WI 53954 Phone: (608) 429-2121 Toll Free: (800) 356-8146 E-mail: score@everbrite.com Parts being returned for service should be sent to: All American Service Department Everbrite, LLC 401 S. -
Page 5: Installation
2.3 General Installation Instructions Your All American MP-7524 scoreboard is shipped in two parts, a top and a bottom. As a result, all cables from the top section will need to be pulled into the bottom cabinet during installation in order to connect them to the controller. -
Page 6: Scoreboard Operation
Manual for MP-7524 with MP-5000 Control Console 3. Scoreboard Operation Note: To protect the control console from damage, it is advised that it is disconnected after use and stored in a secure, dry area. A carrying case to protect your investment is available for purchase from All American Scoreboards. - Page 7 Manual for MP-7524 with MP-5000 Control Console key allows you to make several operational changes. SETUP ENTER While in Setup, press to skip to the next setting without making any changes. If you would like to make changes while in setup, press or enter numbers on the number pad and press “ENTER”...
-
Page 8: Team Score Operation
Manual for MP-7524 with MP-5000 Control Console Even if you set up the period time in the setup menu, you can still set the time at any TIME point. This is accomplished by using the button. Example: The refs ask you to reset the clock to 36 seconds. Press the buttons in the... -
Page 9: Dimming Operation
Manual for MP-7524 with MP-5000 Control Console 3.3.7 Period Operation Push PERIOD once to increment the period indicators. The LCD display will show the period directly below the time. 3.3.8 Dimming Operation To dim the scoreboard for night time use, use the “DIM” key to cycle through the 4 brightness levels. -
Page 10: Maintenance And Troubleshooting
Manual for MP-7524 with MP-5000 Control Console 4. Maintenance and Troubleshooting WARNING 120 volt AC wires are exposed any time the cover over the controller assembly is removed from the scoreboard. Use extreme caution during troubleshooting or repair. To avoid possible damage to equipment or personal injury, ALWAYS turn off the main power to the scoreboard before removing the cover or replacing lamps. - Page 11 Manual for MP-7524 with MP-5000 Control Console Problem 3: The scoreboard lights up, but the control console doesn’t work a) Check for 12-16 VDC between the red and black wires in the junction box b) Turn on the control console and code it in, even though it may not appear to be working.
- Page 12 Manual for MP-7524 with MP-5000 Control Console connection i) Contact customer service - 11 -...
- Page 13 Manual for MP-7524 with MP-5000 Control Console 4.4 Advanced Troubleshooting Guide These steps are not intended as permanent solutions to a problem, but as a temporary solution to a problem in an emergency. If these steps are followed they should only be performed by someone with experience using electronics.
- Page 14 Manual for MP-7524 with MP-5000 Control Console display, check the ribbon cable between the transmitter board and LCD module. 3) In all cases, check to make sure that all chips are pressed firmly into their sockets. - 13 -...
-
Page 15: Replacement Parts List
Manual for MP-7524 with MP-5000 Control Console 5. REPLACEMENT PARTS LIST 5.1 Display Assembly Parts Figure 1. Display Assembly - 14 -... - Page 16 All American Part # Description MP7524 MP-7524 Scoreboard Top MP7524 MP-7524 Scoreboard Bottom 152030 MP-7524 Controller Assembly (See Fig 2 for parts) 1-2C 21” Red LED Digit (2 sections) LED5M21AR 21” Red LED Digit, Part A LED5M21BR 21” Red LED Digit, Part B 1-2A 21”...
-
Page 17: Scoreboard Controller Assembly Parts
Manual for MP-7524 with MP-5000 Control Console 5.2 Scoreboard Controller Assembly Parts Figure 2. Controller Assembly Replacement Parts List for MP-7524 Scoreboard Figure and Index # All American Part # Description 152030 MP-7524 Controller Assembly 24V, 300W Power Supply MP-7000 Driver Board... -
Page 18: Diagrams
Manual for MP-7524 with MP-5000 Control Console 6. DIAGRAMS 6.1 Control Console Keyboard and Slipsheet Layout FOOTBALL TRACK Figure 3. Control Console Keypad Layouts - 17 -... - Page 19 Manual for MP-7524 with MP-5000 Control Console 6.3 Controller Assembly Wiring Figure 4. Controller Assembly Wiring...
- Page 20 Manual for MP-7524 with MP-5000 Control Console 6.5 LED Digit Wiring Figure 5. LED Digit Wiring...
-
Page 21: Installation Drawings
Manual for MP-7524 with MP-5000 Control Console Installation Drawing... - Page 22 Manual for MP-7524 with MP-5000 Control Console...
