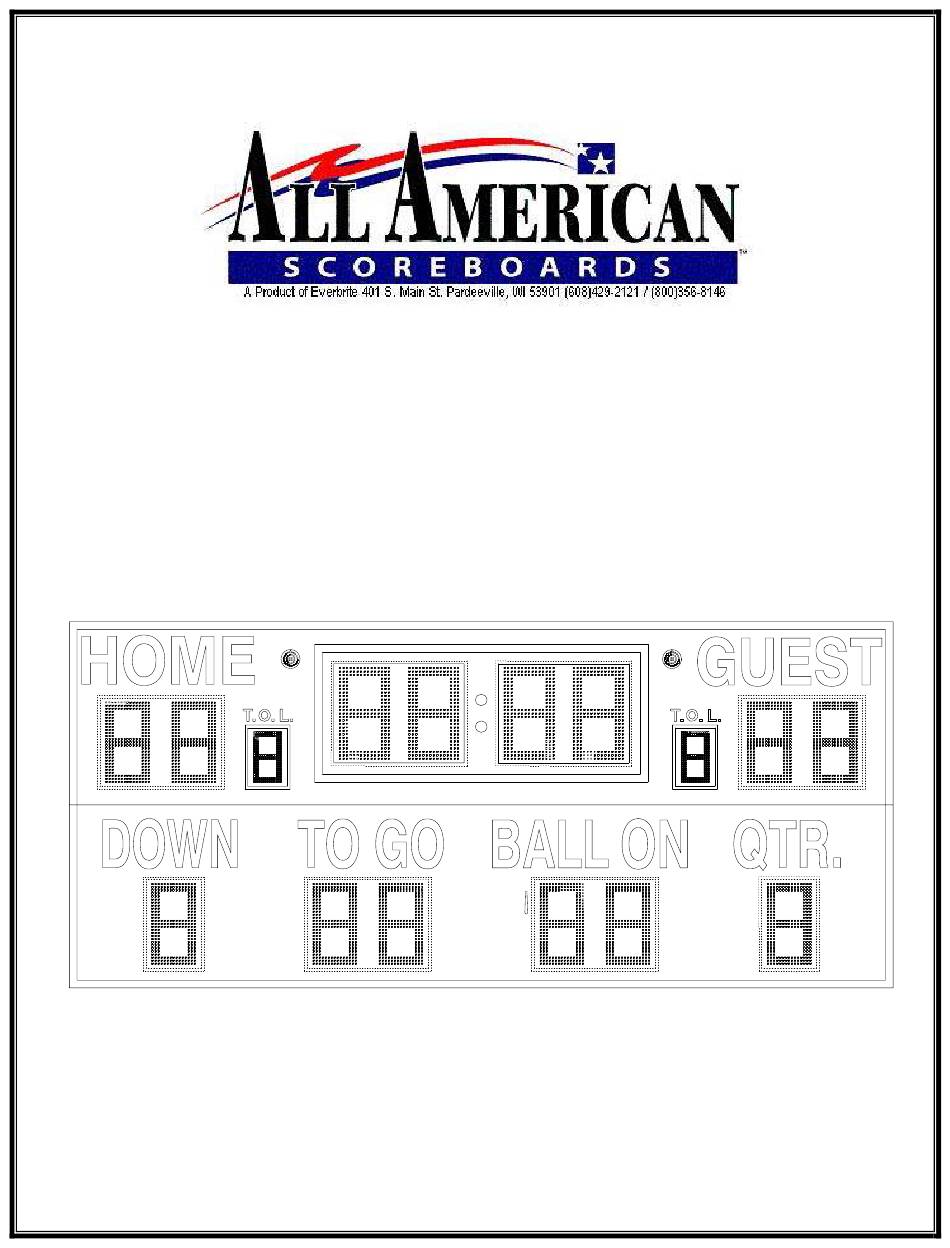

- Page 1 OPERATING INSTRUCTIONS AND SERVICE MANUAL FOOTBALL SCOREBOARD MODEL MP-7479R WITH MP-5000R CONTROL EFFECTIVE S.N. 18,725, June, 2005...
-
Page 2: Table Of Contents
TABLE OF CONTENTS General Information Description Identification Damage Damage Claim Procedure Installation General Information Installation Electrical Connection Control Console Operation Scoreboard Power Control Console Display Control Console Power Initializing Scoreboard Setup Time Setting and Control Team Scores Horn (Optional) Yards to Go, Ball On, Down, and Quarter 3.10 Time Outs 3.11 Dimmer 3.12 Track Operation... -
Page 3: General Information
1. GENERAL INFORMATION DESCRIPTION Your All-American scoreboard has been carefully inspected and tested before leaving the factory. It is possible, however, that components may be loosened or forced out of adjustment in transit. If this occurs, follow the troubleshooting guide (section 4). If equipment then fails to operate, contact immediately: ALL-AMERICAN Service Department EVERBRITE LLC... -
Page 4: Installation
For permanent mounting to uprights, see the enclosed installation drawing in section 6. Consult Section 6 for junction box and scoreboard wiring. Electrical connections The MP-7479R scoreboard requires one 120 VAC 20 AMP circuit. -
Page 5: Control Console Operation
IMPORTANT !!! To protect the control from damage, it is advisable to disconnect the control and store in a dry secure area when not in use. NOTE This equipment is UL and NRTL approved and complies with the requirements in part 15 of the FCC rules for a class A computing device. -
Page 6: Setup
When the proper code has been entered, the console display will show as follows. & 0 on 0 The scoreboard display will now show :00 in the time section. Setup SETUP key will step through a list of options. Press YES/NO , or make Numeric Entries to make changes. Pushing ENTER without any other input skips to the next item. -
Page 7: Team Scores
Team Scores The Home and Guest Scores can be changed in five different ways. (A) To add 1 to the existing score: Push +1 . (B) To add 6 to the existing score: Push +6 . (C) To add 3 to the existing score: Push +3 . -
Page 8: Track Operation
3.12 Track Operation For track operation, use Code 82. The timer will now count up from zero. When in the track mode, the console LCD will display two timers. If you want to know the split times push SPLIT . The bottom timer will stop so that you can read the time. Now if you push RESUME , the timer will show what the top timer shows, and resume timing. - Page 9 (c) If the scoreboard still doesn't light, check the items in section (A), power supply voltage and fuses. Check if LED D1 on the receiver board is lit. If not, check that the receiver board is plugged into the power supply board, then contact the customer service department. (e) Check to see that the LED on the first driver board (closest to receiver) is flashing.
- Page 10 driver board is flashing. If not, check the data cable connections (orange and grey wires) from the receiver to the drivers, and check to be sure that the power connection to the driver board is OK. (E) The scoreboard works, but some lights stay on all the time (a) With the main power "OFF", disconnect (and tag) the suspect digit from the driver board.
- Page 11 board has an address programmed inside its microcontroller chip. The chip from the board being replaced must be put into the new board for proper operation. Example: The scoring driver of a football board has a problem. The Ball On/Yards To Go driver can be used in its place.
-
Page 12: Replacement Parts List
(C) Console problems (a) Power is OK, but console does not turn on: check that the keypad connector is plugged into the main board in the console. (b) Console beeps, but has no display: check the ribbon cable between the main console board and the display module. -
Page 13: Scoreboard Display Parts
5.1 Scoreboard Display Parts figure 1 DISPLAY ASSEMBLY... - Page 14 REPLACEMENT PARTS LIST (MP-7479R) fig.& MFG PART VENDOR index NUMBER DESCRIPTION PART # 000000 Display, top 000000 000000 Display, bottom 000000 1-1A 152022 Window Assy, singlele digit 18" 1-1B 000000 Digit, 18" Red 1-2A 152021 Window Assy, double digit 18"...
-
Page 15: Controller Assembly
2 CONTROLLER ASSEMBLY REPLACEMENT PARTS LIST (MP-7479R) Controller Assembly fig.& MFG PART VENDOR index NUMBER DESCRIPTION PART # 000000 Controller Assembly 000000 BL00059P Power Supply, 24V/300W A10-A14 BL00059P MM00598P Driver PCB Assembly, 4 Position A4-A8 MM00598P 150635 Receiver PCB Assembly... -
Page 16: Console Keyboard
6.1 Control Console Keyboard and Slipsheet Layout figure 3 CONSOLE KEYBOARD... -
Page 17: System Layout
6.2 Scoreboard System Layout figure 4 SYSTEM LAYOUT 6.3 Controller Assembly Wiring... - Page 18 CONTROLLER ASSEMBLY 6.4 Microprocessor 5 X 9 LED Pattern...
- Page 19 MICROPROCESSOR 5 X 9 (8 BIT) LED PATTERN 6.5 Figuregram Wiring...
-
Page 20: Installation Drawings
FIGUREGRAM WIRING Installation Drawing... - Page 21 Installation Drawing Cont.
- Page 22 6.6 Installation Drawing Cont.
