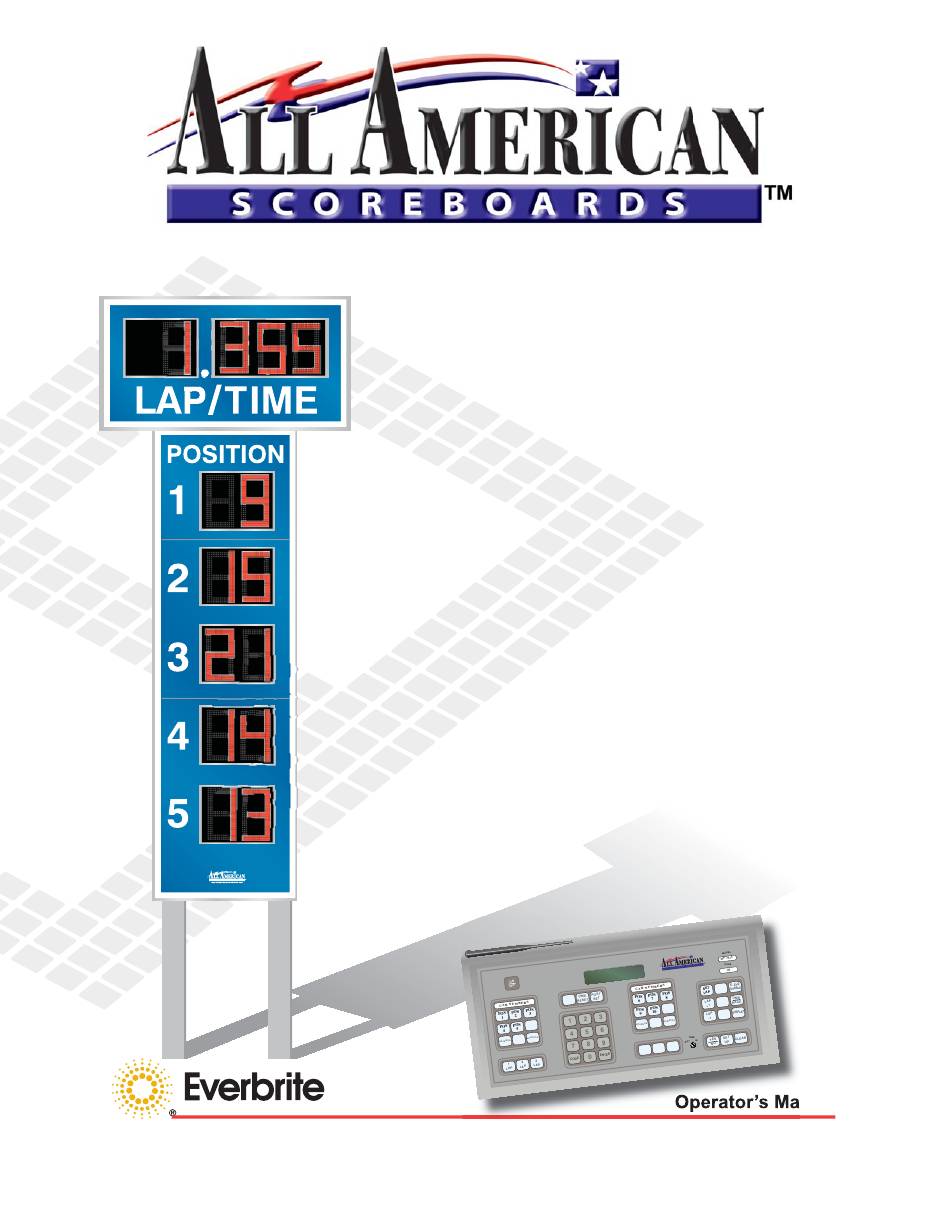

- Page 1 MP-7814 Racing Scoreboard with MP7000 Racing Console Operator’s Manual Volume VII Rev. 1/30/08...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ............................2 1.0 Keypad Console....................3 2.0 Keypad Console Functions................4 2.1 Initializing the System at Start-up ....................4 2.2 Setting Brightness ........................4 2.3 Time Trial Mode .......................... 4 2.4 Racing Mode ..........................5 3.0 Maintenance/ Troubleshooting................6 3.1 Table I: Quick Reference Problem/Cause ............... -
Page 3: Keypad Console

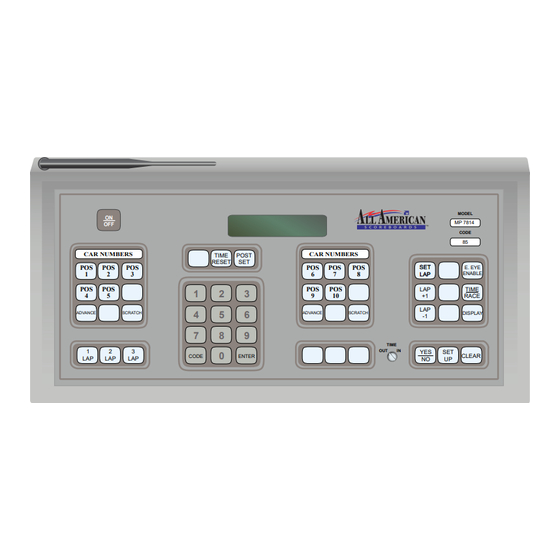

1.0 Keypad Console The Keybpad Console has a touch sensitive keypad that allows the operator to enter all pertinent infor- mation, It then sends the information to the Controller Assembly within the sign by way of radio signal or hard-wire. A LCD screen displays Time, Home and Guest scores, Period and depending on the model Time outs left and Auto Horn Enable. -
Page 4: Keypad Console Functions
2.0 Keypad Console Functions Turn On the Keypad console press once to turn on and again to turn off. When the Keypad is turned on, the LCD screen should become active. 2.1 Initializing the System at every Start-up. Locate the Code label on the Keypad console (located upper right corner in Figure 2); the code 85 is used for illustration. -
Page 5: Racing Mode
2.3 Racing Mode TIME To enter the Race Mode, press . The display will show: RACE TOP 5 ? Press ,then the car number, then . For example, car #54 would be entered: ENTER . “54” will be displayed next to Position 1. Continue with positions 2-10. ENTER Laps can be set to count down from the total laps in a race, or to count up from zero. -
Page 6: Maintenance/ Troubleshooting
3.0 Maintenance & Troubleshooting For cleaning, use a window type product with a soft cotton cloth. CAUTION: Do not use a power washer, solvent product or abrasive materials for cleaning board faces. 3.1 Table I: Quick Reference Problem/Cause WARNING! USE A LOCK OUT/TAG OUT ON CIRCUIT BREAKERS OR “POWER ON/OFF”... -
Page 7: Safety
WARNING! OPERATION OF THE UNIT WITH THE ELECTRICAL EXPOSED IS DANGEROUS. BE SURE ALL TOOLS AND ANY OTHER MATERIALS ARE REMOVED FROM THE UNIT, AND ALL ACCESS COVERS ARE REPLACED AND CLOSED BEFORE POWER IS TURNED ON. NOTE: For Advanced Trouble Shooting, Service Manuals and Replacement Part Information go to www.allamericanscoreboards. -
Page 8: Warranty
5.0 Warranty Five Year Limited Warranty Non-compliance with procedures of Installation, Safety, Operation and/or Maintenance practices defi ned in this manual may result in a Warranty issue. This warranty extends to and is enforceable by only the original consumer purchaser and only for the period (during the applicable term) which the product remains in the possession of the original con- sumer purchaser. -
Page 9: Technical Support
© Copyright All American Scoreboards 2006 This is the exclusive property of All American Scoreboards® a division of Everbrite® LLC. Use of or duplication of this document in any manner without the expressed written consent of All American Score- boards® is prohibited.
