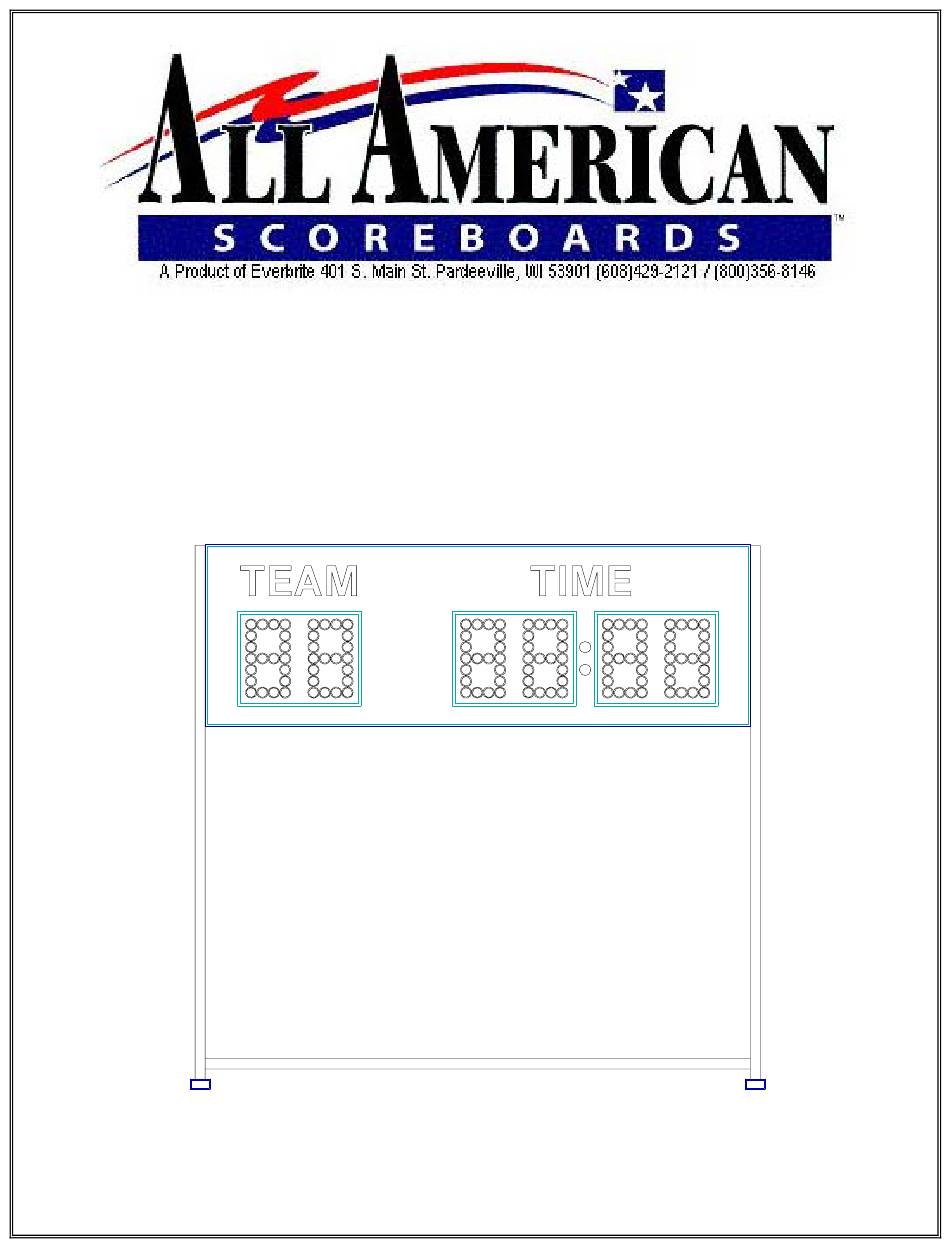

OPERATING INSTRUCTIONS AND SERVICE MANUAL
MOONBUGGY RACING SCOREBOARD
MODEL MP-3909 WITH MP-2002 Control
EFFECTIVE S.N. 16155 June 23, 2000

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MP-3909 and is the answer not in the manual?

Questions and answers

Related Manuals for All American Scoreboards MP-3909

Summary of Contents for All American Scoreboards MP-3909

  • Page 1 OPERATING INSTRUCTIONS AND SERVICE MANUAL MOONBUGGY RACING SCOREBOARD MODEL MP-3909 WITH MP-2002 Control EFFECTIVE S.N. 16155 June 23, 2000...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS General Information Description Identification Damage Damage Claim procedure Installation General Information Inspection Pre-Test Installation Electrical Connection Control Console Operation Scoreboard Power Control Console Power Control Console Display Time Setting and Control Team Number Maintenance And Troubleshooting Introduction Test Equipment Troubleshooting Troubleshooting Guide...

  • Page 3: General Information

    1. GENERAL INFORMATION 1.1 Description Your All-American scoreboard has been carefully inspected and tested before leaving the factory. It is possible, however, that components may be loosened or forced out of adjustment in transit. If this occurs, follow the troubleshooting guide (section 4). If equipment then fails to operate, contact immediately: ALL-AMERICAN Service Department EVERBRITE LLC...

  • Page 4: Installation

    1 ea Mounting Stand Hardware Package IMPORTANT! The MP-40 cable supplied by ALL AMERICAN SCOREBOARDS for use on the Microprocessor based scoreboards is specifically designed for this system. Use of a substitute cable may void the warranty on the scoreboard! 2.2 Inspection...

  • Page 5: Electrical Connection

    facing east or north to avoid direct sunlight on the face of the scoreboard, if day games are played. The MP-40 direct burial data cable carries only low voltage signals and therefore can be installed with or without conduit. consult section 6 for junction box and scoreboard wiring. 2.5 Electrical connections This scoreboard requires a 120 V.

  • Page 6: Time Setting And Control

    Enter the two digit code (88) shown in the lower center window of the keyboard as in the following example: Push CODE ENTER . When the proper code has been entered, the console display will show :00 . 3.3 Console Display The 4 digit Liquid Crystal Display (LCD) shows the time and information entered from the keyboard.

  • Page 7: Test Equipment

    4.2 Test Equipment IMPORTANT !!! In this scoreboard the 120 volt line is on the lamp socket all the time, and the common is switched to turn the lamps on and off. For this reason, to avoid damage to the equipment or personal injury, it is important to turn the main power off when changing the lamps.
  • Page 8 or higher scale. If the voltage is less than 8 VAC, contact the customer service department. If the voltage is between 8-12 VAC, see the replacement parts list for a receiver PCB assembly, and contact the customer service department. (C) The scoreboard digits light but the console doesn't work (a) Check for continuity between the scoreboard and the junction box.

  • Page 9: Replacement Parts List

    5. REPLACEMENT PARTS LIST 5.1 Scoreboard Display Parts figure 1 DISPLAY ASSEMBLY...
  • Page 10 REPLACEMENT PARTS LIST (MP-3909) fig.& MFG PART VENDOR index NUMBER DESCRIPTION PART # 000000 Display Assembly 000000 850022 Lamp, 15W/130V CL 15A15 CL 1-1A 930677 Lamp, 30W/130V IF 30A15 IF SU479000 Controller Assembly SU479300 *****SEE FIGURE 2***** EL00079 Rainshield EL00079...
  • Page 11 5.2 Scoreboard Controller Assembly Parts figure 2 CONTROLLER ASSEMBLY REPLACEMENT PARTS LIST (MP-3909) Controller Assembly fig.& MFG PART VENDOR index NUMBER DESCRIPTION PART # SU479000 Controller Assembly SU479300 119323 Receiver PCB Assembly 119323 *** PROGRAM SPSWY.CNT *** 118922 Driver PCB Assembly, 3 Position...

  • Page 12: Diagrams

    6. DIAGRAMS 6.1 Control Console Keyboard and Slipsheet Layout...
  • Page 13 CONSOLE KEYBOARD 6.2 Scoreboard System Layout SYSTEM LAYOUT...
  • Page 14 6.3 Single Junction Box Wiring...

  • Page 15: Single Junction Box Wiring

    SINGLE JUNCTION BOX WIRING 6.4 Power Wiring POWER WIRING...
  • Page 16 6.5 Controller Assembly Wiring CONTROLLER ASSEMBLY...

  • Page 17: Microprocessor 4X7 Lamp Pattern (8 Bit)

    6.6 Microprocessor 4 X 7 Lamp Pattern (8 Bit) MICROPROCESSOR 4 X 7 (8 BIT) LAMP PATTERN...

  • Page 18: Figuregram Wiring Diagram

    6.7 Figuregram Wiring 8 BIT FIGUREGRAM WIRING...
  • Page 19 6.8 Jumper Location on 3 Position System All of the 3 position drivers and receivers are identical except for the jumper on each board. Make sure the jumpers are set for the model of scoreboard you are installing them into. On the receiver board (refer to figure);...

  • Page 20: Triac Placement Diagram

    6.9 Triac Placement The triac is the switch that controls the figuregram lamps. The triacs for any given figuregram are adjacent to the twelve pin connector on the driver board that controls that figuregram. Shown below is the triac placement and bit designation relative to the figuregram bit pattern. MP TRIAC PLACEMENT...

  • Page 21: Installation Drawings

    6.10 Installation Drawing INSTALLATION DRAWING...
