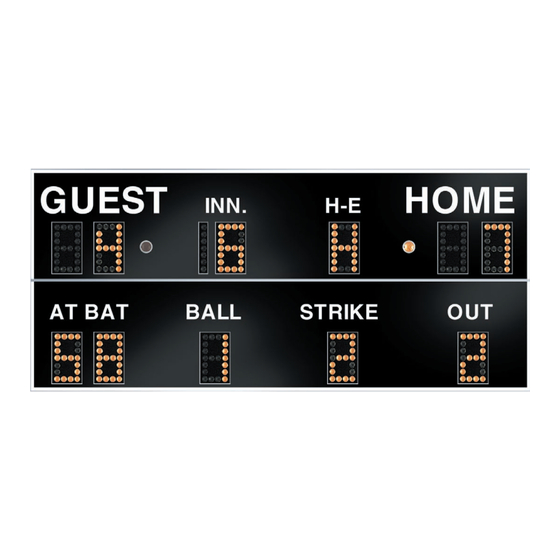

Baseball scoreboard with mp-3000r control
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

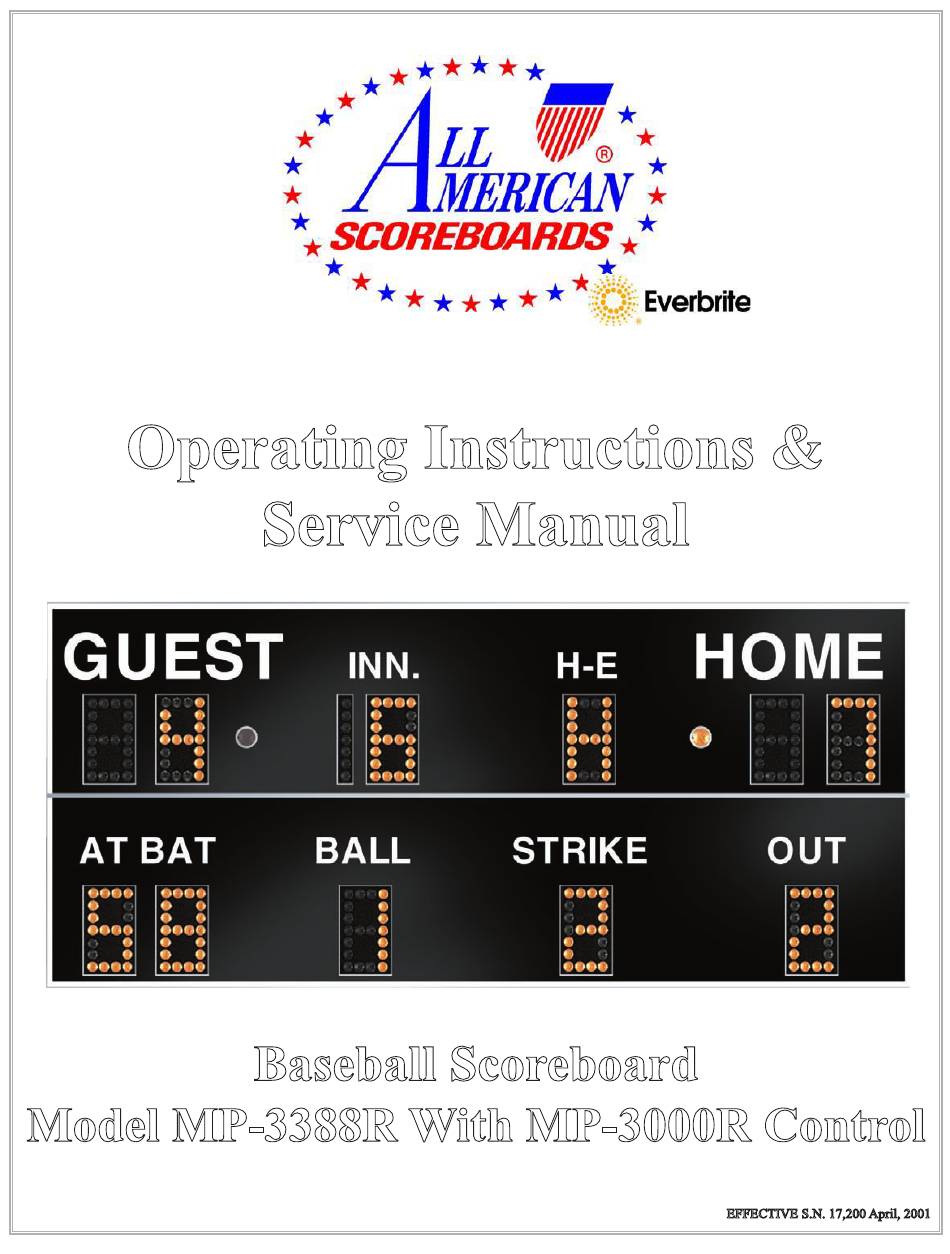

Operating Instructions &
Service Manual
Baseball Scoreboard
Model MP-3388R With MP-3000R Control
EFFECTIVE S.N. 17,200 April, 2001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Everbrite MP-3388R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for All American Scoreboards Everbrite MP-3388R

Summary of Contents for All American Scoreboards Everbrite MP-3388R

  • Page 1 Operating Instructions & Service Manual Baseball Scoreboard Model MP-3388R With MP-3000R Control EFFECTIVE S.N. 17,200 April, 2001...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS PAGE GENERAL INFORMATION DESCRIPTION IDENTIFICATION DAMAGE DAMAGE CLAIM PROCEDURE INSTALLATION GENERAL INFORMATION INSPECTION INSTALLATION ELECTRICAL CONNECTIONS CONTROL CONSOLE OPERATION SCOREBOARD POWER CONSOLE DISPLAY CONSOLE POWER INITIALIZING SCOREBOARD TEAM SCORES INNING AND AT BAT BALL, STRIKE, AND OUT HIT &...

  • Page 3: General Information

    GENERAL INFORMATION 1.1 Description Your All American Scoreboard has been carefully inspected and tested before leaving the factory. It is possible, however, that components may be loosened or forced out of adjustment in transit. If this occurs, follow the troubleshooting guide (section 4). If equipment then fails to operate, contact immediately: ALL AMERICAN Service Department EVERBRITE Corporation P.O.

  • Page 4: Installation

    1 ea Mounting Hardware Package 1 ea AC Adaptor IMPORTANT! The MP-40 cable supplied by ALL AMERICAN SCOREBOARDS for use on the Microprocessor based scoreboards is specifically designed for this system. Use of a substitute cable may void the warranty on the scoreboard! 2.2 Inspection...

  • Page 5: Electrical Connections

    2.4 Electrical connections The scoreboard requires two 110 V. 15 AMP AC circuit or one 110 V. 30 AMP circuits for the exclusive use of the scoreboard. IMPORTANT!!! To protect the control from damage, it is advisable that you disconnect the control and store in a dry secure area when not in use.

  • Page 6: Initializing Scoreboard

    3.4 Initializing Scoreboard Enter the two digit code (00) shown in the lower left corner of the keyboard as in the following example: Push CODE ENTER . When the proper code has been entered, the console display will show as follows. 3.5 Team Scores The Home and Guest Scores can be changed in three different ways.

  • Page 7: Maintenance And Troubleshooting

    The guest side operates in the same manner. WARNING 120 VAC wires are exposed whenever the cover over the controller assembly is removed from the scoreboard. Use extreme caution during troubleshooting or repair. To avoid possible damage to equipment or personal injury, always turn off the main power before removing the cover or replacing assemblies, or replacing lamps.
  • Page 8 If the voltage is less than 8 VAC contact the Customer Service Department. If the voltage is between 8-12 VAC see the replacement parts list for a receiver PCB assembly, and contact the Customer Service Department. The scoreboard digits light but the console doesn’t work: Check for continuity between the scoreboard and the junction box.
  • Page 9 IMPORTANT !!! In this scoreboard the 120 volt line is on the lamp socket all the time, and the common is switched to turn the lamps on and off. For this reason, to avoid damage to the equipment or personal injury, it is important to turn the main power off when changing the lamps.

  • Page 10: Replacement Parts List

    REPLACEMENT PARTS 5.1 Scoreboard Display Parts figure 1 DISPLAY ASSEMBLY s:\shared\stacey\scoreboard manuals\incomplete manuals\mp-3388r.indd 401 South Main Street • Pardeeville, WI 53954 • 800-356-8146 07/29/02...
  • Page 11 REPLACEMENT PARTS LIST (MP-3388R Baseball) fig.& MFG PART VENDOR fig.& MFG PART VENDOR index NUMBER DESCRIPTION PART # index NUMBER DESCRIPTION PART # 151388 Display, Top 151388 151170 Display, Bottom 151170 850022 Lamp, 15W/130V Clear 15A15CL 1-1A 850030 Lamp, 25W/130V Clear 25A19 GR CL 151396 Lamp, #55 PAR/SP spot...

  • Page 12: Scoreboard Controller Assembly Parts

    5.2 Scoreboard Controller Assembly Parts figure 2 CONTROLLER ASSEMBLY REPLACEMENT PARTS LIST (MP-3388R) Controller Assembly fig.& MFG PART VENDOR fig.& MFG PART VENDOR index NUMBER DESCRIPTION PART # index NUMBER DESCRIPTION PART # 151208 Controller Assembly 151208 150040 Receiver PCB Assembly 150040 ***** PROGRAM 3PCNT19W ***** 118922...

  • Page 13: Diagrams

    DIAGRAMS 6.1 Control Console Keyboard and Slipsheet Layout figure 3 CONSOLE KEYBOARD s:\shared\stacey\scoreboard manuals\incomplete manuals\mp-3388r.indd 401 South Main Street • Pardeeville, WI 53954 • 800-356-8146 07/29/02...

  • Page 14: Scoreboard System Layout

    6.2 Scoreboard System Layout SYSTEM LAYOUT s:\shared\stacey\scoreboard manuals\incomplete manuals\mp-3388r.indd 401 South Main Street • Pardeeville, WI 53954 • 800-356-8146 07/29/02...

  • Page 15: Power Wiring

    6.3 Power Wiring POWER WIRING s:\shared\stacey\scoreboard manuals\incomplete manuals\mp-3388r.indd 401 South Main Street • Pardeeville, WI 53954 • 800-356-8146 07/29/02...

  • Page 16: Controller Assembly Wiring

    6.4 Controller Assembly Wiring CONTROLLER ASSEMBLY s:\shared\stacey\scoreboard manuals\incomplete manuals\mp-3388r.indd 401 South Main Street • Pardeeville, WI 53954 • 800-356-8146 07/29/02...

  • Page 17: Microprocessor 4X 7 Lamp Pattern (8 Bit) (A-12497)

    6.5 Microprocesor 4 X 7 Lamp Pattern (8 Bit) MICROPROCESSOR 4 X 7 (8 BIT) LAMP PATTERN s:\shared\stacey\scoreboard manuals\incomplete manuals\mp-3388r.indd 401 South Main Street • Pardeeville, WI 53954 • 800-356-8146 07/29/02...

  • Page 18: Figuregram Wiring Diagram

    6.6 Figuregram Wiring 8 BIT FIGUREGRAM WIRING s:\shared\stacey\scoreboard manuals\incomplete manuals\mp-3388r.indd 401 South Main Street • Pardeeville, WI 53954 • 800-356-8146 07/29/02...

  • Page 19: Jumper Location On 3 Position System

    6.7 Jumper Location on 3 Position System All of the 3 position drivers and receivers are identical except for the jumper on each board. Make sure the jumpers are set for the model of scoreboard you are installing them into. On the receiver board (refer to figure 11);...
  • Page 20 6.8 Triac Placement The triac is the switch that controls the figuregram lamps. The triacs for any given figuregram are adjacent to the twelve pin connector on the driver board that controls that figuregram. Shown below is the triac placement and bit designation relative to the figuregram bit pattern. PN.
  • Page 21 6.9 Installation Drawing With Illuminated Ad. Panel 1/2-13 X 1" LG. BOLT, NUT, & L.W. 1/2-13 X 1 1/2" LG BOLT, NUT, & L.W. SCOREBOARD FACE " " " 10' 4" 3/16 X 2 X 24" STEEL BAR (4) 3/8" (10) #10 X 1/2"...
  • Page 22 6.9 Installation Drawing and Alternate Methods SCOREBOARD FACE 4 " ADVERTISING PANEL (IF USED) " " 10' 4" CONDUIT ILLUMINATED TO ROUTE ADVERTISING PANEL 30" POWER FOR (IF USED) AD.PANEL FROM 8" X 18.4 lb/ft X 1/4" SCOREBOARD 21' 2" long SERVICE STRUCTURAL STEEL I BEAM AREA...
  • Page 23 6.9 Installation Drawing With Non-Illuminated Ad. Panel FOR LAG SCREWS PRE-DRILL 3/8" D. SCOREBOARD FACE HOLES 3" DEEP SCOREBOARD FACE 1/2" X 3" LONG LAG SCREWS 6" x 14" TIMBER SCOREBOARD FACE 1/2"-13 X 1 1/2" 1/2"-13 X 1 1/2" LONG HEX HEAD LONG HEX HEAD...
