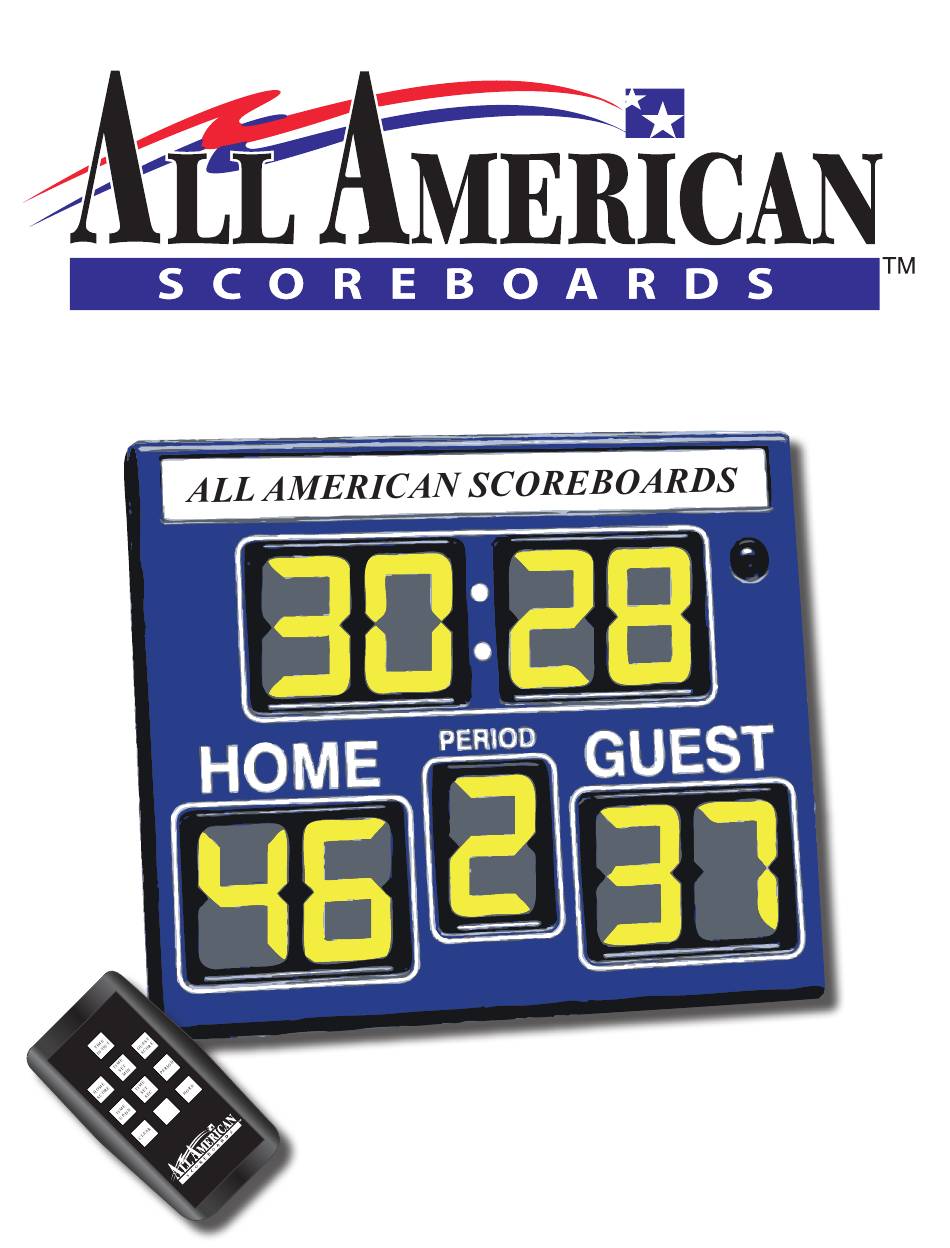

- Page 1 OPERATING INSTRUCTIONS AND SERVICE MANUAL OUTDOOR PORTABLE SCOREBOARD MODEL MP-6400 V1 EFFECTIVE S.N.18,750 rev. 4/18/11...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. GENERAL INFORMATION 1.1 DESCRIPTION 1.2 IDENTIFICATION 1.3 DAMAGE 1.4 DAMAGE CLAIM PROCEDURE 2. INSTALLATION 2.1 GENERAL INFORMATION 2.2 INSPECTION 3. CONTROL CONSOLE OPERATION 3.1 CONSOLE POWER 3.2 SCOREBOARD POWER 3.3 RADIO REMOTE SETUP (LEARN) 3.4 CHANGING REMOTE ID 3.5 TIME SETTING AND CONTROL 3.6 TEAM SCORES 3.7 HORN... -
Page 3: General Information
1. GENERAL INFORMATION 1.1 Description Your All American Scoreboard has been carefully inspected and tested before leaving the factory. It is possible, however, that components may be loosened or forced out of adjustment in transit. If this occurs, follow the troubleshooting guide (section 4). If equipment then fails to operate, contact immediately: ALL American Service Department EVERBRITE LLC Pardeeville, WI 53954... -
Page 4: Installation
Consignee will be invoiced and then should file a claim with the carrier to recover charges. To file your claim follow this procedure: (A) Cost of replacement parts or repair charges are invoiced to the carrier by the consignee. (B) The following documents, properly filled out, plus invoice are forwarded to the trucking company in support of your claim: (a) Original bill of lading (b) Original paid freight bill... -
Page 5: Control Console Operation
3.3 Remote Radio Learning Each remote has an ID which is set at All American Scoreboards headquarters. If the Remote ID needs to be changed, please call technical support. The remote should display the ID on a label in the battery compartment. -
Page 6: Changing Remote Id
3.4 Changing Remote ID The remote ID is set at All American Scoreboards Headquarters and will likely never need to be changed. It is possible, however, that 2 boards will be sent to the same location with the same ID set in the remote. In such a case, to avoid communication issues, the ID number must be changed on one of the remotes. -
Page 7: Horn
3.7 Horn HORN The horn will blow continuously while is pressed. The horn will blow automatically at the end of each period for 2 seconds. 3.8 Period PERIOD Press once to increment to the next period. PERIOD CLEAR To reset the period, Press: NOTE An “L”... -
Page 8: Maintenance And Troubleshooting
4. MAINTENANCE AND TROUBLESHOOTING 4.1 Introduction This section gives maintenance and troubleshooting information. Included are troubleshooting guides for typical scoreboard malfunctions. If the cause of a problem cannot be determined, please contact the customer service department. 4.2 Test Equipment A simple analog or digital voltmeter will be sufficient for all user repairable problems. Printed circuit boards requiring troubleshooting should be returned to the factory. -
Page 9: Replacement Parts List
5. REPLACEMENT PARTS 5.1 Scoreboard Display Parts REPLACEMENT PARTS LIST (MP-6400) REF. NUMBER DESCRIPTION PART NUMBER QTY. NEEDED Display, MP-6400 Outdoor Portable 151542 Digit, 7.75” LCD 0-99 151552 Back Plate, Digit 1C, 1D J Channel Digit, 7.75” LCD 0-9 151551 Back Plate, Digit 2C, 2D J Channel... -
Page 10: Diagrams
6. DIAGRAMS 6.1 Remote Control Console Keyboard Layout TIME IN/OUT TIME GUEST HOME SCORE SCORE TIME TIME PERIOD UP/DN CLEAR HORN...
