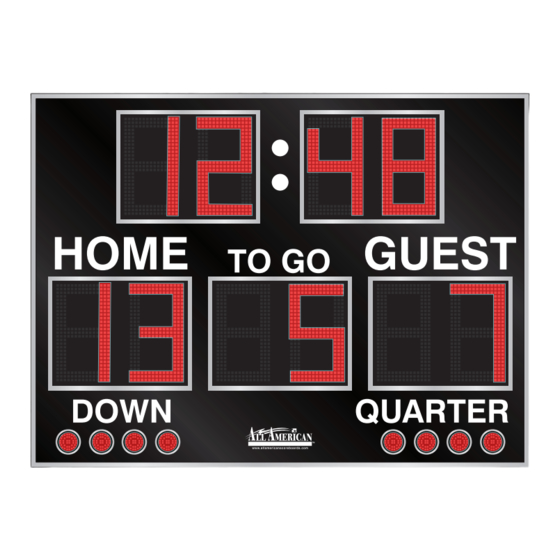

MP-7457 Multi-Sport
Scoreboard
with MP5000 Console
Football & Soccer
ON
OFF
HOME TEAM
+6
SCORE
+3
+1
Time
T.O.L.
Out
GUEST TEAM
UP
TIME
TIME
DOWN
RESET
SET
+6
SCORE
1
2
3
+3
4
5
6
+1
7
8
9
Time
0
CODE
ENTER
T.O.L.
Out
MODEL
MODEL #
CODE
66
BALL
YARDS
DOWN
ON
TO GO
TIME
BALL
QTR.
OUT
POSS.
TIMER
HORN
TIME
OUT
IN
YES
SET
CLEAR
NO
UP
Operator's Manual
Volume VII
Rev. 10/26/07

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MP-7457 and is the answer not in the manual?

Questions and answers

Related Manuals for All American Scoreboards MP-7457

Summary of Contents for All American Scoreboards MP-7457

  • Page 1 MP-7457 Multi-Sport Scoreboard with MP5000 Console Football & Soccer MODEL MODEL # CODE HOME TEAM GUEST TEAM TIME TIME DOWN RESET BALL YARDS DOWN SCORE SCORE TO GO TIME BALL QTR. POSS. TIMER HORN TIME Time Time T.O.L. CODE ENTER T.O.L.

  • Page 2: Table Of Contents

    Table of Contents Table of Contents ............................2 1.0 Keypad Console....................3 2.0 Console Keypad Functions................4 2.1 Initializing the System at Start-up ....................4 2.2 Set Up ............................4 2.3 Gametime Operations ......................... 4 2.4 Soccer Operation ........................6 2.5 Baseball Operation ........................6 3.0 Maintenance/ Troubleshooting................7 3.1 Table I: Quick Reference Problem/Cause ...............

  • Page 3: Keypad Console

    1.0 Keypad Console The Keypad Console has a touch sensitive keypad that allows the operator to enter all pertinent informa- tion, It then sends the information to the Controller Assembly within the sign by way of radio signal or hard-wire. A LCD screen displays Time, Home and Guest scores, Yards To Go, Ball On, Down, Quarter, and depending on the model Time outs left and Auto Horn Enable.

  • Page 4: Console Keypad Functions

    2.0 Control Keypad Functions Turn On the Keypad Console press once to turn on and again to turn off. When the Controller Keypad is turned on, the LCD screen should become active. 2.1 Initializing the system at every start-up. Locate the Code label on the Keypad console (located upper right corner in Figure 2); the code 66 is used for illustration.
  • Page 5 TIME TIME To start the game clock, either move the time switch to , and switch to to stop the game clock. TIME If using the pendant ( ), switch time to . Press once to start the game clock, and once again to stop the game clock.

  • Page 6: Soccer Operation

    Game Time Time SOCCER BASEBALL Home Not Used Guest Not Used Period Home Outs Guest Ball Strike Figure 4. Secondary Programs Sign Configurations 2. soccer operation For Soccer operation, use Code 16 and the appropriate slipsheets in your console. All slipsheets can be downloaded at www.allamericanscoreboards.com/slipsheets.

  • Page 7: Maintenance/ Troubleshooting

    Pressing toggles between which team is at bat (on console). Press then key in the number, then to set the Inning. INNING ENTER Your console may have additional features that are not displayed on the scoreboard. For example, pressing will add a hit to the appropriate team. The console will beep. You will not see any confirmation on the console LCD. To see the talley of the number of hits, press .

  • Page 8: Safety

    waRnIng! opeRaTIon of The unIT wITh The elecTRIcal exposed Is dangeRous. Be suRe all Tools and any oTheR maTeRIals aRe RemoVed fRom The unIT, and all access coVeRs aRe Replaced and closed BefoRe poweR Is TuRned on. noTe: for advanced Trouble shooting, service manuals and Replacement part Information go to www.allamericanscoreboards.

  • Page 9: Warranty

    5.0 Warranty five year limited warranty Non-compliance with procedures of Installation, Safety, Operation and/or Maintenance practices defined in this manual may result in a Warranty issue. This warranty extends to and is enforceable by only the original consumer purchaser and only for the period (during the applicable term) which the product remains in the possession of the original con- sumer purchaser.

  • Page 10: Technical Support

    © Copyright All American Scoreboards 2006 This is the exclusive property of All American Scoreboards® a division of Everbrite® LLC. Use of or duplication of this document in any manner without the expressed written consent of All American Score- boards® is prohibited.
