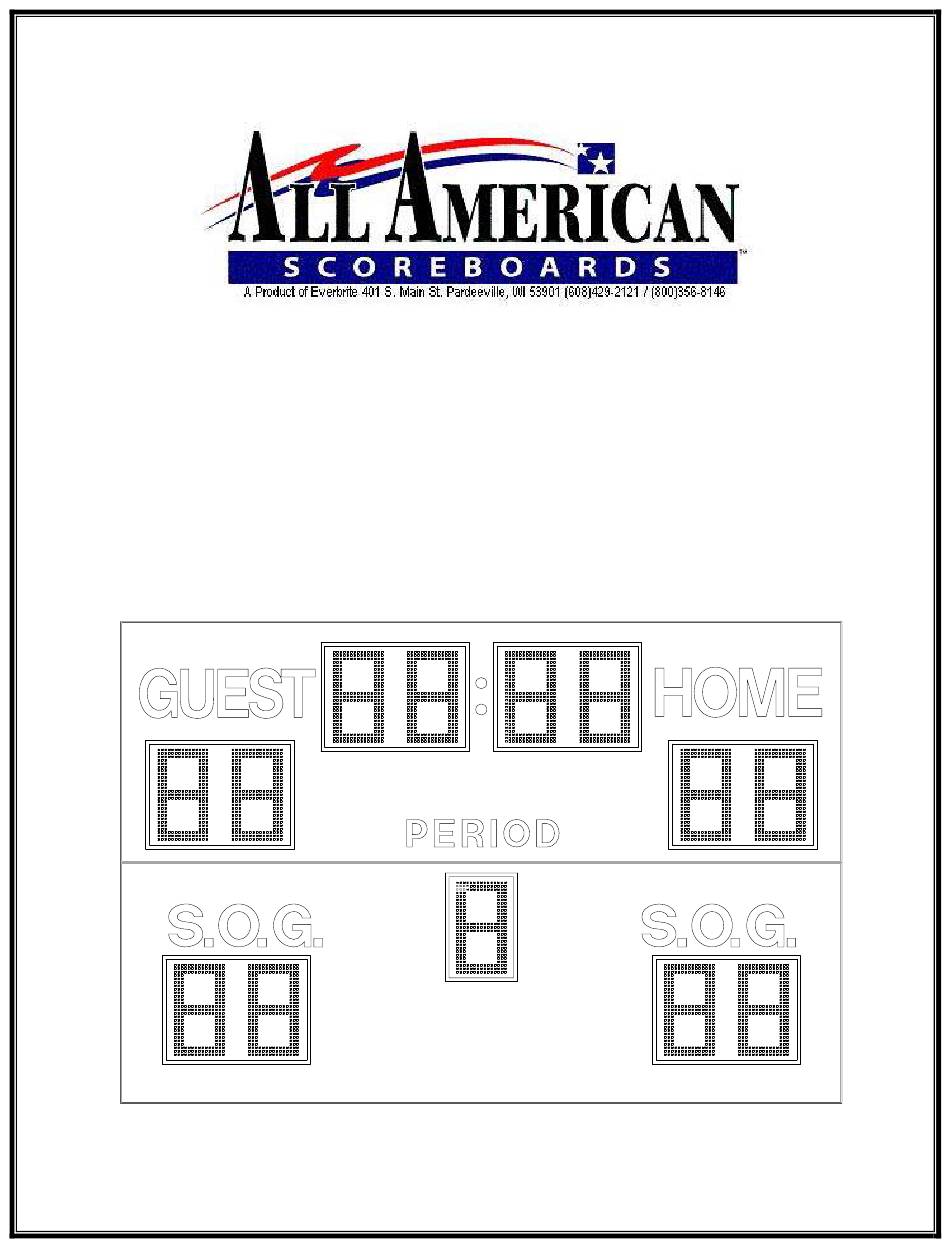

OPERATING INSTRUCTIONS AND SERVICE MANUAL
SOCCER SCOREBOARD
MODEL MP-7476 WITH MP-5000 CONTROL
EFFECTIVE S.N. 18,725, July, 2005
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MP-7476 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for All American Scoreboards MP-7476

Summary of Contents for All American Scoreboards MP-7476

  • Page 1 OPERATING INSTRUCTIONS AND SERVICE MANUAL SOCCER SCOREBOARD MODEL MP-7476 WITH MP-5000 CONTROL EFFECTIVE S.N. 18,725, July, 2005...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS General Information Description Identification Damage Damage Claim Procedure Installation General Information Installation Electrical Connection Control Console Operation Scoreboard Power Control Console Display Control Console Power Initializing Scoreboard Time Setting and Control Team Scores Horn (Optional) Shots on Goal, and Period Dimmer 3.10 Track Operation Maintenance and Troubleshooting...

  • Page 3: General Information

    1. GENERAL INFORMATION DESCRIPTION Your All-American scoreboard has been carefully inspected and tested before leaving the factory. It is possible, however, that components may be loosened or forced out of adjustment in transit. If this occurs, follow the troubleshooting guide (section 4). If equipment then fails to operate, contact immediately: ALL-AMERICAN Service Department EVERBRITE LLC...

  • Page 4: Installation

    For permanent mounting to uprights, see the enclosed installation drawing in section 6. Consult Section 6 for junction box and scoreboard wiring. Electrical connections The MP-7476 scoreboard requires one 120 VAC 20 AMP circuit.

  • Page 5: Control Console Operation

    IMPORTANT !!! To protect the control from damage, it is advisable to disconnect the control and store in a dry secure area when not in use. NOTE This equipment is UL and NRTL approved and complies with the requirements in part 15 of the FCC rules for a class A computing device.
  • Page 6 & 0 on 0 The scoreboard display will now show :00 in the time section. Setup SETUP key will step through a list of options. Press YES/NO , or make Numeric Entries to make changes. Pushing ENTER without any other input skips to the next item. Pushing CLEAR exits setup, and all changes are kept.

  • Page 7: Team Scores

    Team Scores The Home and Guest Scores can be changed in three different ways. (A) To add 1 to the existing score: Push +1 . (B) To directly enter or correct a score: Push Home or Guest SCORE , followed by the desired number, then ENTER .

  • Page 8: Maintenance And Troubleshooting

    4.0 MAINTENANCE AND TROUBLESHOOTING 4.1 Introduction This section gives maintenance and troubleshooting information. Included are troubleshooting guides for typical scoreboard malfunctions. If the cause of a problem cannot be determined, please contact the Customer Service Department. 4.2 Test Equipment A simple analog or digital voltmeter will be sufficient for all user repairable problems. Printed circuit boards requiring troubleshooting should be returned to the factory.
  • Page 9 (C) The scoreboard digits light but the console doesn't work. (a) For a cable connected system, check for 12 to 16 VDC between the red and black wires In the junction box. For wireless consoles, check the output of the wall transformer by unplugging it from the console, putting the + meter lead into the center cavity of the power plug and touching the meter lead to the metal shell.
  • Page 10 (c) Check the digit and cable assembly for shorts to the scoreboard frame and to the + and - power leads. (d) Plug the suspected bad digit into another output position. USE the SAME driver board (A bad digit may be the cause of a driver board failure). If the same lights remain on, replace the digit and driver board.

  • Page 11: Replacement Parts List

    electronics is working properly. For radio controlled systems, skip to step 8. (a) For a hardwired system, the cover of the junction box with the connector and wire pigtail can be used. Open the junction box and disconnect the connector wires at the terminal block.

  • Page 12: Scoreboard Display Parts

    5.1 Scoreboard Display Parts figure 1 DISPLAY ASSEMBLY...
  • Page 13 REPLACEMENT PARTS LIST (MP-7476) fig.& MFG PART VENDOR index NUMBER DESCRIPTION PART # 152002 Display, top 152002 151978 Display, bottom 151978 1-1A 000000 Window Assy, single digit 18" 1-1B 000000 Digit, 18" Red 1-1Ba 000000 Digit Part A EL00737P 1-1Bb...

  • Page 14: Controller Assembly

    2 CONTROLLER ASSEMBLY REPLACEMENT PARTS LIST (MP-7476) Controller Assembly fig.& MFG PART VENDOR index NUMBER DESCRIPTION PART # 000000 Controller Assembly 000000 BL00059P Power Supply, 24V/300W A10-A12 BL00059P MM00598P Driver PCB Assembly, 4 Position A4-A7 MM00598P 150635 Receiver PCB Assembly...

  • Page 15: Diagrams

    6. DIAGRAMS 6.1 Control Console Keyboard and Slipsheet Layout figure 3 CONSOLE KEYBOARD...

  • Page 16: System Layout

    6.2 Scoreboard System Layout figure 4 SYSTEM LAYOUT...
  • Page 17 6.3 Controller Assembly Wiring CONTROLLER ASSEMBLY...
  • Page 18 6.4 Microprocessor 5 X 9 LED Pattern MICROPROCESSOR 5 X 9 (8 BIT) LED PATTERN...

  • Page 19: Figuregram Wiring Diagram

    6.5 Figuregram Wiring FIGUREGRAM WIRING...

  • Page 20: Installation Drawings

    Installation Drawing...
  • Page 21 Installation Drawing Cont.
  • Page 22 6.6 Installation Drawing Cont.
