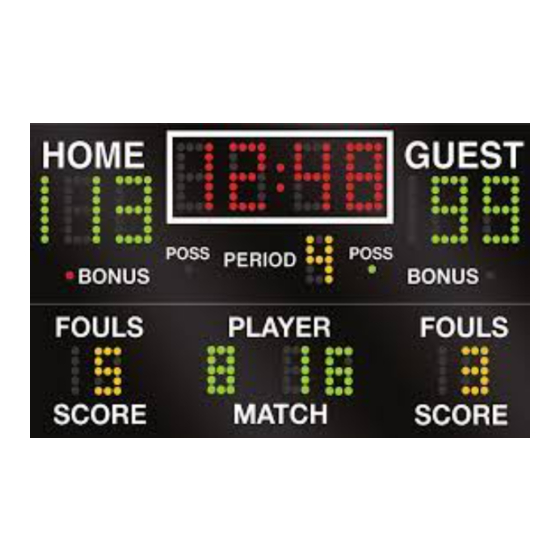

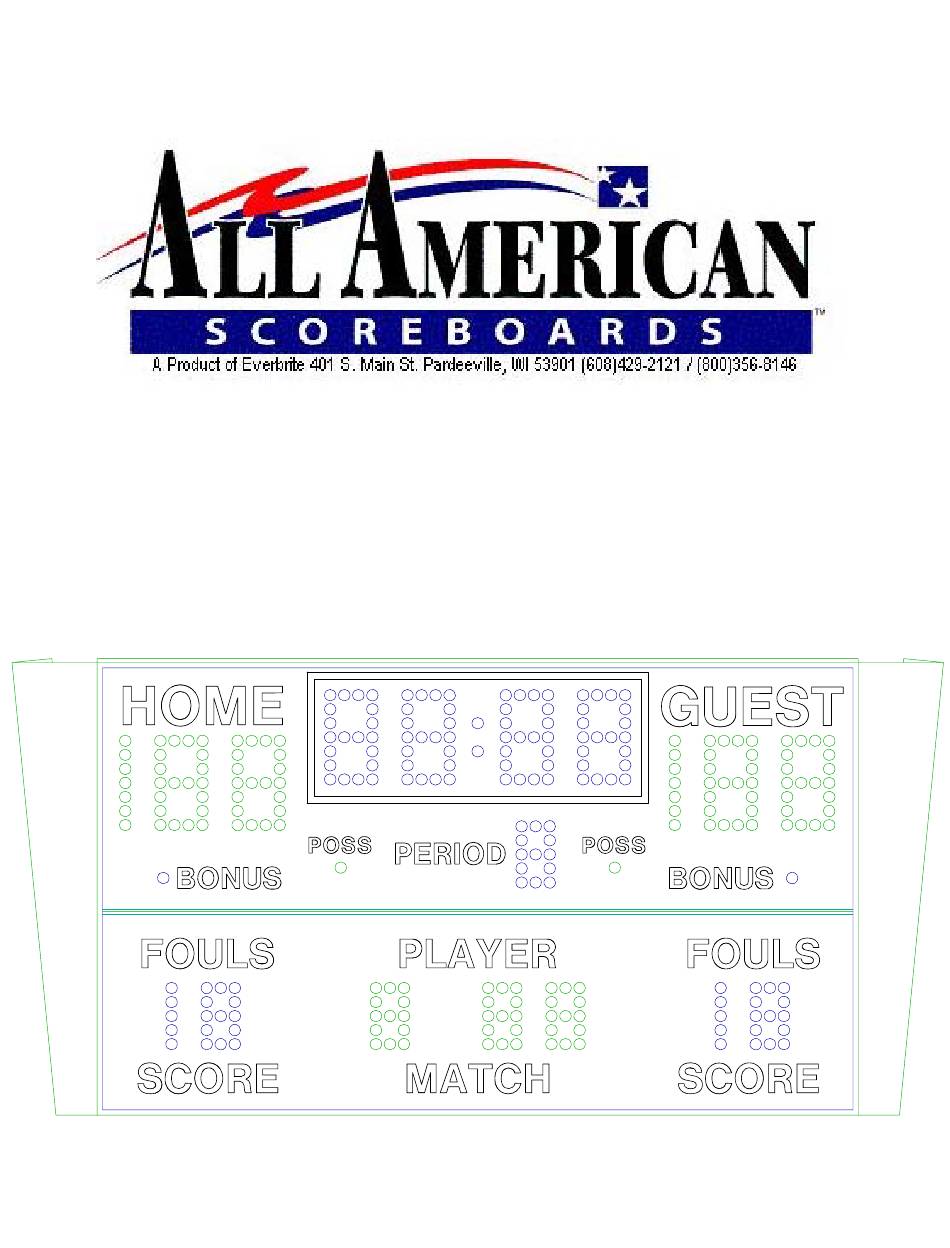

- Page 1 OPERATING INSTRUCTIONS AND SERVICE MANUAL BASKETBALL SCOREBOARD MODEL MP-5254R With MP-5000 Control EFFECTIVE S.N. 18,725 June 3, 2003...
-
Page 2: Table Of Contents
TABLE OF CONTENTS GENERAL INFORMATION DESCRIPTION IDENTIFICATION DAMAGE DAMAGE CLAIM PROCEDURE INSTALLATION GENERAL INFORMATION INSPECTION PRE-TEST ELECTRICAL CONNECTIONS CONTROL CONSOLE OPERATION SCOREBOARD POWER CONSOLE DISPLAY CONSOLE POWER TO USE SCOREBOARD TIME OF DAY OPERATION TIME SETTING AND CONTROL FINAL MINUTE 1/10 SECOND TIME OPTION TEAM SCORES HORN 3.10... - Page 3 REPLACEMENT PARTS LIST SCOREBOARD DISPLAY PARTS CONTROLLER ASSEMBLY PARTS POWER SUPPLY ASSEMBLY PARTS DIAGRAMS CONTROL CONSOLE KEYBOARD AND SLIPSHEET LAYOUT SCOREBOARD SYSTEM LAYOUT CONTROLLER ASSEMBLY WIRING POWER SUPPLY DIAGRAM RECEIVER BOARD DIAGRAM DRIVER BOARD DIAGRAM MICROPROCESSOR 4 X 7 LED PATTERN (8 BIT) INSTALLATION DRAWING...
-
Page 4: General Information
1. GENERAL INFORMATION 1.1 Description Your All-American scoreboard has been carefully inspected and tested before leaving the factory. It is possible, however, that components may be loosened or forced out of adjustment in transit. If this occurs, follow the troubleshooting guide (section 4). If equipment then fails to operate, contact immediately: ALL-AMERICAN Service Department EVERBRITE LLC... -
Page 5: Damage Claim Procedure
1.4 Damage Claim Procedure An instruction sheet is enclosed advising the consignee in case of damage in transit. If damage is noted at the time of delivery, consignee must obtain an 'Inspection of Bad Order' from the delivering carrier. In order to process your claim, this must be properly filled out with a complete statement of all damage and it must be signed by the carrier. -
Page 6: Pre-Test
2.3 Pre-Test Before installing the scoreboard, pre-test all functions. (A) Connect the scoreboard to a 15 AMP, 120 Volt AC circuit. (B) Plug the power adaptor into the control console and into a wall outlet. (C) Make sure that the control console is at least 10' from the scoreboard display. (D) Test operate all functions on the scoreboard according to operating instructions in section 3 of this manual. -
Page 7: Control Console Operation
3. CONTROL CONSOLE OPERATION 3.1 Scoreboard Power Turn on the branch circuit to the scoreboard. The scoreboard will blank all figures. 3.2 Console Display The 2 line by 20 character Liquid Crystal Display module displays the scoreboard information entered from the keyboard. The following information is displayed during normal operation: Time, Home and Guest scores, Period, Home and Guest Bonus, Ball Possession, Auto Horn Enable, and 1/10 Second Enable. - Page 8 Home and Guest scores will now show "0", and the timer will show ":00". 3.5 Setup SETUP key will step through a list of operational settings. Press YES/NO or make Numeric Entries to make changes. Pushing ENTER without any other input skips to the next item. Pushing CLEAR exits setup and all changes are kept.
-
Page 9: Team Scores
To change the time period directional mode for counting up or down; Push UP/DOWN . When in the Up mode, an arrow up symbol is displayed next to the time on the LCD display. If in the Down mode, there is no arrow displayed. 3.7 Team Scores The Home and Guest Scores can be changed in five different ways. -
Page 10: Timeout Period
show the period directly below the time. 3.11 Timeout Period An automatic timeout period is selected in the setup mode, and is provided for "Time Outs" when the main timer is not running. Push: TIME OUT TIMER to start the 1 minute timer. The LCD will show "TIME OUT = 1:00"... -
Page 11: Player Number And Player Fouls
Key in Guest FOUL ENTER . The control display will now show game time, and the scoreboard display will show 4 team fouls for the guest team. 3.15 Player Number and Player Fouls The player number and player fouls information is entered as in the following example: If player number 25 gets a foul;... -
Page 12: Volleyball Operation
Use the Home or Guest ADV key to indicate who has the advantage. When the main timer is running, the ADV OFF key will stop the advantage timer. The Home or Guest BONUS indicator will light to show which side has the advantage. -
Page 13: Troubleshooting
4.3 Troubleshooting Whenever possible, follow the troubleshooting guides prior to contacting the customer service department. If a problem not described in the guides exists, contact the customer service department immediately. Refer to the diagrams provided for assistance in troubleshooting scoreboard malfunctions. 4.4 Troubleshooting Guides (A) Scoreboard doesn't light (a) Check that the main power switch is turned on. - Page 14 If the voltage is less than 12 VDC check the power supply input voltage for 120 VAC and contact the customer service department. (e) Check LED D4 on the receiver board. It should be medium brightness. Change the Dim level on the control console. D4 brightness should change. (f) Check if LED D5 on the receiver board is on.
-
Page 15: Replacement Parts List
5. REPLACEMENT PARTS LIST 5.1 Scoreboard Display Parts figure 1 DISPLAY ASSEMBLY... - Page 16 REPLACEMENT PARTS LIST (MP-5214 Basketball) fig.& MFG PART VENDOR index NUMBER DESCRIPTION PART # 150707 Display Assembly 150707 151032 Controller Assembly 151032 SEE FIGURE 2 EL00525P Relay, 12 VDC DPDT 10A contacts MY2DC12(S) 151731 Power Supply Plate Assy 151731 SEE FIGURE 3 150822 Cluster, Green 150822...
-
Page 17: Controller Assembly Parts
5.2 Controller Assembly Parts figure 2 CONTROLLER ASSEMBLY REPLACEMENT PARTS LIST (MP-5214) Controller Assembly fig.& MFG PART VENDOR index NUMBER DESCRIPTION PART # 151032 Controller Assembly 151032 150635 PC Board Assy, 5000 Series Receiver 150635 ***** PROGRAM RX5000 V2.12 ***** 150634 PC Board Assy, 4 Pos. -
Page 18: Power Supply Assembly Parts
5.3 Power Supply Assembly Parts figure 3 POWER SUPPLY PLATE ASSEMBLY REPLACEMENT PARTS LIST (MP-5214) Power Supply Plate Assembly fig.& MFG PART VENDOR index NUMBER DESCRIPTION PART # 151731 Power Supply Plate Assembly 151731 BL00054P Power Supply, 12V 150 Watt S-150-13-5 EL00525P Relay, 12 VDC DPDT 10A contacts... -
Page 19: Diagrams
6. DIAGRAMS 6.1 Control Console Keyboard and Slipsheet Layout for Basketball Operation for Wrestling Operation... - Page 20 6.1 Control Console Keyboard and Slipsheet Layout (cont.) for Volleyball Operation CONSOLE KEYBOARD...
-
Page 21: Scoreboard System Layout
6.2 Scoreboard System Layout SYSTEM LAYOUT... - Page 22 6.3 Single Wall Junction Box Wiring SINGLE JUNCTION BOX WIRING...
- Page 23 6.4 Dual Wall Junction Box Wiring DUAL JUNCTION BOX WIRING...
-
Page 24: Controller Assembly Wiring
6.5 Controller Wiring Diagram CONTROLLER ASSEMBLY... -
Page 25: Power Supply Diagram
6.6 Power Supply Diagram POWER SUPPLY... -
Page 26: Receiver Board Diagram
6.7 Receiver Board Diagram RECEIVER BOARD... -
Page 27: Driver Board Diagram
6.8 Driver Board Diagram DRIVER BOARD... -
Page 28: Microprocessor 4 X 7 Led Pattern (8 Bit)
6.9 Microprocessor 4 X 7 LED Pattern (8 Bit) MICROPROCESSOR 4 X 7 (8 BIT) LED PATTERN... -
Page 29: Installation Drawing
6.10 Installation Drawing INSTALLATION DRAWING...
