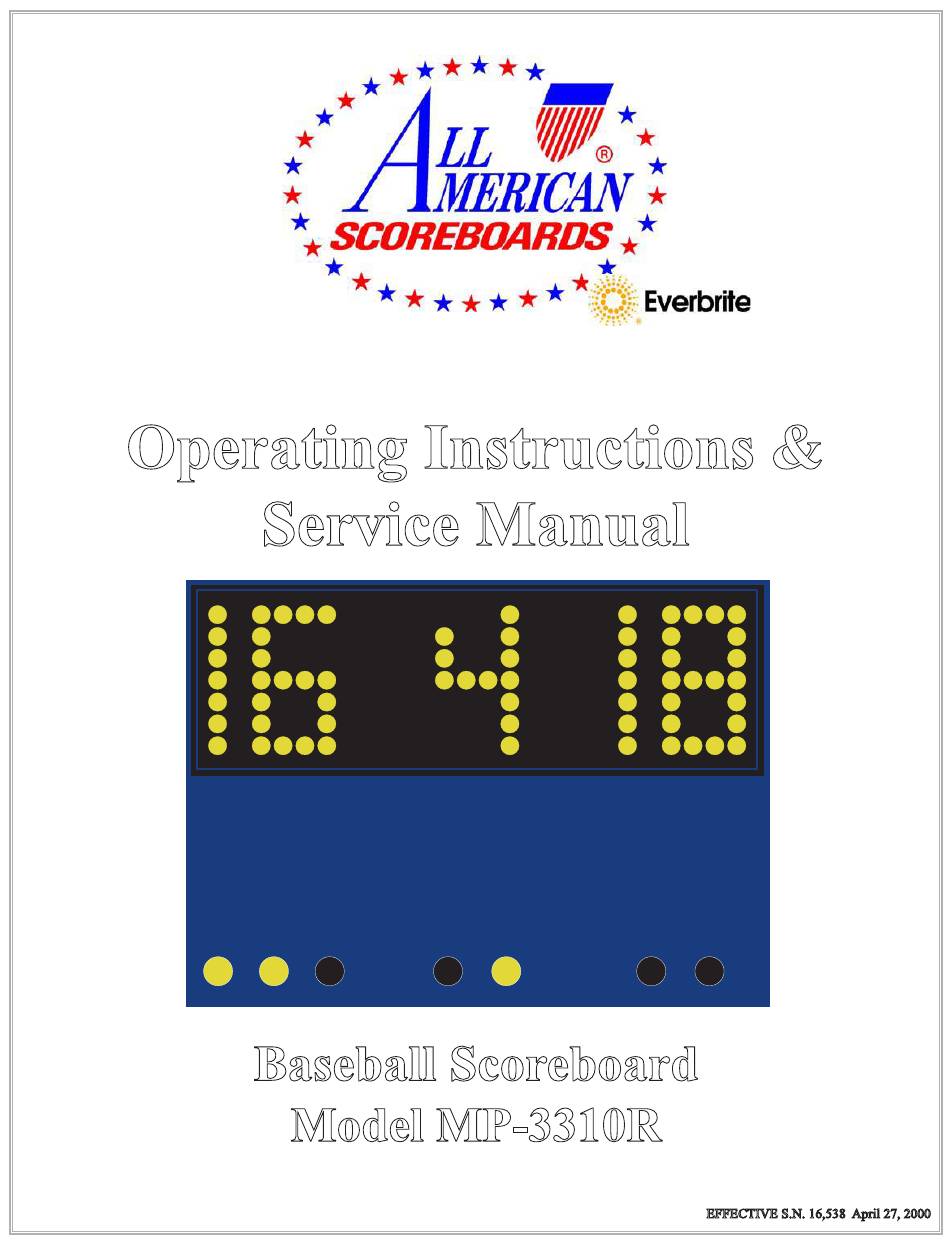

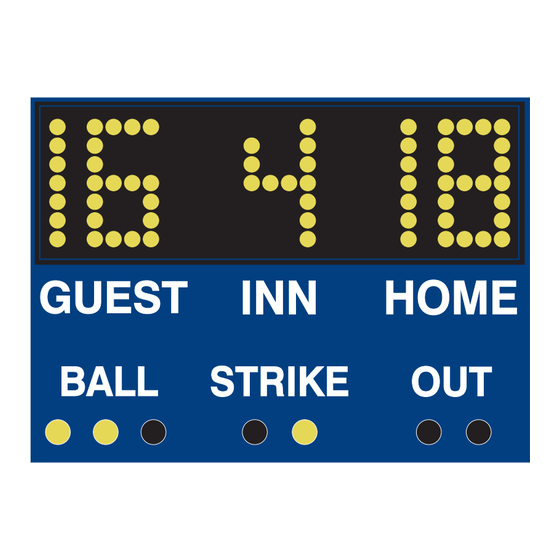

- Page 1 Operating Instructions & Service Manual HOME GUEST BALL STRIKE Baseball Scoreboard Model MP-3310R EFFECTIVE S.N. 16,538 April 27, 2000...
-
Page 2: Table Of Contents
TABLE OF CONTENTS PAGE GENERAL INFORMATION DESCRIPTION IDENTIFICATION DAMAGE DAMAGE CLAIM PROCEDURE INSTALLATION GENERAL INFORMATION INSPECTION INSTALLATION ELECTRICAL CONNECTIONS CONTROL CONSOLE OPERATION SCOREBOARD POWER CONSOLE DISPLAY CONSOLE POWER INITIALIZING SCOREBOARD TEAM SCORES INNING BALL, STRIKE, AND OUT DIMMER MAINTENANCE AND TROUBLESHOOTING INTRODUCTION TEST EQUIPMENT TROUBLESHOOTING... -
Page 3: General Information
GENERAL INFORMATION 1.1 Description Your All American Scoreboard has been carefully inspected and tested before leaving the factory. It is possible, however, that components may be loosened or forced out of adjustment in transit. If this occurs, follow the troubleshooting guide (section 4). If equipment then fails to operate, contact immediately: ALL AMERICAN Service Department EVERBRITE Corporation P.O. -
Page 4: Installation
If damage is discovered after delivery, you should call the delivery company. Have them make out a Concealed Damage Report. Fifteen days after delivery are allowed, so this should be done PROMPTLY or it is impossible to process this claim. Advise EVERBRITE corporation of necessary replacement parts or repairs. -
Page 5: Control Console Operation
IMPORTANT!!! To protect the control from damage, it is advisable that you disconnect the control and store in a dry secure area when not in use. NOTE This equipment is ETL (Electronics Testing Laboratories) CSA and NRTL approved and complies with the requirements in part 15 of the FCC rules for a class A computing device. Operation of this equipment in a residential area may cause unacceptable interference to radio and television reception, requiring the operator to take whatever steps are necessary to correct the interference. -
Page 6: Initializing Scoreboard
3.4 Initializing Scoreboard Enter the two digit code (71) shown in the lower left corner of the keyboard as in the following example: Push CODE ENTER . When the proper code has been entered, the console display will show as follows. 3.5 Team Scores The Home and Guest Scores can be changed in three different ways. -
Page 7: Maintenance And Troubleshooting
MAINTENANCE AND TROUBLESHOOTING 4.1 Introduction This section gives maintenance and troubleshooting information. Included are troubleshooting guides for typical scoreboard malfunctions. If the cause of a problem cannot be determined, please contact the Customer Service Department. 4.2 Test Equipment A simple analog or digital voltmeter will be sufficient for all user repairable problems. Printed circuit boards requiring troubleshooting should be returned to the factory. - Page 8 If the voltage is between 8 VAC and 12 VAC contact the Customer Service Department. If the voltage is 0 VAC see the controller parts list for a transformer assembly. The scoreboard digits light, the console works but there is no control of the scoreboard: Check the voltage between the black and red wires in the junction box with a voltmeter set on the 3 VDC or higher scale.
-
Page 9: Replacement Parts List
REPLACEMENT PARTS 5.1 Scoreboard Display Parts figure 1 DISPLAY ASSEMBLY s:\shared\stacey\scoreboard manuals\incomplete manuals\mp-3310r.indd 401 South Main Street • Pardeeville, WI 53954 • 800-356-8146 07/23/02... - Page 10 REPLACEMENT PARTS LIST (MP-3310R Baseball) fig.& MFG PART VENDOR fig.& MFG PART VENDOR index NUMBER DESCRIPTION PART # index NUMBER DESCRIPTION PART # 159063X Display, MP-3310R 159063X 850022 Lamp, 15W/130V Clear(Scores & Inning) 15A15CL 850030 Lamp, 25W/130V Clear(Ball,Strike,Out) 25A19 GR CL 151211 Controller Assembly, W/2-3P Drivers 151211...
-
Page 11: Scoreboard Controller Assembly Parts
5.2 Scoreboard Controller Assembly Parts figure 2 CONTROLLER ASSEMBLY REPLACEMENT PARTS LIST (MP-3310R) Controller Assembly fig.& MFG PART VENDOR fig.& MFG PART VENDOR index NUMBER DESCRIPTION PART # index NUMBER DESCRIPTION PART # 151211 Controller Assembly 151211 150040 Receiver PCB Assembly 150040 ***** PROGRAM 3PCNT19W ***** 118922... -
Page 12: Diagrams
DIAGRAMS 6.1 Control Console Keyboard and Slipsheet Layout figure 3 CONSOLE KEYBOARD s:\shared\stacey\scoreboard manuals\incomplete manuals\mp-3310r.indd 401 South Main Street • Pardeeville, WI 53954 • 800-356-8146 07/23/02... -
Page 13: Scoreboard System Layout
6.2 Scoreboard System Layout figure 4 SYSTEM LAYOUT s:\shared\stacey\scoreboard manuals\incomplete manuals\mp-3310r.indd 401 South Main Street • Pardeeville, WI 53954 • 800-356-8146 07/23/02... -
Page 14: Power Wiring
6.3 Power Wiring POWER WIRING s:\shared\stacey\scoreboard manuals\incomplete manuals\mp-3310r.indd 401 South Main Street • Pardeeville, WI 53954 • 800-356-8146 07/23/02... -
Page 15: Controller Assembly Wiring
6.4 Controller Assembly Wiring CONTROLLER ASSEMBLY s:\shared\stacey\scoreboard manuals\incomplete manuals\mp-3310r.indd 401 South Main Street • Pardeeville, WI 53954 • 800-356-8146 07/23/02... -
Page 16: Microprocessor 4X 7 Lamp Pattern (8 Bit) (A-12497)
6.5 Microprocesor 4 X 7 Lamp Pattern (8 Bit) MICROPROCESSOR 4 X 7 (8 BIT) LAMP PATTERN s:\shared\stacey\scoreboard manuals\incomplete manuals\mp-3310r.indd 401 South Main Street • Pardeeville, WI 53954 • 800-356-8146 07/23/02... -
Page 17: Figuregram Wiring Diagram
6.6 Figuregram Wiring 8 BIT FIGUREGRAM WIRING s:\shared\stacey\scoreboard manuals\incomplete manuals\mp-3310r.indd 401 South Main Street • Pardeeville, WI 53954 • 800-356-8146 07/23/02... -
Page 18: Jumper Location On 3 Position System
6.8 Jumper Location on 3 Position System All of the 3 position drivers and receivers are identical except for the jumper on each board. Make sure the jumpers are set for the model of scoreboard you are installing them into. On the receiver board (refer to figure 11);... -
Page 19: Triac Placement Diagram
6.9 Triac Placement The triac is the switch that controls the figuregram lamps. The triacs for any given figuregram are adjacent to the twelve pin connector on the driver board that controls that figuregram. Shown below is the triac placement and bit designation relative to the figuregram bit pattern. PN. -
Page 20: Installation Drawings
6.10 Installation Drawing SCOREBOARD FACE 46 3/8" ADVERTISING PANEL 60" (IF USED) 42 7/8" ADVERTISING PANEL 24" (IF USED) 44" POWER AND CONTROL CABLE ENTRANCES WATER TIGHT NON-FUSABLE DISCONNECT 12'-8" SWITCH (FURNISHED BY OTHERS) 7'-0" STRUCTURAL STEEL I BEAM (2) REQ'D OR (2) STD DOUGLAS FIR TIMBERS (FURNISHED BY OTHERS) GRADE... - Page 21 6.10 Installation Drawing SCOREBOARD FACE SCOREBOARD FACE 1/2" X 3" LONG LAG SCREWS TIMBER 1/2"-13 X 1 1/2" 1/2"-13 X 1 1/2" LONG HEX HEAD LONG HEX HEAD BOLT, NUT, & BOLT, NUT, BEVELED LOCKWASHER SCOREBOARD WASHER & (4) REQ'D FACE LOCK WASHER I BEAM...
