Dakota Digital BIM-01-2-ACES Manual

Bridge module for aces efi systems
Hide thumbs

Advertisement

Table of Contents

BIM-01-2-ACES
Bridge Module for Aces EFI Systems

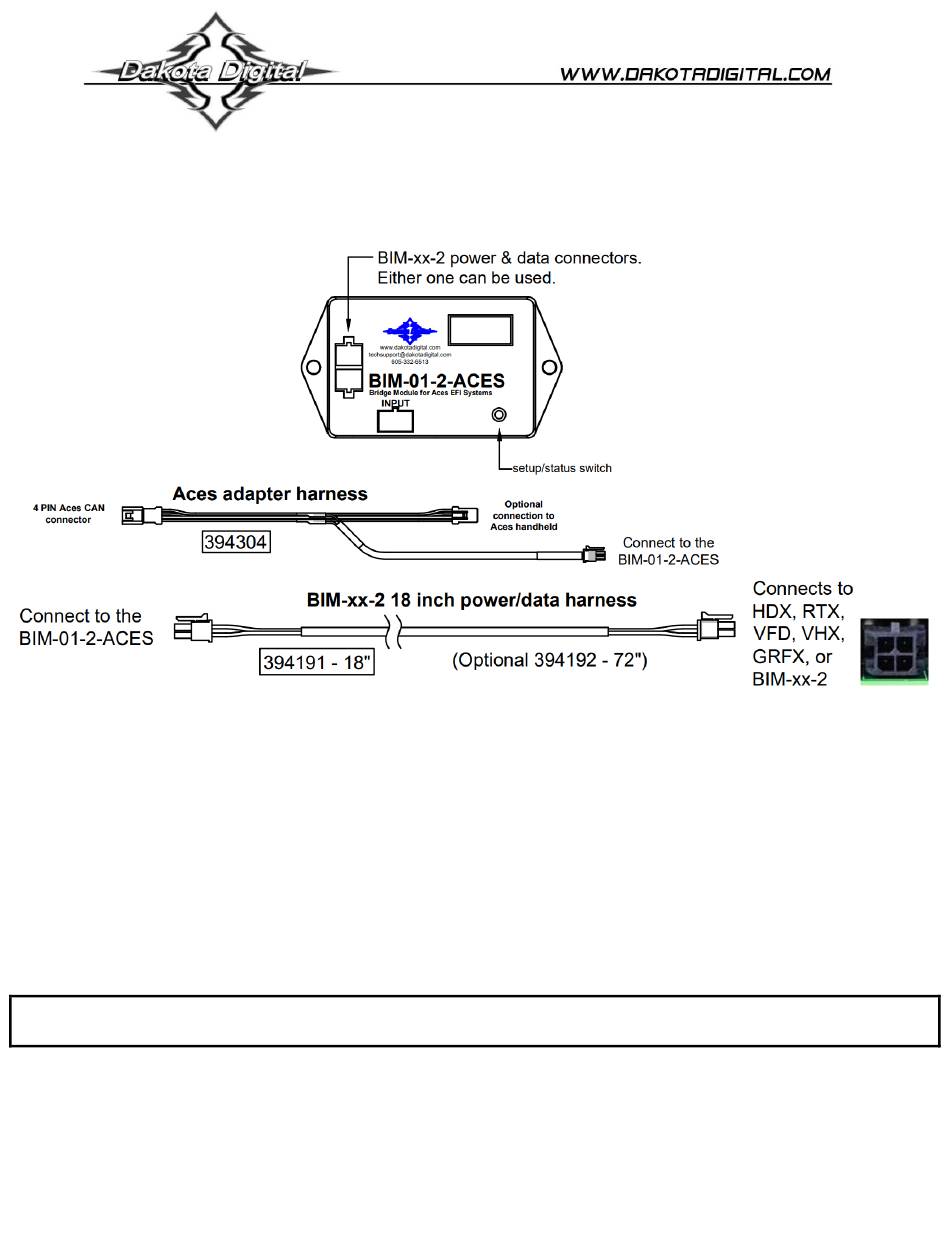

This Bus Interface Module is designed to read engine information from the Aces bus. The module is connected to the
Aces CAN bus through the 394304 CAN bus adapter harness.
There are two interface (I/O) ports on the BIM-01-2-ACES module. Either one can be connected to the instrument system
or to another module, allowing several units to be daisy chained together.
The BIM-01-2-ACES is capable of reading Speed, RPM, MAP/Boost, Intake Air Temp, Engine Coolant Temp, Fuel
Pressure, Oil Pressure, Air/Fuel Ratio, and Transmission Fluid Temp from the Aces CAN bus. The availability of each
reading depends on the EFI model and attached sensors.
A GPS-50-2 CANNOT be linked (daisy chained) to a BIM-01-2-ACES with a BIM cable.
The two units cannot talk to the display control box at the same time.
[1]
MAN #650852

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BIM-01-2-ACES and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dakota Digital BIM-01-2-ACES

Summary of Contents for Dakota Digital BIM-01-2-ACES

  • Page 1 Aces CAN bus through the 394304 CAN bus adapter harness. There are two interface (I/O) ports on the BIM-01-2-ACES module. Either one can be connected to the instrument system or to another module, allowing several units to be daisy chained together.

  • Page 2: Display Setup

    Setting up the display system will configure the instrument control box to read each input from either the terminals or through the BIM cable from the Bus Interface Module. The BIM menu of the display will not find the BIM-01-2-ACES, but will find specific channels for Fuel Pressure, Boost and Air/Fuel Ratio.
  • Page 3 Tap SW1 until  and DONE are displayed. • Press and hold SW1 until “-” and DONE are displayed. Obtaining engine temperature from the BIM-01-2-ACES • Hold the SW1 switch from the instrument system control box while turning the key on.
  • Page 4 Tap SW1 (I) until TACH DONE is displayed. • Press and hold SW1 (I) until a big DONE is displayed. Obtaining engine temperature from the BIM-01-2-ACES • Hold the SW1 (I) switch from the instrument system control box while turning the key on.
  • Page 5 Obtaining oil pressure from the BIM-01-2-ACES • Hold the SW1 (I) switch from the instrument system control box while turning the key on. The message display should show SETUP. • Release SW1 (I) - LCD1 should show SETUP SPEED. •...
  • Page 6 HDX and RTX setup: **HDX/RTX systems can be configured with the Dakota Digital app for Apple and Android devices** HDX and RTX Operations • HDX: With the ignition key already on, press and hold both switches to enter SETUP, release when instructed.
  • Page 7 GRAFIX setup: **GRAFIX systems can be configured with the Dakota Digital app for Apple and Android devices** GRAFIX Operations • With the vehicle stopped, tap the Control Knob to enter the Main Menu The Main menu can be entered with the vehicle moving, but only the speedometer ADJUST menu will be available in the SETUP menu •...
  • Page 8 Obtaining oil pressure from the BIM-01-2-ACES • Twist the Control Knob clockwise until OIL is highlighted. Tap the knob to enter OIL menu. • INPUT will be displayed. Tap the Control Knob to enter INPUT menu. • Twist the Control Knob clockwise until BIM is highlighted. Tap the knob to select BIM.
  • Page 9 The BIM-01-2-ACES has an option to change speed processing modes (see pg. 10) • Hold the switch on the BIM-01-2-ACES case while turning the key on. The BIM display will show the current revision code while this is held. •...

  • Page 10: Quick Tips

    The BIM-01-2-ACES has an option to enable boost readings if the car has a turbocharger. • Hold the switch on the BIM-01-2-ACES case while turning the key on. The BIM display will show the current revision code while this is held.

  • Page 11: Troubleshooting Guide

    “” – Air/Fuel Ratio “” - Boost/Vacuum “” - RPM/Tachometer “” – Fuel Pressure If you do not see any number of these listed, the data may not be transmitted for the BIM-01-2-ACES to read. Troubleshooting guide: Problem Possible cause Solution No BIM data on instrument readout;...

  • Page 12: Service And Repair

    This Warranty is in lieu of all other expressed warranties or liabilities. Any implied warranties, including any implied warranty of merchantability, shall be limited to the duration of this written warranty. No person or representative is authorized to assume, for Dakota Digital, any liability other than expressed herein in connection with the sale of this product.
