10”(250mm) table saw

Advertisement

Quick Links

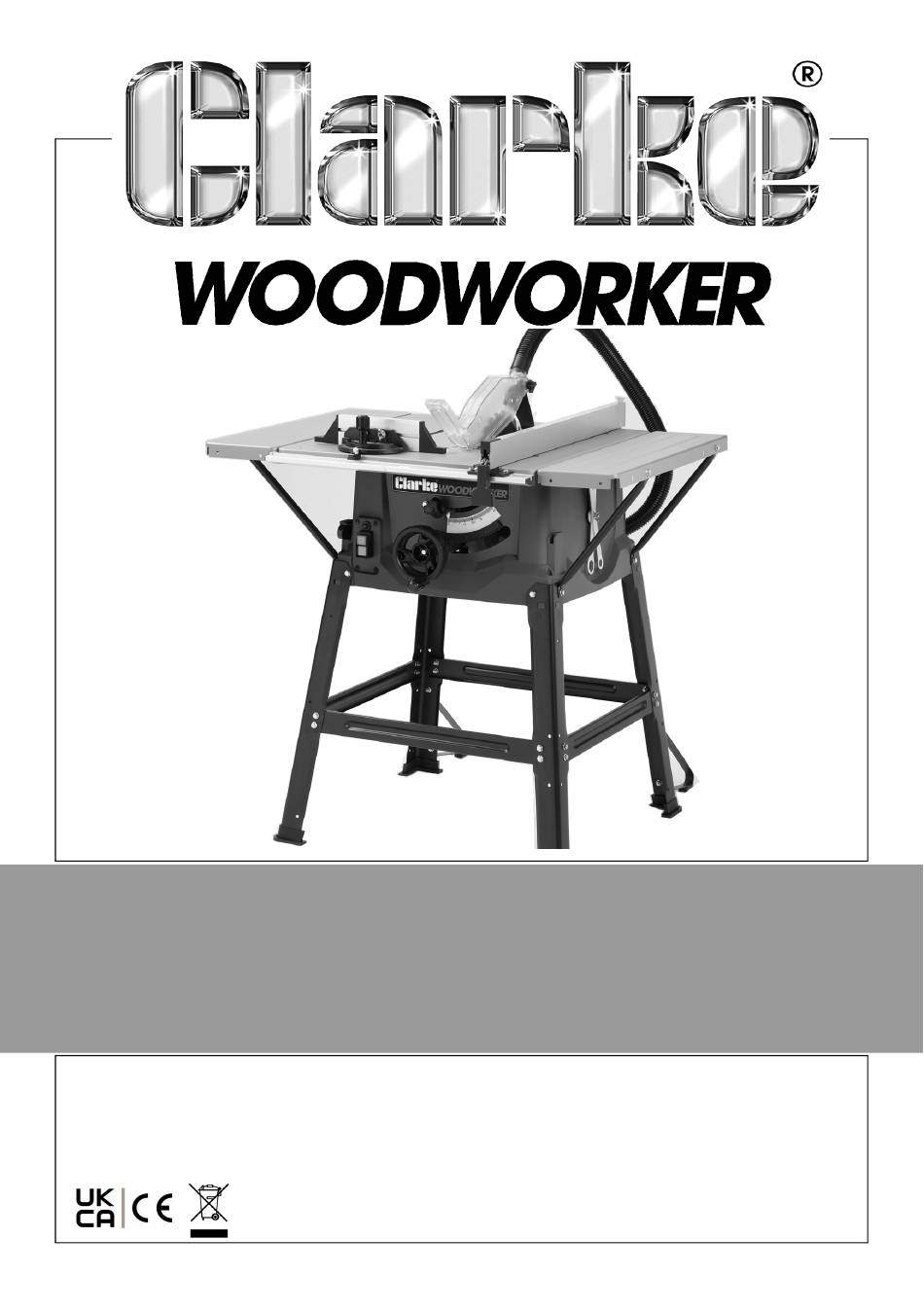

10"(250
) TABLE SAW
MM
MODEL NO: CTS18
PART NO: 6500749
OPERATION & MAINTENANCE
INSTRUCTIONS
ORIGINAL INSTRUCTIONS
GC0324

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WOODWORKER CTS18 and is the answer not in the manual?

Questions and answers

Summary of Contents for Clarke WOODWORKER CTS18

  • Page 1 10”(250 ) TABLE SAW MODEL NO: CTS18 PART NO: 6500749 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC0324...
  • Page 2: Environmental Recycling Policy

    INTRODUCTION Thank you for purchasing this CLARKE product. This table saw has been designed to perform the sawing operation of ripping, cross-cutting, bevelling and mitering wood and wood products. This unit is designed for use with an 10” (250mm) carbide tipped blade. This saw is NOT suitable for cutting: •...
  • Page 3: Specifications

    SPECIFICATIONS Model CTS18 Voltage 230V - 50 Hz Power input 1800 W No-load speed 5000 rpm Duty cycle classification S1 (continuous) Ingress protection (IP) rating IPX0 Table size 630 mm x 905 mm Dust Extractor connector 34.9 (internal) / 39.5 mm (external) Blade size: Outside Diameter 250 mm Bore Diameter 30 mm...
  • Page 4: Safety Warnings

    SAFETY WARNINGS CAUTION: ENSURE DUE CARE AND ATTENTION WHEN OPERATING THIS EQUIPMENT. FAILURE TO FOLLOW THE INTRUCTIONS IN THIS MANUAL MAY LEAD TO SEVERE INJURY PERMITTED USAGE The table saw is constructed exclusively for the sawing of wood. The appropriate saw blade should be fitted according to the wood type (solid wood, chipboard or plywood).
  • Page 5 7. Wear ear protectors (plugs or muffs) during extended periods of operation. 8. Wear safety glasses. Everyday eyeglasses are not suitable as safety glasses. 9. Wear a dust mask when sawing wood. 10. NEVER wear gloves during operation. 11. Before operating this table saw, remove any neck tie, rings, watches and other jewellery and roll sleeves up past the elbows.
  • Page 6: Additional Safety Rules For Table Saws

    26. Maintain a balanced stance at all times so that you do not fall on to the blade. DO NOT overreach or use excessive force to perform any operation. 27. Use push-sticks or push blocks to feed the workpiece past the saw blade. Keep your hands and fingers well away from the blade.
  • Page 7 3. During transportation make sure that the upper part of the saw blade is covered by the guard. 4. DO NOT use the guard for handling or transportation. 5. Check that the workpiece is properly supported. Always provide additional support for long workpieces. 6.
  • Page 8: Saw Blades

    26. Avoid abrupt, fast feeding. Feed as slowly as possible when cutting hard workpieces. DO NOT bend or twist the workpiece while feeding. If you stall or jam the blade in the workpiece, turn the table saw off immediately. Unplug the saw, then clear the jam. 27.
  • Page 9: Remaining Hazards

    If you do not have a clear understanding of kickback and how it occurs, DO NOT use the table saw. REMAINING HAZARDS The machine has been built in accordance with recognized safety standards but some remaining hazards may still exist. These can be minimized by following the instructions in the operating manual.
  • Page 10: Electrical Connections

    ELECTRICAL CONNECTIONS WARNING! READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE POWER SUPPLY. Before switching on, ensure the voltage of your electricity supply is the same as that indicated on the rating plate. This product is designed to operate on 230VAC 50Hz.
  • Page 11: Component Overview

    COMPONENT OVERVIEW Table extension Blade removal wrenches Mitre square assembly Stand stabilisers Blade guard Tilt adjusting knob Blade Tilt angle scale Dust extract duct On/off switch Parallel guide fence assembly Height adjusting handle Work table n/a Push stick (on far side of machine) Fence securing handle/clamp Parts &...
  • Page 12: Assembling The Stand

    ASSEMBLY The following items should be supplied in the carton. If any parts are missing, do not use your table saw until the missing parts are obtained. Table Saw machine Push Stick Parallel Guide Fence assembly 10” TCT Saw Blade (fitted) Mitre Guide/fence Dust extract duct Blade Guard Assembly...
  • Page 13 3. Attach the stabilisers (D) to the rear legs (with bolt-holes) using the coachbolts, washers and nuts supplied. 4. Fit the table saw to the stand. Secure the assemblies together by bolting the stand to the base of the machine. 5.
  • Page 14 FITTING THE RIVING KNIFE AND BLADE GUARD 1. Unscrew (single small screw) and lift away the kerf plate to gain access before bolting the riving knife to the supporting bracket with the bolt/washer/nut supplied. 2. Check that it lines up with the blade and is an equal distance from the circumference of the blade.
  • Page 15 The fence may be set at any suitable position on the table to either left or right of the saw blade. • Measurement scales (in mm) are provided at the front and back of the table. These may be used to position the rip fence for rough cutting.
  • Page 16: Operation

    OPERATION CAUTION: BEFORE STARTING UP THE SAW ALWAYS CHECK THE FOLLOWING POINTS: 1. Is the saw blade firmly tightened and can the blade rotate freely? 2. Are all the locking levers firmly locked? 3. Is the riving knife aligned with the saw blade? 4.
  • Page 17: Parallel Fence

    ADJUSTMENTS After every new adjustment we recommend you to make a trial cut in order to check the new settings. PARALLEL FENCE The parallel fence can be mounted on either side of the table. If you change the side you will need to fit the fence the other way round. 1.
  • Page 18: Cutting Tips

    CUTTING TIPS RIPPING CUTS & CROSS CUTS Ripping is when you use the saw to cut along the grain of the wood. The parallel fence must always be used when making ripping cuts. 1. Press one edge of the workpiece against the parallel fence while the flat side lies on the saw table.
  • Page 19: Bevel Cuts

    4. Switch on the saw. 5. Push the mitre gauge and the workpiece toward the blade to make the cut. IMPORTANT: Always hold the guided part of the workpiece. Never hold the part which is to be cut off. 6. Push the mitre gauge forward until the workpiece is cut all the way through.
  • Page 20: Cutting Narrow Workpieces

    CUTTING NARROW WORKPIECES Always use a push stick when the workpiece is narrow and for holding the workpiece flat on the table. • Take extra care to keep your thumbs away from the saw blade when feeding the workpiece past the blade. When not in use, store the push stick in its holder on the side of the machine.
  • Page 21: Changing The Blade

    CHANGING THE BLADE WARNING: WEAR SAFETY GLOVES WHEN CHANGING THE SAW BLADE. WARNING: THE REPLACEMENT BLADE MUST BE RATED TO AT LEAST 7000 RPM. 1. Remove the transparent blade guard. 2. Remove the kerf plate by unscrewing the securing screw. 3.
  • Page 22: Troubleshooting

    TROUBLESHOOTING Problem Probable cause Solution Machine will not run 1. Machine not plugged in 1. Plug in the machine 2. Fuse blown 2. Replace fuse 3. Power cable damaged 3. Have cable replaced by your dealer. Does not make accurate 1.
  • Page 23: Declarations Of Conformity

    DECLARATIONS OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
  • Page 24: Component Parts Diagram

    COMPONENT PARTS DIAGRAM Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
  • Page 25: Component Parts List

    COMPONENT PARTS LIST No Item No Item No Item Fence lock spring S/t screw X-head screw M6x16 Fence clamp plate Carbon brush Plate Spring holder Brush holder Washer Socket screw X-head screw M5x35 64 Blade guard plate Rip fence Motor housing Extract hose Fence locking lever 36 Cable gland...
  • Page 26 Washer 118 Safety label 145 Cross beam (short) Bevel gear 119 Cable protector 146 Square nut Driving rod bush 120 Cable clamp 147 Cross beam (long) S/t screw 121 Power cable 148 x-head screws M4x8 Actuating arm 122 Capacitor 149 Washer Spring pin 123 S/t screws 150 Stabilising foot...
  • Page 27 TABLE COMPONENTS USEFUL ITEMS FROM THE CLARKE CATALOGUE Refer to the Clarke website www.clarkeinternational.com for a full range of items for use with this saw. See also the following accessories; 10” Saw Blade(30mm bore) Part No: 6501073 CARS1 Roller Stand...
