Carbon Series

User Manual

Version:3.1

Updated: 2023-06-07

Table of Contents

Need help?

Do you have a question about the Carbon Series and is the answer not in the manual?

Questions and answers

Summary of Contents for ROE Carbon Series

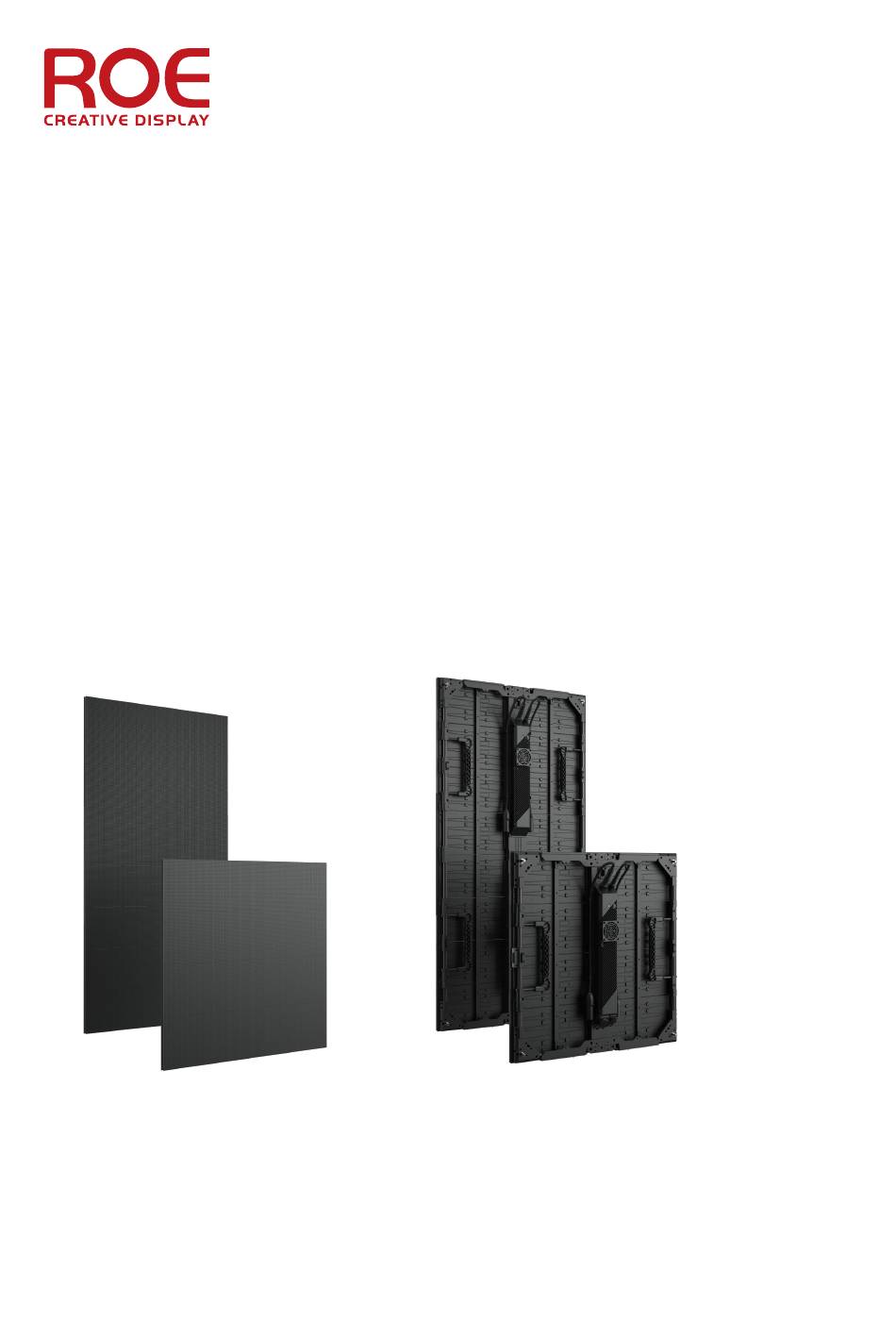

Page 1 Carbon Series User Manual Version:3.1 Updated: 2023-06-07...
Page 2: Copyright
ROE. Warranty Policy The standard warranty period for the Products is 2 years after shipment from ROE Visual for rental applications and 3 years for fixed install applications. The contract will specify the application. This warranty includes all accessories, spare parts, and components shipped at the time of the original purchase.
Page 3: Contact Information
Software or accessory malfunction. m. Any other cause not related to a defect in materials or workmanship. Contact Information If you have any questions about this document, please feel free to contact with ROE technical service team. ROE CHINA ROE EUROPE...
Page 4: Table Of Contents
5.5 Side lock ...........................24 5.6 Add-on Protector ........................25 5.7 Cables ............................31 6 Package ............................33 6.1 Flight Case ..........................33 7 Quick-start Guide ..........................34 V3.1 | 2023-06-07 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 4 / 59...
Page 5 9.3 Accessories of the CB Corner..................... 49 10 Service Manual ..........................51 10.1 Cleaning Tiles ......................... 51 10.2 Replacing the Hub Board ......................52 11 Revision History ..........................59 V3.1 | 2023-06-07 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 5 / 59...
Page 6: Safety
All components should be kept dry, clean, lubricated (only of recommended), coated properly, and otherwise maintained in a manner consistent with the part design. ROE products must be used in a manner consistent with their design and inspected on a routine basis for security, wear, deformation, corrosion and any other circumstances that may affect the loading capacity.
Page 7 LED when the LED heats up too aggressively. There fore ， ROE recommends that if you have not used a screen for a prolonged time and/or the screen was stored in a very humid environment, you slowly heat up the screen.
Page 8: Safety Instructions
(9) Please do not use the product near the sea and / or other places with corrosive environment. (10) The installation must be performed by authorized and qualified technical personnel only. V3.1 | 2023-06-07 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 8 / 59...
Page 10 LED lorsque la LED chauffe de manière trop agressive. Par conséquent, ROE recommande que si vous n'avez pas utilisé un écran pendant une période prolongée et / ou que l'écran a été stocké dans un environnement très humide, vous chauffez lentement l'écran.
Page 11: Consignes De Sécurité
(9) Veuillez ne pas utiliser le produit près de la mer et / ou d’autres lieux exposés à un environnement corrosif. (10) L'installation doit être effectuée par du personnel technique autorisé et qualifié. V3.1 | 2023-06-07 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 11 / 59...
Page 12: General Introduction
LED display solution for rental, stage and fixed applications. 2.1.1Ultra-lightweight The Carbon Series is 600 x 1200 mm, but it’s about 13 kg per tile (Solid). The lightweight Carbon fiber frame ensures the extreme durability. 2.1.2Superb Visual The sleek design with black LEDs highlights its high contrast and brightness for a vivid visual effect.
Page 13: Cb3 Specifications
-40 °C to 60 °C / -40 °F to 140 °F Humidity 10 – 90% RH Certifications CE, ETL, FCC, ROHS Max BTU 1840 AVG BTU Voltage 100~240VAC, 50/60Hz V3.1 | 2023-06-07 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 13 / 59...
Page 14: Cb5 Specifications
10 – 90% RH Certifications CE, ETL, FCC Max BTU 1710(White) 2220(Black) 850(White) 1130 (Black) AVG BTU 785(White) 1020(Black) 290(White) 520 (Black) Voltage 100~240VAC, 50/60Hz V3.1 | 2023-06-07 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 14 / 59...
Page 15: Cb8 Specifications
-40 °C to 60 °C / -40 °F to 140 °F Temperature Humidity 10 – 90% RH Max BTU 1470 AVG BTU Certifications CE, ETL, FCC, ROHS CE, ETL, FCC Voltage 100~240VAC, 50/60Hz V3.1 | 2023-06-07 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 15 / 59...
Page 16: Installation Requirements
3.1 Mechanical Requirements 3.1.1Weight Do not underestimate the weight of tiles and frames. Please make sure the floor or truss on which ROE tiles and frames will be installed is capable of handling five times the complete weight of tiles and frames.
Page 17: Components
Figure 4- 1. CB Series Components Power-in Data Test Button Tile Handle Power Box Side Lock Indicator Locating Pin Power-out Data Figure 4- 2. CB Series Parts Information V3.1 | 2023-06-07 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 17 / 59...
Page 18: Module
Figure 4- 3. CB Series Module Dimensions 4.3 Power Box Dimensions: 75 x 975 x 45 mm Figure 4- 4. CB Series Power Box Dimensions V3.1 | 2023-06-07 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 18 / 59...
Page 19: Accessories
Clamp Version clamp & shackle, G3, V1.7 SAP: 207002S0497 Weight: 8.95 kg Dimensions: 1189 x 157 x118 mm PS: 207002S0489_clamp_7.17 kg Shackle Version V3.1 | 2023-06-07 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 19 / 59...
Page 20: For Stacking
Dimensions: 232 x 106.5 x 50 mm CB stacking rear adaptor, V3.0 SAP: 304012-02270 Weight: 0.48 kg Dimensions: 112 x 81 x 92 mm V3.1 | 2023-06-07 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 20 / 59...
Page 21: A Complete Stacking System
Note: The stacking system should be used every two-tile wide at least and it’s will be better to be used every one-tile wide when necessary. V3.1 | 2023-06-07 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 21 / 59...
Page 22: Locking Plate & Curving Plate
Weight: 272.93 g CB lock plate, eyebolt, 1 handle, V1.2 SAP: 206002S0638 Weight: 156g Note: The curving plate can achieve concave 15° and convex 10°. V3.1 | 2023-06-07 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 22 / 59...
Page 24: Sidelock
Full Tile Item Sidelock Half Tile Item CB3 Half CB5 Half CB8 Half Sidelock 5.5.1How to Use the Side Lock Unlock Statue Locking Statue V3.1 | 2023-06-07 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 24 / 59...
Page 25: Add-On Protector
Half Protection Corner Protection 5.6.1Half Protection Protection on two sides: top and bottom. Step 1: Open the L-shaped protector and unlock the anchor block. V3.1 | 2023-06-07 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 25 / 59...
Page 26 Step 6: Screw the anchor with the bracket to fix the locking status. Step 7: Close the L-shaped protector to put it on working status. V3.1 | 2023-06-07 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 26 / 59...
Page 27 CB Series User Manual www.roevisual.com 5.6.2Corner Protection Protection on all sides: four corners. Four corner protectors are required for one tile. V3.1 | 2023-06-07 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 27 / 59...
Page 28 Step 2: Bolt the corner protector together with CB corner block of the carbon frame. Step 3: Mount the other three corner protectors to the tile. Step 4: Rotate the corner protectors to change the status. V3.1 | 2023-06-07 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 28 / 59...
Page 30 CB Series User Manual www.roevisual.com Put the full protector on the target position and the magnet in the protector will stick with the tile Automatically. V3.1 | 2023-06-07 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 30 / 59...
Page 31: Cables
Connect tiles in neighboring columns. Data adapter, RJ45-RJ45, V2.0 SAP: 203000S0137 Weight: 69.8 g Neutrik _ Neutrik Connectors Connect tiles in neighboring columns. V3.1 | 2023-06-07 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 31 / 59...
Page 32 5.7.3Data Cable Plug in the data cable and you feel a “click”. Press the button on the socket and plug the data cable out. V3.1 | 2023-06-07 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 32 / 59...
Page 33: Package
Figure 6- 1. Standard CB Series Flight Case Dimensions 6.1.2Labels on the Flight Case Warning: Indoor use. Warning: Keep the flight case upwards. Warning: Maximum stack 3 flight cases. Warning: Fragile V3.1 | 2023-06-07 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 33 / 59...
Page 34: Quick-Start Guide
(1) The adjusting range of the adjustment wheel is 18.9mm (vertical) and 168mm (horizontal) respectively. (2) Please note that there is a 10 mm gap between neighboring hanging bars. V3.1 | 2023-06-07 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 34 / 59...
Page 35 (3) Install tiles on hanging bars. Keep panels at an angle to avoid damage to LEDs when magnets attract panels. (4) Before installing more panels, fix hanging bars and tiles with locking plates. V3.1 | 2023-06-07 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 35 / 59...
Page 36 CB Series User Manual www.roevisual.com (5) Finish installation. (6) It is recommended to uninstall from right to left when uninstall tiles. V3.1 | 2023-06-07 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 36 / 59...
Page 37: Stacking System
If it’s even rows, there should be used at both ends. (2) Assemble stacking bars with base trusses. V3.1 | 2023-06-07 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 37 / 59...
Page 39 (7) Repeat Step 2 to 5 until installing all stacking systems and keep them at the same horizontal level through the adjustment wheel. V3.1 | 2023-06-07 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 39 / 59...
Page 40 Notes: (1) The adjusting range of the feet (stacking bar) is 48mm. (2) The rear bridge should be used in even rows. V3.1 | 2023-06-07 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 40 / 59...
Page 41: Ballast Calculation
Please download the ballast calculator at https://www.roevisual.com/news/news-blog/build-your-led- screen-safe-using-the-roe-visual-ballast-calculator.html or contact the customer service. V3.1 | 2023-06-07 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 41 / 59...
Page 42: Cabling Instruction
CB Series User Manual www.roevisual.com 7.4 Cabling Instruction General view of LED tiles cabling schematic. V3.1 | 2023-06-07 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 42 / 59...
Page 43 (500 W) (650 W) 110V 220V 240V Note: The number in cabling is in line with that of in cables. (See 5.7 Cables.) V3.1 | 2023-06-07 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 43 / 59...
Page 44 (2) The cascade control data cables should not be more than 100 meters. When it's over 100 meters, please switch to fiber cables. V3.1 | 2023-06-07 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 44 / 59...
Page 45: Control System
CB Series User Manual www.roevisual.com Control System ROE provides three different control systems: Megapixel VR Helios, Brompton Tessera and ROE Evision. For more information about system operation, please check the corresponding control system user manual. 1. ROE Evision Control System User Manual 2.
Page 46: Cb Corner Tile
The side component Note: The CB 90° Corner is redesigned, which is different from that of standard CB tiles. V3.1 | 2023-06-07 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 46 / 59...
Page 47 Use the 90-degree connection block to connect tiles. The connection block with two screws is used to connect two tiles. Similarly, the four-screw connection block connects four tiles. The installation location of the screws is shown in the picture. V3.1 | 2023-06-07 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 47 / 59...
Page 48: Connect With The Conventional Carbon
CB tiles by locking plates. Standard CB Side Component CB 90° Corner tile Locking Plate V3.1 | 2023-06-07 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 48 / 59...
Page 49: Accessories Of The Cb Corner
Transformation of hanging bar Step 1: Remove the screw of the block. Step 2: Take out the block and rotate it as shown below. V3.1 | 2023-06-07 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 49 / 59...
Page 50 Step 5: Finish. Note: The transformed hanging bar can be connected with standard locking plate and the hanging bar also compatible with standard Carbon tile. V3.1 | 2023-06-07 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 50 / 59...
Page 51: Service Manual
It should never be dripping-wet. Use gentle pressure to wipe only the smudged areas. Immediately use a clean, dry microfiber cloth to dry the screen. V3.1 | 2023-06-07 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 51 / 59...
Page 52: Replacing The Hub Board
10.2.1 Remove all the modules. Remove 8 screws on each module as shown in the image below. Remember to mark the module’s position on the panel. (4.8±0.3kgf.cm) V3.1 | 2023-06-07 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 52 / 59...
Page 53 Unplug the power cable and signal cable (3 in total) on the hub board in the position shown below, remove the power box. V3.1 | 2023-06-07 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 53 / 59...
Page 54 Loosen the 4 screws to release the power connector on the hub board and remove the power connector. (2.5±0.3kgf.cm) Remove 8 screws on the hub board. (3.8±0.5kgf.cm) V3.1 | 2023-06-07 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 54 / 59...
Page 55 Remove 18 screws in the red circle as shown in the image below. (4.8±0.3kgf.cm) Remove 10 screws in the green circle as shown in the image above. Remove the frame. (4.8±0.3kgf.cm) V3.1 | 2023-06-07 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 55 / 59...
Page 56 CB Series User Manual www.roevisual.com 10.2.4 Take out the hub board Remove 2 screws shown in the image below. (2.5±0.3kgf.cm) V3.1 | 2023-06-07 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 56 / 59...
Page 57 CB Series User Manual www.roevisual.com Flip the frame and remove the 3 screws shown in the image below. (3.8±0.5kgf.cm) V3.1 | 2023-06-07 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 57 / 59...
Page 58 Use a crowbar to lift the dust plug out. Remove the dust plug. Take out the hub board from the position where the dust plug is removed and replace a new one. V3.1 | 2023-06-07 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 58 / 59...
Page 59: Revision History
Update Warranty Policy, Contact Information, System 2023/03/28 Phoenix Requirements, Specifications, Control System, Cleaning Tiles 2023/05/30 Update Contact Information, Spec. Phoenix 2023/06/07 Update Accessories, Cables Phoenix V3.1 | 2023-06-07 | Copyright © 2023 ROE Visual Co., Ltd. All Rights Reserved. 59 / 59...
